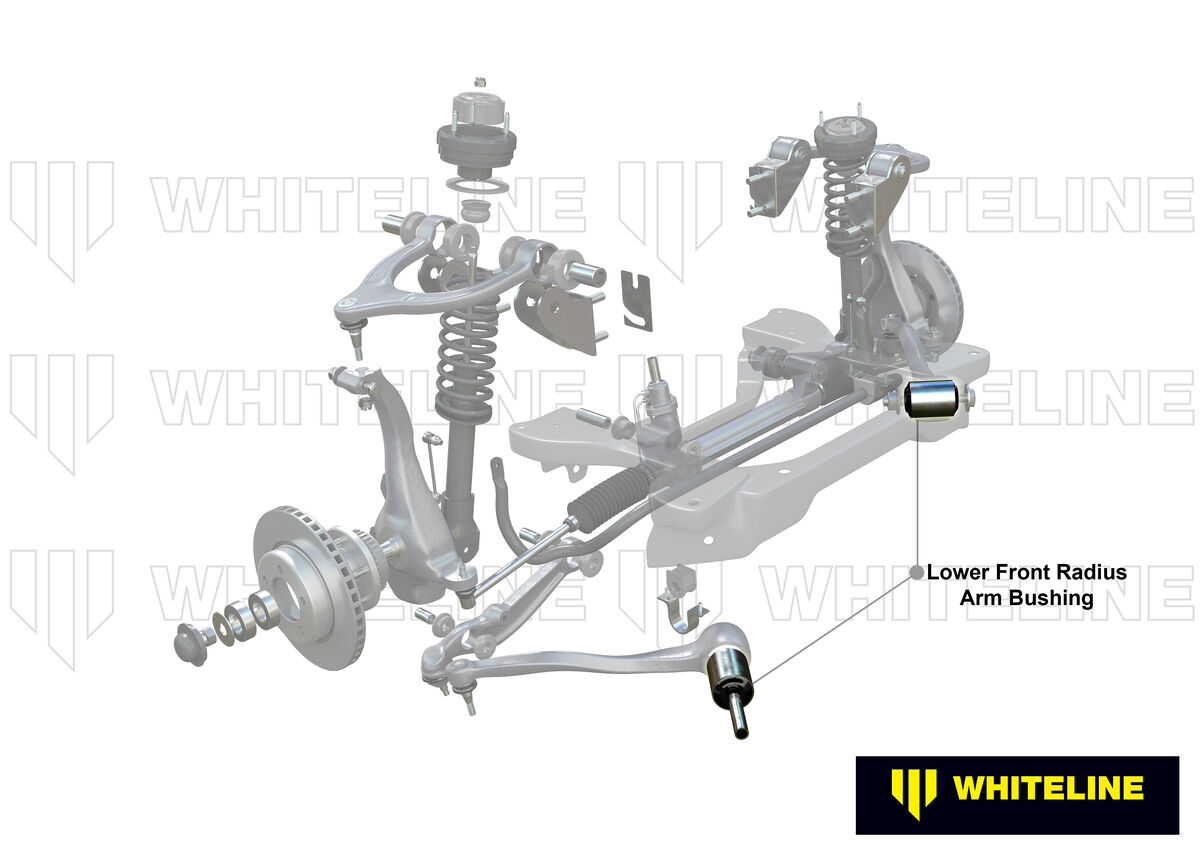

Whiteline Front Radius Arm Lower - Bushing Kit to Suit Mazda6 GG, GY

SKU: W53394

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 62.2 mm
ID (B) 25.3 mm
Length (C) 75.5 mm
Flange Thickness (D) 12 mm
Flange OD (E) 56 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.2x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 62.2
ID (B) 25.3
Length (C) 75.5
FL (D) 12
FLOD (E) 56
C/Tube Qty 2
C/Tube Size 25.4x12.2x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.277kg2.82lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53394

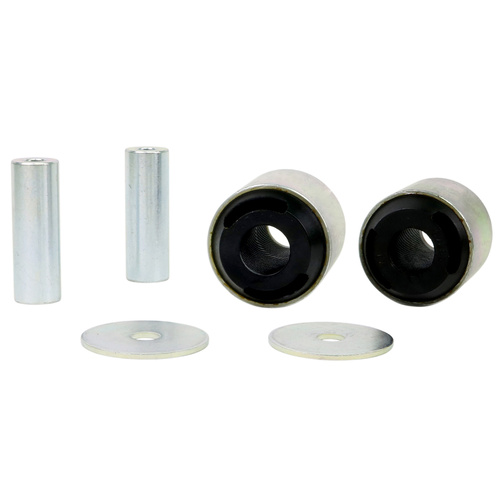

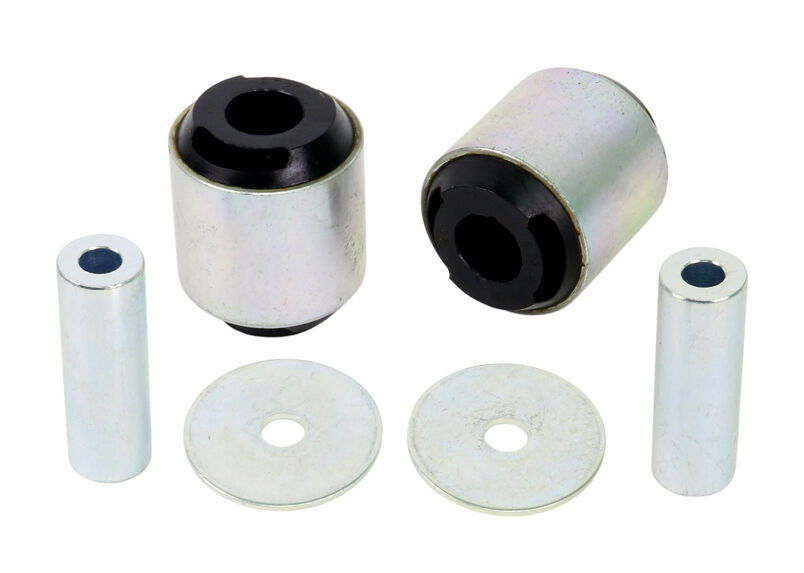

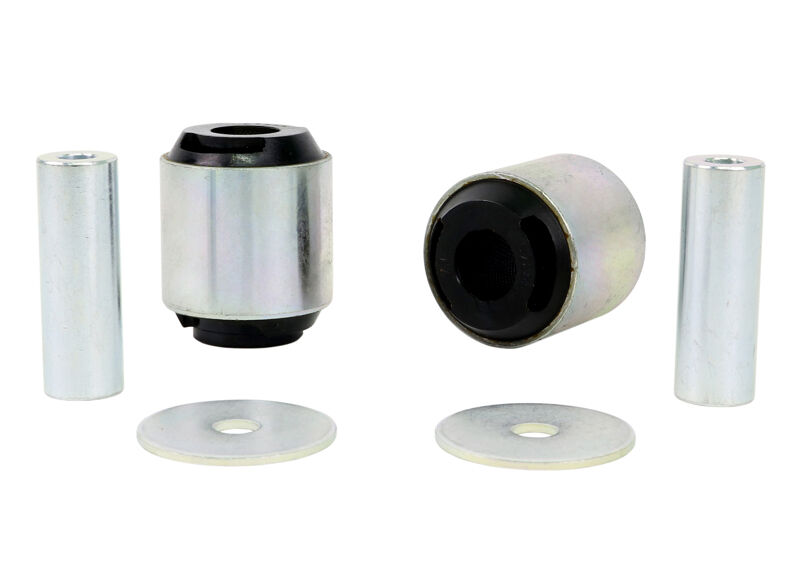

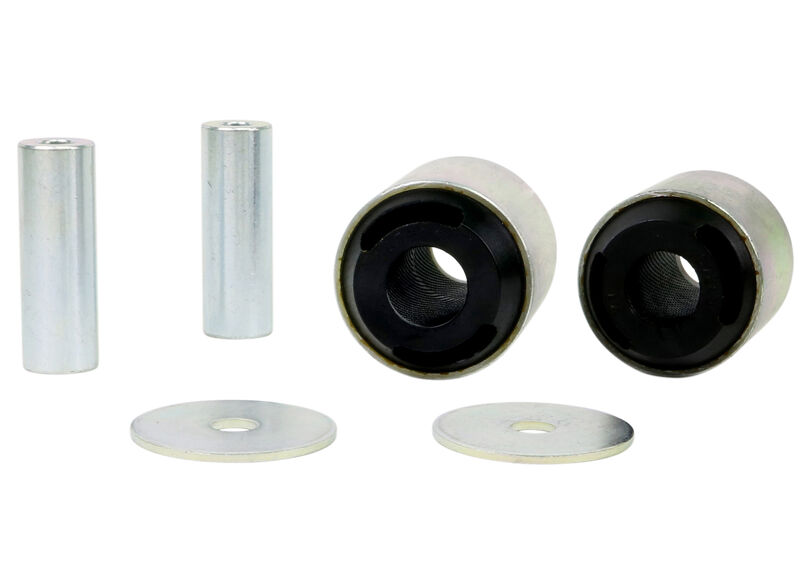

Components Per2 Shell Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 2 Washers
EAN9319924380169
  • Lifetime Warranty
Brand Whiteline
SKU W53394
Unit Of Measure Kit
