Whiteline Front Radius Arm Lower - Bushing Kit to Suit Ford Falcon FG, FGX and FPV

SKU: W53310

Benefit Note: Not many know but worn suspension bushings have an effect on braking performance. In particular these bushings tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Whiteline synthetic elastomer bushings that offer long lasting durability for a safer more predictable vehicle.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 72 mm
ID (B) 24 mm
Length (C) 100 mm
Flange Thickness (D) 11 mm
Flange OD (E) 40 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x14.2x99 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 72
ID (B) 24
Length (C) 100.0
FL (D) 11
FLOD (E) 40
C/Tube Qty 2
C/Tube Size 25.4x14.2x99
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.63kg3.59lbs
Length25cm9.84"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUW53310

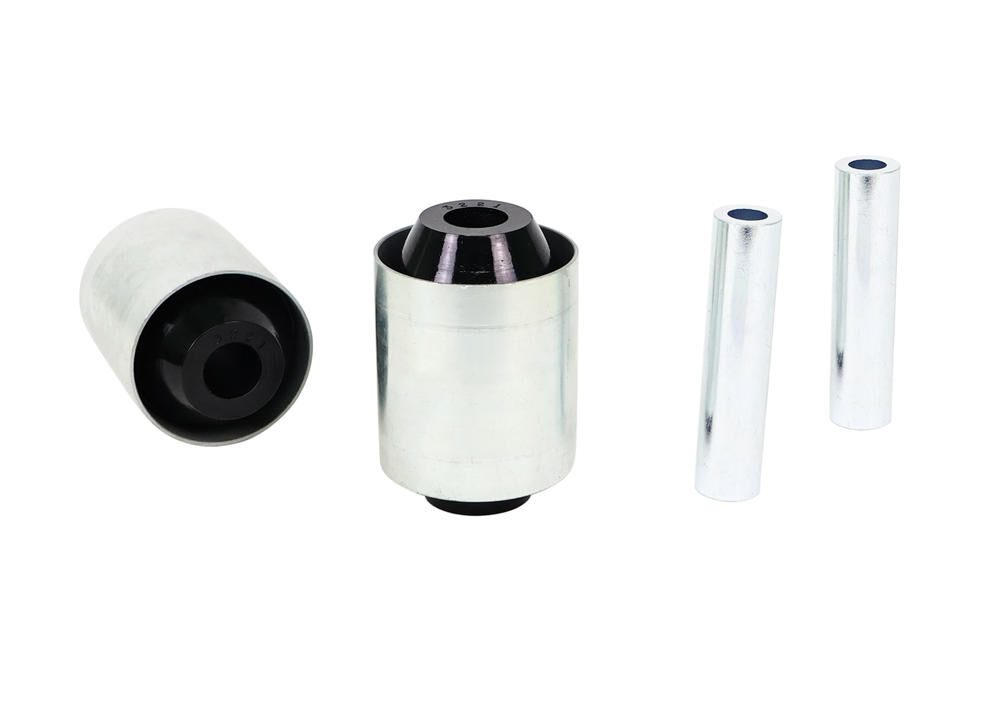

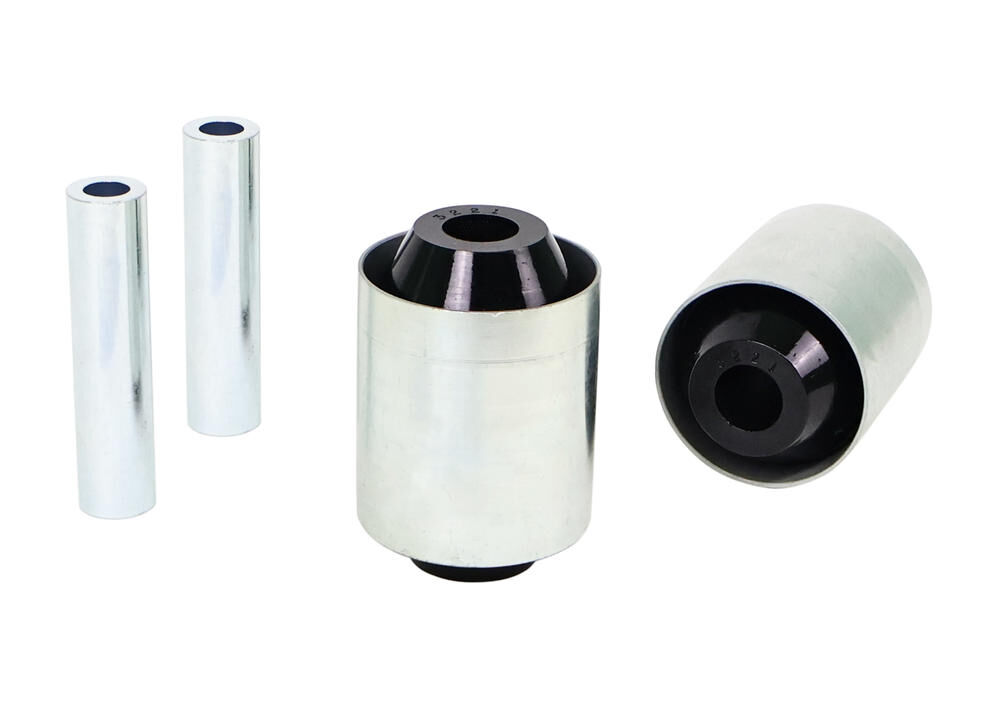

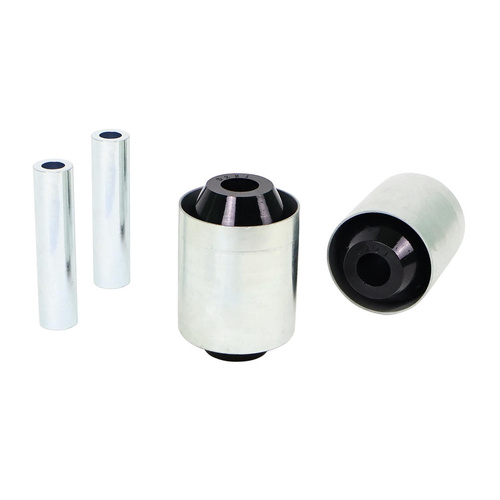

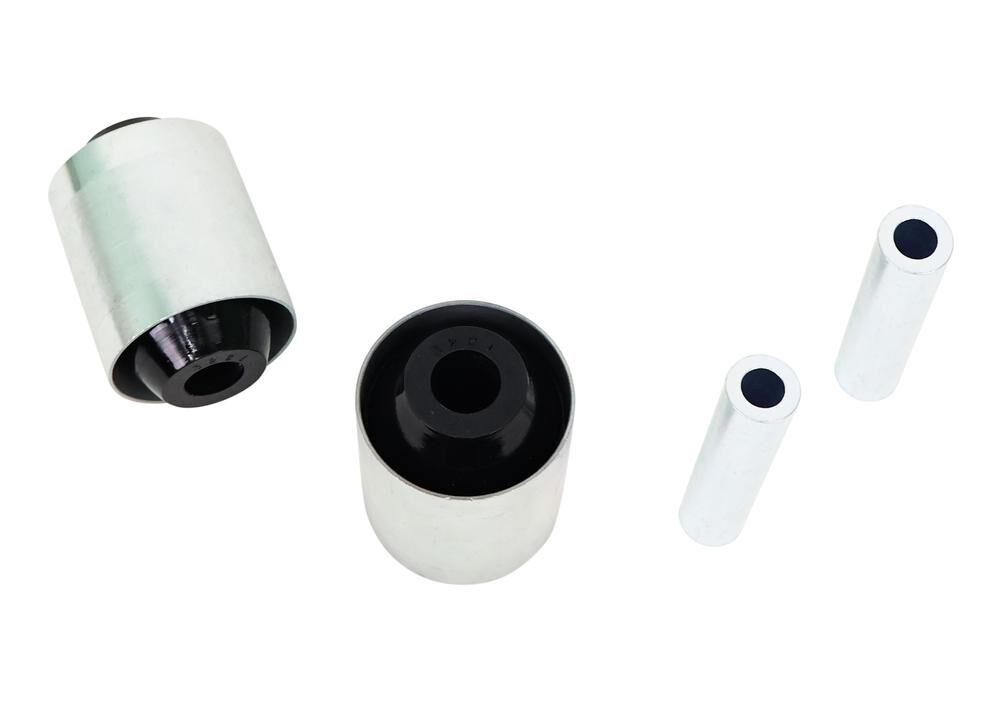

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924376445
  • Lifetime Warranty
Brand Whiteline
SKU W53310
Unit Of Measure Kit
