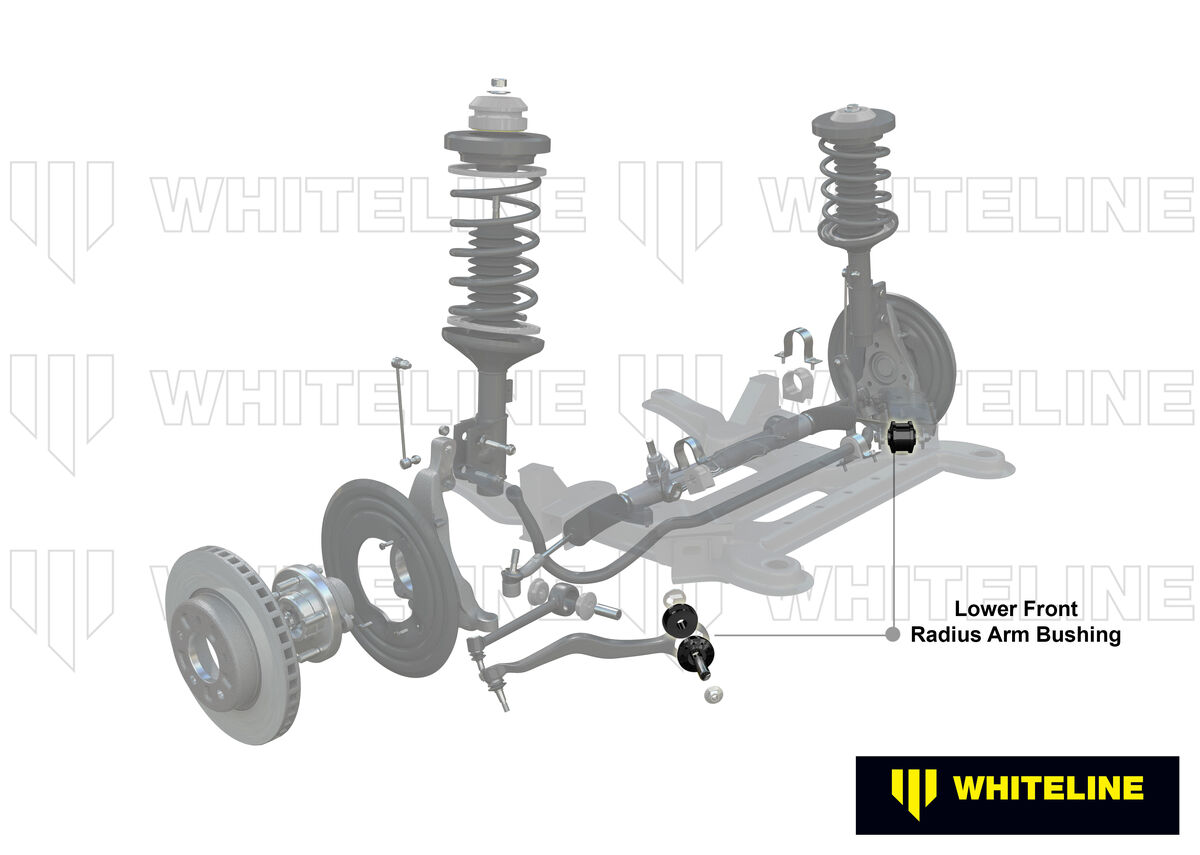

Whiteline Front Radius Arm Lower - Bushing Kit Double Offset to Suit Holden Commodore VE, VF and HSV

SKU: W83172

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 69.8 mm
ID (B) 25.3 mm
Length (C) 81.5 mm
Flange Thickness (D) 8.8 mm
Flange OD (E) 41 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x12.2x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

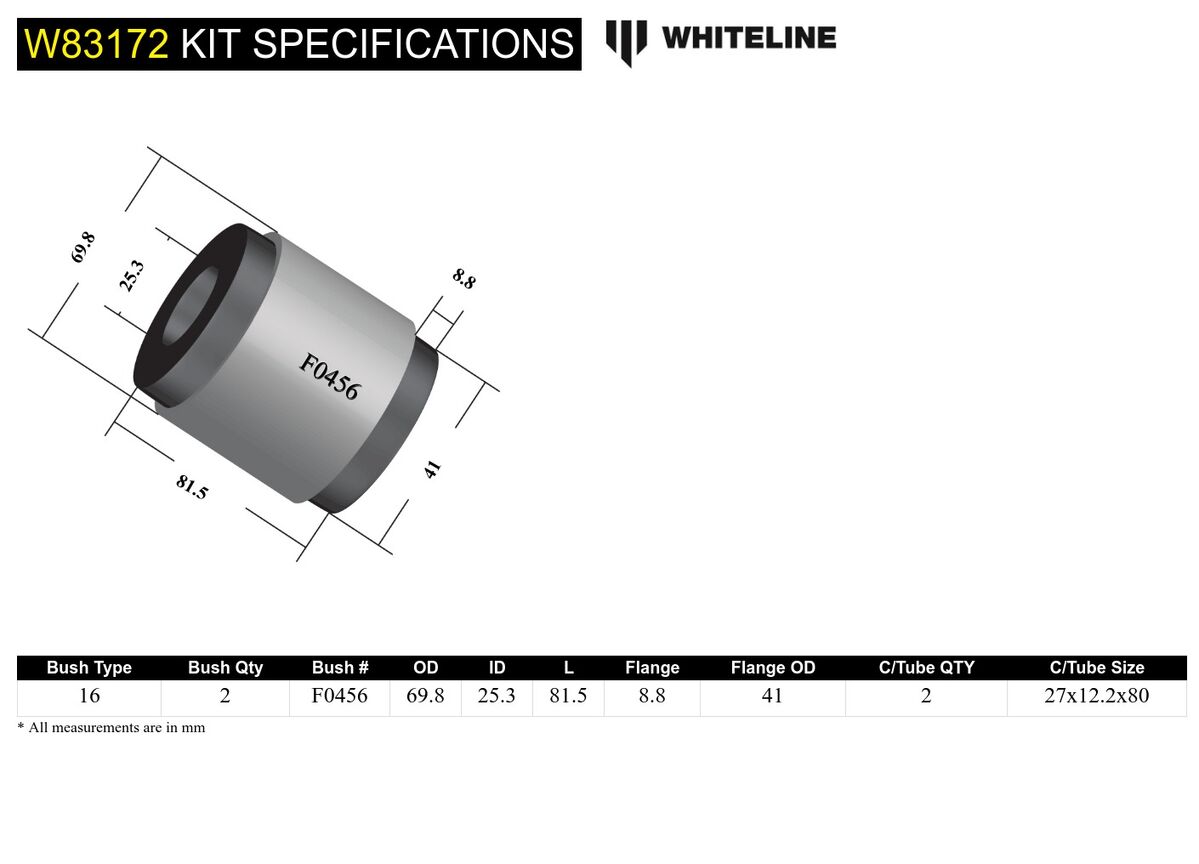

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 69.8
ID (B) 25.3
Length (C) 81.5
FL (D) 8.8
FLOD (E) 41
C/Tube Qty 2
C/Tube Size 27x12.2x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.58kg3.48lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW83172

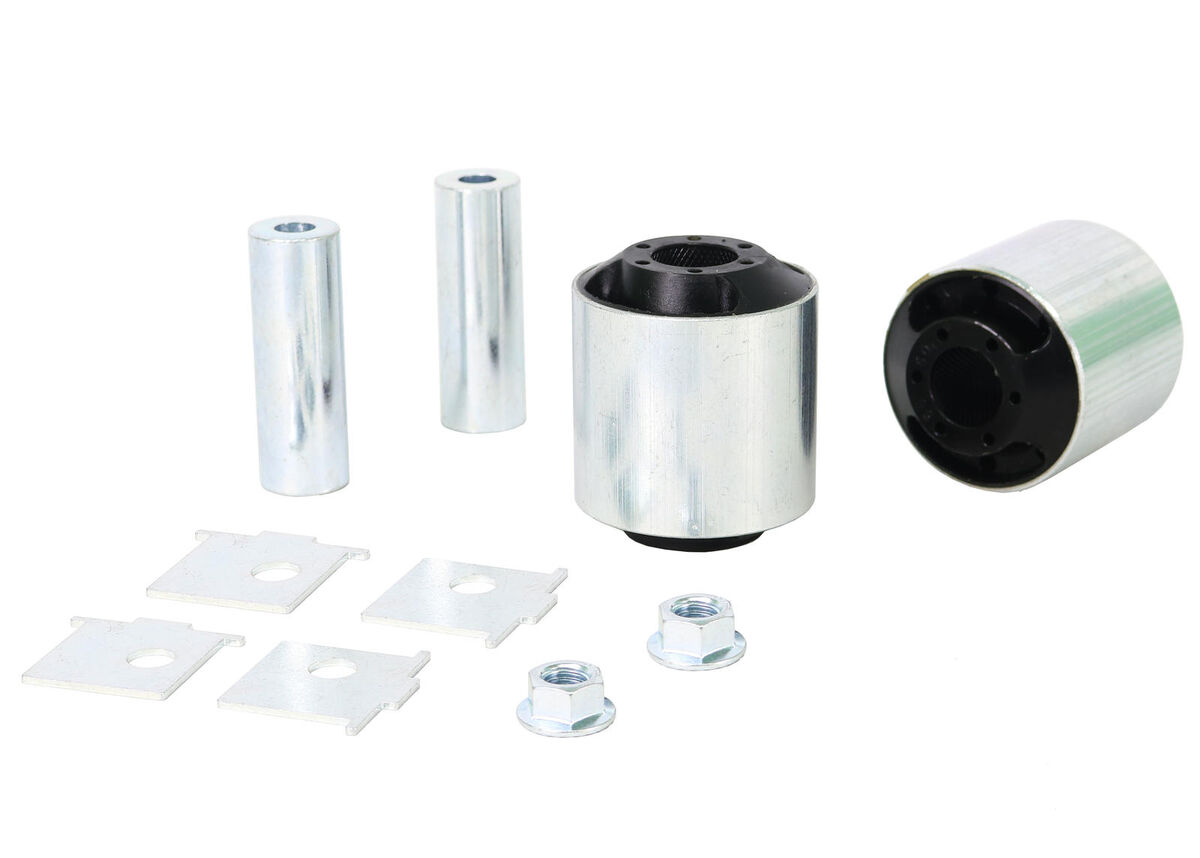

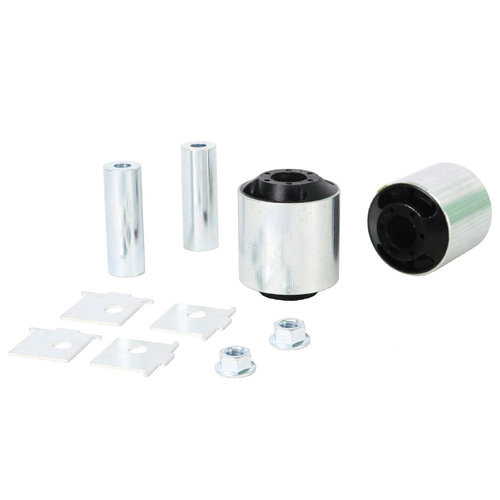

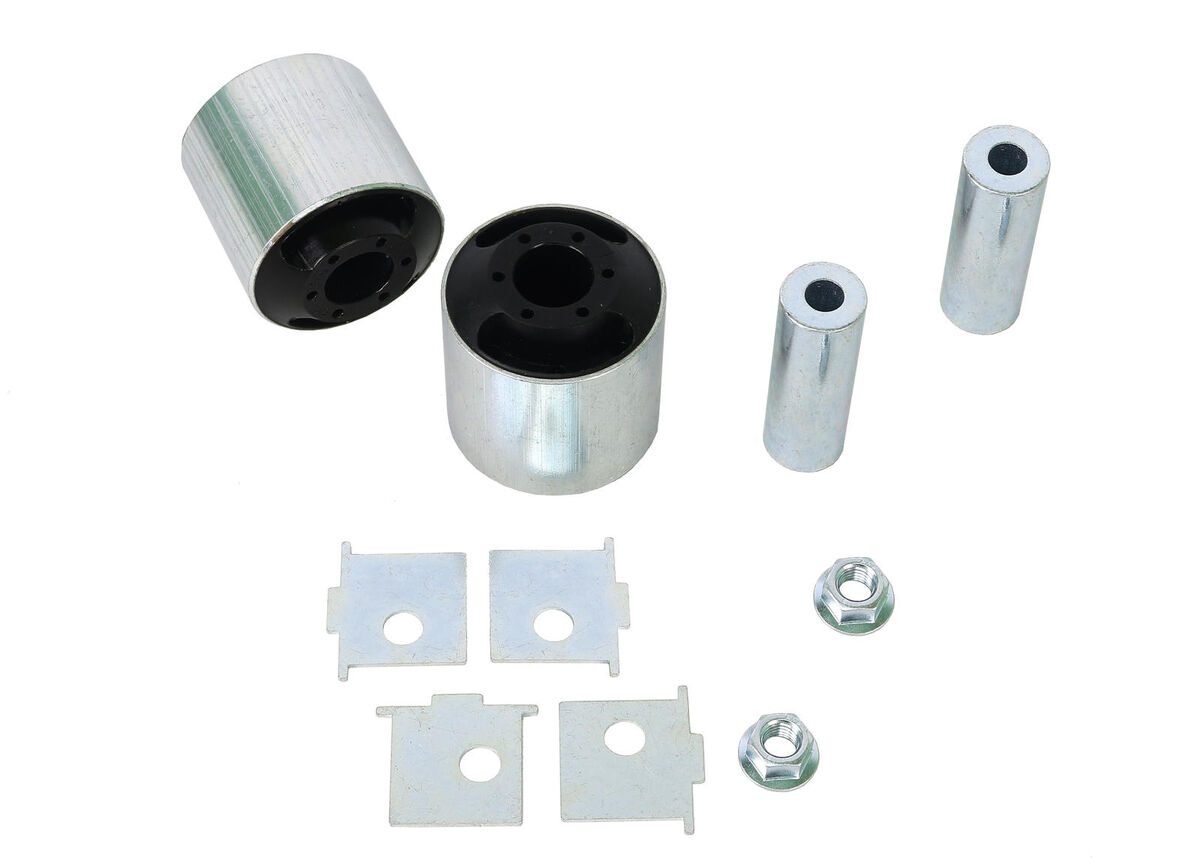

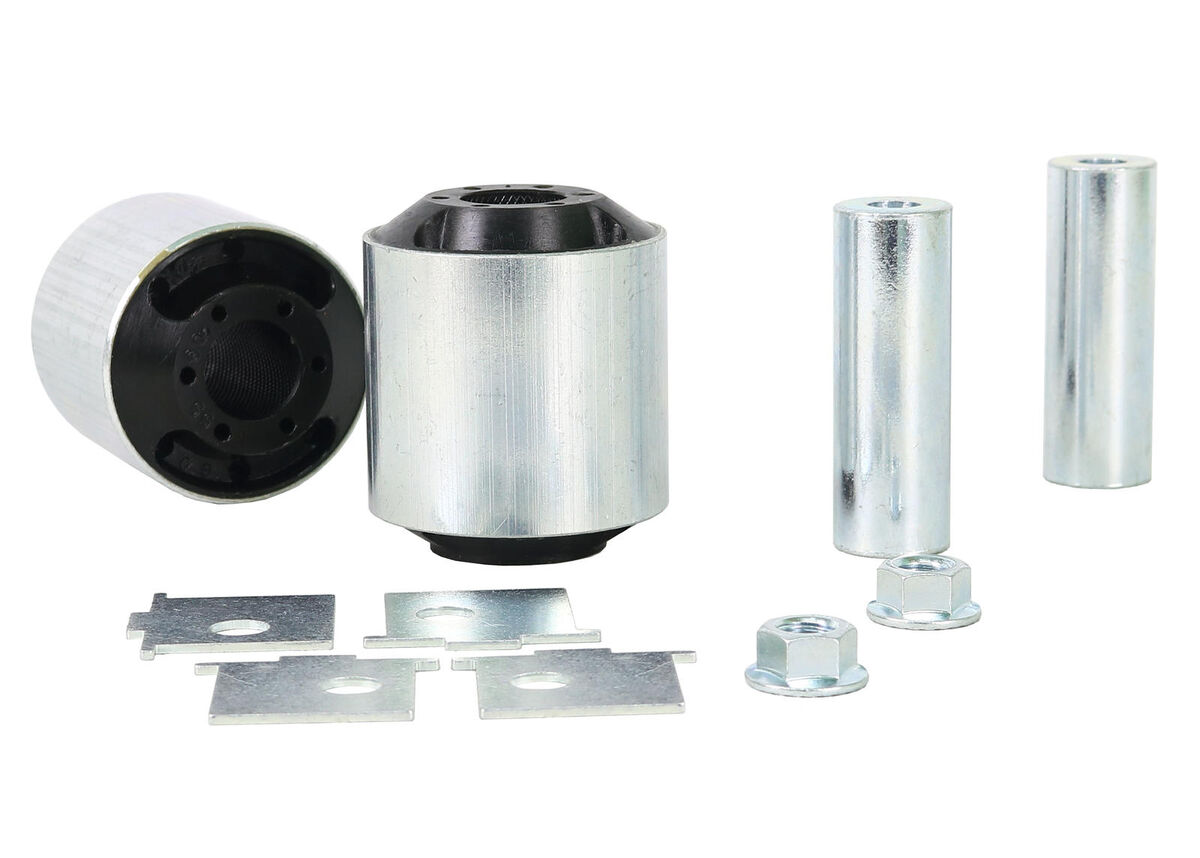

Components Per2 Shell Bushings, 2 Tubes, 4 Washers, 2 Nuts
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 4 Washers, 2 Nuts
EAN9319924357574
  • Lifetime Warranty
Brand Whiteline
SKU W83172
Unit Of Measure Kit
