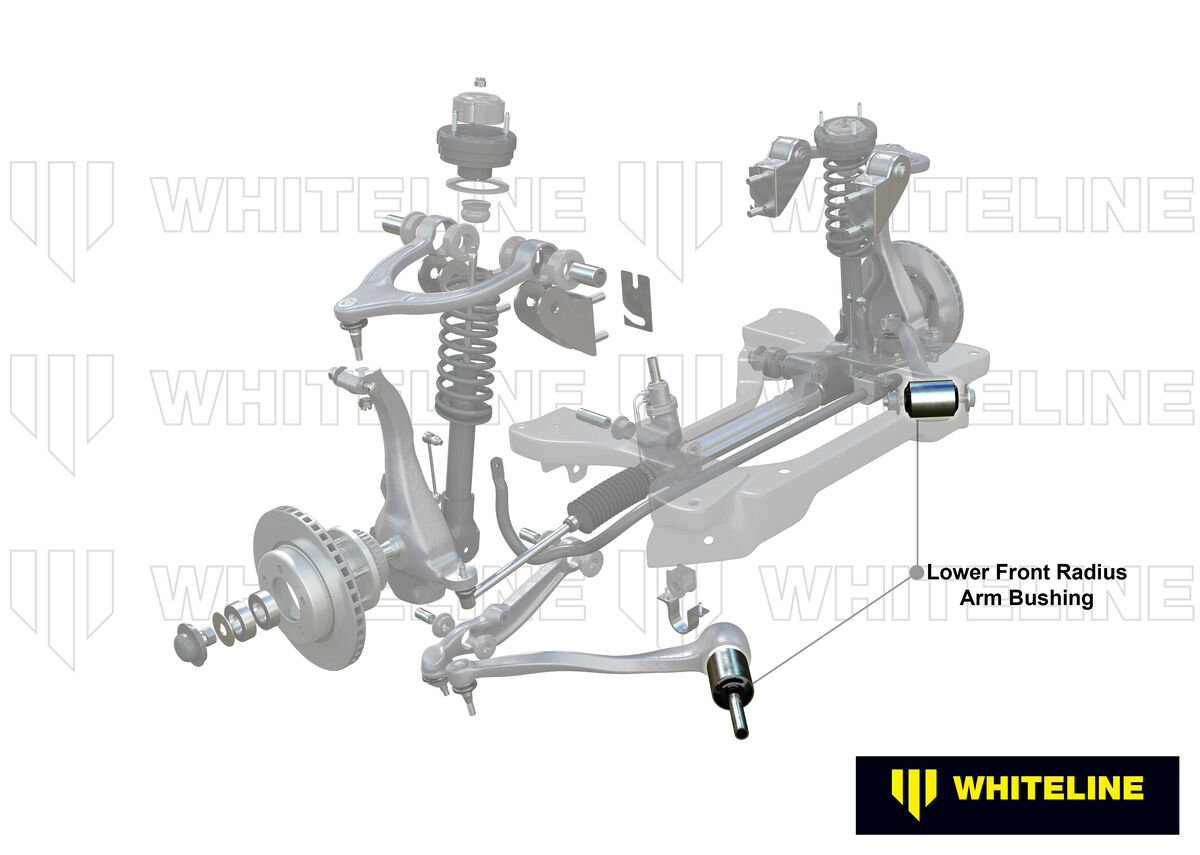

Whiteline Front Radius Arm Lower - Bushing Kit Double Offset to Suit Mazda6 GG, GY

SKU: W53395

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 62.2 mm
ID (B) 25.3 mm
Length (C) 75.5 mm
Flange Thickness (D) 12 mm
Flange OD (E) 56 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.5x76 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 62.2
ID (B) 25.3
Length (C) 75.5
FL (D) 12
FLOD (E) 56
C/Tube Qty 2
C/Tube Size 25.4x12.5x76
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.258kg2.77lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53395
Components Per2 Shell Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 2 Washers
EAN9319924380176
  • Lifetime Warranty
Brand Whiteline
SKU W53395
Unit Of Measure Kit
