Whiteline Front Radius Arm Lower - Bushing Kit Double Offset Caster Kit to Suit Audi A4-A8, S4-S8 Fwd/Awd

SKU: KCA422

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 64.7 mm
ID (B) 22.7 mm
Length (C) 80 mm
Flange Thickness (D) 12 mm
Flange OD (E) 49 mm
C/Tube Quantity 2
C/Tube ODxIDxL 24x12.5x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 64.7
ID (B) 22.7
Length (C) 80.0
FL (D) 12
FLOD (E) 49
C/Tube Qty 2
C/Tube Size 24x12.5x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.087kg2.4lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA422

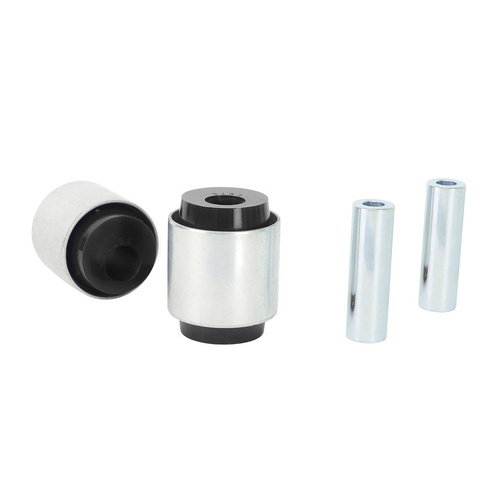

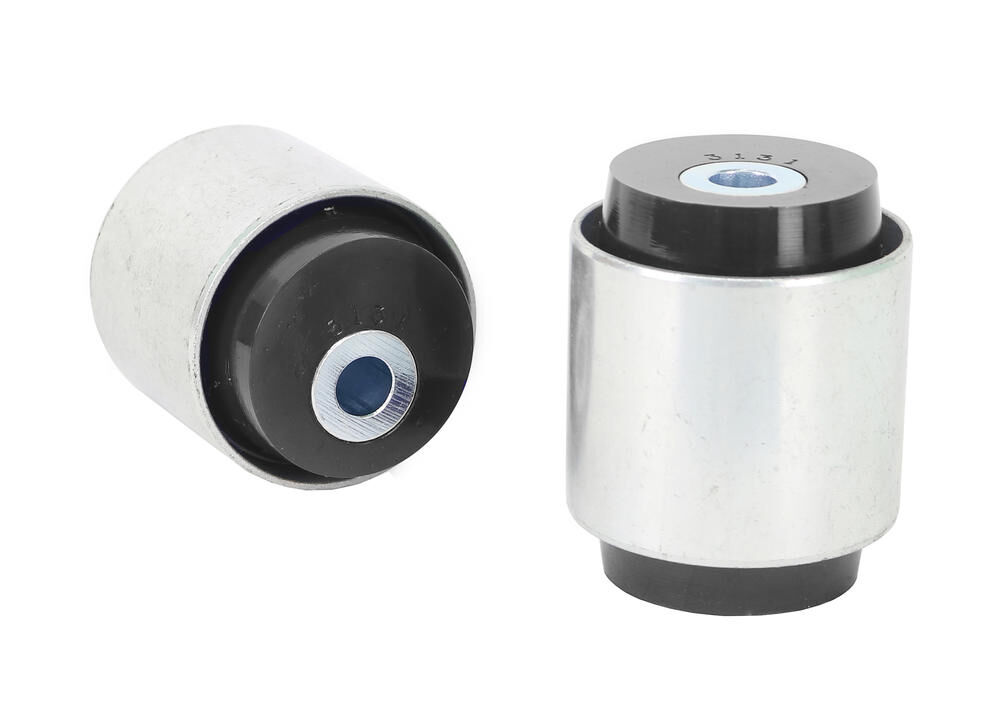

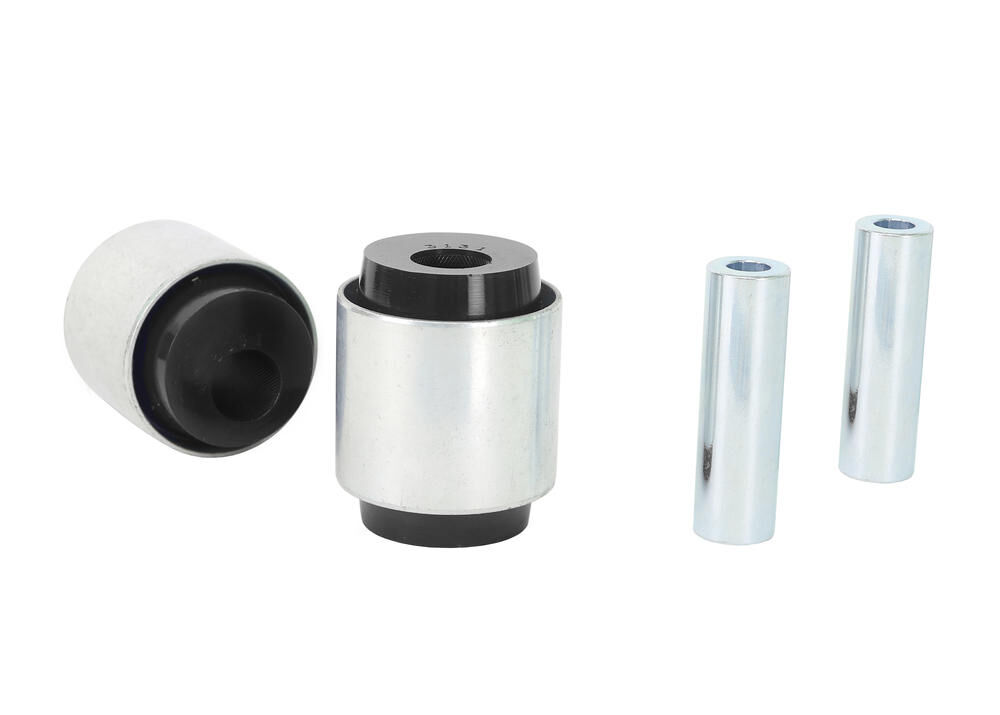

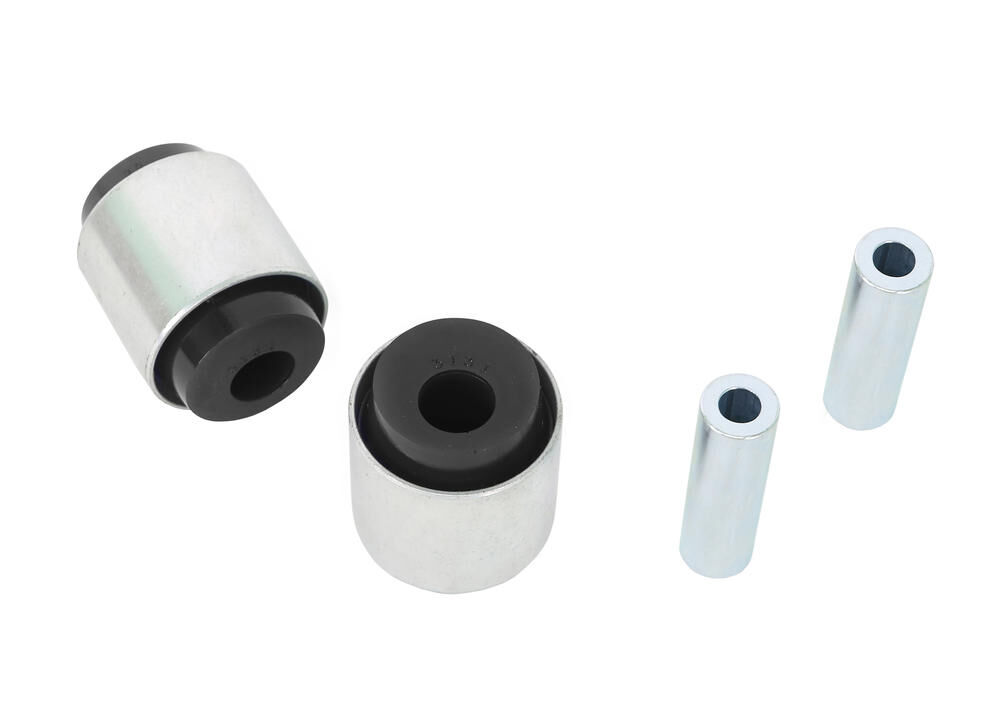

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924382989
  • Lifetime Warranty
Brand Whiteline
SKU KCA422
Unit Of Measure Kit
