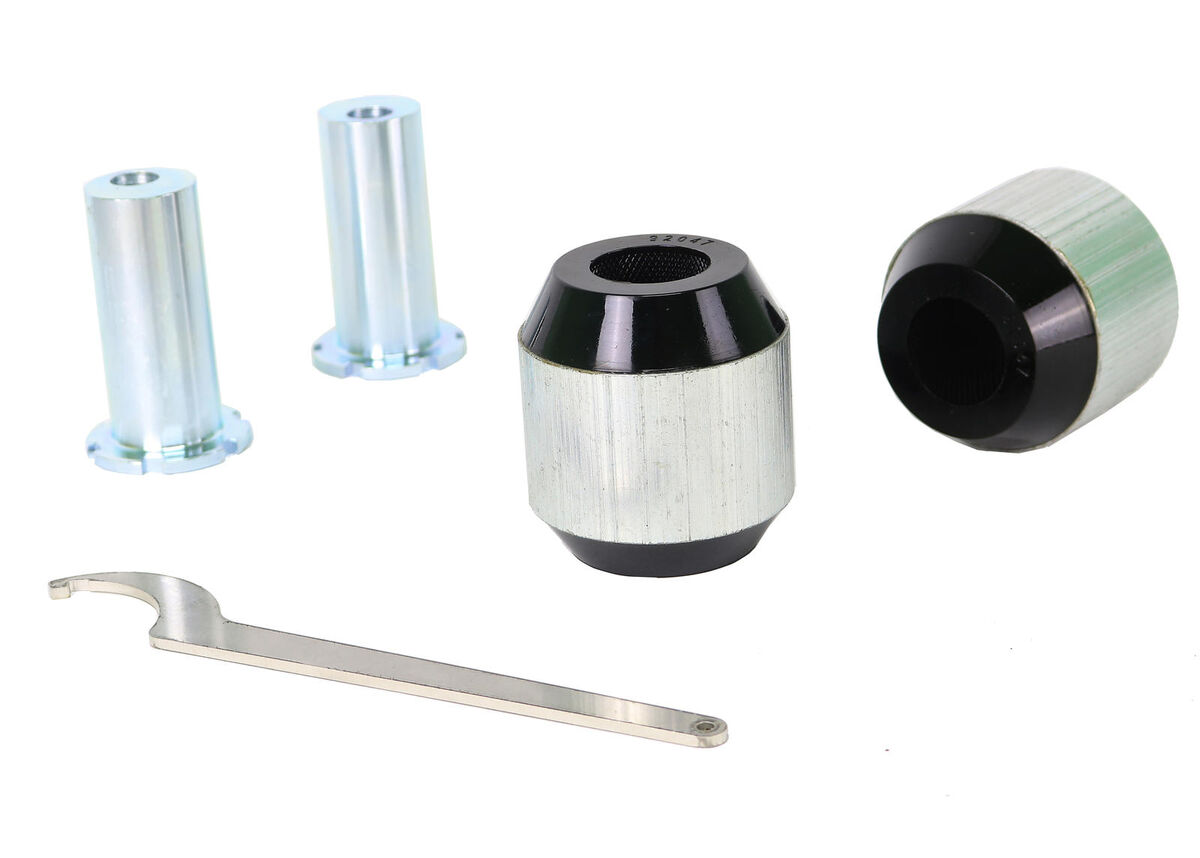

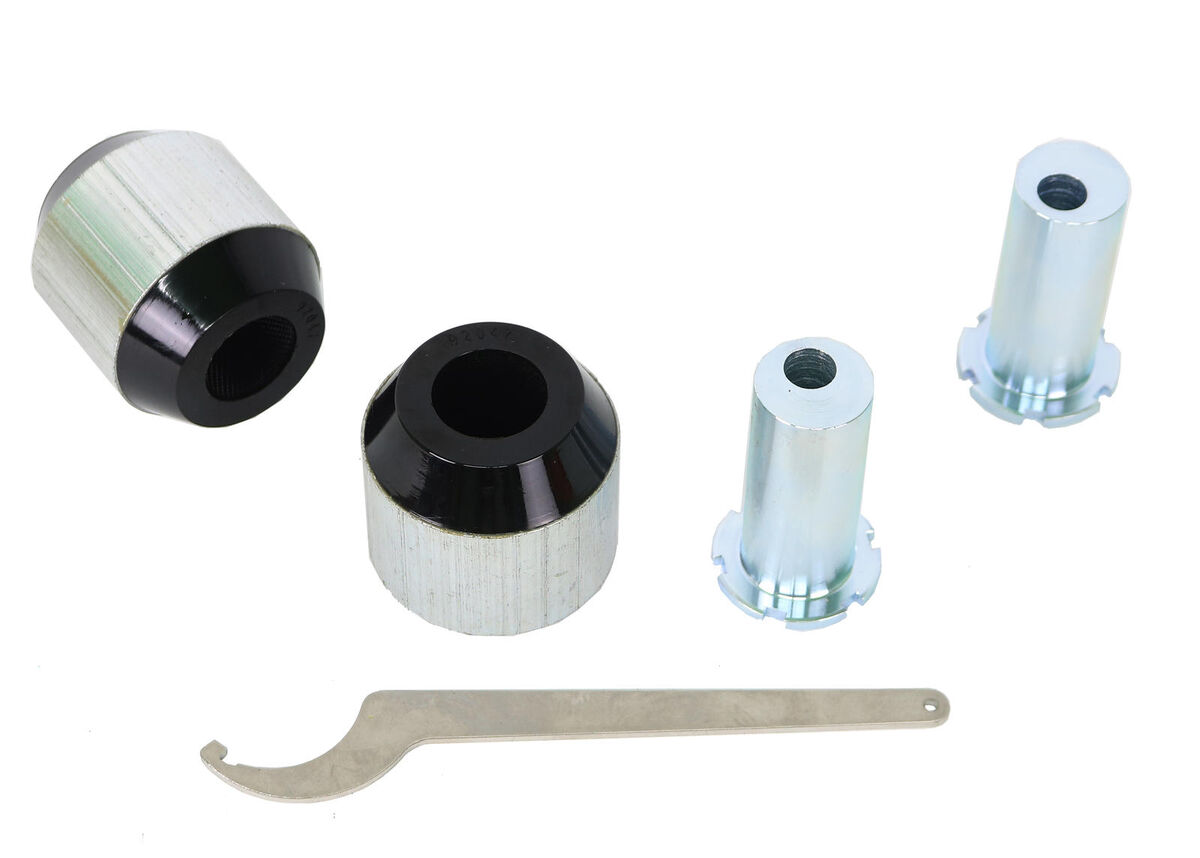

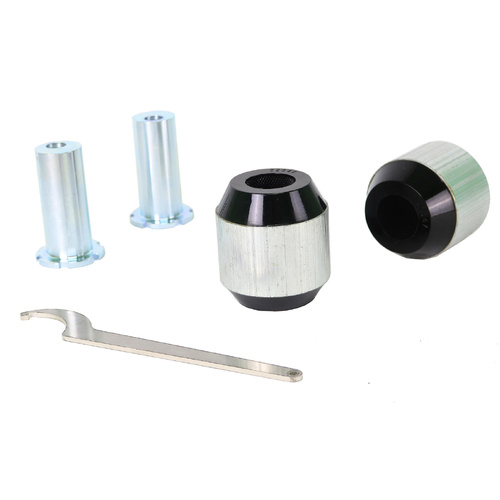

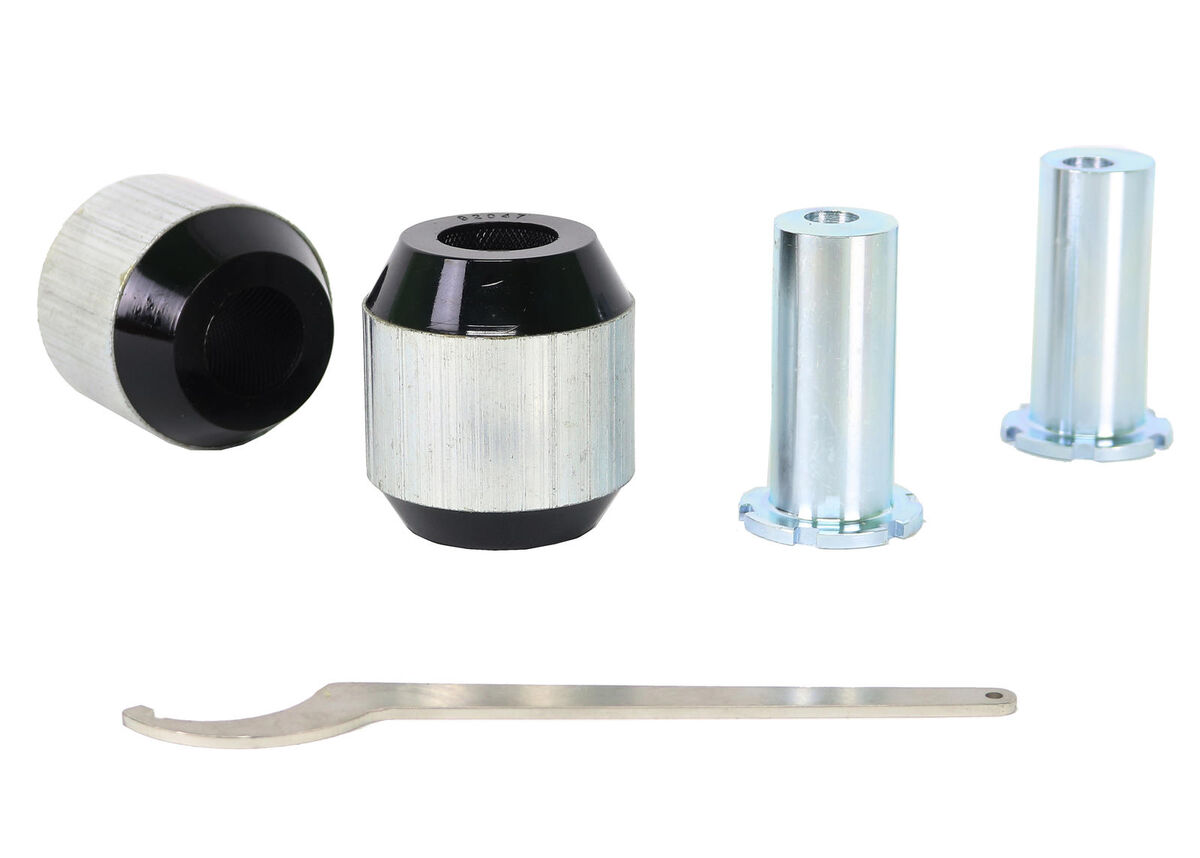

Whiteline Front Radius Arm Lower - Bushing Double Offset Caster Kit to Suit Kia Stinger CK incl GT

SKU: KCA500

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 70 mm
ID (B) 31.6 mm
Length (C) 76 mm
Flange Thickness (D) 17.3 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 32x14.2x80 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 70
ID (B) 31.6
Length (C) 76.0
FL (D) 17.3
FLOD (E)
C/Tube Qty 2
C/Tube Size 32x14.2x80
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.6kg3.53lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA500
Components Per2 Bushings, 2 Tubes, 1 Tool
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes, 1 Tool
EAN9319924471294
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA500
Unit Of Measure Kit
