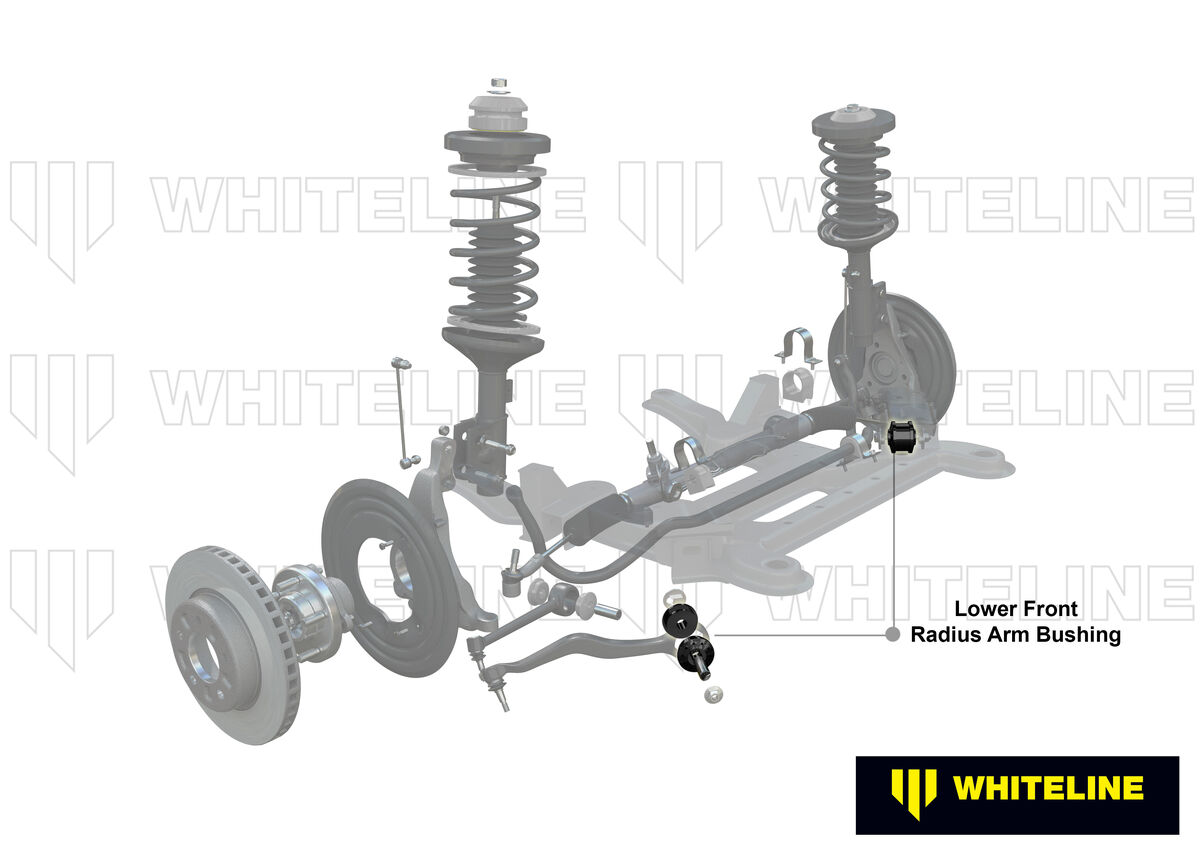

Whiteline Front Radius Arm Lower - Bushing Double Offset Caster Kit to Suit Ford Mustang S550 & S650

SKU: KCA486

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 72.2 mm
ID (B) 32 mm
Length (C) 84.2 mm
Flange Thickness (D) 21.4 mm
Flange OD (E) 50 mm
C/Tube Quantity 2
C/Tube ODxIDxL 32x16.3x88.4 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 72.2
ID (B) 32
Length (C) 84.2
FL (D) 21.4
FLOD (E) 50
C/Tube Qty 2
C/Tube Size 32x16.3x88.4
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.5kg1.1lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA486

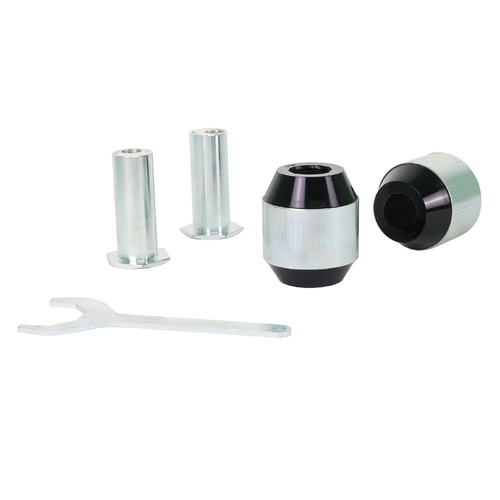

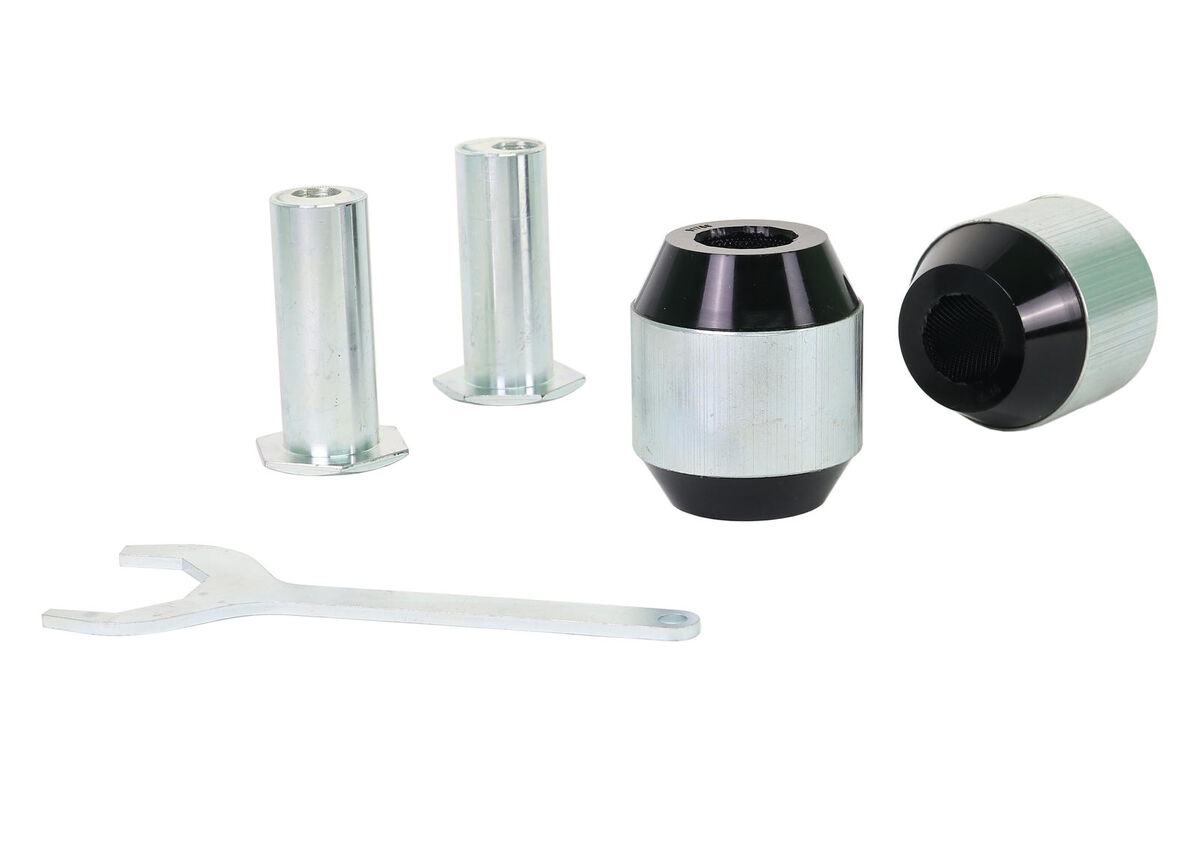

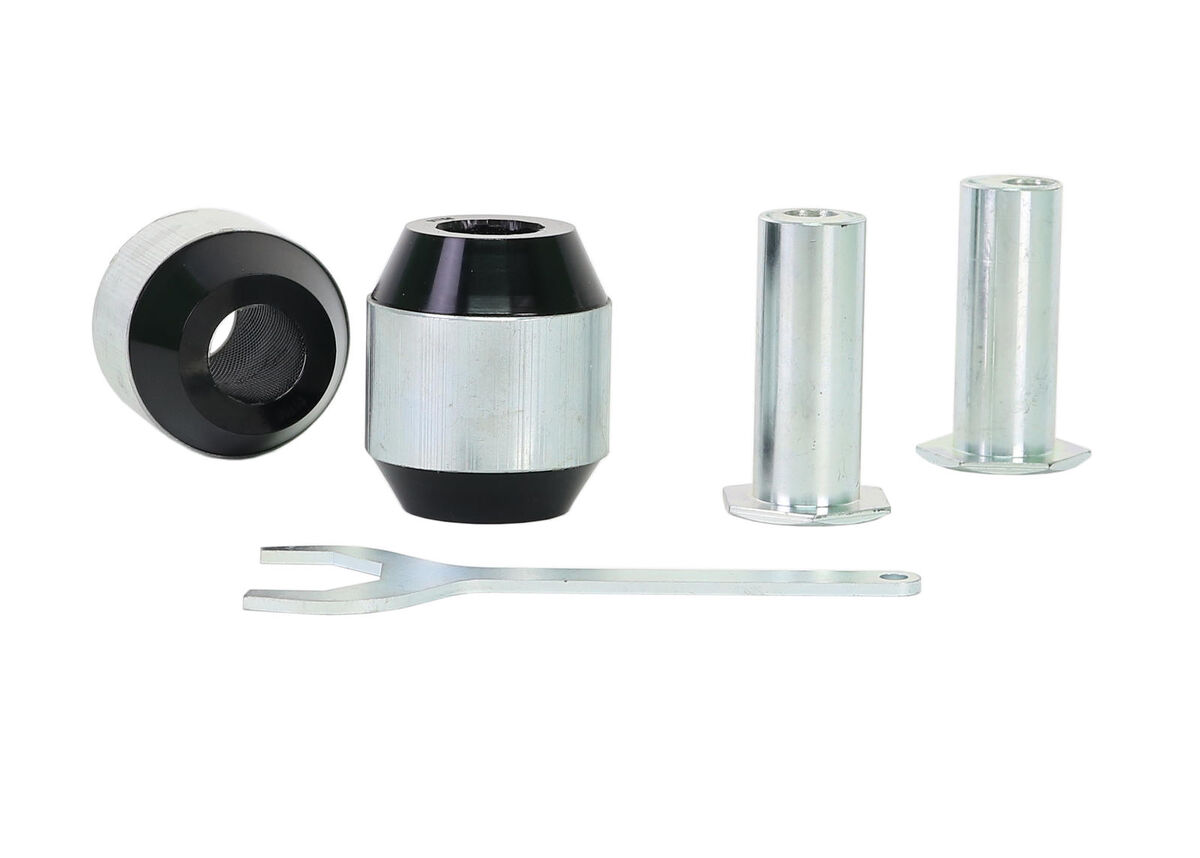

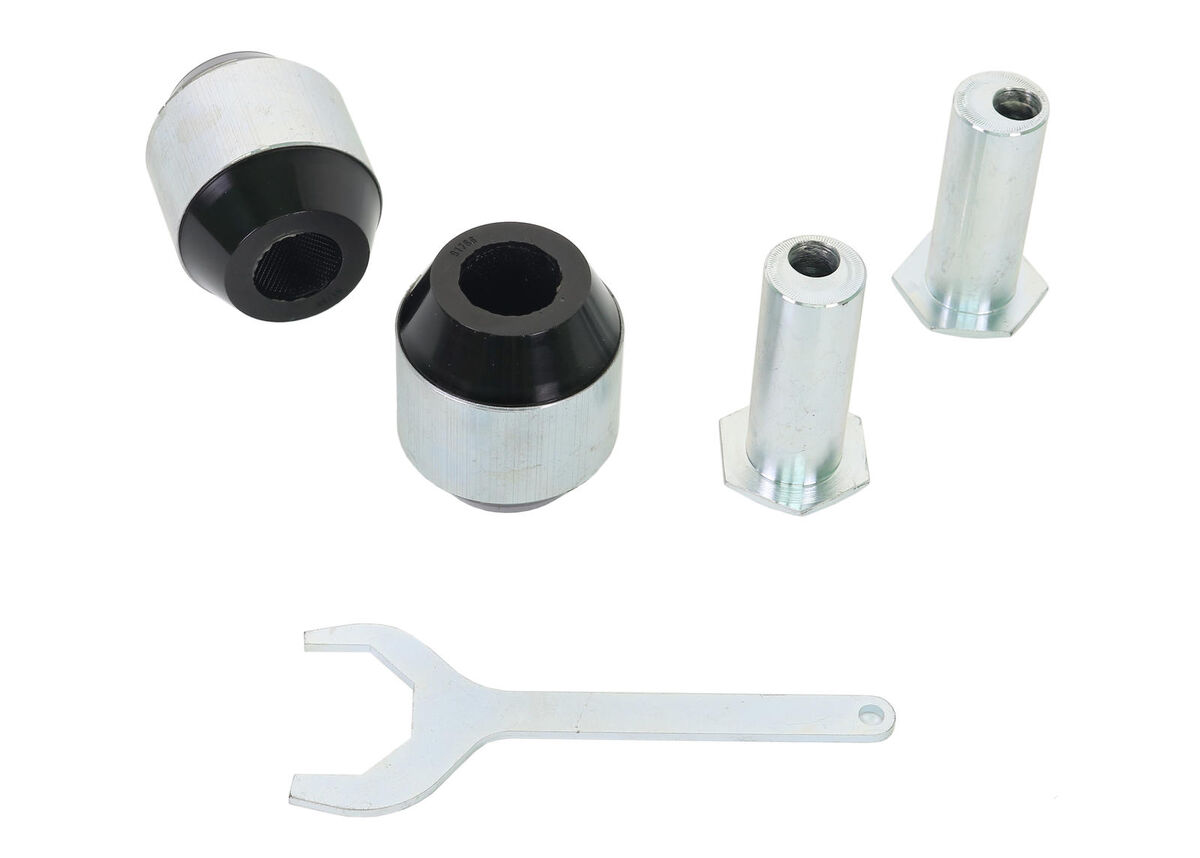

Components Per2 Shell Bushings, 2 Tubes, 1 Tool
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes, 1 Tool
EAN9319924463152
  • Lifetime Warranty
Brand Whiteline
SKU KCA486
Unit Of Measure Kit
