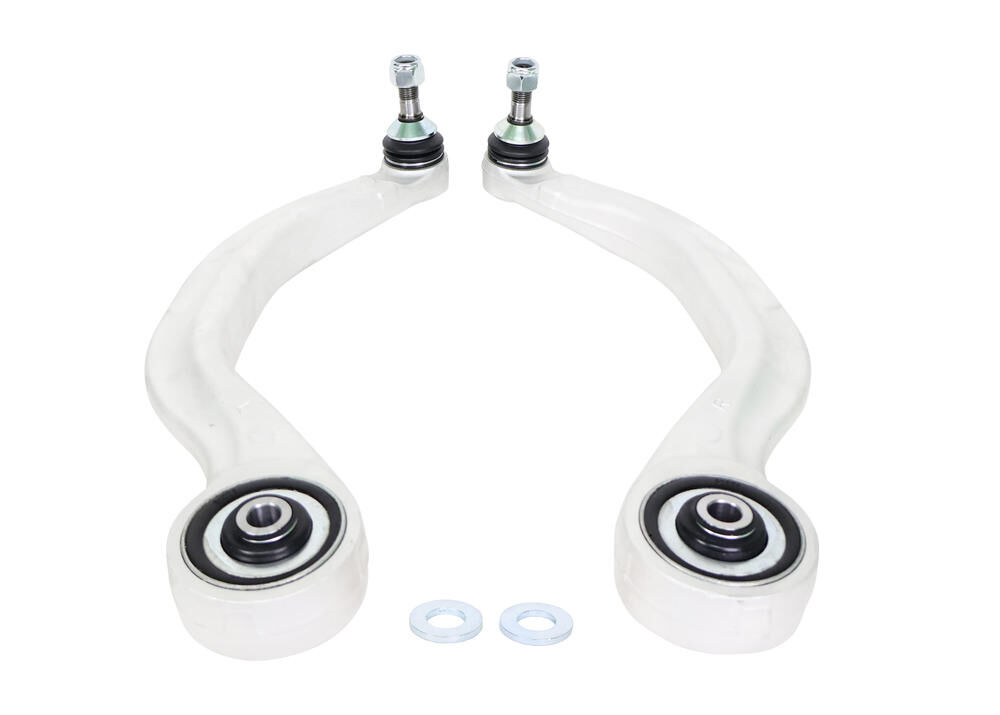

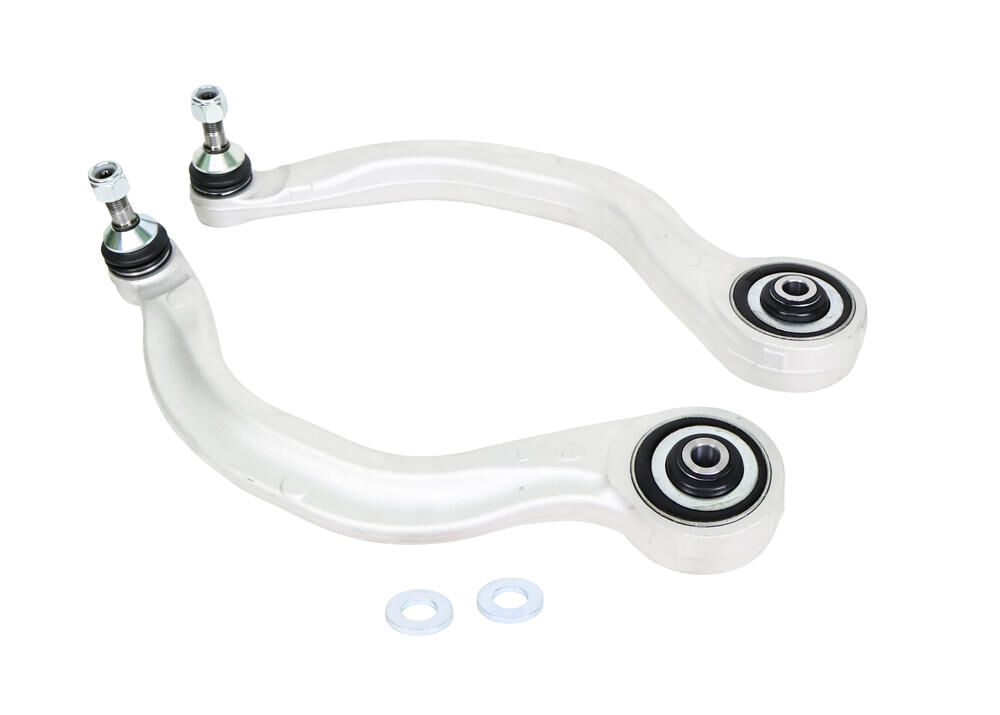

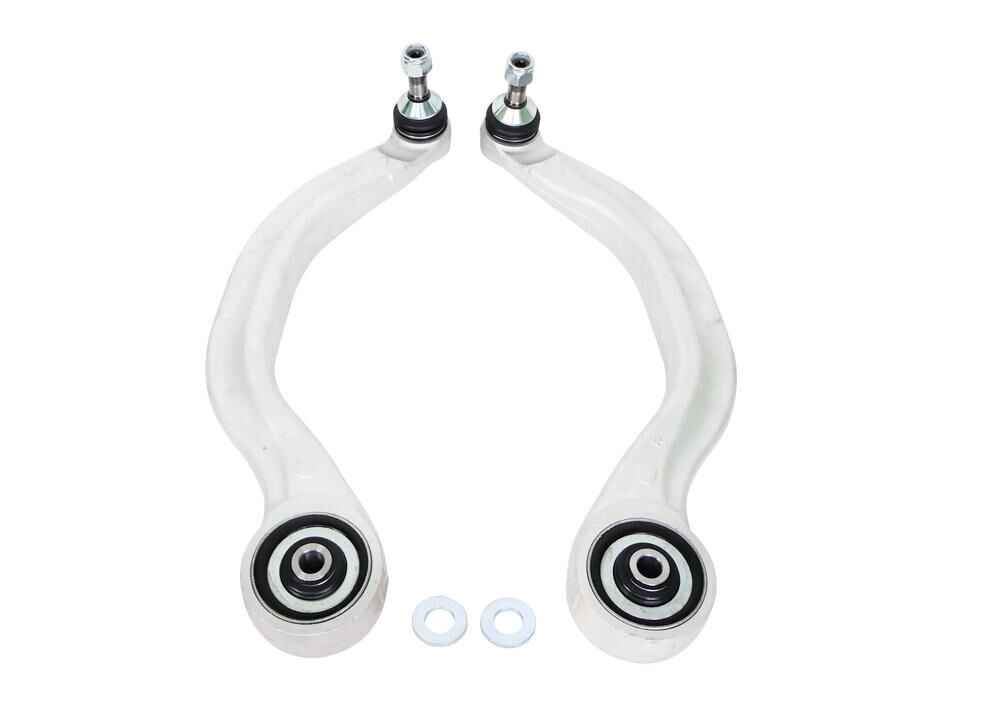

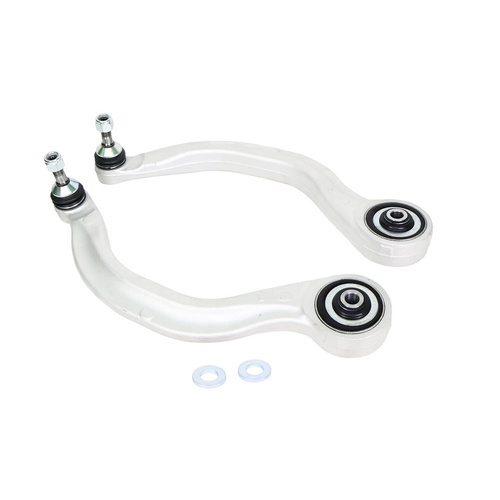

Whiteline Front Radius Arm Lower - Arm-Offset to Suits Tesla Model 3 and Model Y

SKU: KTA406

Benefit Note: These Whiteline front lower control arms feature significant geometry gains with +0.5deg caster improvements into these arms to optimise wheel alignments settings for track performance. Caster increases dynamic negative camber on the outside wheel whilst turning, offering more grip without introducing the tyre wear associated with static negative camber. Furthermore the increase in caster improves traction and increases the self-centring effect of the steering. Throw this altogether and the small change in additional caster improves the front-end grip and handling considerably. Whiteline's bushing combines the superior mechanical properties of synthetic elastomer formulation with high quality sealed bearing assembly permitting smooth movement of the arm as the wheel moves up and down. Complemented by a front bushing utilizing an oversized heavy duty crush tube, resulting in dramatic improvements to steering precision, most noticeably reduced 'toe-change' during hard cornering, creating impressive turn-in ability! The more positive location of the arm through the range of suspension movement and gains in alignment geometry ensures the car feels more responsive and engaging at turn-in, mid corner and corner exit.


Kit Specifications

Arm Type Alignment
Units Pair
Ball Joint Included Yes
Adjustable (Arms) No
Alignment Type Caster / Anti-lift
Adjustment Type Fixed
On Car Adjustable No

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight4.3kg9.48lbs
Length60cm23.62"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKTA406
Components Per2 Arms
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Arms
EAN9319924480968
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KTA406
Unit Of Measure Each
