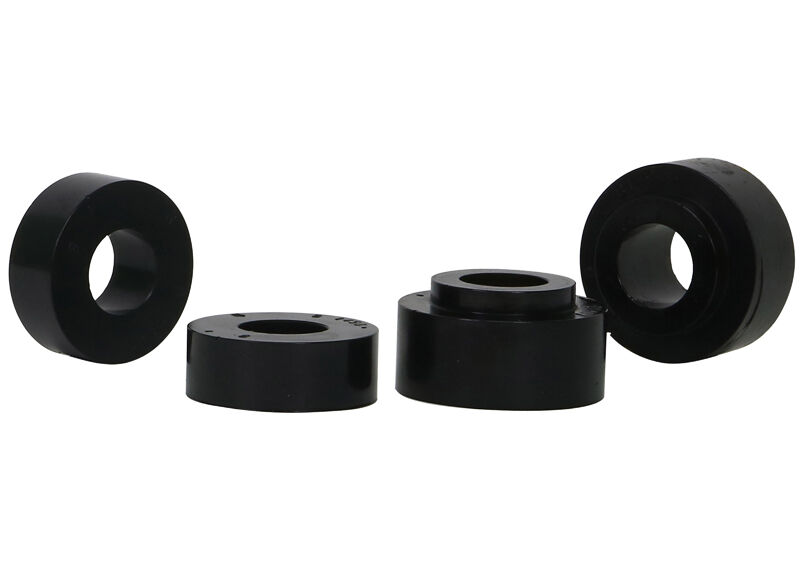

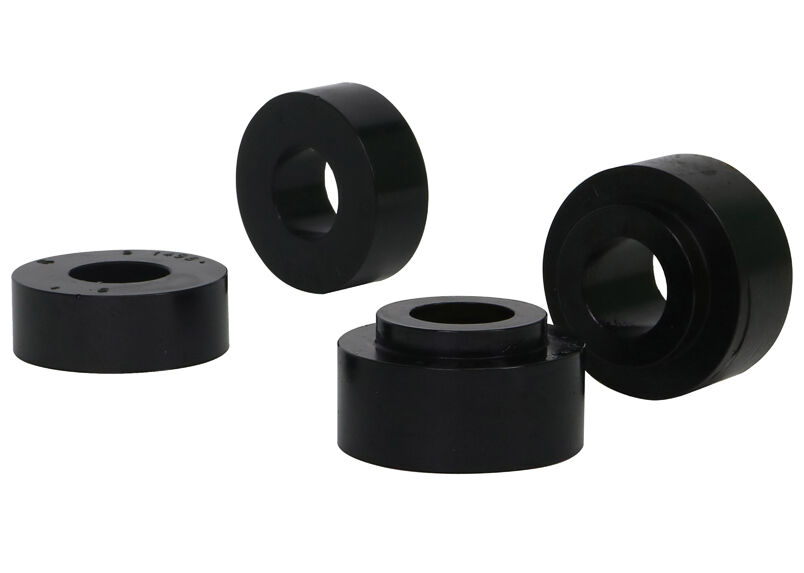

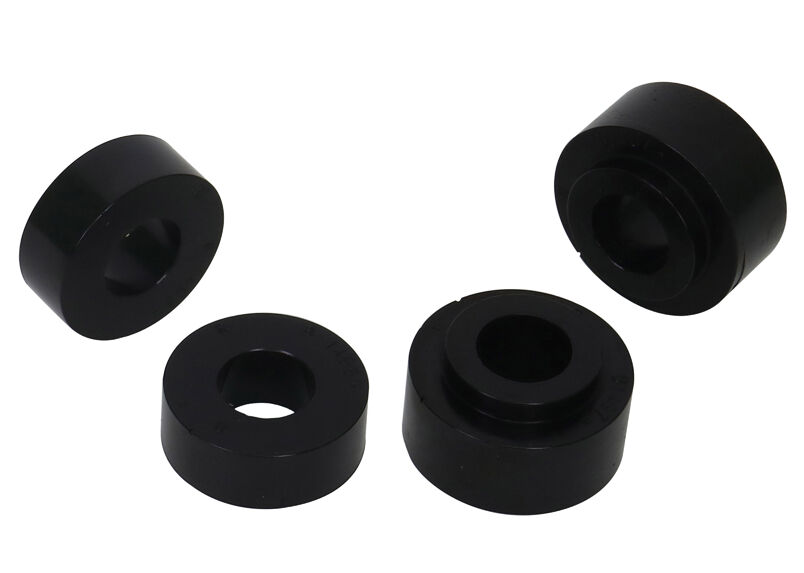

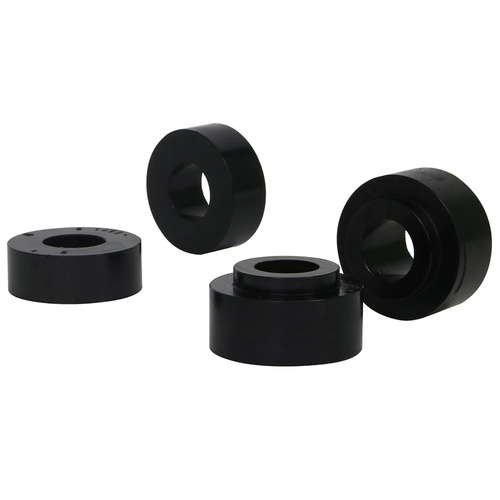

Whiteline Front Radiator Support - Panel Mount Bushing Kit to Suit Holden HQ-HZ

SKU: W91497

Benefit Note: Replace worn suspension bushings to as new condition and appearance with Whiteline black synthetic elastomer bushings.

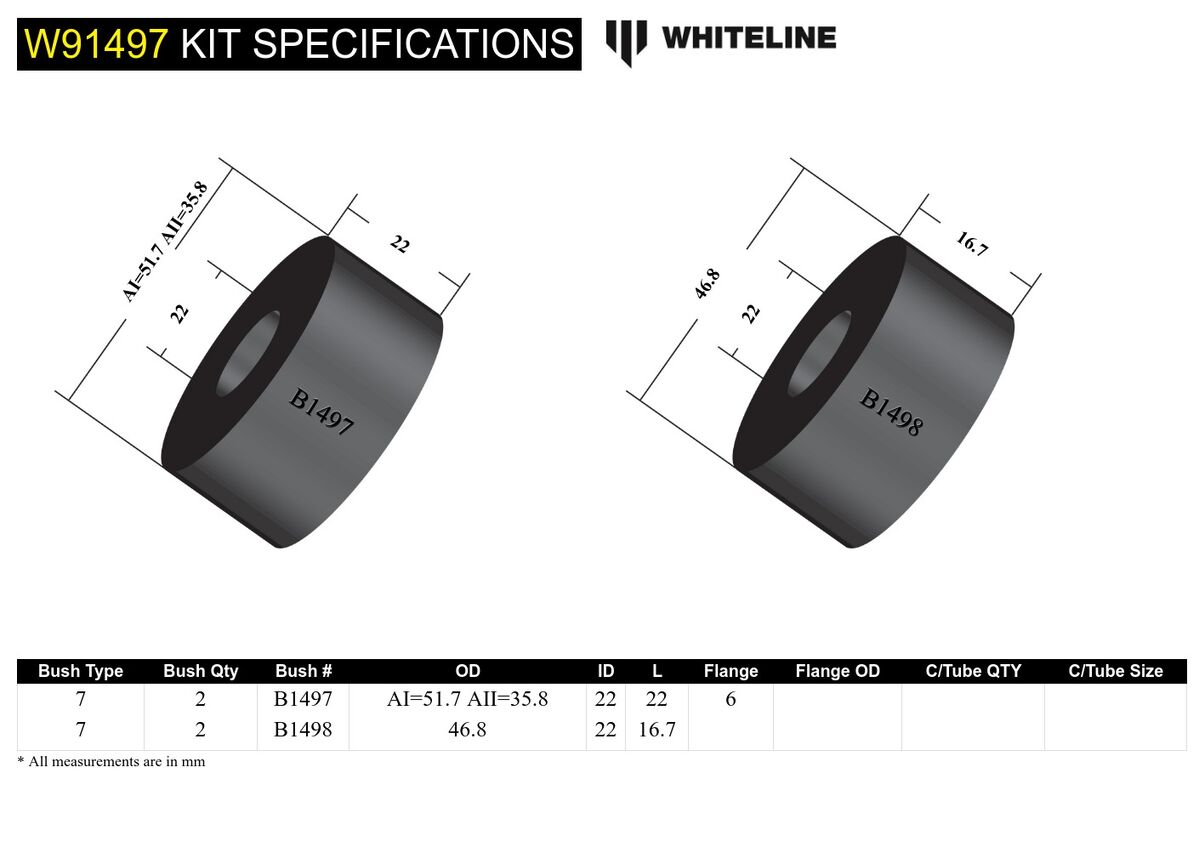

Kit Specifications

Bush Type 7 - Pin Bush With & Without Spigot 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm
OD (A) AI=51.7 AII=35.8 mm 46.8 mm
ID (B) 22 mm 22 mm
Length (C) 22 mm 16.7 mm
Flange Thickness (D) 6 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 7 7
QTY 2 2
OD (A) AI=51.7 AII=35.8 46.8
ID (B) 22 22
Length (C) 22.0 16.7
FL (D) 6
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.168kg0.37lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW91497
Components Per4 Bushings
Kits Required1
Sub brandReplacement
Product NoteCreates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 4 Bushings
EAN9319924357703
  • Lifetime Warranty
Brand Whiteline
SKU W91497
Unit Of Measure Kit
