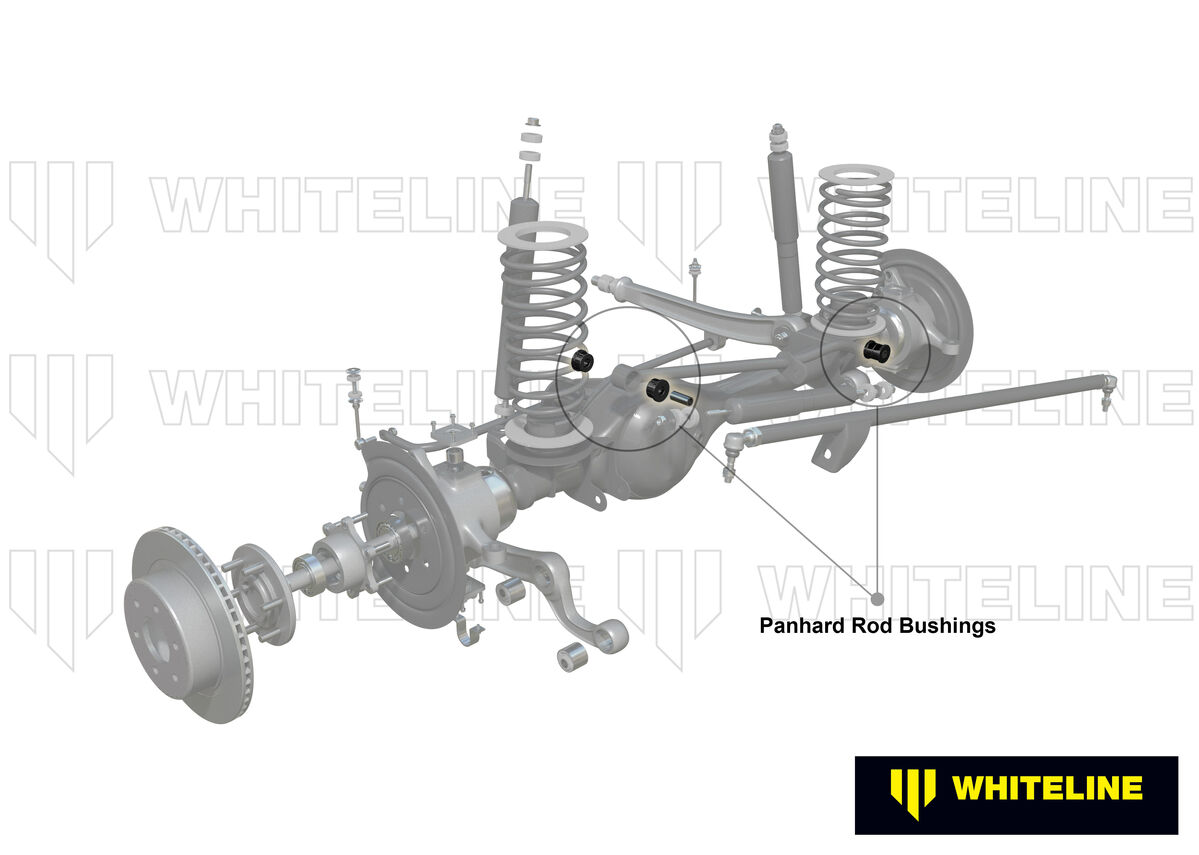

Whiteline Front Panhard Rod - Bushing Kit to Suit Toyota Land Cruiser 76, 78, 79, 80 and 105 Series

SKU: W81698A

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

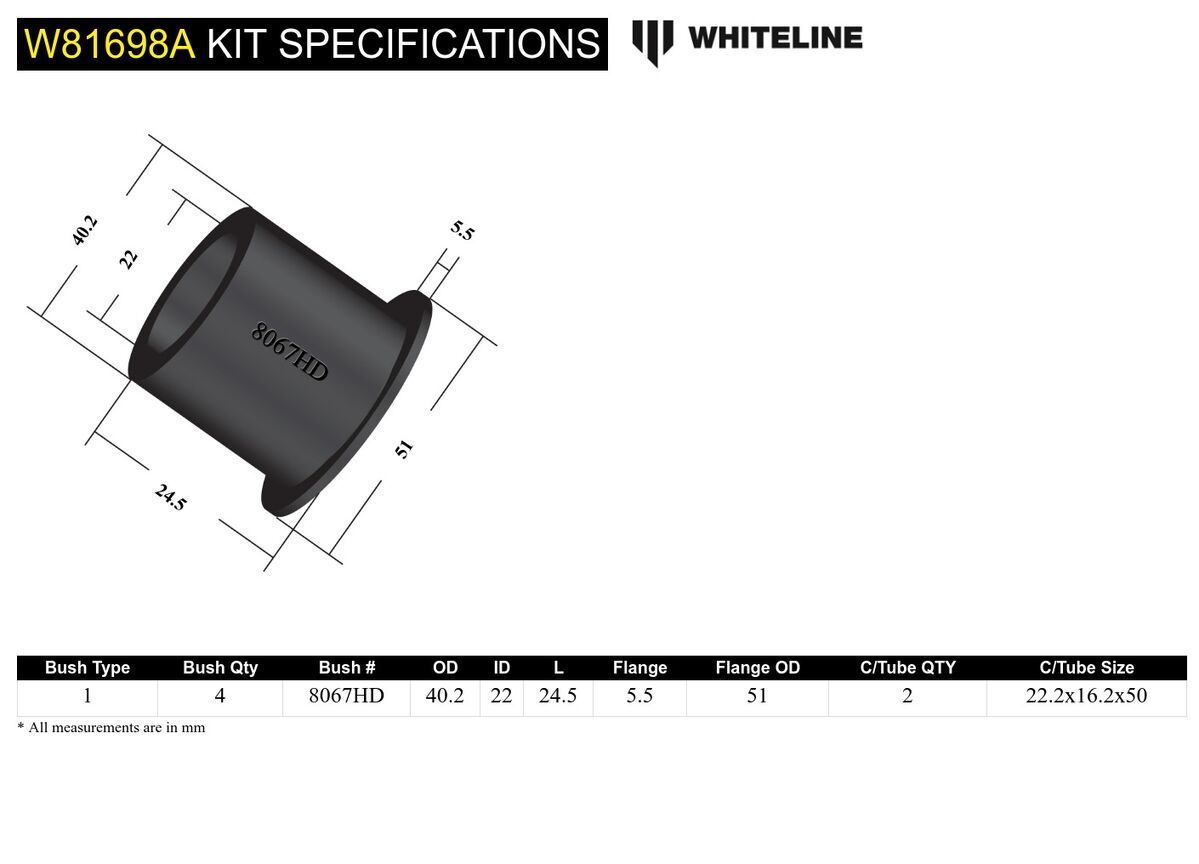

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 40.2 mm
ID (B) 22 mm
Length (C) 24.5 mm
Flange Thickness (D) 5.5 mm
Flange OD (E) 51 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x16.2x50 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 40.2
ID (B) 22
Length (C) 24.5
FL (D) 5.5
FLOD (E) 51
C/Tube Qty 2
C/Tube Size 22.2x16.2x50
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.3kg0.66lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW81698A

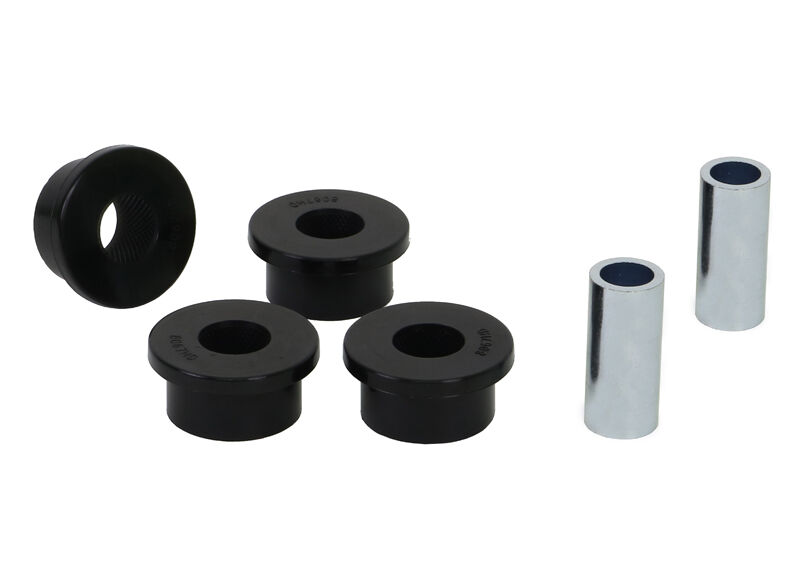

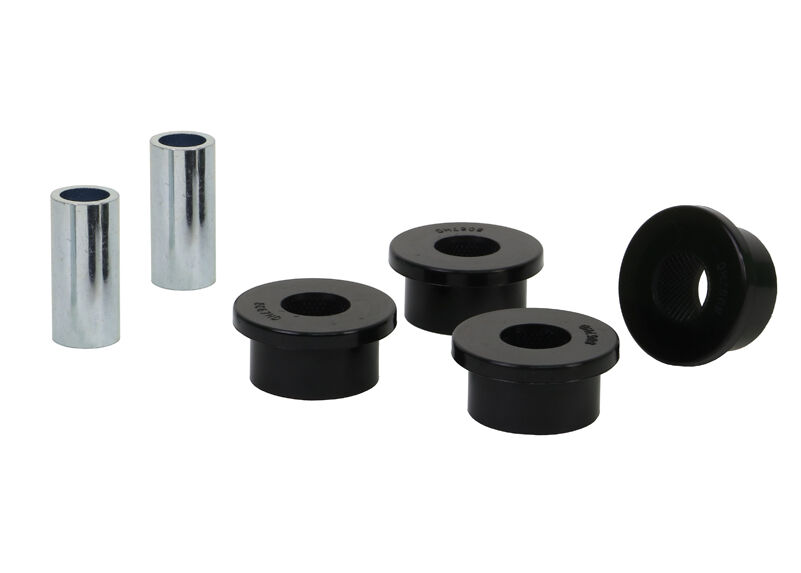

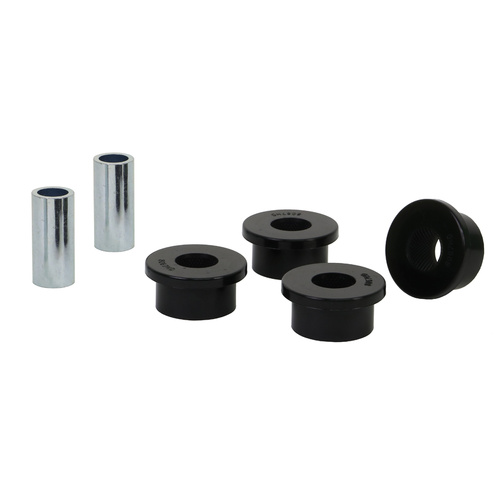

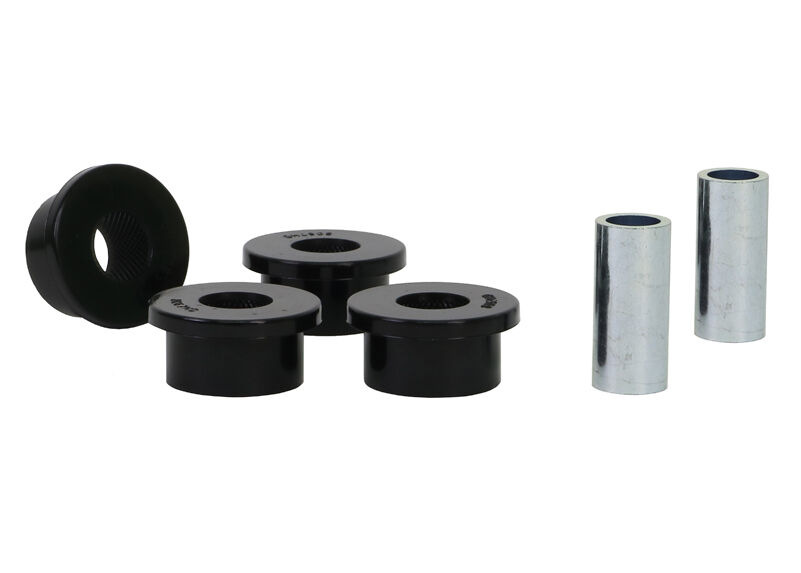

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteBuilt tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
EAN9319924396610
  • Lifetime Warranty
Brand Whiteline
SKU W81698A
Unit Of Measure Kit
