Whiteline Front Panhard Rod - Bushing Kit to Suit Jeep Wrangler JK

SKU: W83397

Benefit Note: Eliminate wheel shimmy and ensure accurate axle location with Whiteline synthetic elastomer with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

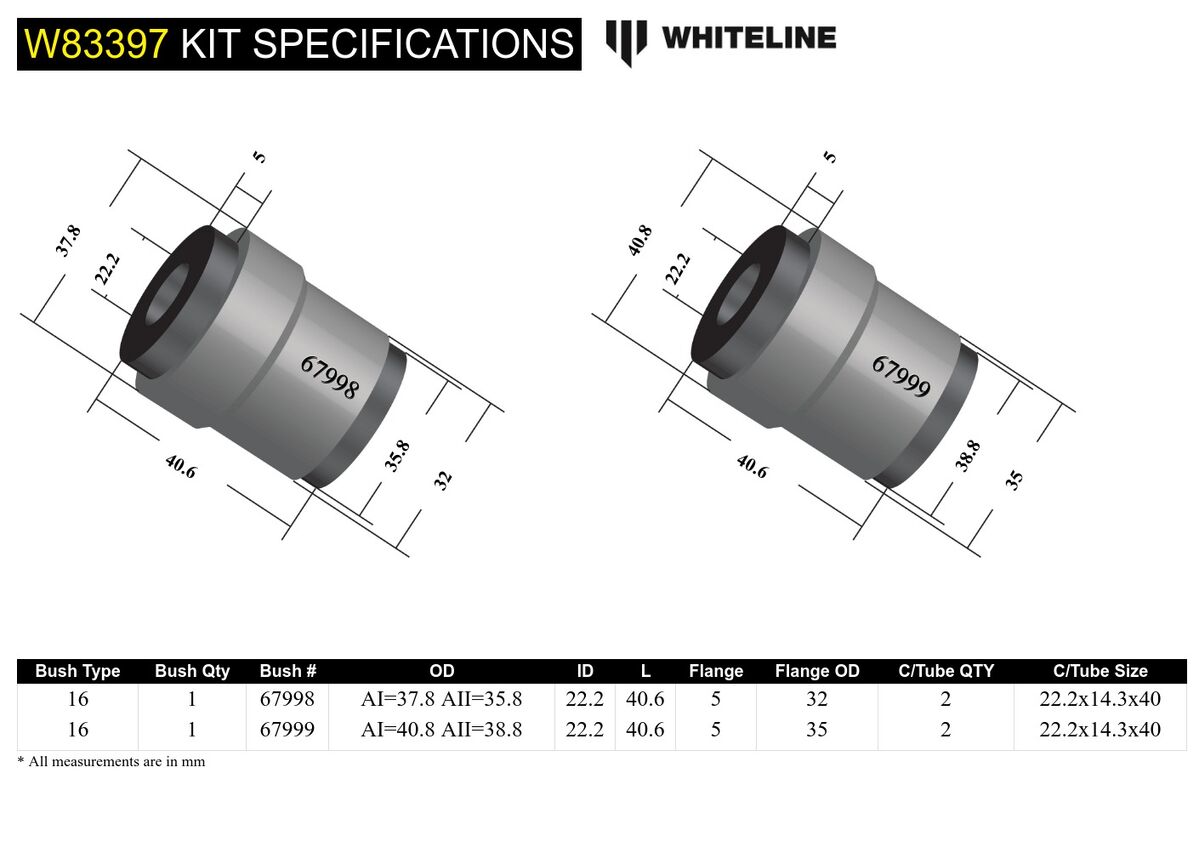

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 1 mm
OD (A) AI=37.8 AII=35.8 mm
ID (B) 22.2 mm
Length (C) 40.6 mm
Flange Thickness (D) 5 mm
Flange OD (E) 32 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x40 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 16 16
QTY 1 1
OD (A) AI=37.8 AII=35.8 AI=40.8 AII=38.8
ID (B) 22.2 22.2
Length (C) 40.6 40.6
FL (D) 5 5
FLOD (E) 32 35
C/Tube Qty 2 2
C/Tube Size 22.2x14.3x40 22.2x14.3x40
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.291kg0.64lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW83397

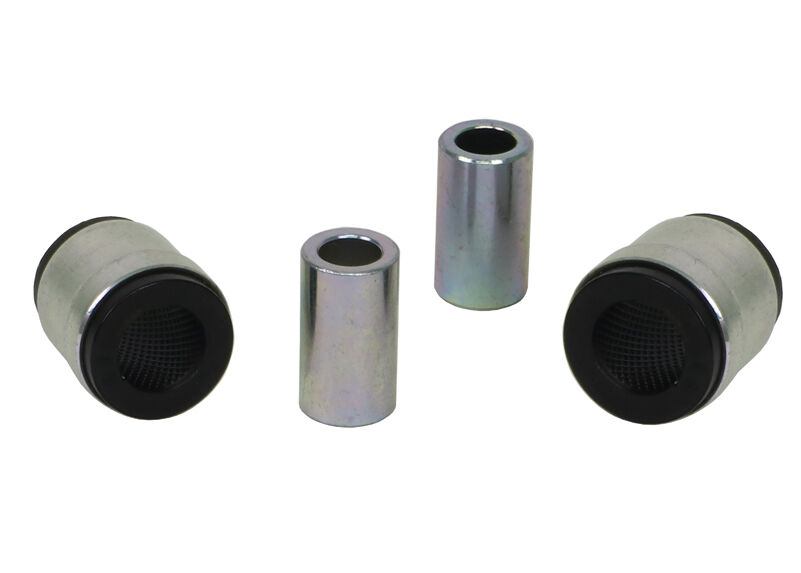

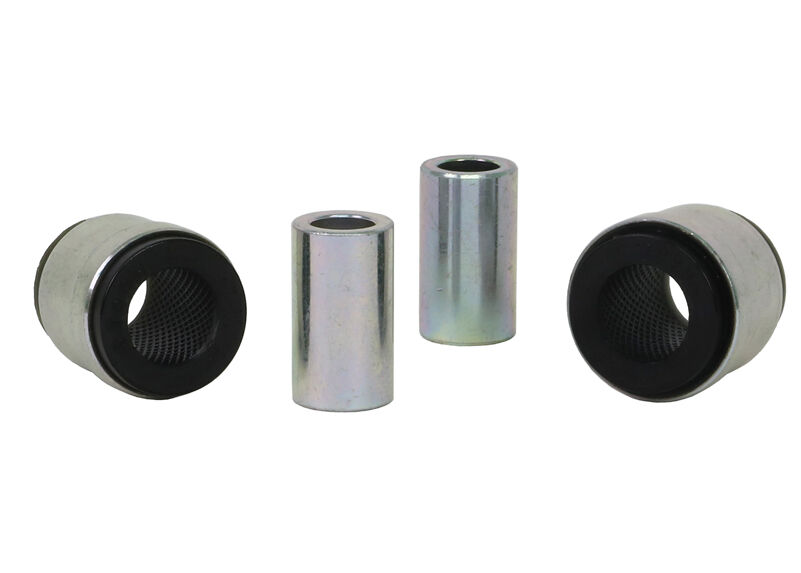

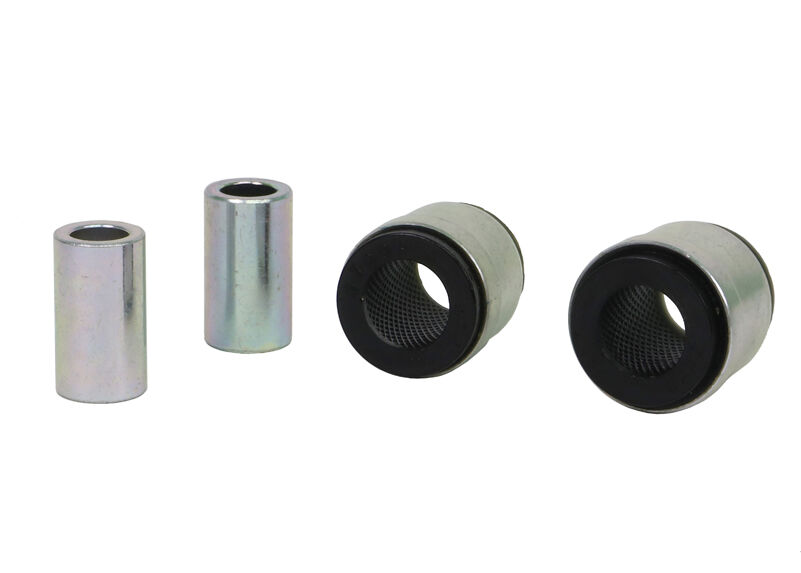

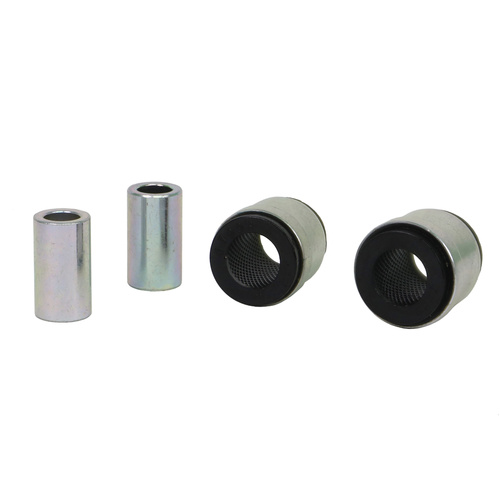

Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Shell Bushings & 2 Tubes
EAN9319924392568
  • Lifetime Warranty
Brand Whiteline
SKU W83397
Unit Of Measure Kit
