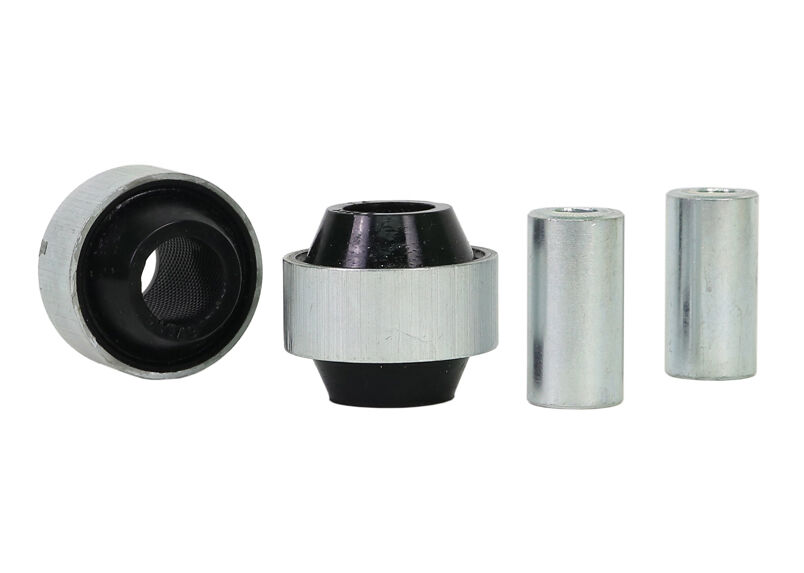

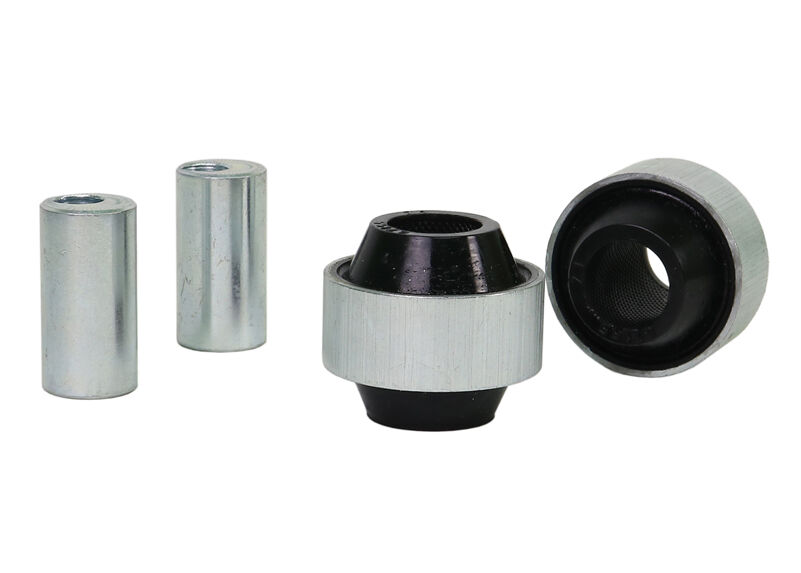

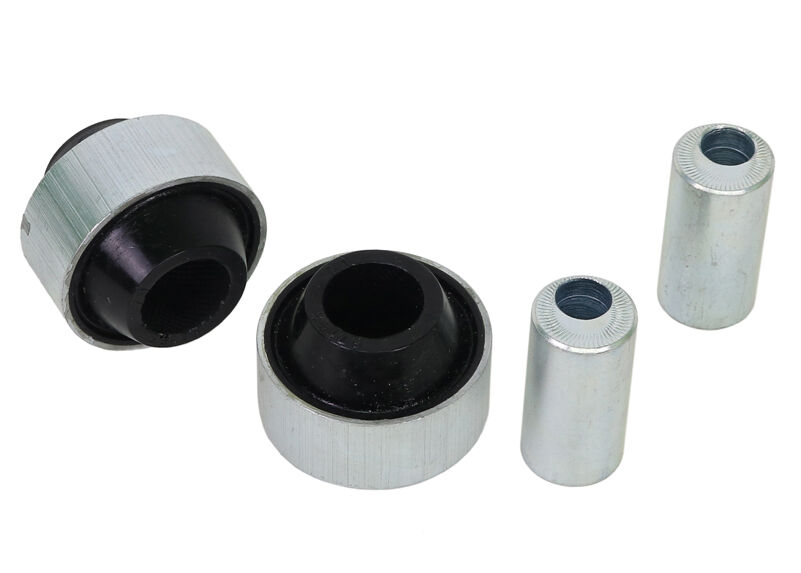

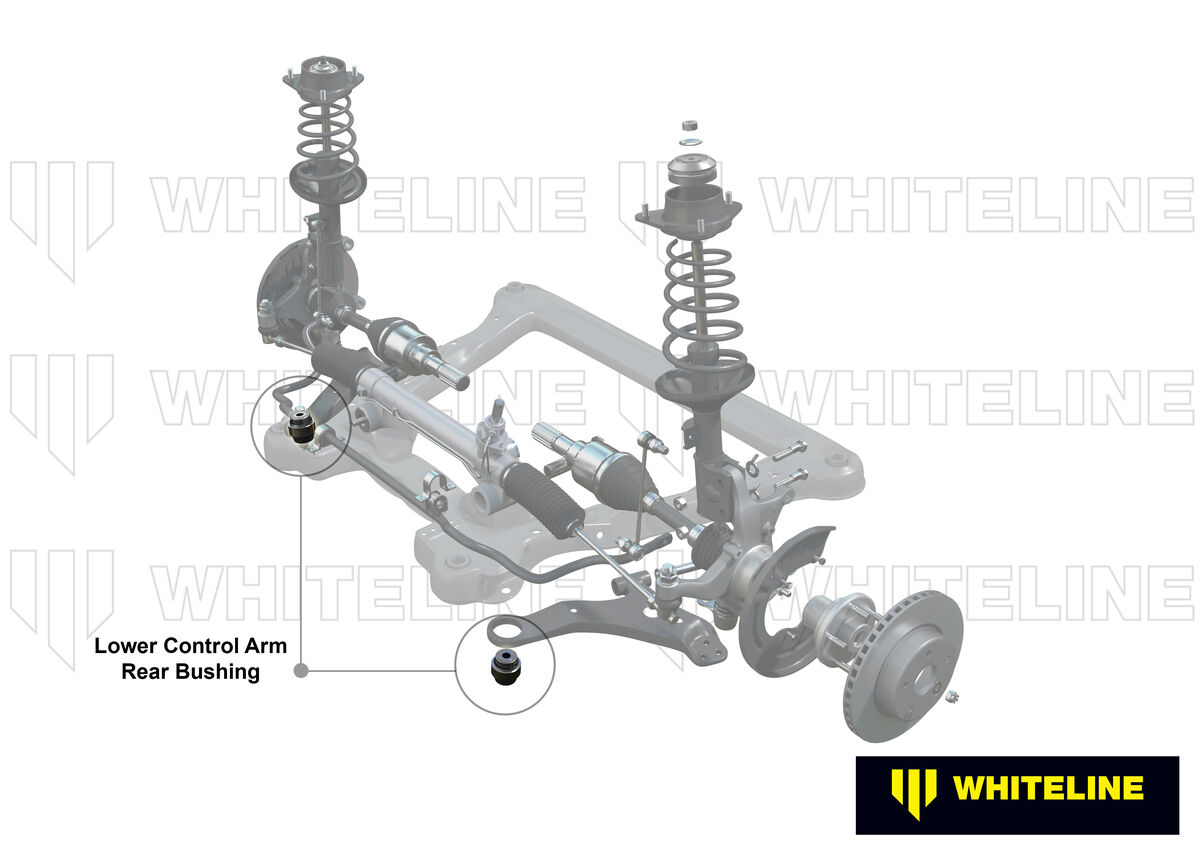

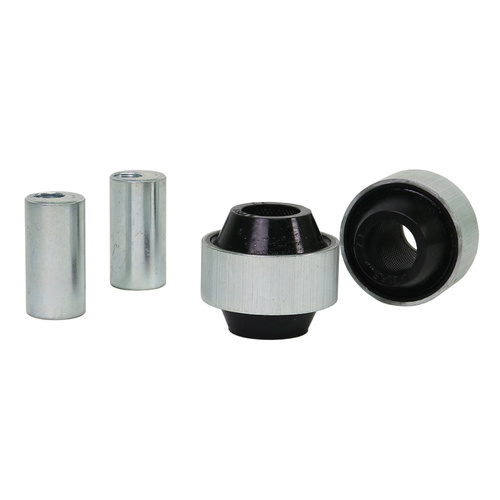

Whiteline Front Lower Inner Rear Bushings Offset to Suit Chrysler, Citroen, Dodge, Jeep, Mitsubishi and Peugeot

SKU: W53383

Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 60.2 mm
ID (B) 26.4 mm
Length (C) 54.4 mm
Flange Thickness (D) 14 mm
Flange OD (E) 34.7 mm
C/Tube Quantity 2
C/Tube ODxIDxL 27x14.3x54 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster / Anti-Lift Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 60.2
ID (B) 26.4
Length (C) 54.4
FL (D) 14
FLOD (E) 34.7
C/Tube Qty 2
C/Tube Size 27x14.3x54
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.65kg1.43lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53383
Components Per2 Shell Bushings
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings
EAN9319924382422
  • Lifetime Warranty
Brand Whiteline
SKU W53383
Unit Of Measure Each
