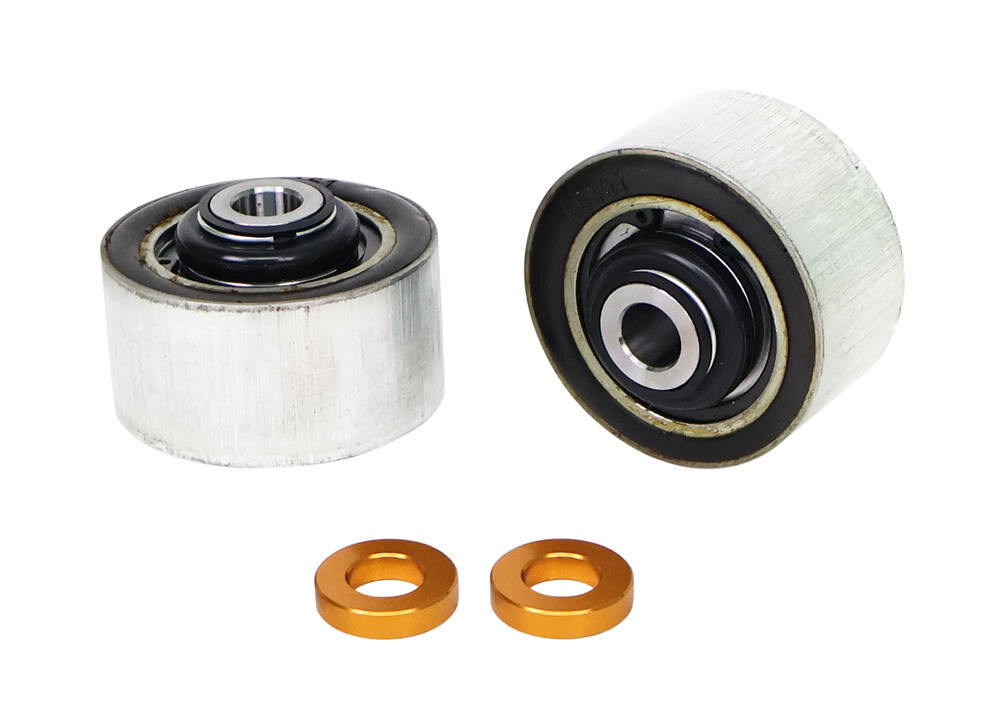

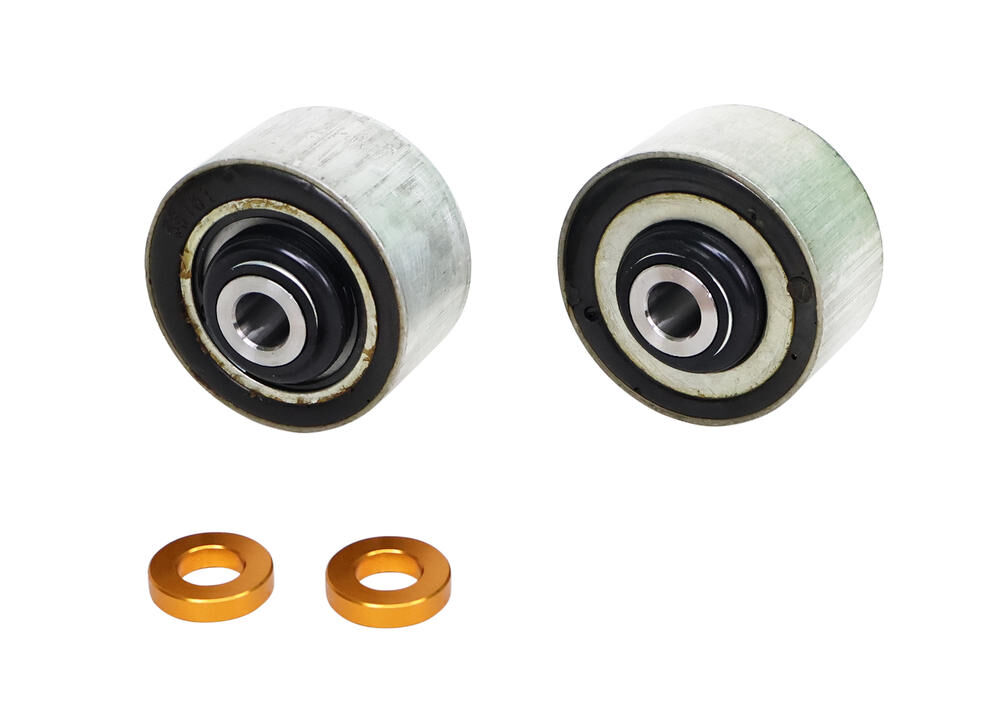

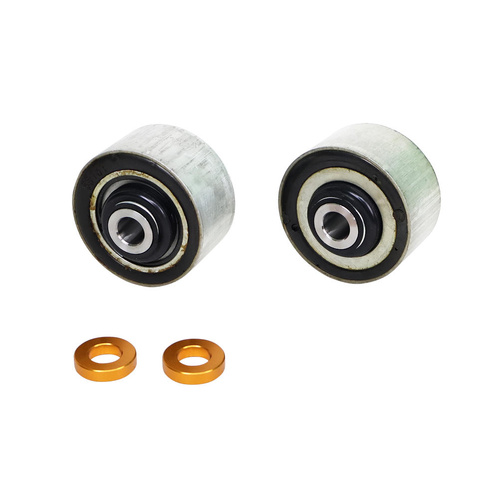

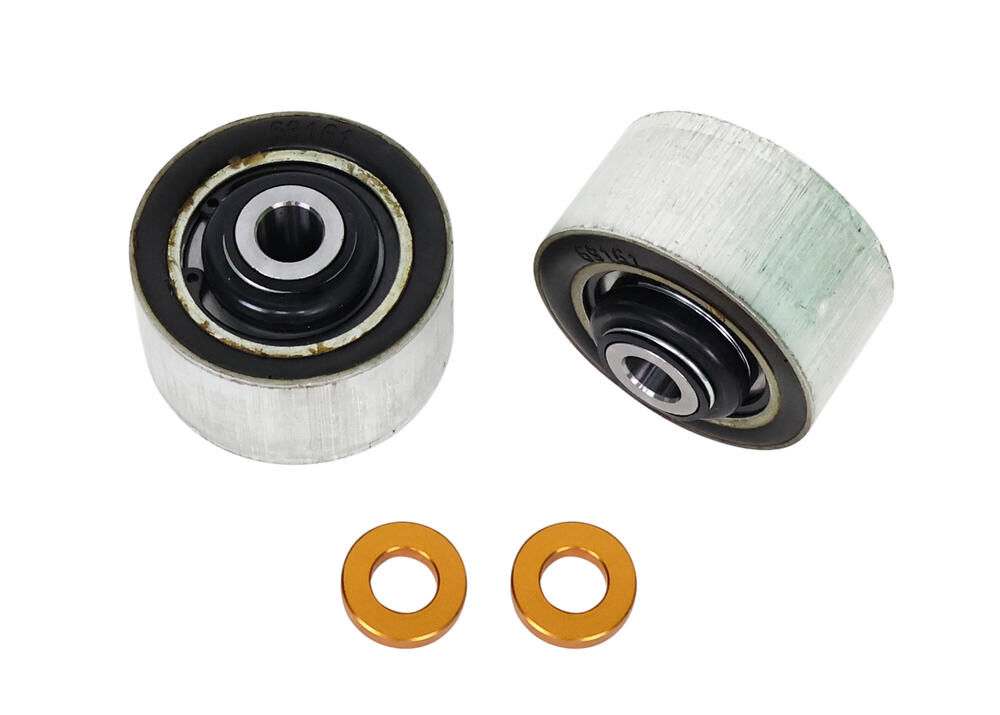

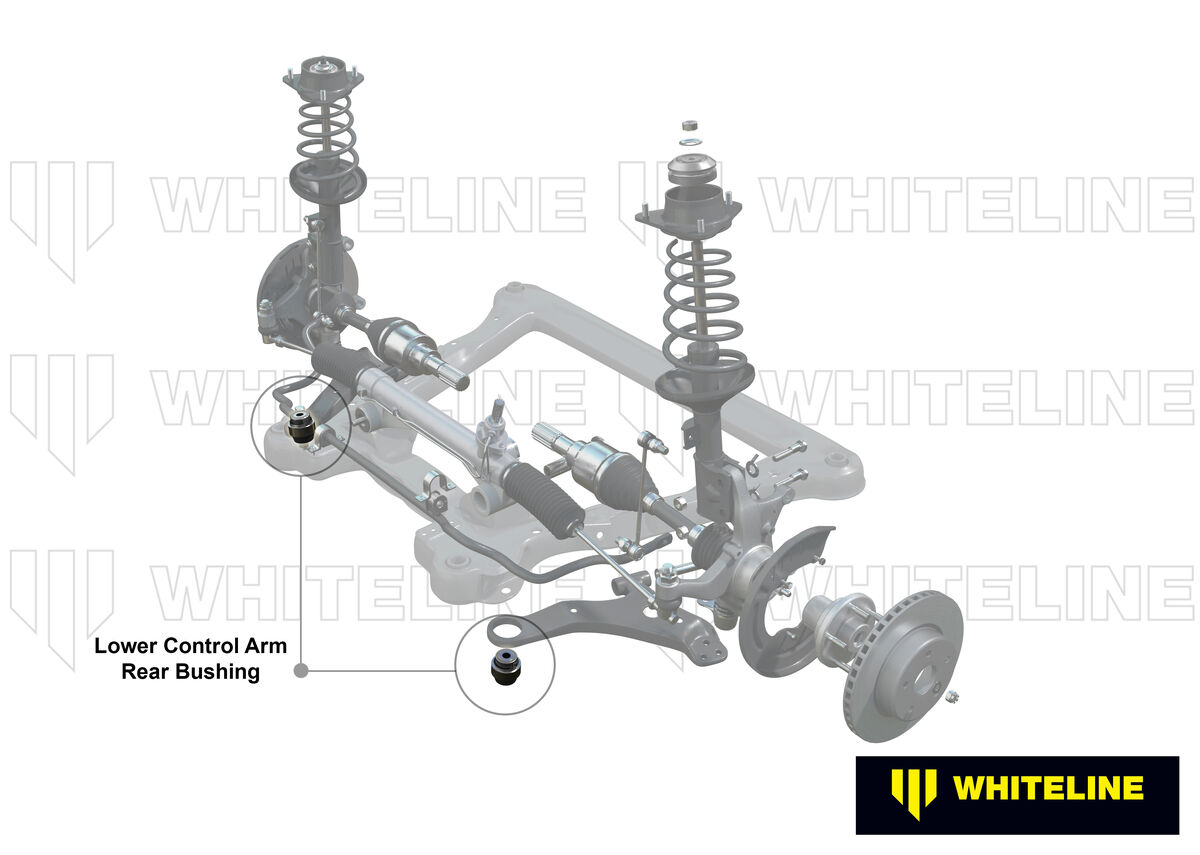

Whiteline Front Lower Inner Rear Bushings Offset Caster & Anti Lift to Suit Hyundai I30 N PD and Kona OS

SKU: KCA477

Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 70.8 mm
ID (B) 14.3 mm
Length (C) 36 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster / Anti-Lift Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 70.8
ID (B) 14.3
Length (C) 36.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.4kg3.09lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA477
Components Per2 Bushings, 2 Spacers
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell bushings, 2 Spacers
EAN9319924459261
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA477
Unit Of Measure Each
