Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

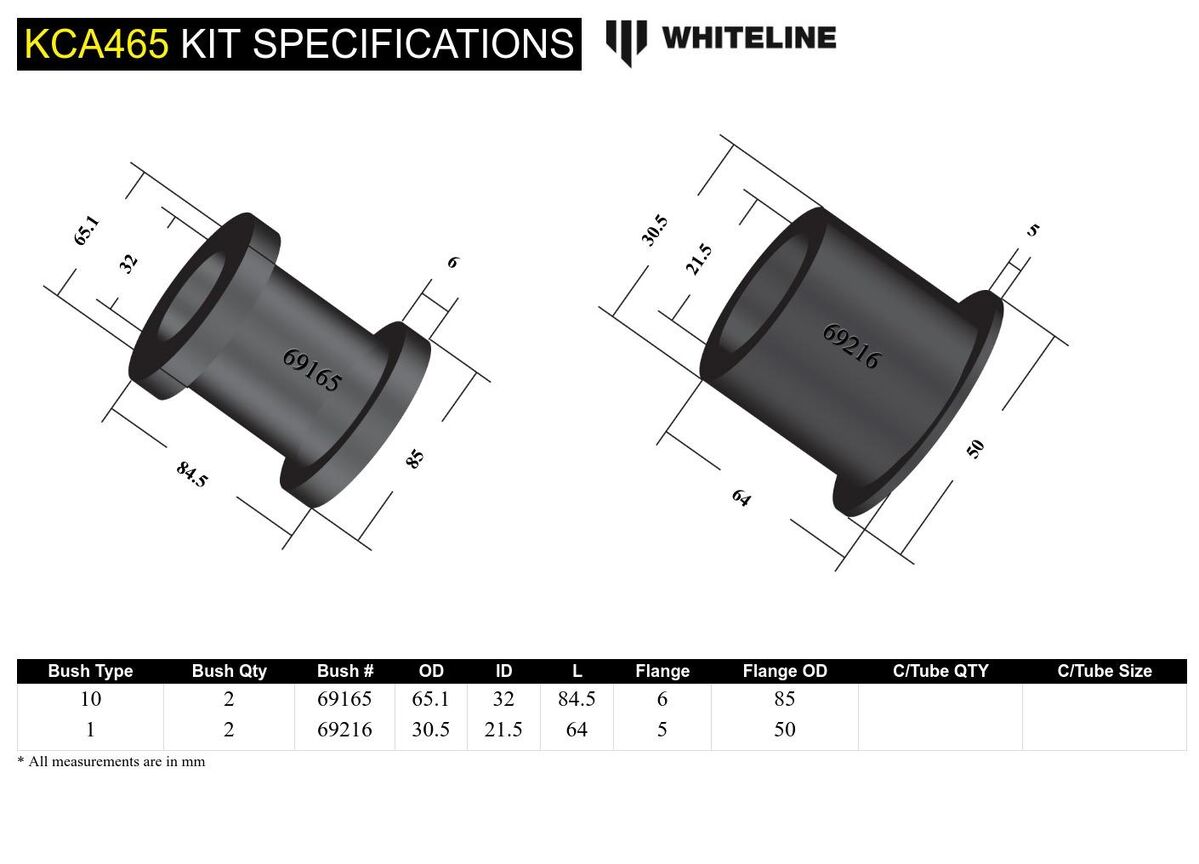

Kit Specifications

Bush Type	10 - Cotton Reel With & Without Tapper Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	65.1 mm	30.5 mm
ID (B)	32 mm	21.5 mm
Length (C)	84.5 mm	64 mm
Flange Thickness (D)	6 mm	5 mm
Flange OD (E)	85 mm	50 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster / Anti-Lift	Offset	No
Caster / Anti-Lift	Offset	No

Bushing Design Dimensions (mm)

Bush Type	10	1
QTY	2	2
OD (A)	65.1	30.5
ID (B)	32	21.5
Length (C)	84.5	64.0
FL (D)	6	5
FLOD (E)	85	50
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	3.5kg	7.72lbs
Length	38cm	14.96"
Width	9cm	3.54"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	KCA465
Components Per	2 Housings, 2 Bushings
Kits Required	1
Sub brand	Performance
Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Housings, 2 Bushings
EAN	9319924460083
