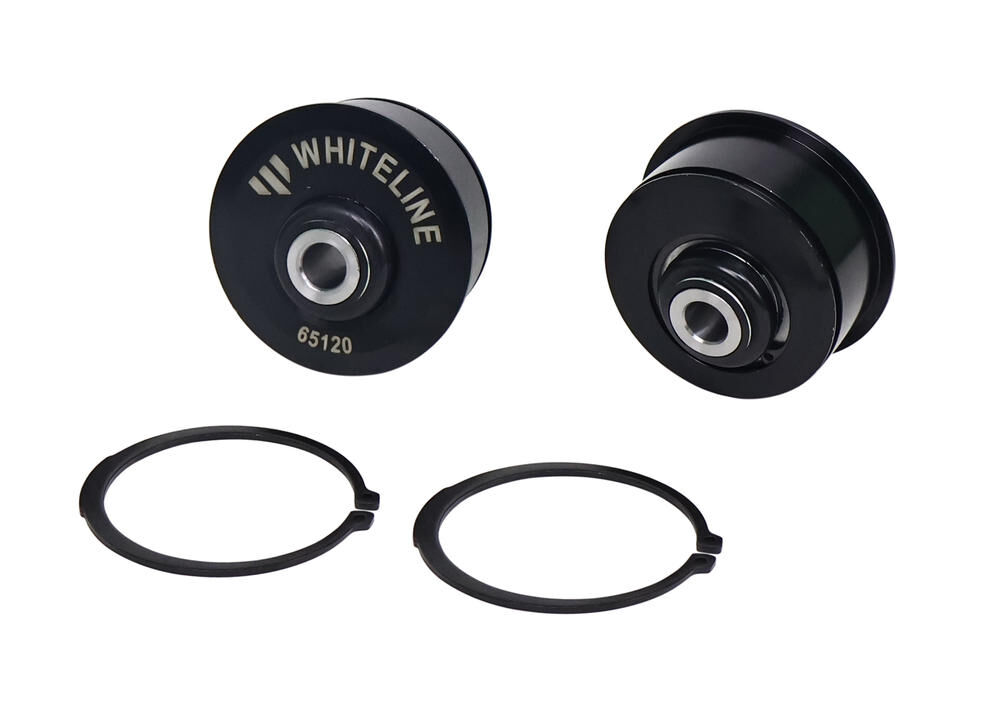

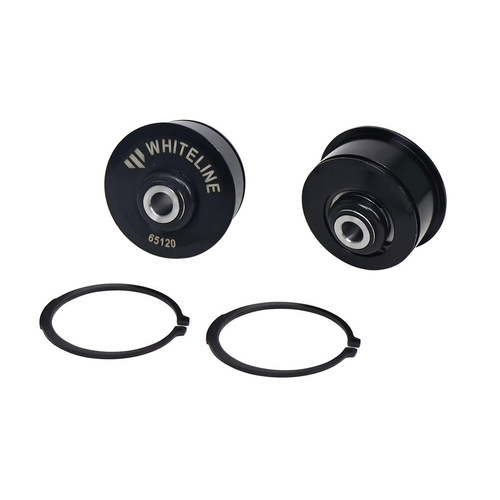

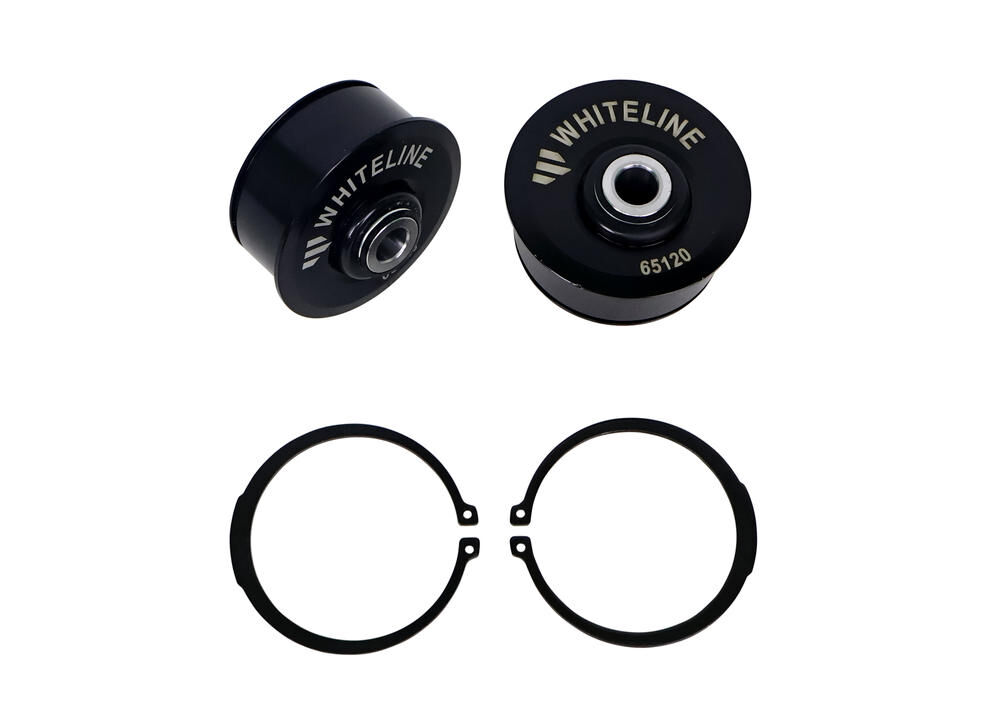

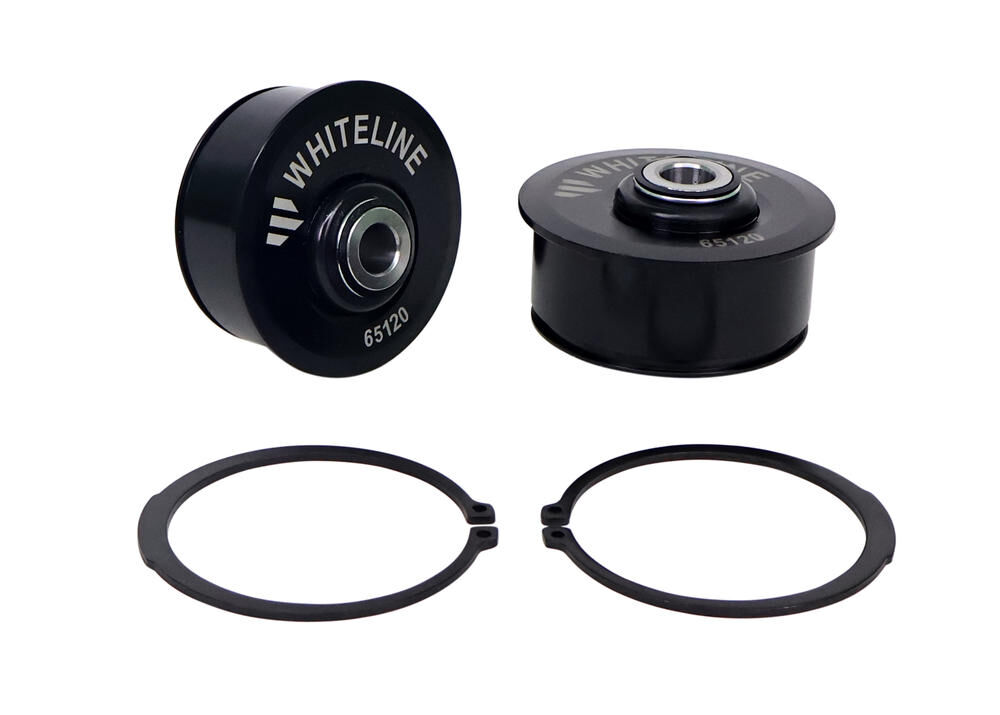

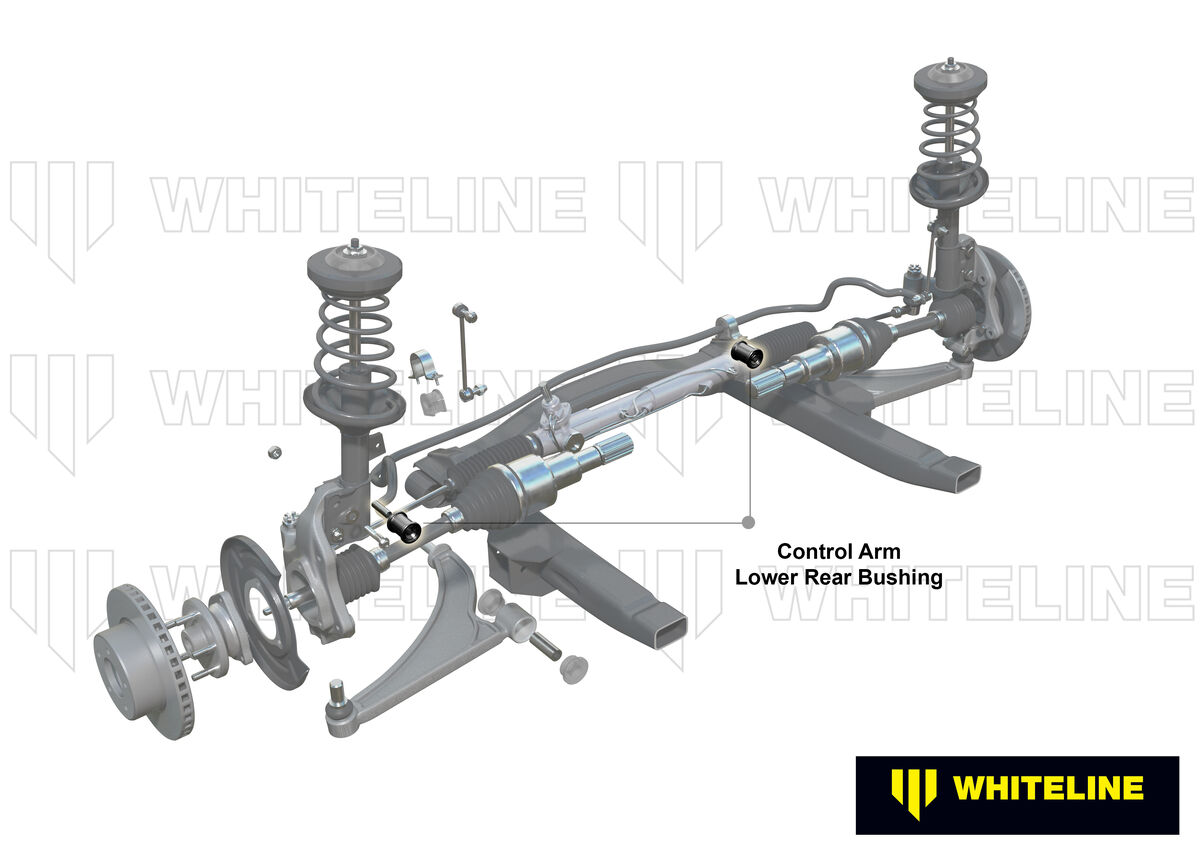

Whiteline Front Lower Inner Rear Bushings Offset Caster & Anti Lift to Suit Mitsubishi Lancer Evolution 10

SKU: KCA400M

Benefit Note: MOTORSPORT ONLY - Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The alloy bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the alloy bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) 76.1 mm
ID (B) 14.2 mm
Length (C) 54 mm
Flange Thickness (D)
Flange OD (E) 85 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster / Anti-Lift Offset No

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) 76.1
ID (B) 14.2
Length (C) 54.0
FL (D)
FLOD (E) 85
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.34kg2.95lbs
Length20cm7.87"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKCA400M
Components Per2 Alloy Bushings
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Alloy Bushings
EAN9319924379040
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA400M
Unit Of Measure Each
