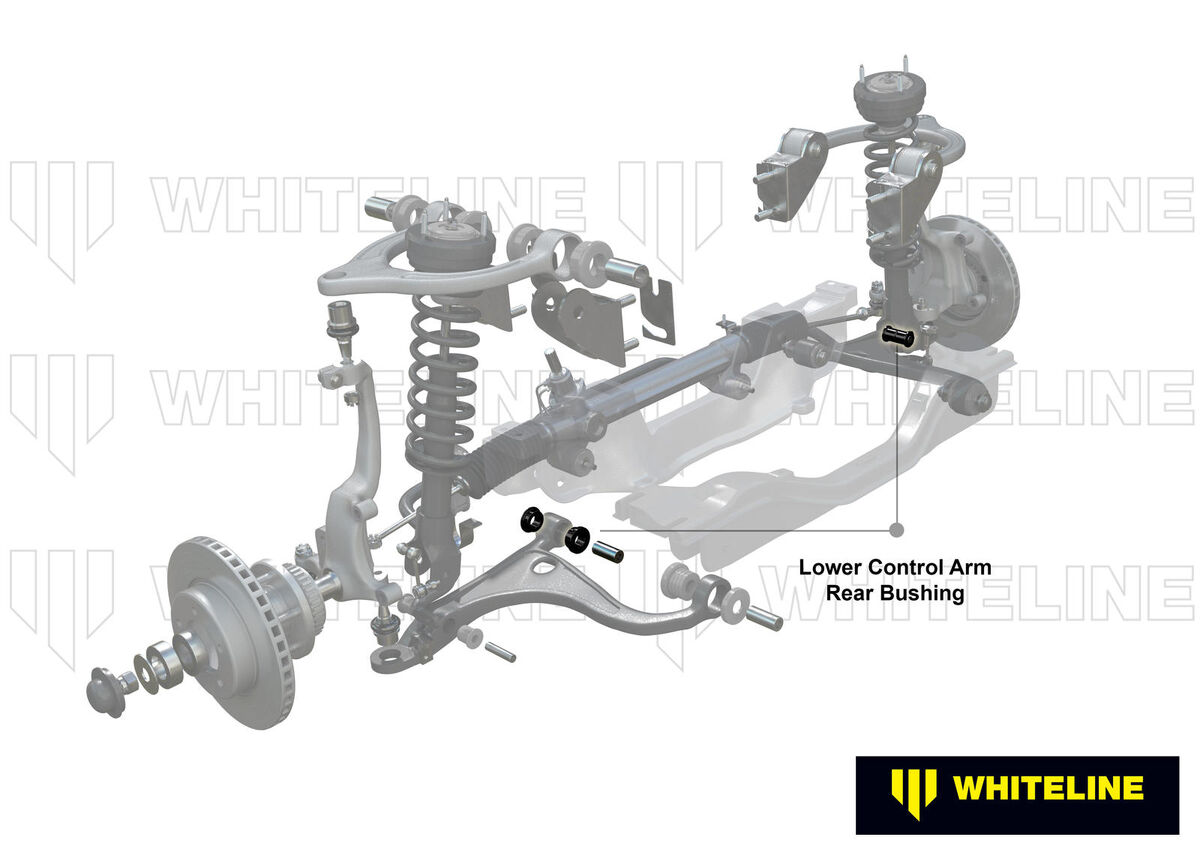

Whiteline Front Lower Inner Rear Bushings Offset Caster Kit to Suit Honda Civic 6th Gen and CR-V RD1-RD3

SKU: KCA366

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 20 - Misc 20 - Misc
Bush Quantity 1 mm 1 mm
OD (A) 61.5 mm 61.5 mm
ID (B) 27.6 mm 27.6 mm
Length (C) 59 mm 59 mm
Flange Thickness (D) 7 mm 7 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 28.6x18.6x58 mm 28.6x18.6x58 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 20 - Misc
Bushing Type 20 - Misc
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.714kg1.57lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA366

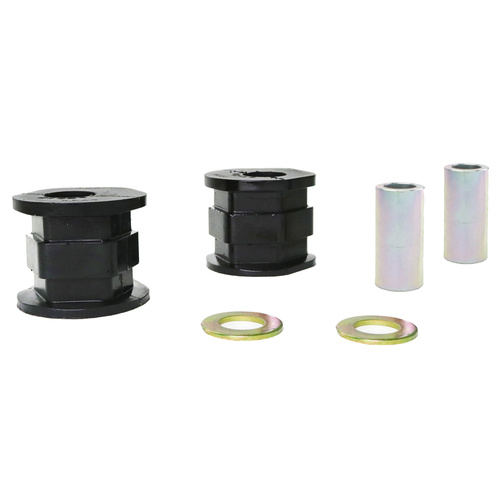

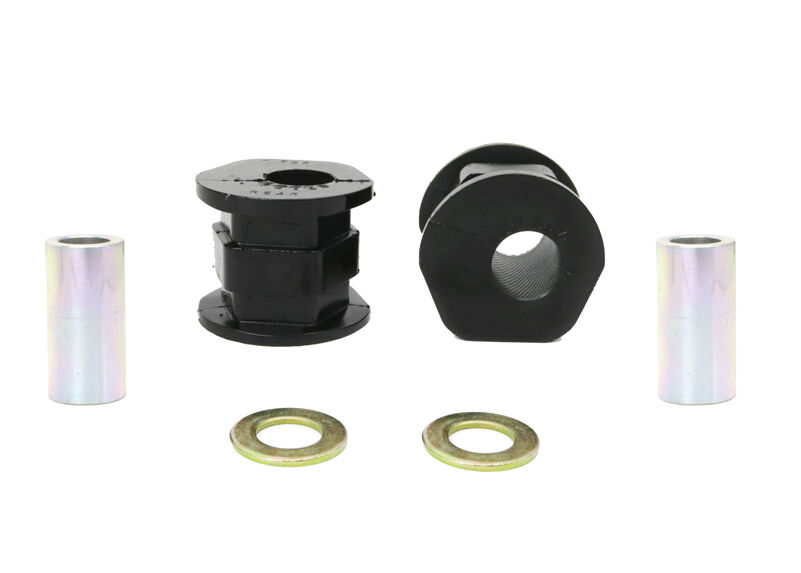

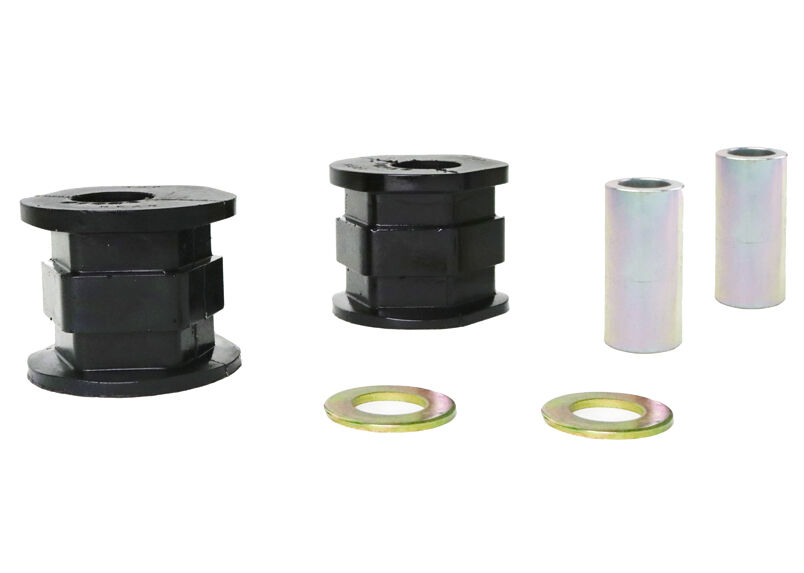

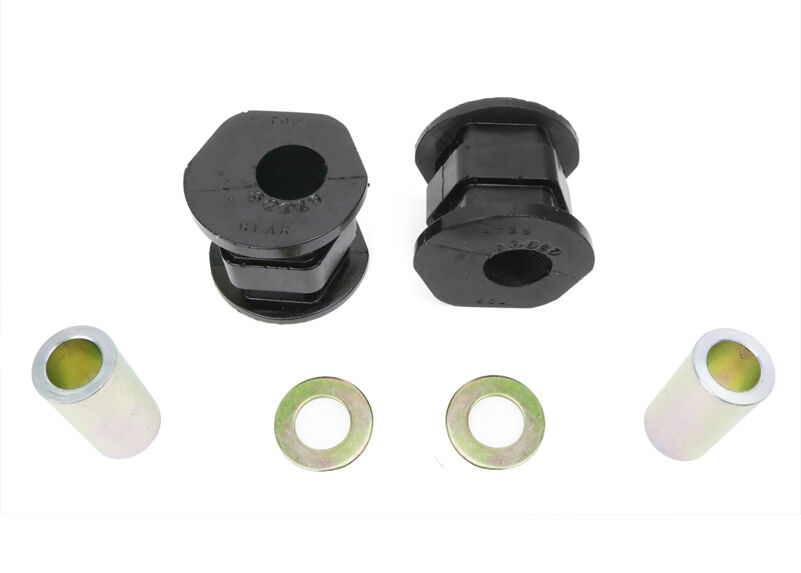

Components Per2 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes, 2 Washers
EAN9319924342686
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA366
Unit Of Measure Kit
