Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

Kit Specifications

Bush Type	4 - D-bushing With Flange
Bush Quantity	2 mm
OD (A)	40 mm
ID (B)	15.6 mm
Length (C)	48.8 mm
Flange Thickness (D)	5 mm
Flange OD (E)	43 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster / Anti-Lift	Offset	No

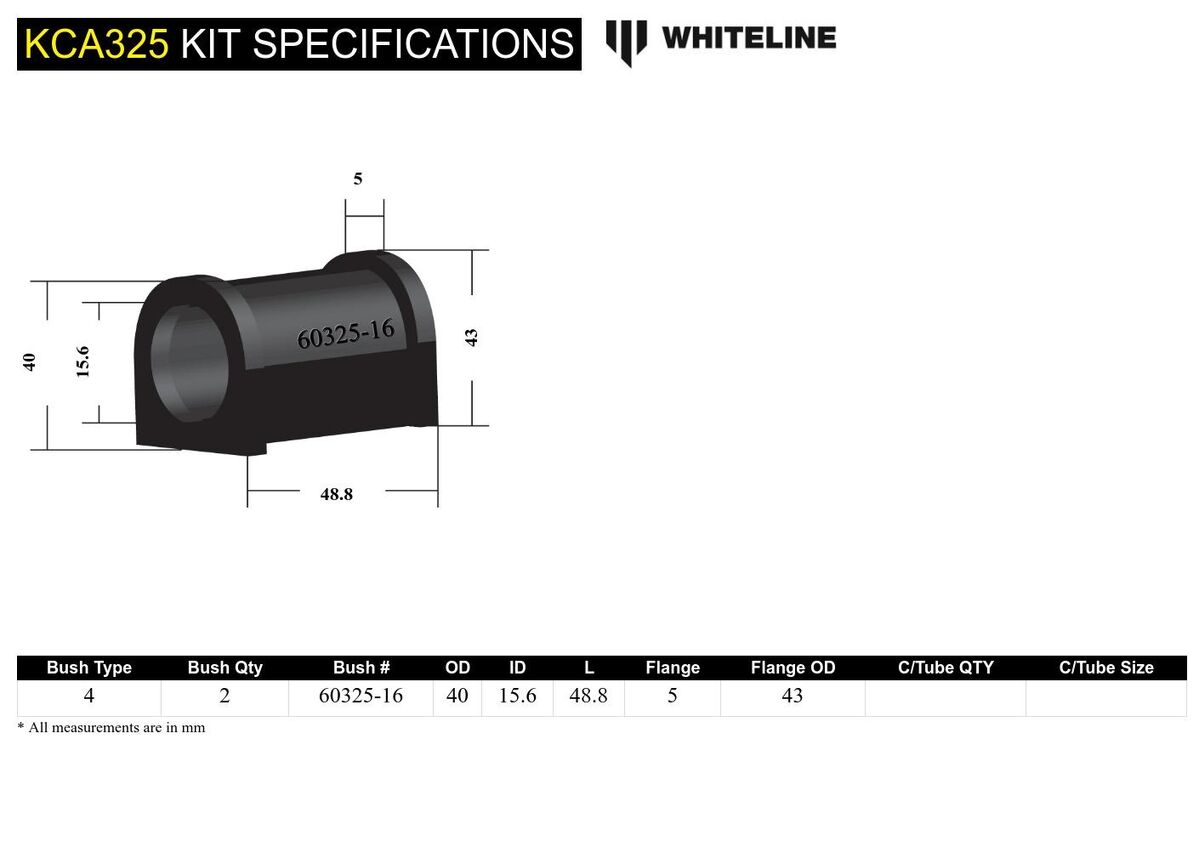

Bushing Design Dimensions (mm)

Bush Type	4
QTY	2
OD (A)	40
ID (B)	15.6
Length (C)	48.8
FL (D)	5
FLOD (E)	43
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1kg	2.2lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KCA325

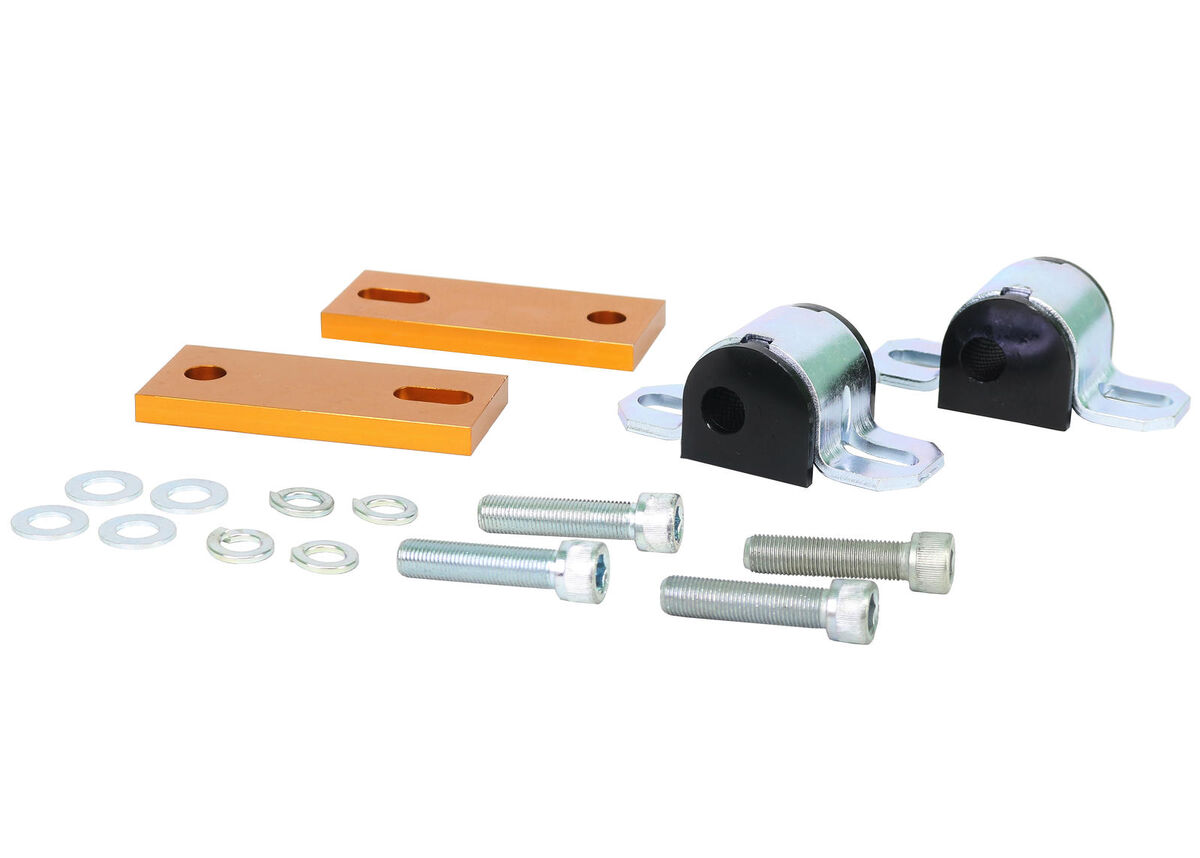

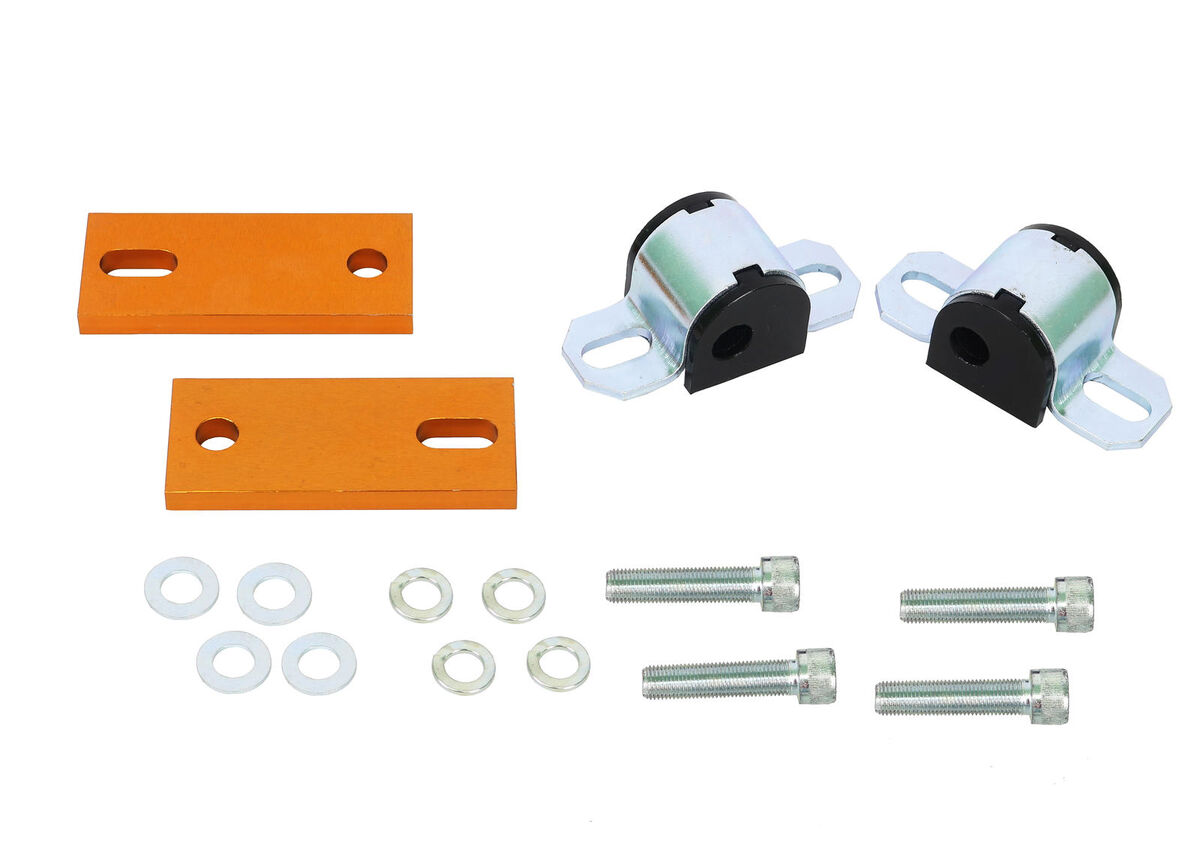

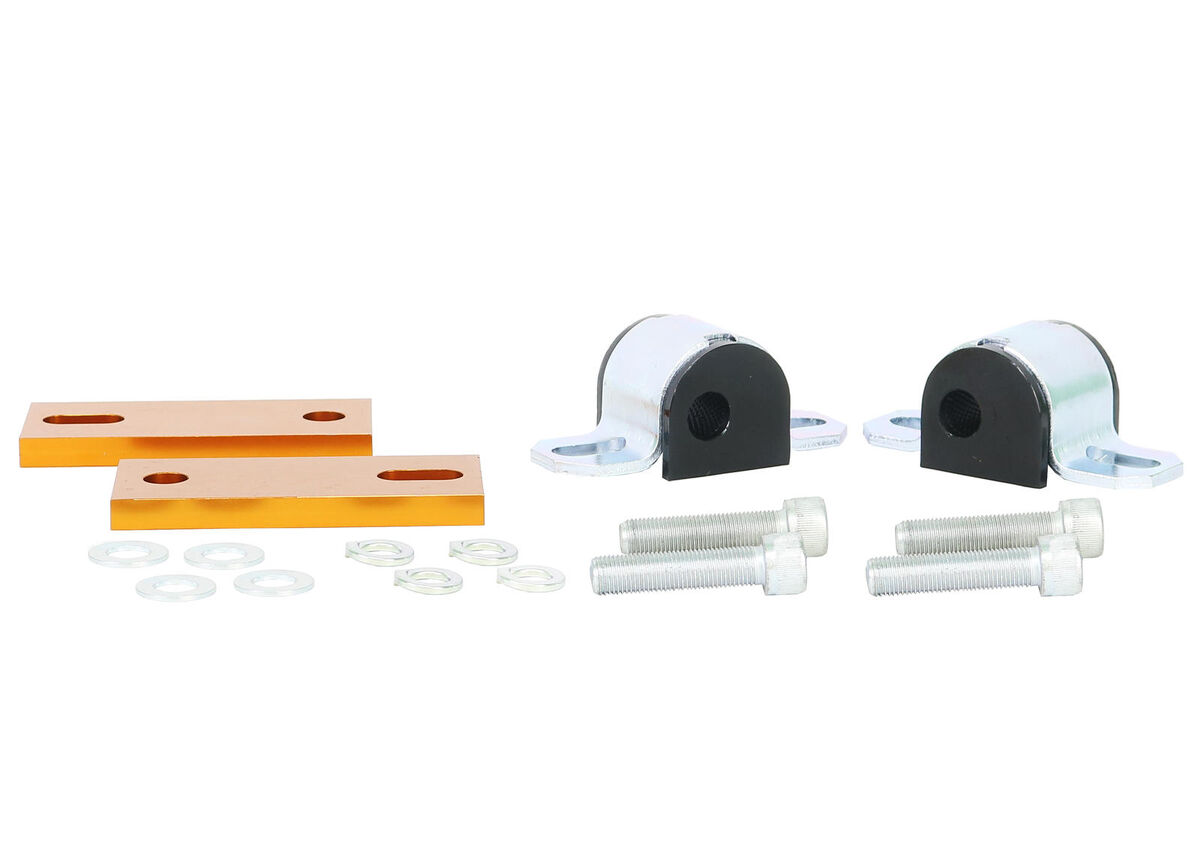

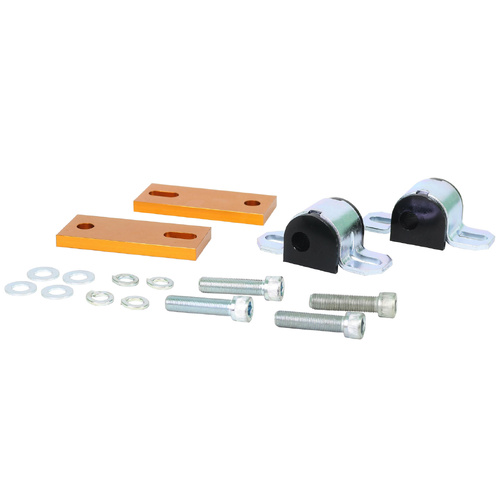

Components Per	2 Bushings, 2 Saddles, 2 Plates, 4 Bolts, 8 Washers
Kits Required	1
Sub brand	Performance
Product Note	Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Bushings, 2 Saddles, 2 Plates, 4 Bolts, 8 Washers
EAN	9319924342426
