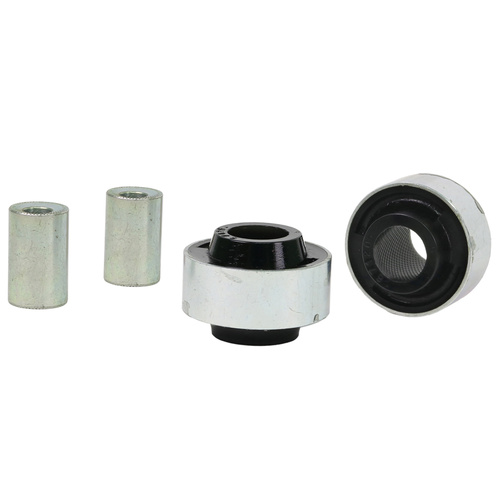

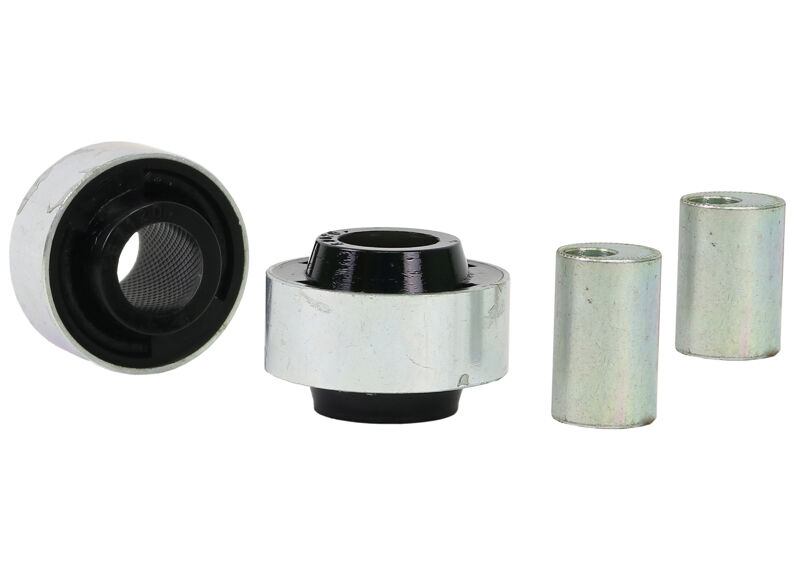

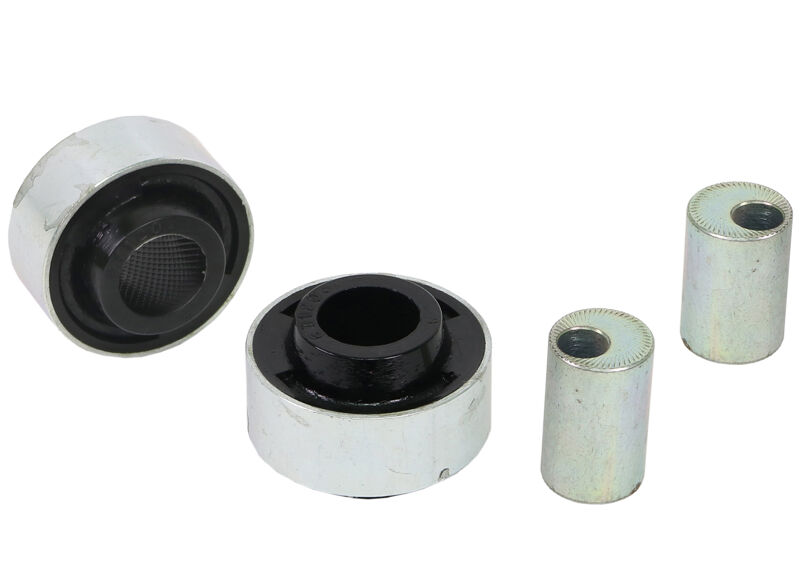

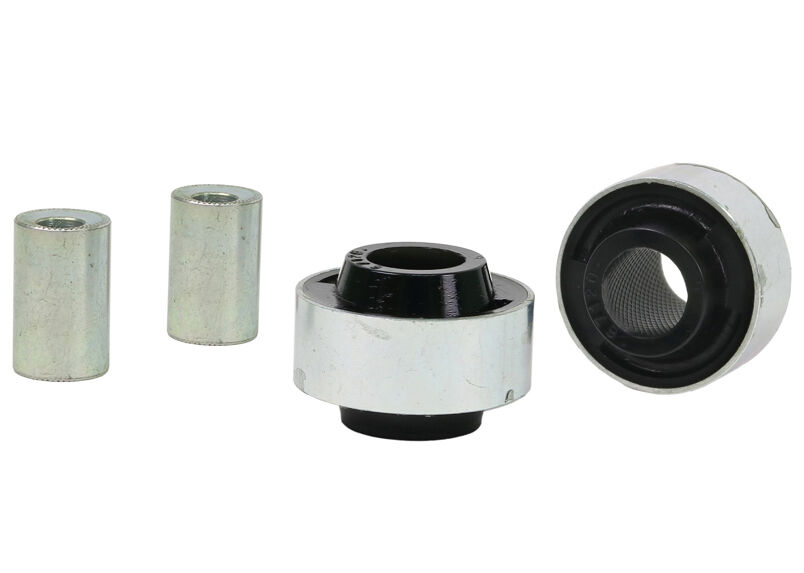

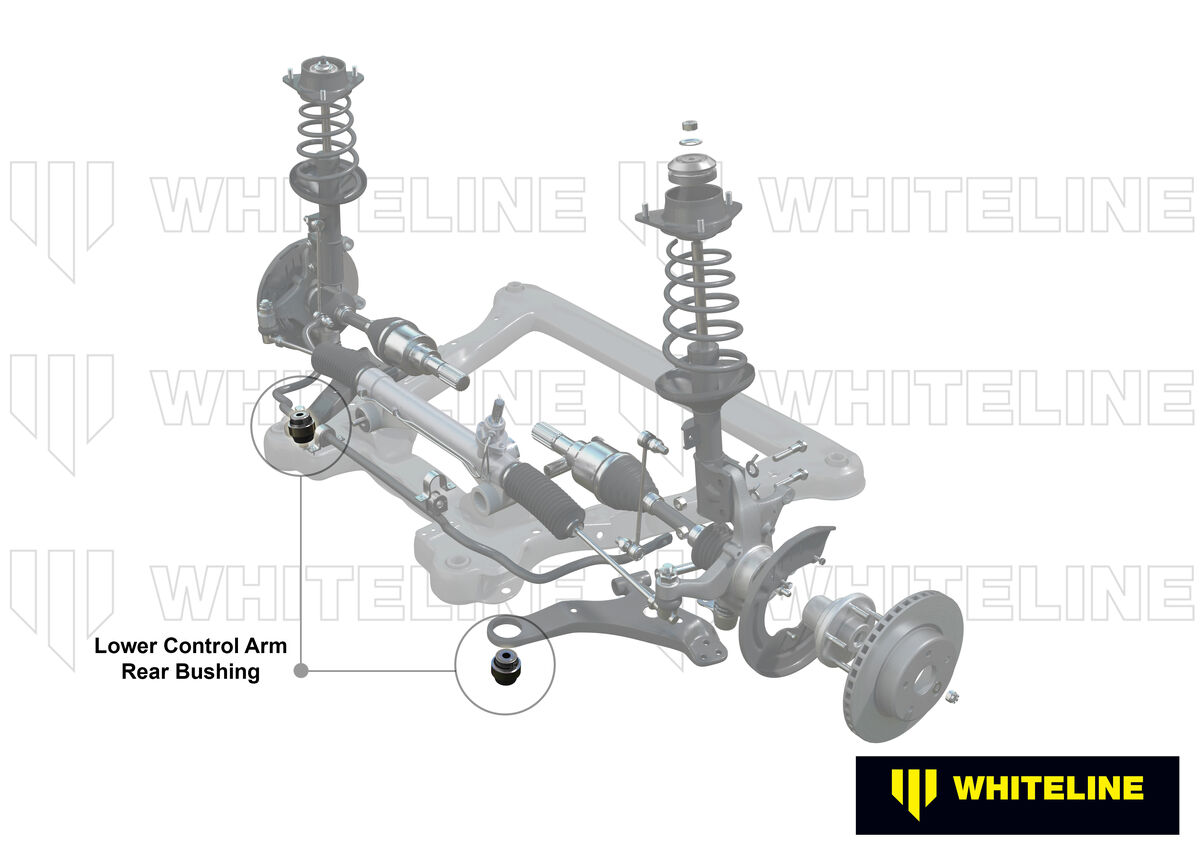

Whiteline Front Lower Inner Rear Bushings Double Offset Kit to Suit Audi, Seat, Skoda and Volkswagen PQ35 Fwd/Awd

SKU: W53189

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 59.8 mm
ID (B) 25 mm
Length (C) 42.5 mm
Flange Thickness (D) 8 mm
Flange OD (E) 35.3 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.2x41 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 59.8
ID (B) 25
Length (C) 42.5
FL (D) 8
FLOD (E) 35.3
C/Tube Qty 2
C/Tube Size 25.4x12.2x41
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.49kg1.08lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53189
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924378982
  • Lifetime Warranty
Brand Whiteline
SKU W53189
Unit Of Measure Kit
