Whiteline Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Subaru Impreza VA, VB WRX/STI and Levorg VM

SKU: KCA425M

Benefit Note: MOTORSPORT ONLY - Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The alloy bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the alloy bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) 76.3 mm
ID (B) 14.1 mm
Length (C) 53.9 mm
Flange Thickness (D)
Flange OD (E) 84 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster / Anti-Lift Offset No

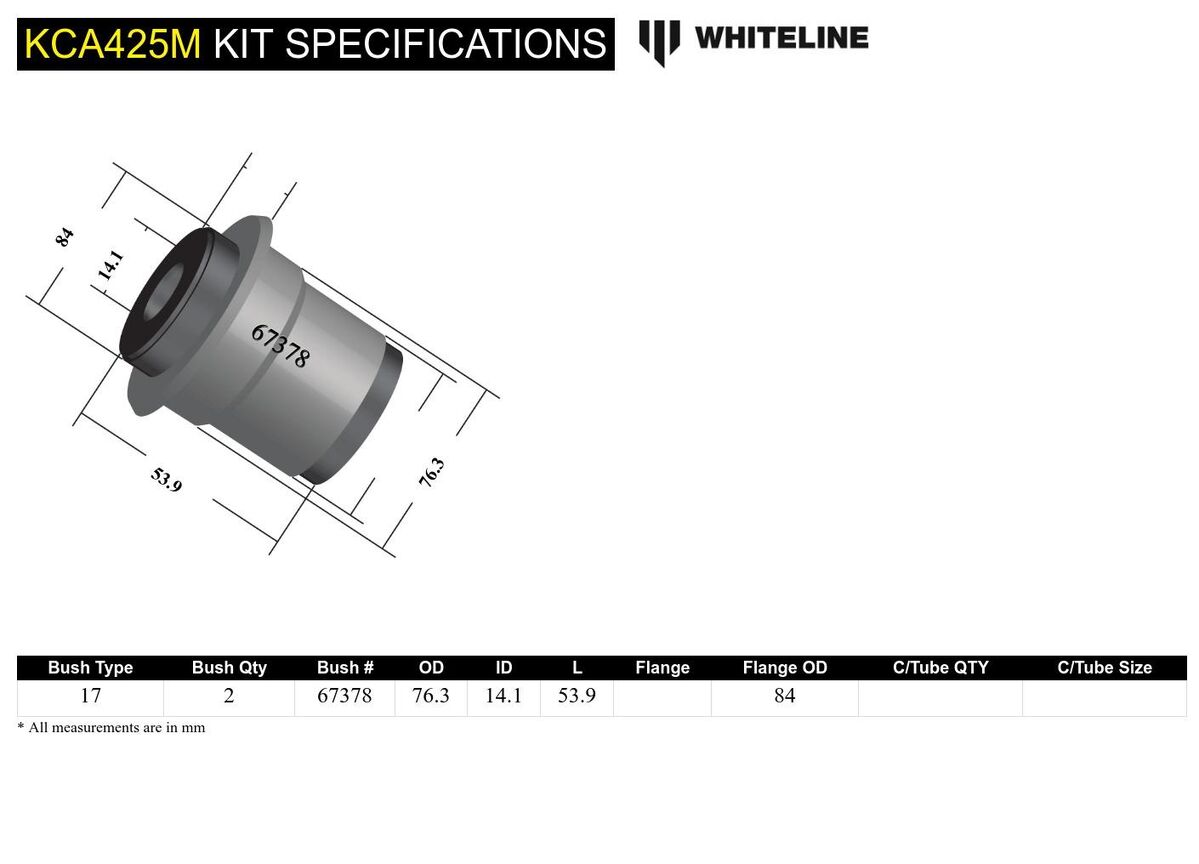

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) 76.3
ID (B) 14.1
Length (C) 53.9
FL (D)
FLOD (E) 84
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight3.73kg8.22lbs
Length36cm14.17"
Width6cm2.36"
Height18cm7.09"

Misc. Product Information

More Information
SKUKCA425M

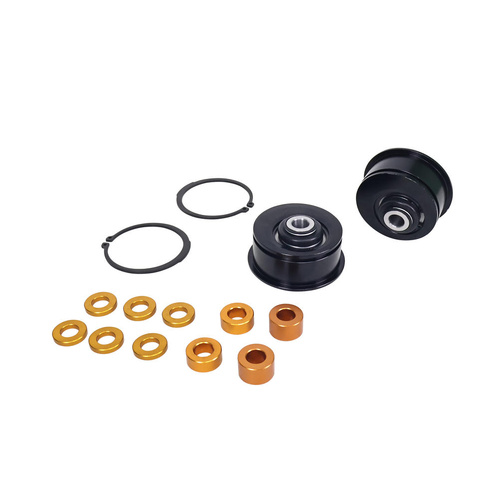

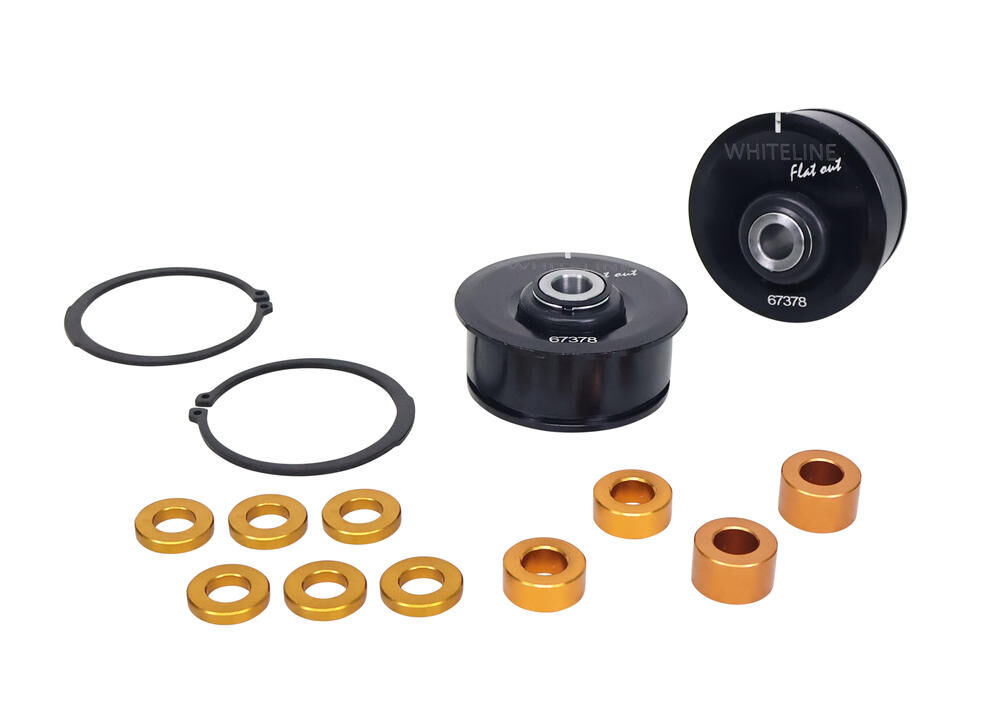

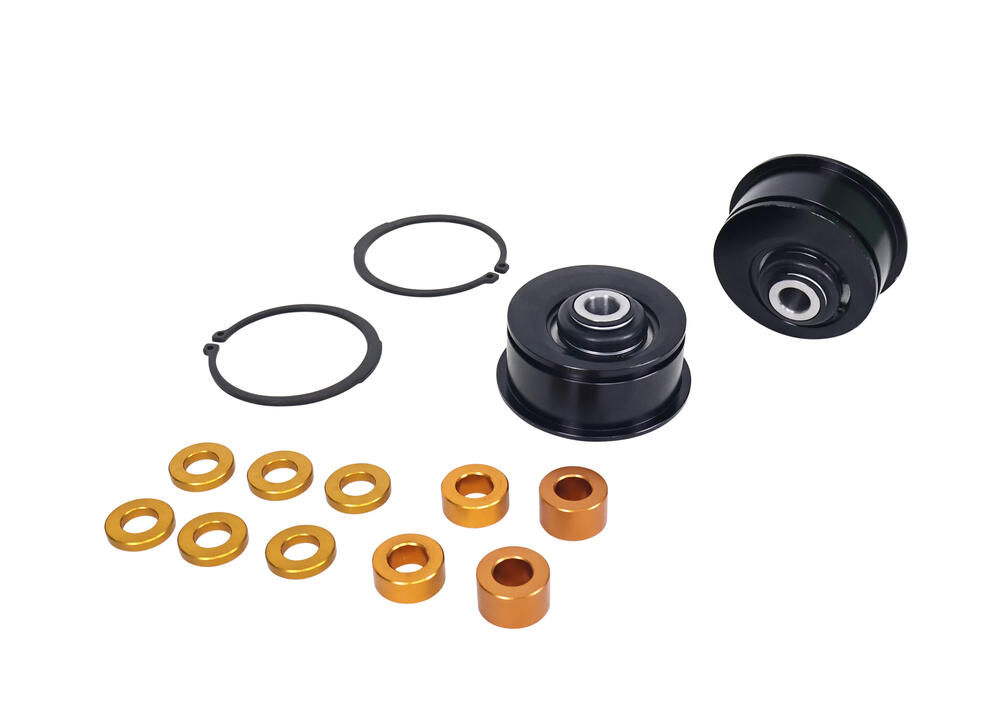

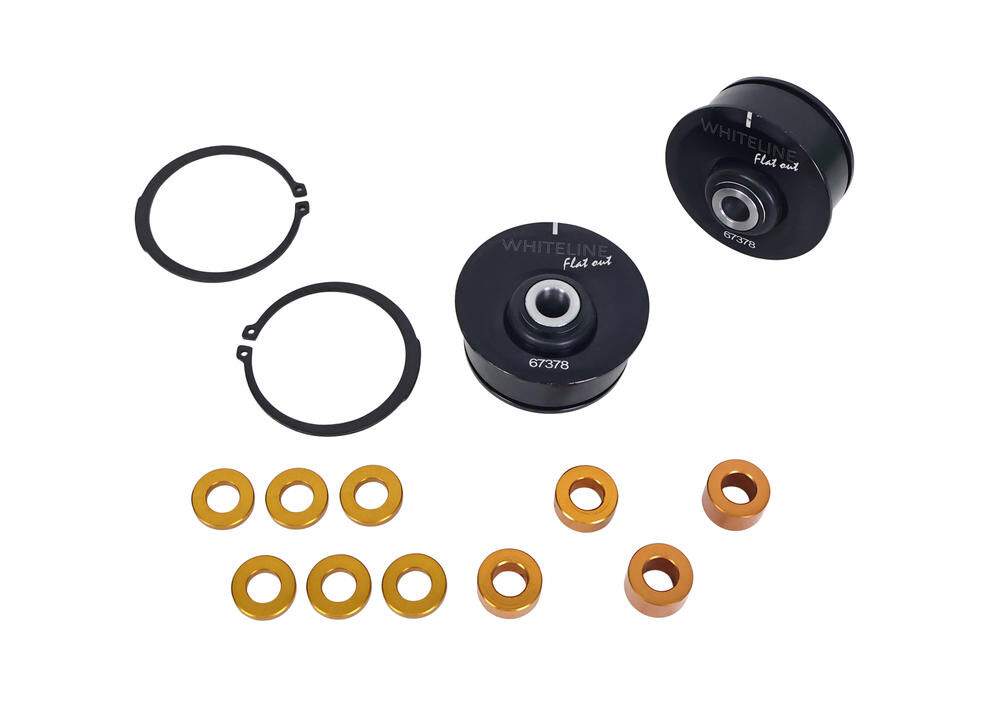

Components Per2 Alloy Bushings, 10 Spacers
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Alloy Bushings, 10 Spacers
EAN9319924383016
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA425M
Unit Of Measure Each
