Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

Kit Specifications

Bush Type	4 - D-bushing With Flange	4 - D-bushing With Flange
Bush Quantity	1 mm	1 mm
OD (A)	56 mm	56 mm
ID (B)	20.2 mm	20.2 mm
Length (C)	65 mm	65 mm
Flange Thickness (D)	7.8 mm	7.8 mm
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster / Anti-Lift	Offset	No
Caster / Anti-Lift	Offset	No

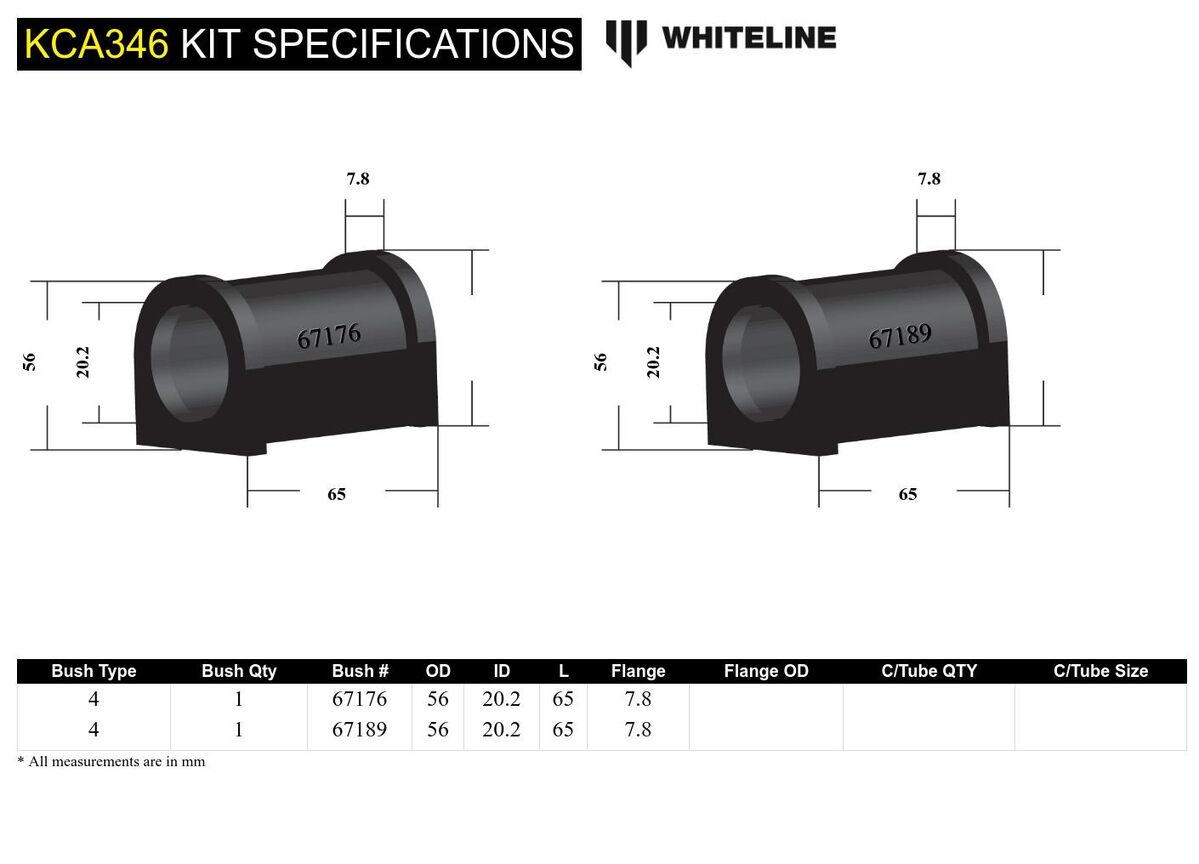

Bushing Design Dimensions (mm)

Bush Type	4	4
QTY	1	1
OD (A)	56	56
ID (B)	20.2	20.2
Length (C)	65.0	65.0
FL (D)	7.8	7.8
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.04kg	2.29lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KCA346

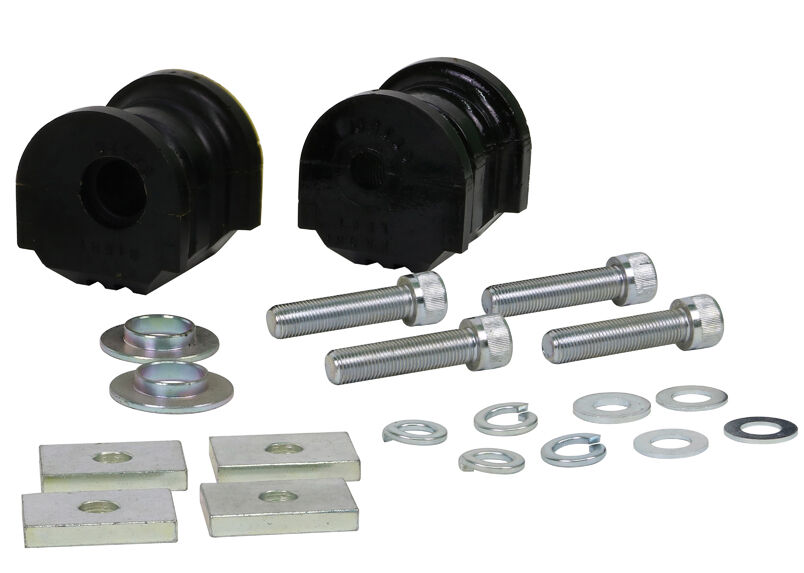

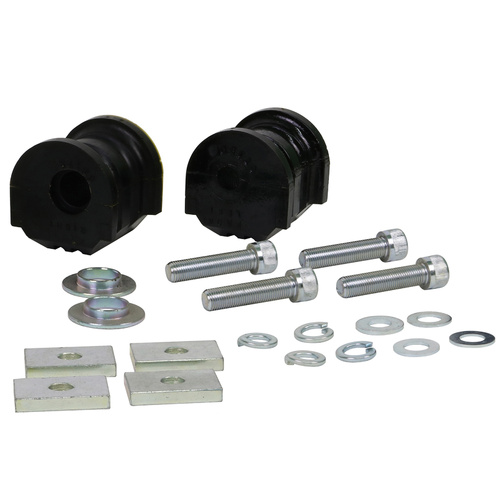

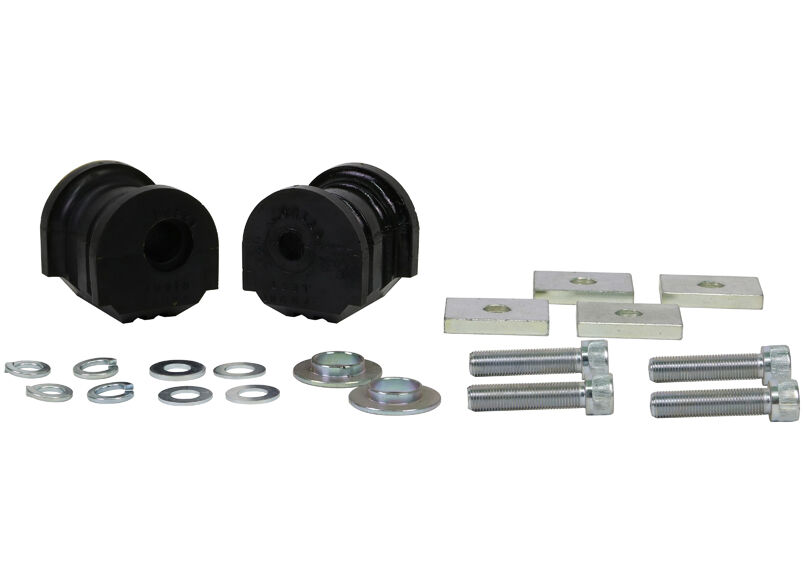

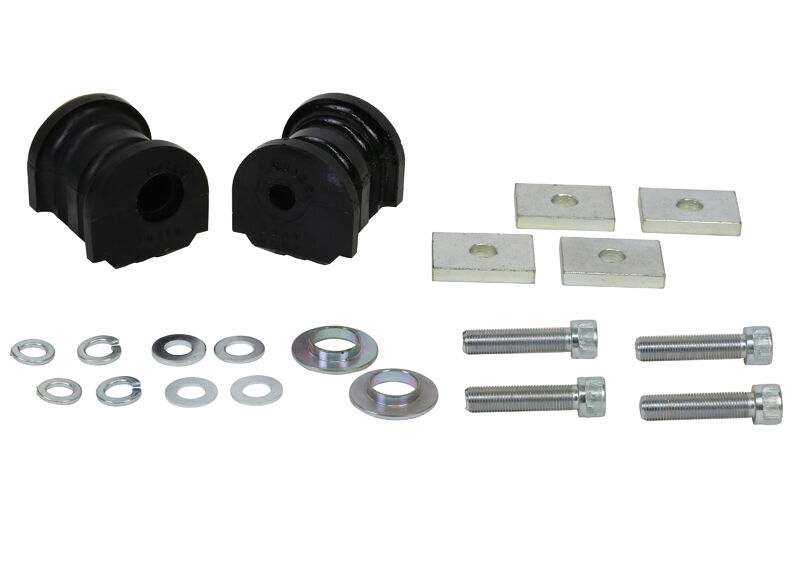

Components Per	2 Bushings, 4 Plates, 4 Bolts, 10 Washers
Kits Required	1
Sub brand	Performance
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 4 Plates, 4 Bolts, 10 Washers
EAN	9319924342518
