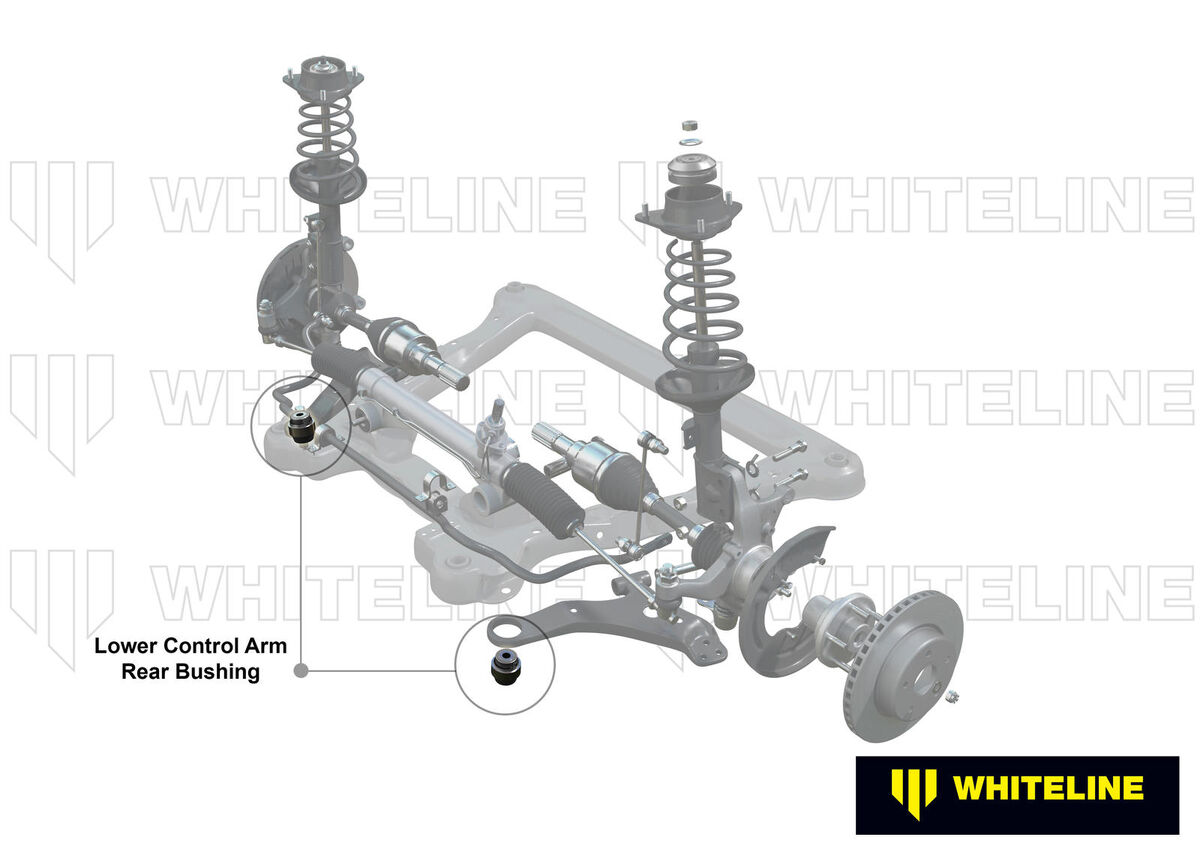

Whiteline Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Subaru Forester, Impreza, Liberty and Outback

SKU: KCA334

Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.


Kit Specifications

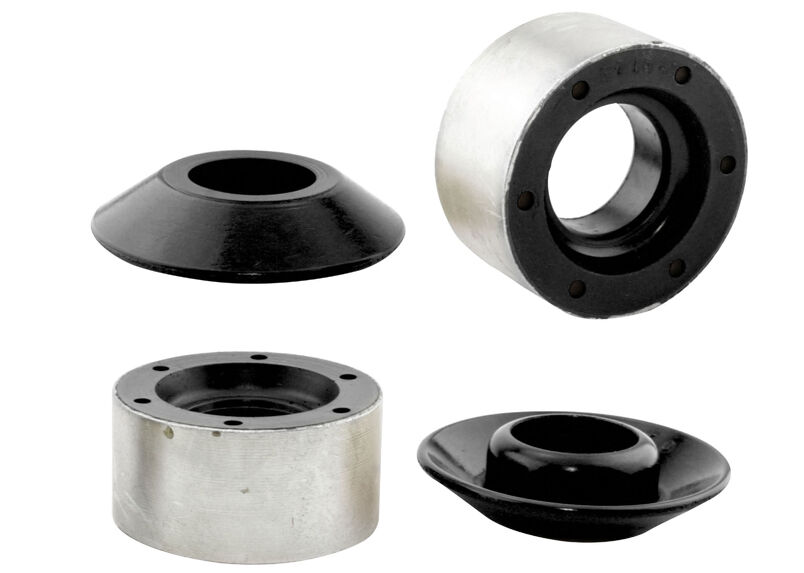

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 60 mm
ID (B) 28.3 mm
Length (C) 30.4 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 28.6x17.2x57.4 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster / Anti-Lift Eccentric Yes

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 60
ID (B) 28.3
Length (C) 30.4
FL (D)
FLOD (E)
C/Tube Qty 2
C/Tube Size 28.6x17.2x57.4
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.926kg2.04lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA334

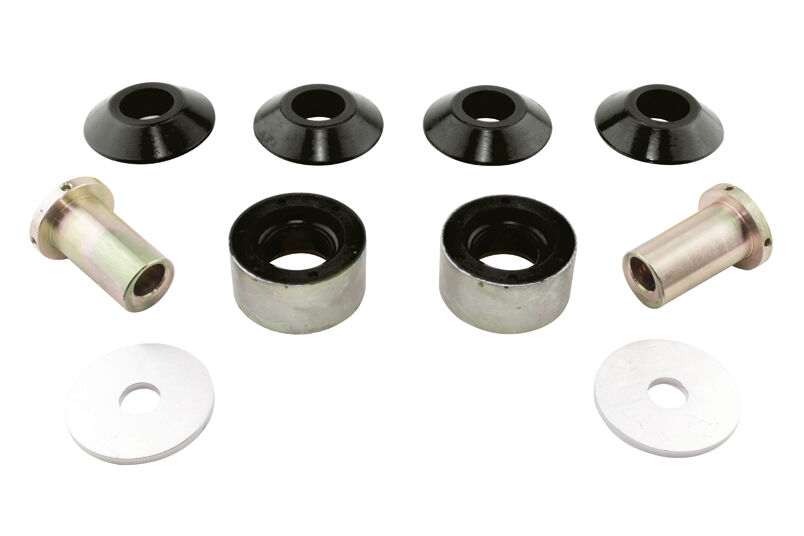

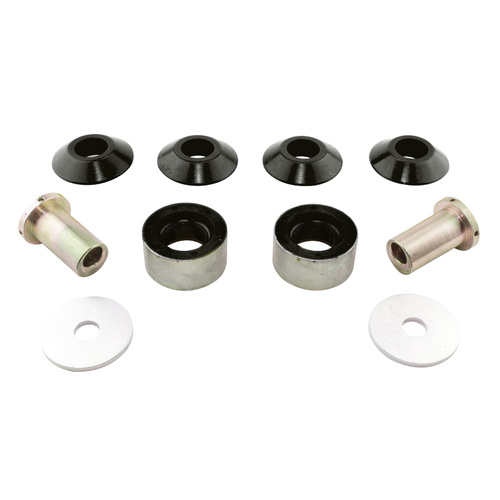

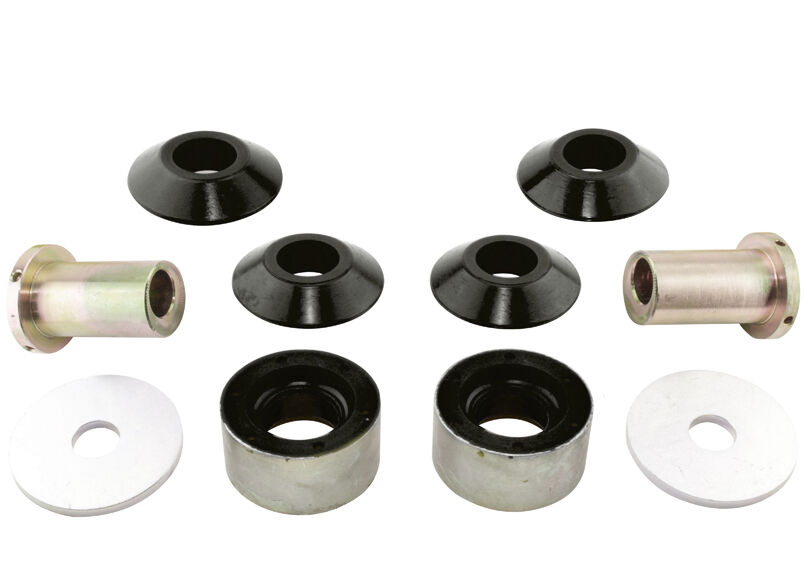

Components Per2 Shell Bushings, 4 Bushings, 2 Tubes, 2 Washers
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes, 2 Washers
EAN9319924358854
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA334
Unit Of Measure Each
