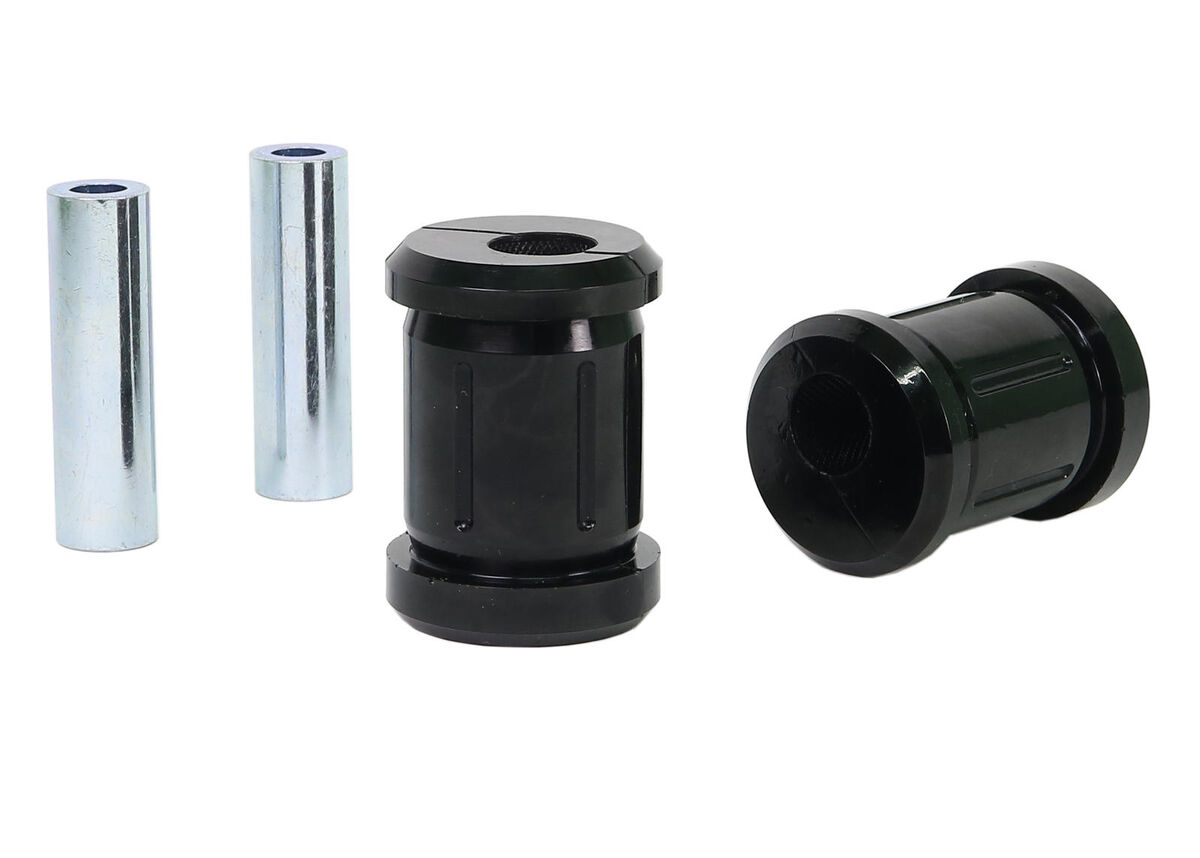

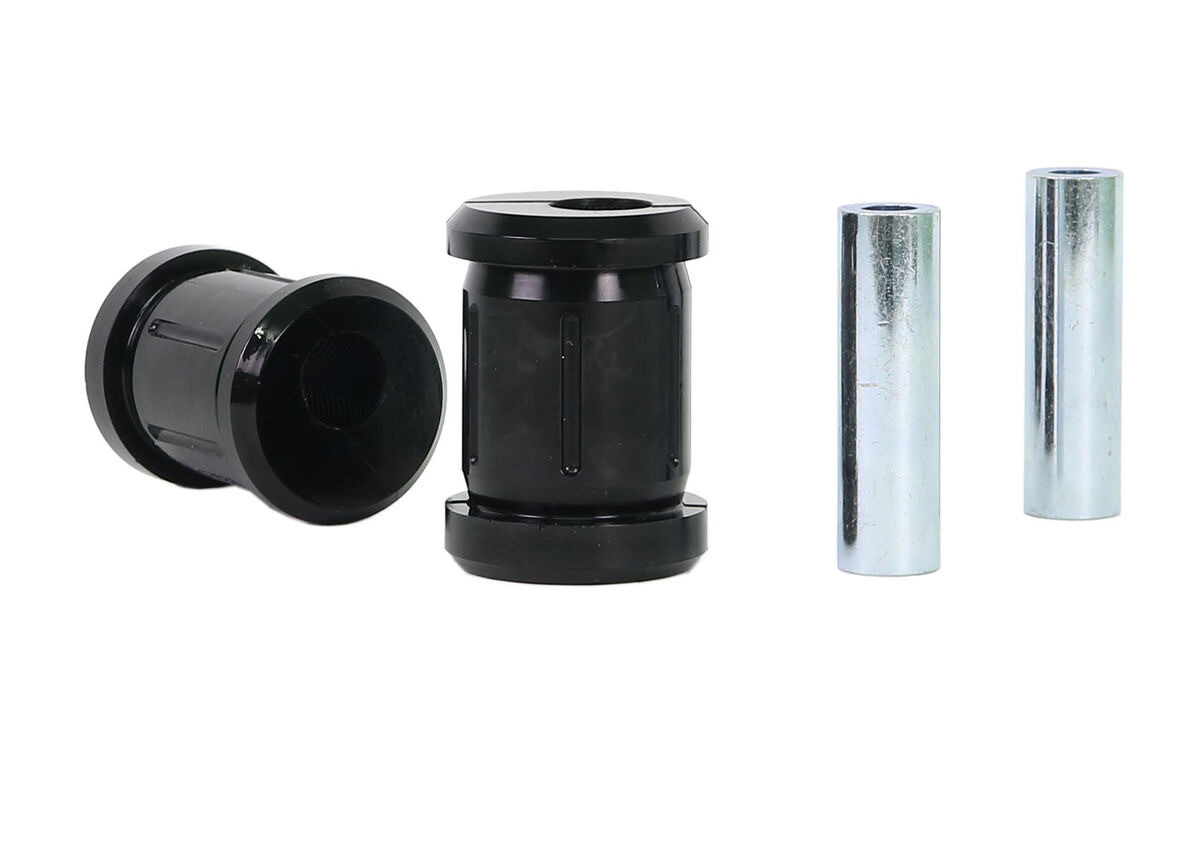

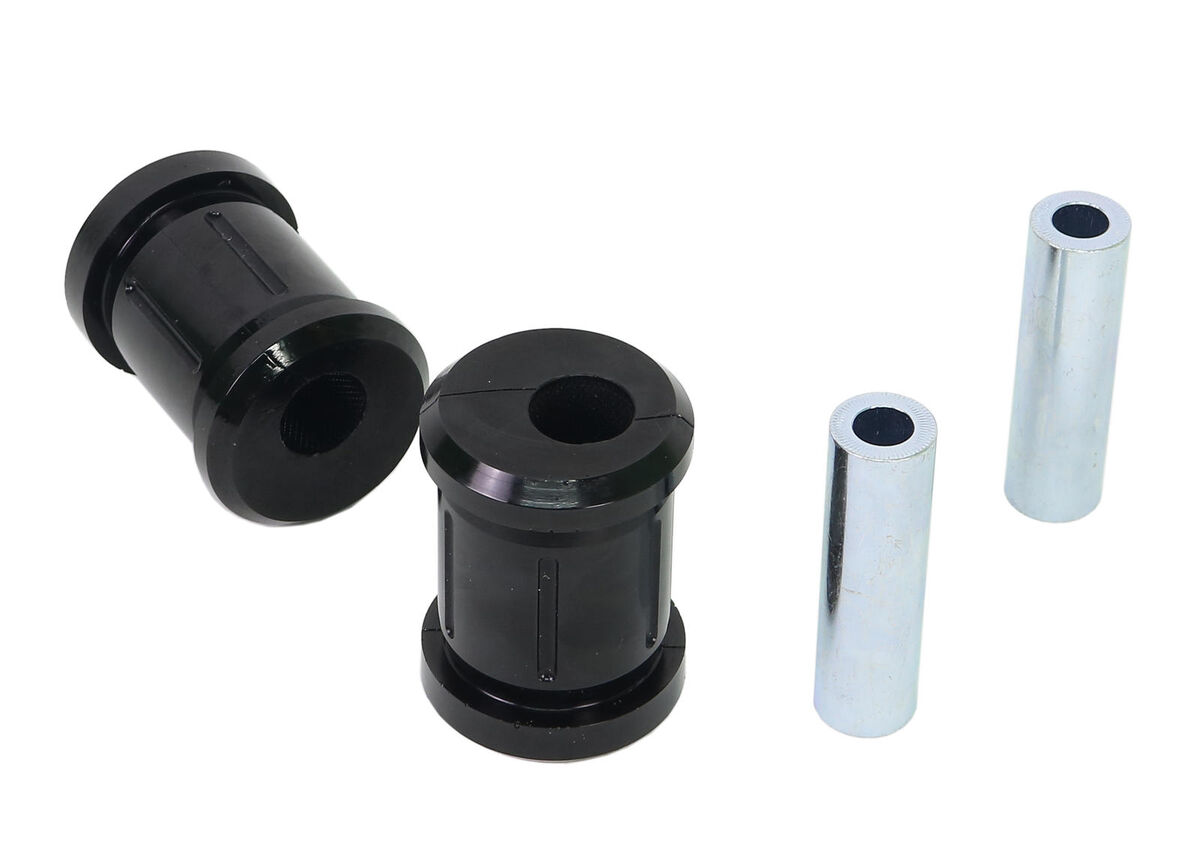

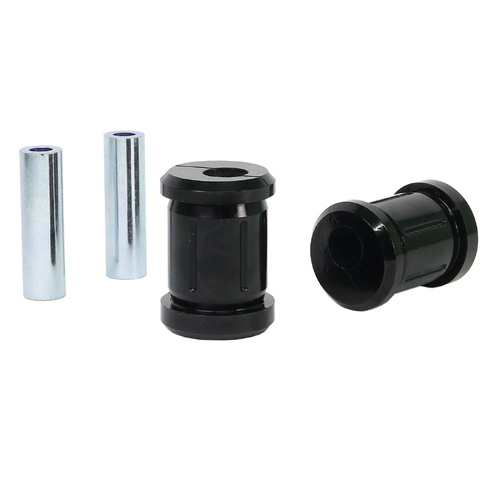

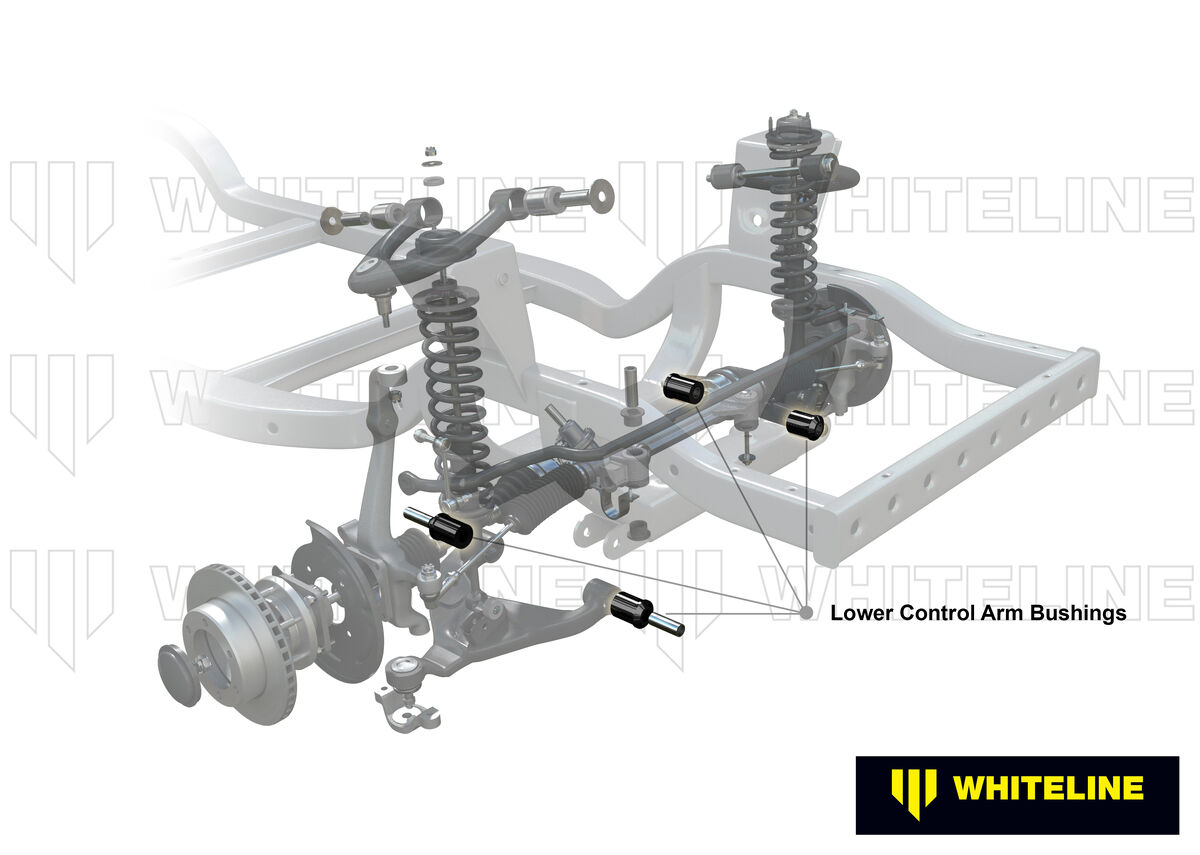

Whiteline Front Lower Inner Rear Bushings Camber to Suit Toyota Hilux, Prado 120 Series, 4Runner and Foton Tunland

SKU: KCA509

Benefit Note: Whiteline camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. This kit is supplied with dual offset Whiteline synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.

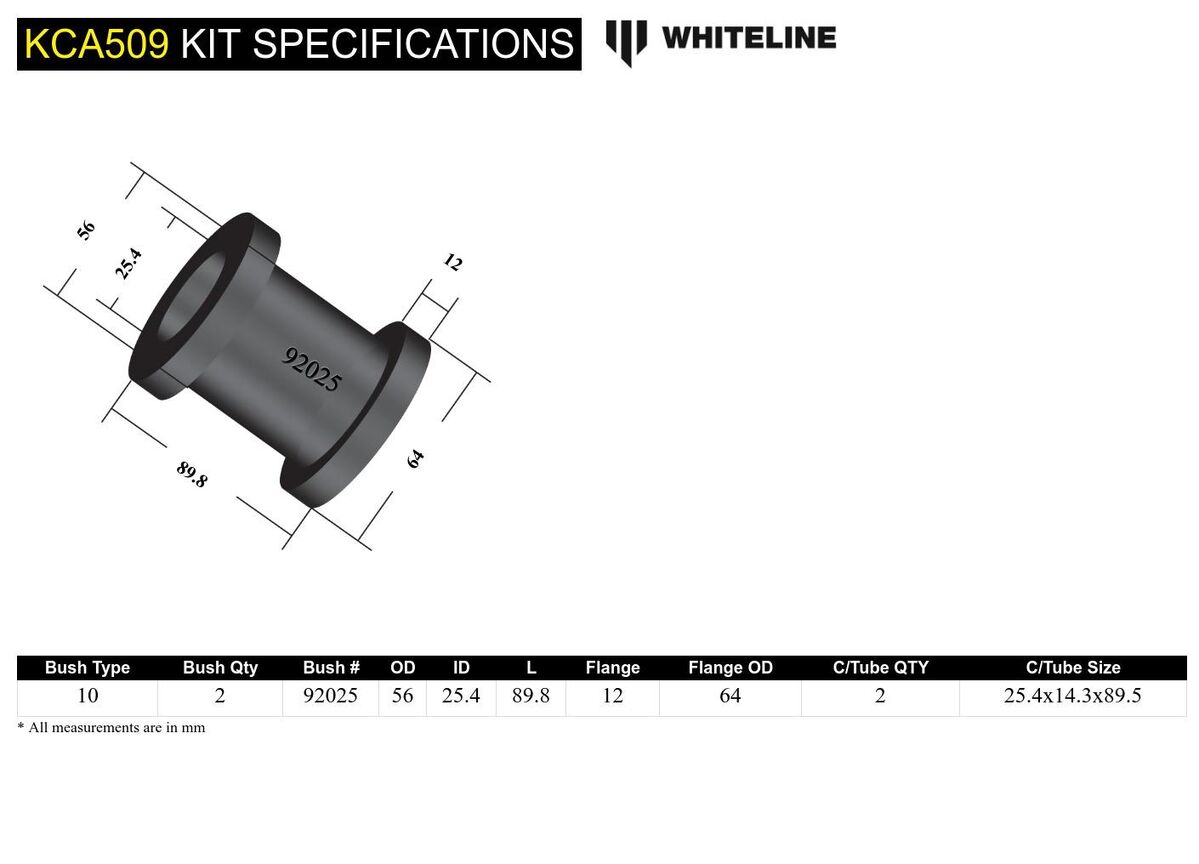

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 56 mm
ID (B) 25.4 mm
Length (C) 89.8 mm
Flange Thickness (D) 12 mm
Flange OD (E) 64 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x14.3x89.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Camber Offset No

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 56
ID (B) 25.4
Length (C) 89.8
FL (D) 12
FLOD (E) 64
C/Tube Qty 2
C/Tube Size 25.4x14.3x89.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.6kg1.32lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA509
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924467648
  • Lifetime Warranty
Brand Whiteline
SKU KCA509
Unit Of Measure Each
