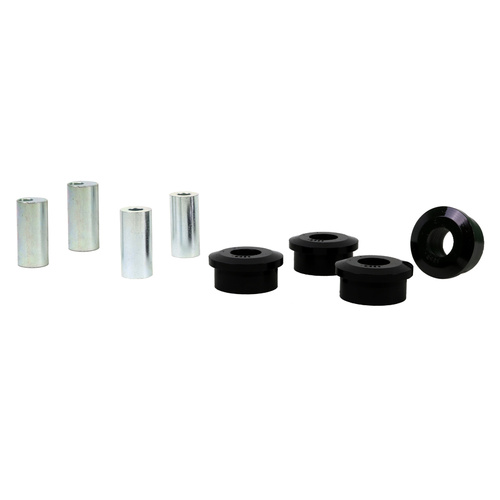

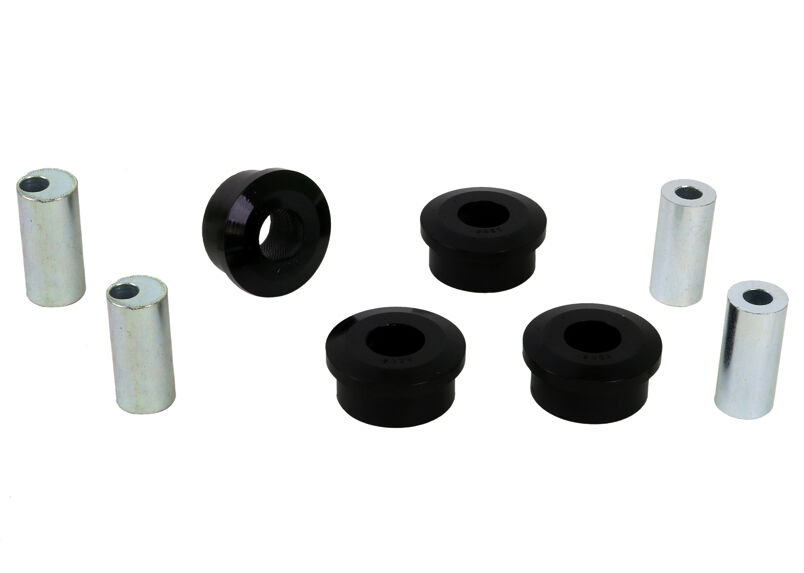

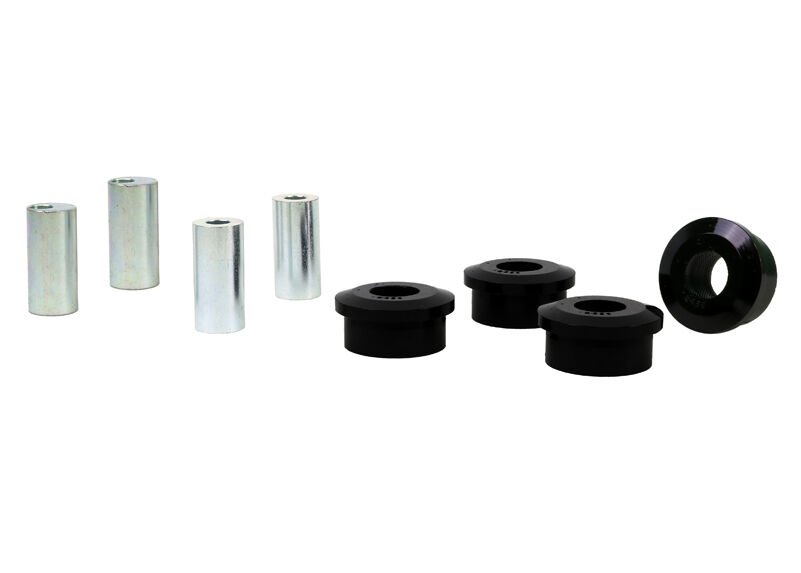

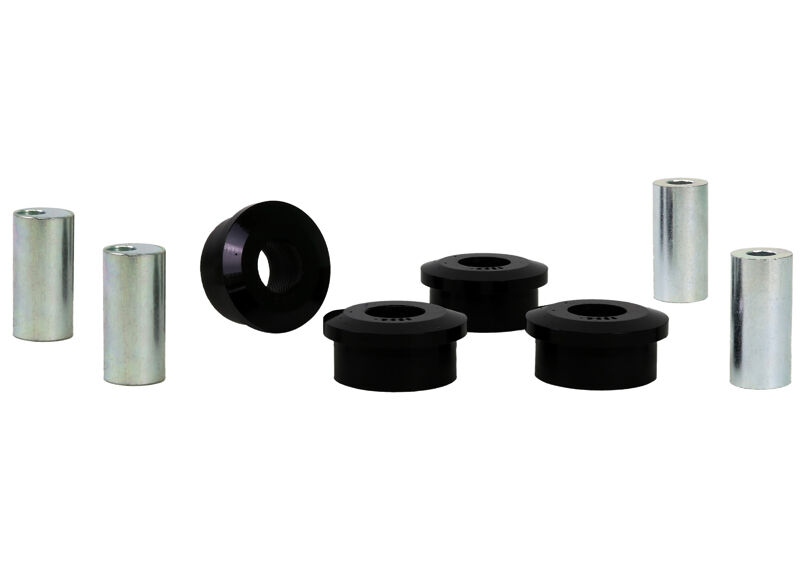

Whiteline Front Lower Inner Rear Bushing Single Offset Kit to Suit Volkswagen Amarok 2H and Transporter T5

SKU: W53269

Benefit Note: Not all roads are flat, believe it or not sometimes the road can cause the car to pull either left or right. This Whiteline kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.


Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 60 mm
ID (B) 29.6 mm
Length (C) 33 mm
Flange Thickness (D) 10 mm
Flange OD (E) 70 mm
C/Tube Quantity 1 / 1
C/Tube ODxIDxL 30x14.2x64 / 30x14.2x64 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric No

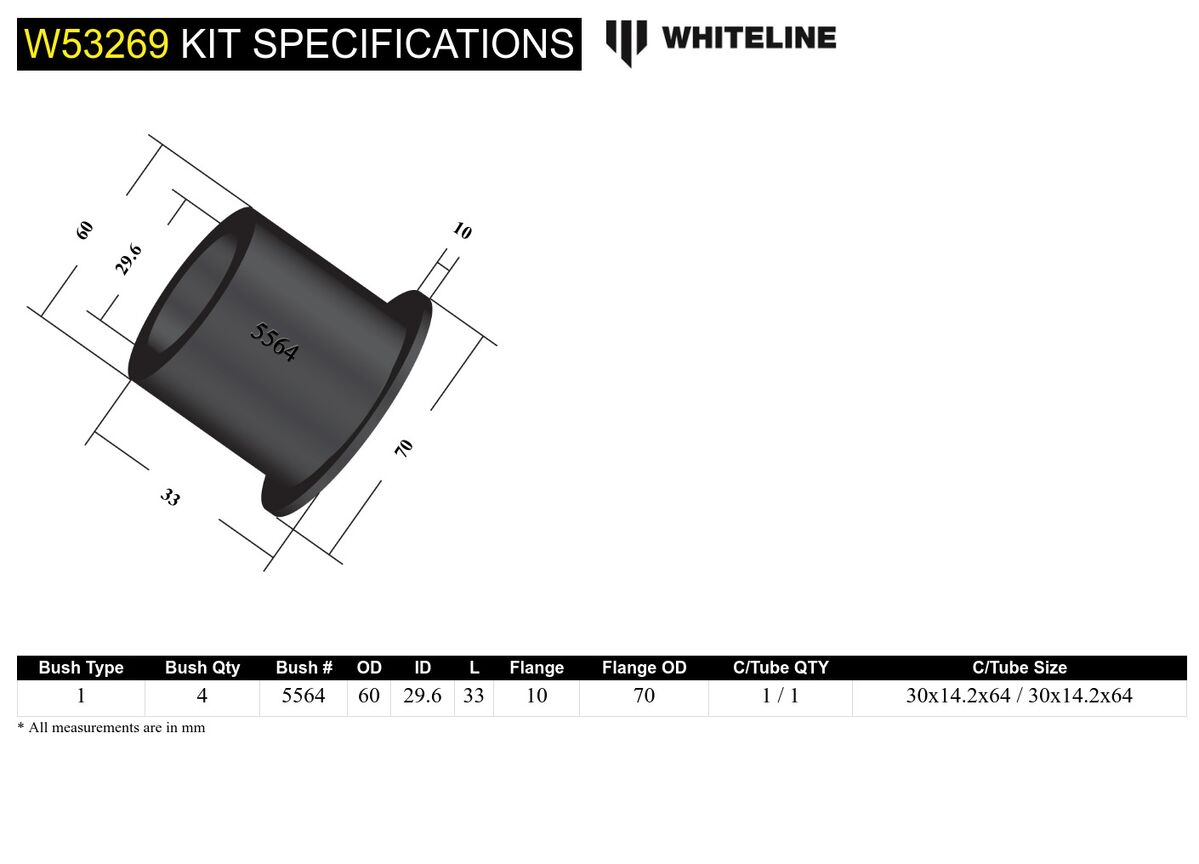

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 60
ID (B) 29.6
Length (C) 33.0
FL (D) 10
FLOD (E) 70
C/Tube Qty 1 / 1
C/Tube Size 30x14.2x64 / 30x14.2x64
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.91kg2.01lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW53269
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924375745
  • Lifetime Warranty
Brand Whiteline
SKU W53269
Unit Of Measure Kit
