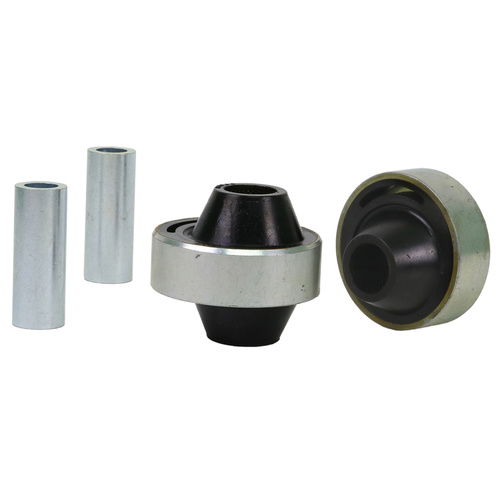

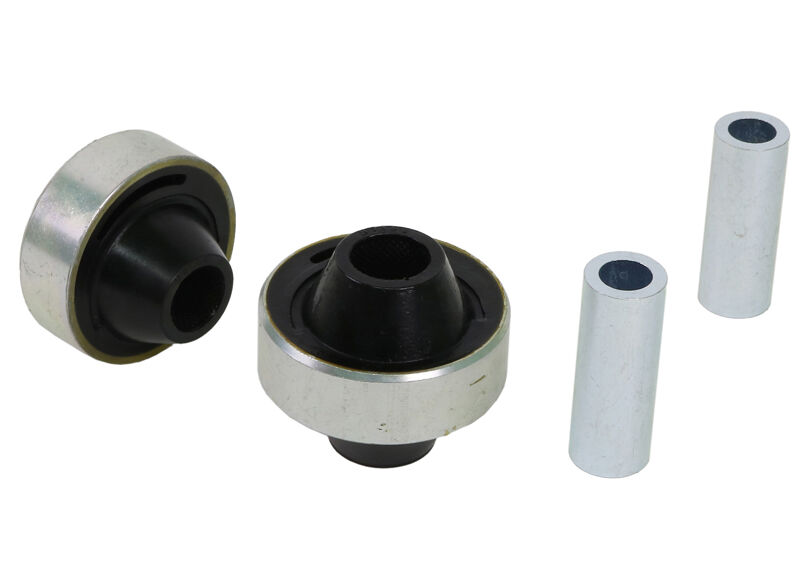

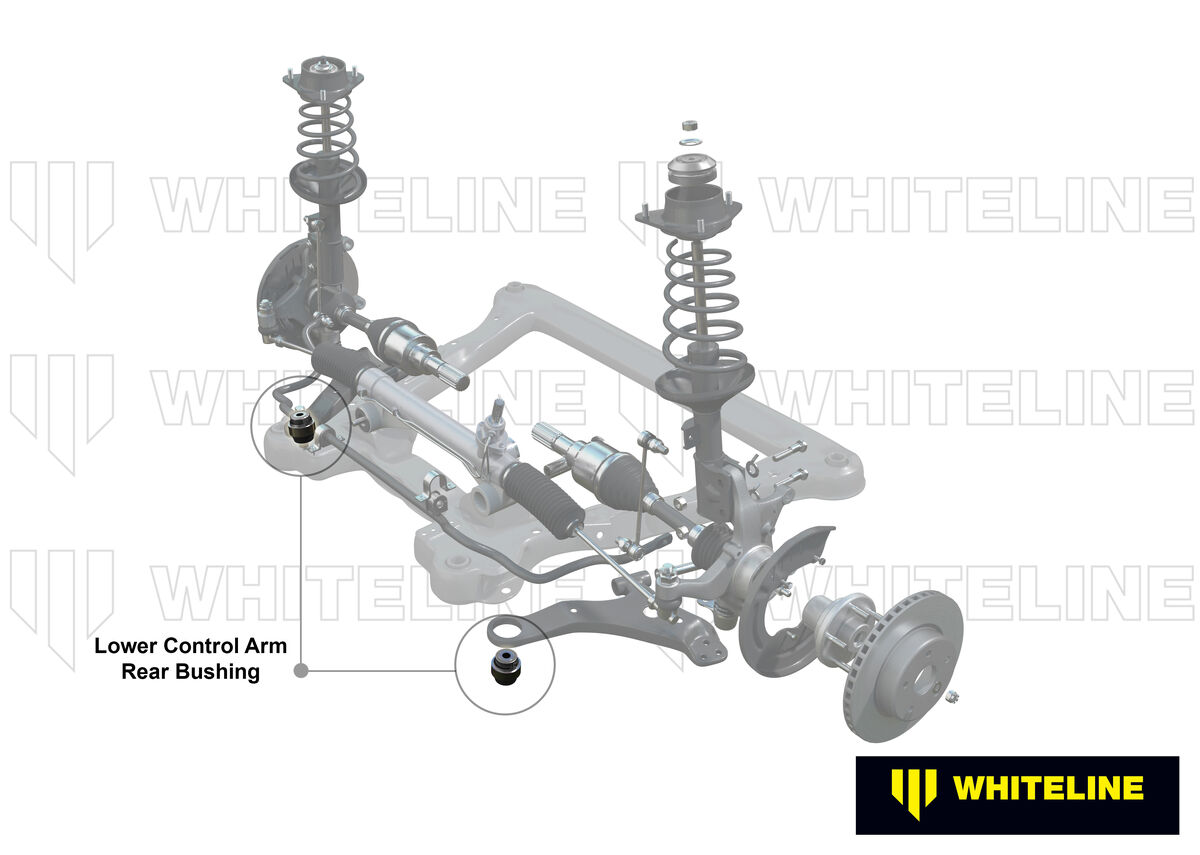

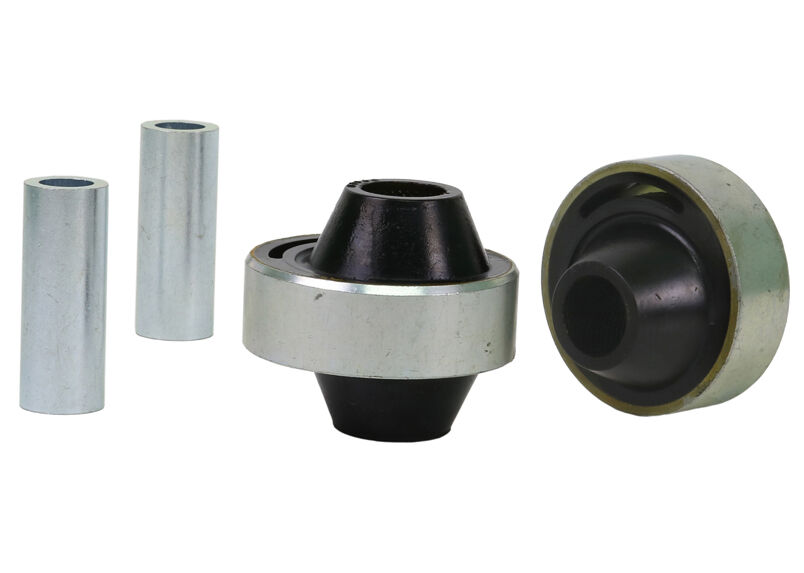

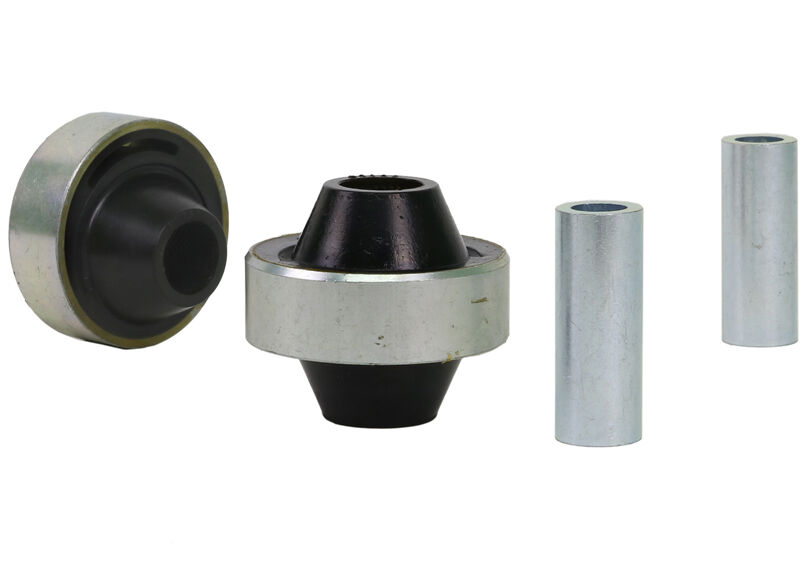

Whiteline Front Lower Inner Rear Bushing Double Offset Kit to Suit Toyota Corolla, Prius and Avensis Verso

SKU: W53276

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 68 mm
ID (B) 22 mm
Length (C) 60 mm
Flange Thickness (D) 19 mm
Flange OD (E) 30 mm
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x14.3x59.8 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 68
ID (B) 22
Length (C) 60.0
FL (D) 19
FLOD (E) 30
C/Tube Qty 2
C/Tube Size 22.2x14.3x59.8
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.61kg1.34lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53276
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924375943
  • Lifetime Warranty
Brand Whiteline
SKU W53276
Unit Of Measure Kit
