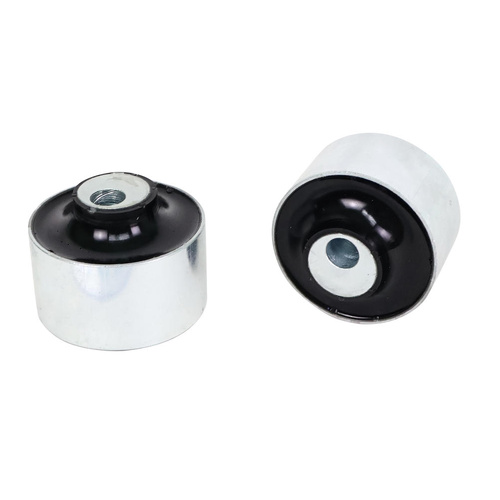

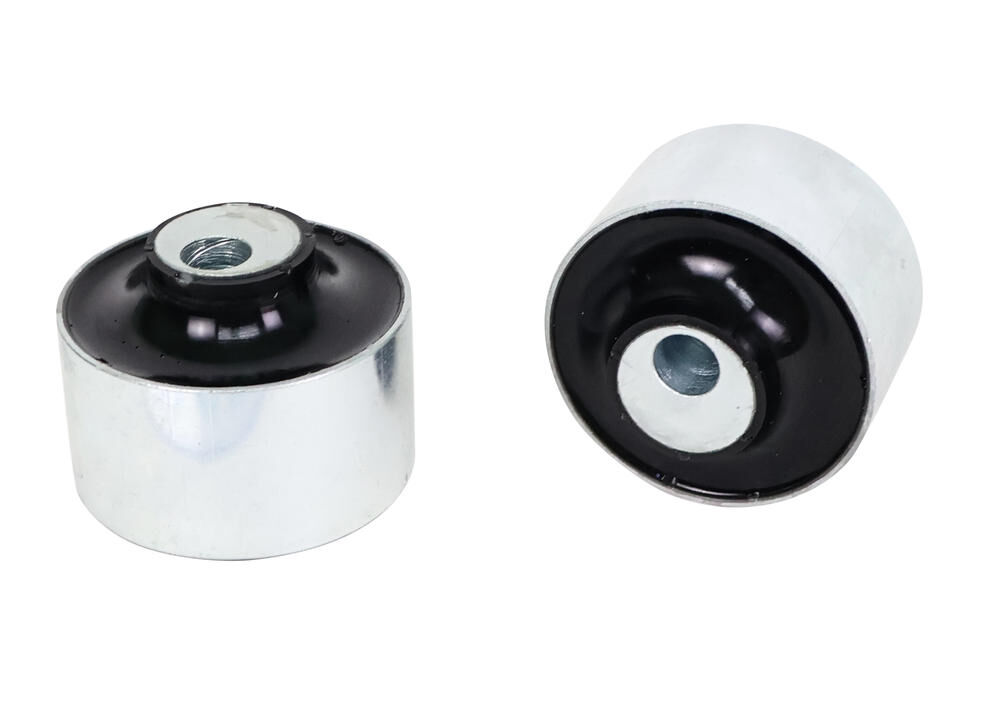

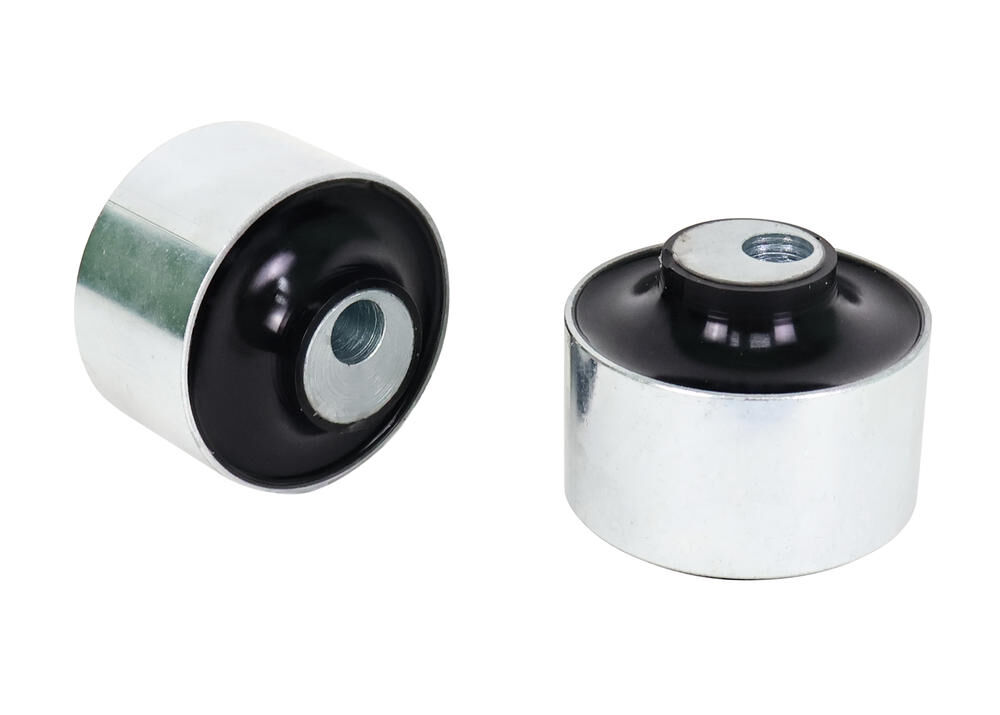

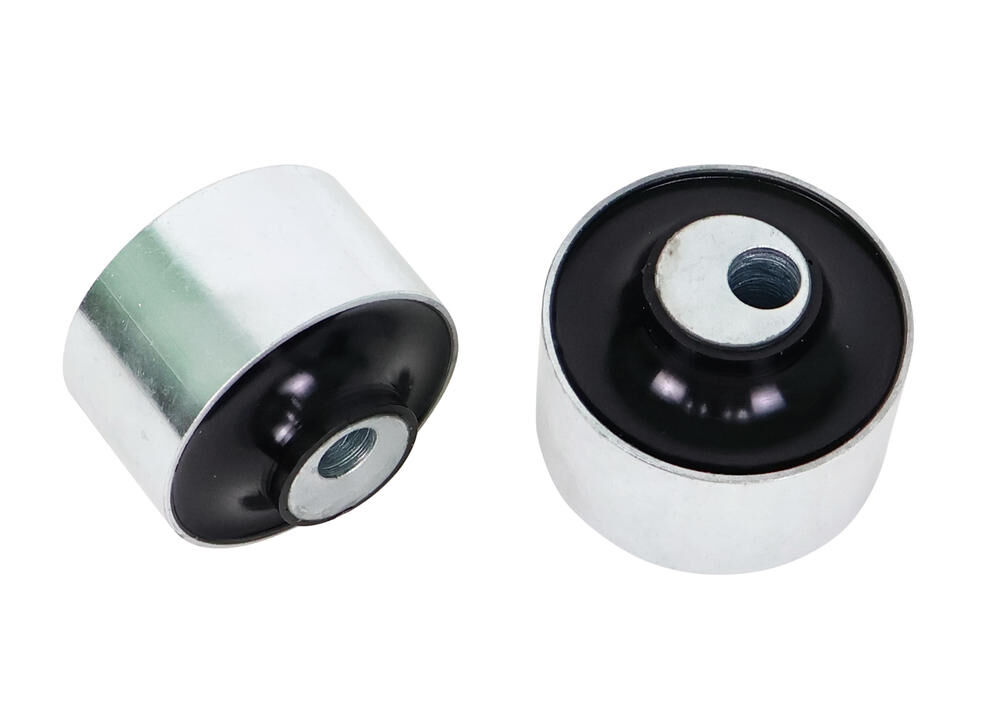

Whiteline Front Lower Inner Rear Bushing Double Offset Caster Kit to Suit Toyota Camry XV70 and Rav 4 XA50

SKU: KCA567

Benefit Note: Whiteline camber and caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 3 - Half Tapered Cotton Reel Bush
Bush Quantity 2 mm 4 mm
OD (A) 72.1 mm 60 mm
ID (B) 22 mm 24.5 mm
Length (C) 40 mm 13.5 mm
Flange Thickness (D) 2 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 25x14.3x67 mm 25x14.3x67 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 3 - Half Tapered Cotton Reel Bush
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16 3
QTY 2 4
OD (A) 72.1 60
ID (B) 22 24.5
Length (C) 40.0 13.5
FL (D) 2
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 25x14.3x67 25x14.3x67
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 3
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.1kg2.43lbs
Length10cm3.94"
Width16cm6.3"
Height26cm10.24"

Misc. Product Information

More Information
SKUKCA567
Components Per2 Shell Bushings
Kits Required1
Sub brandPerformance
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Spacers, 2 Tubes
EAN9319924478965
  • Lifetime Warranty
Brand Whiteline
SKU KCA567
Unit Of Measure Kit
