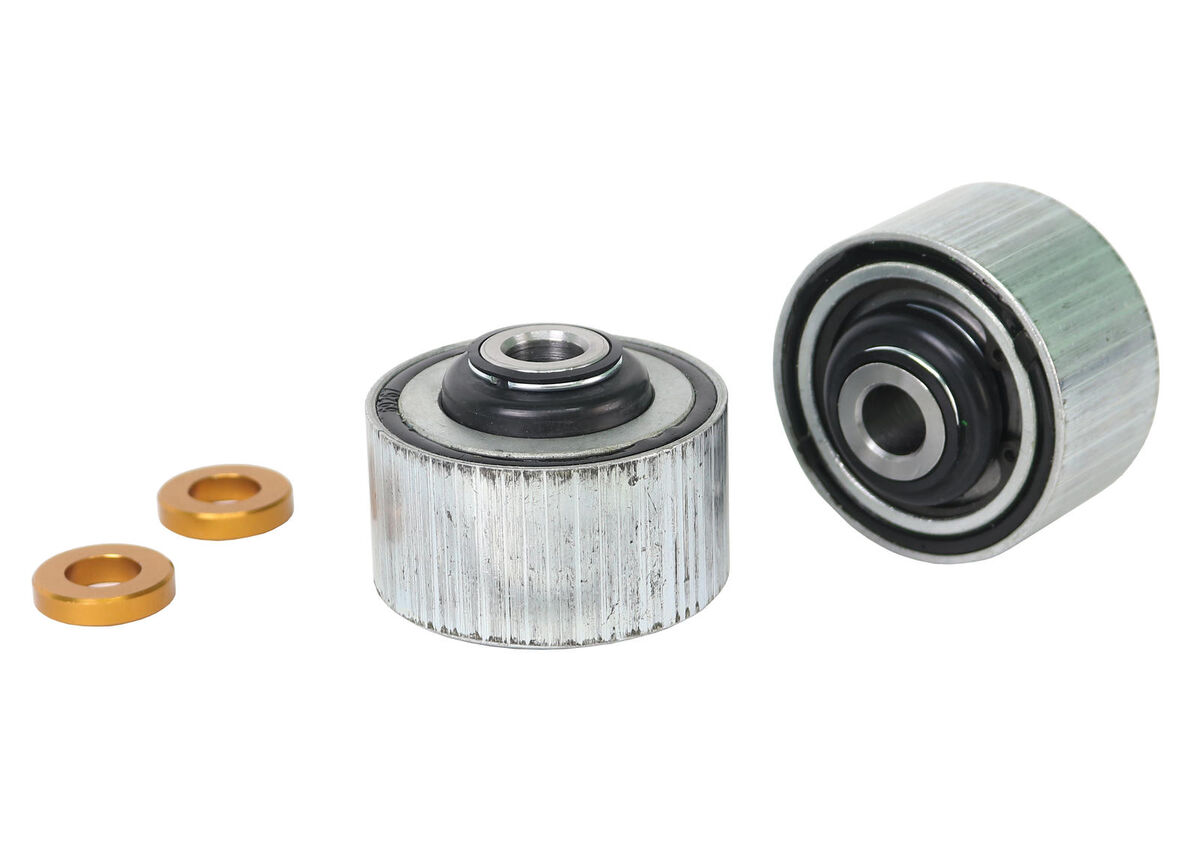

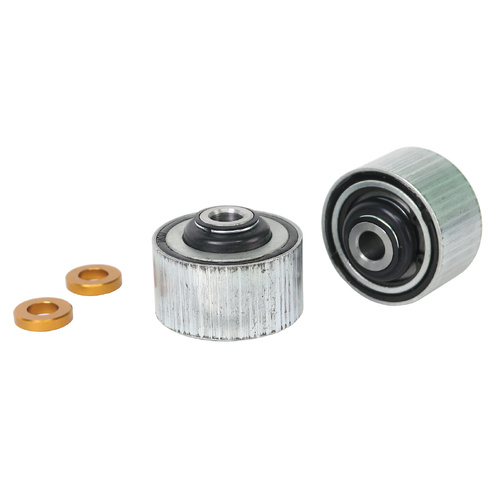

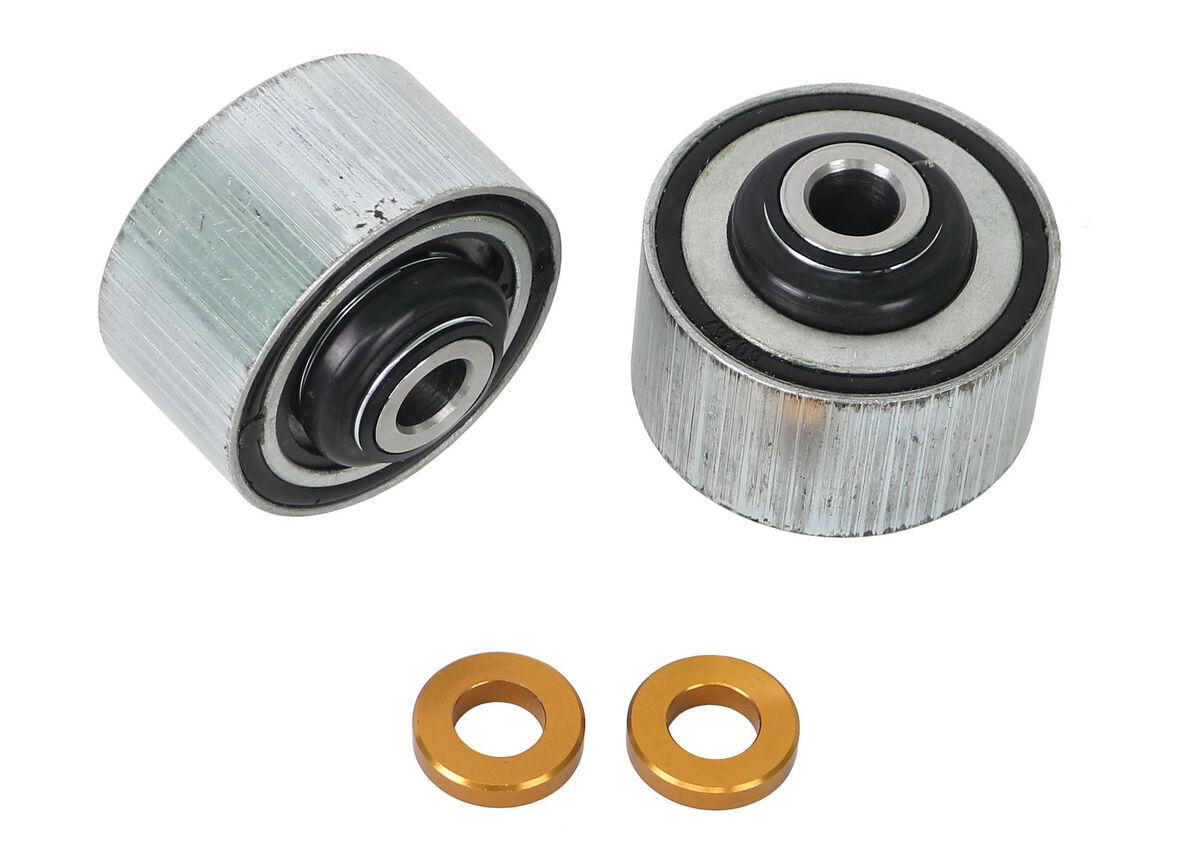

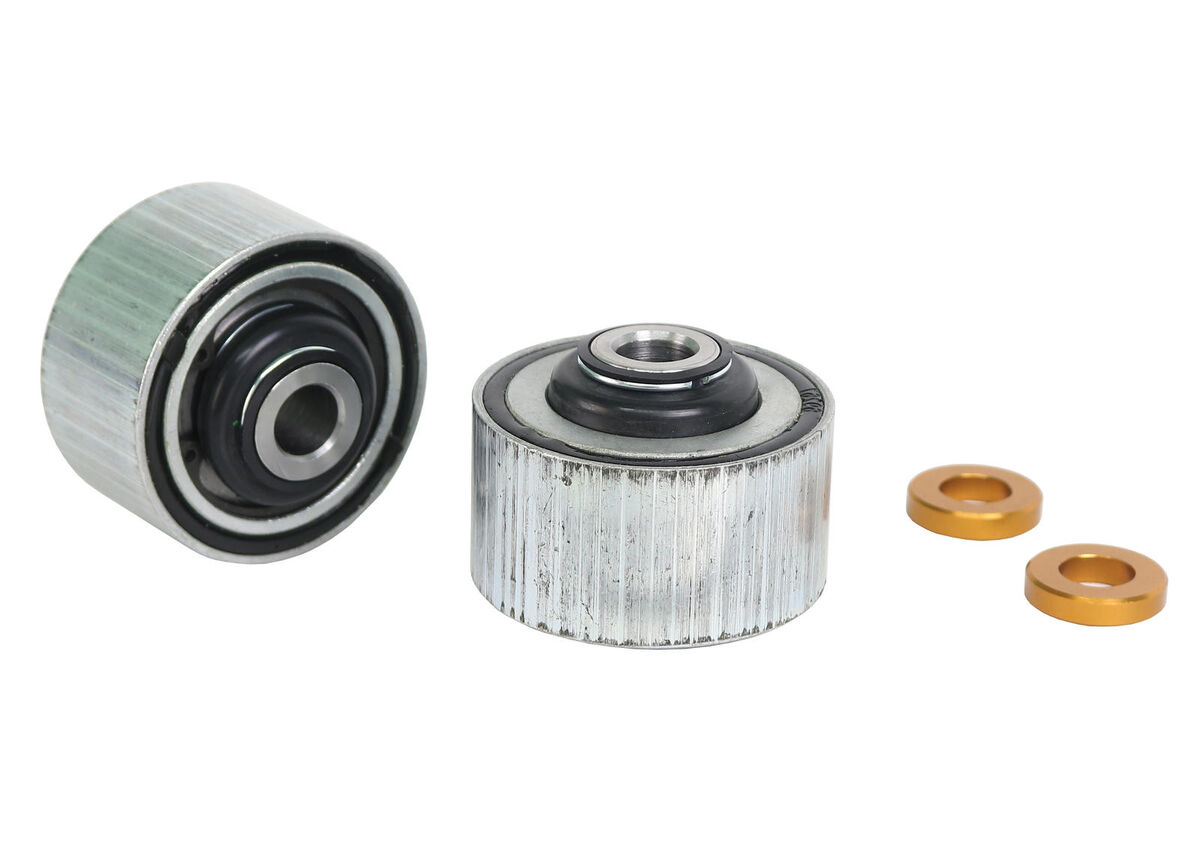

Whiteline Front Lower Inner Rear Bushing Double Offset Caster & Anti Lift Kit to Suit Hyundai I20 N BC

SKU: KCA533

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 66.1 mm
ID (B) 14 mm
Length (C) 60 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 66.1
ID (B) 14
Length (C) 60.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.75kg3.86lbs
Length36.6cm14.41"
Width19.6cm7.72"
Height5.6cm2.2"

Misc. Product Information

More Information
SKUKCA533
Components Per2 Shell Bushings
Kits Required1
Sub brandPerformance
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings
EAN9319924469772
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA533
Unit Of Measure Kit
