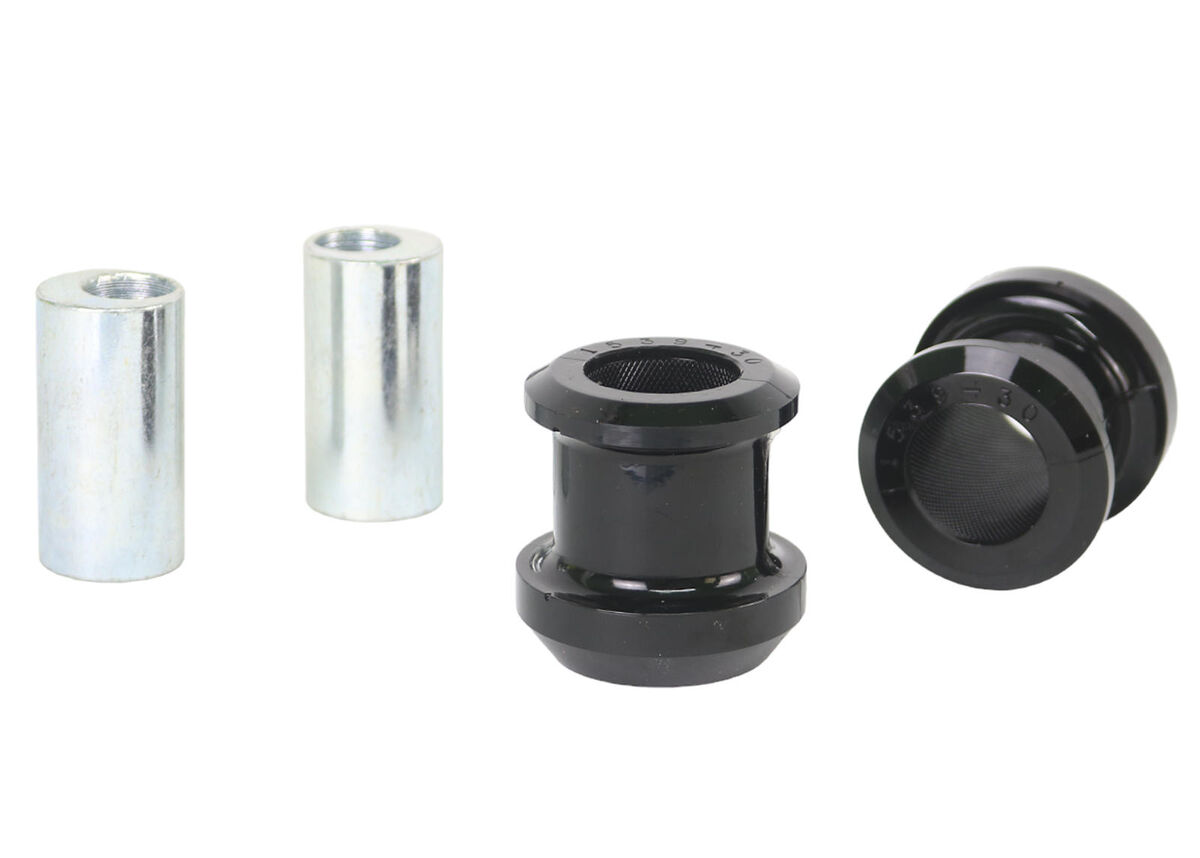

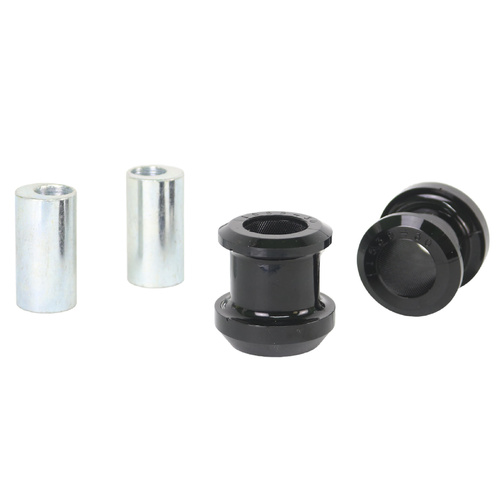

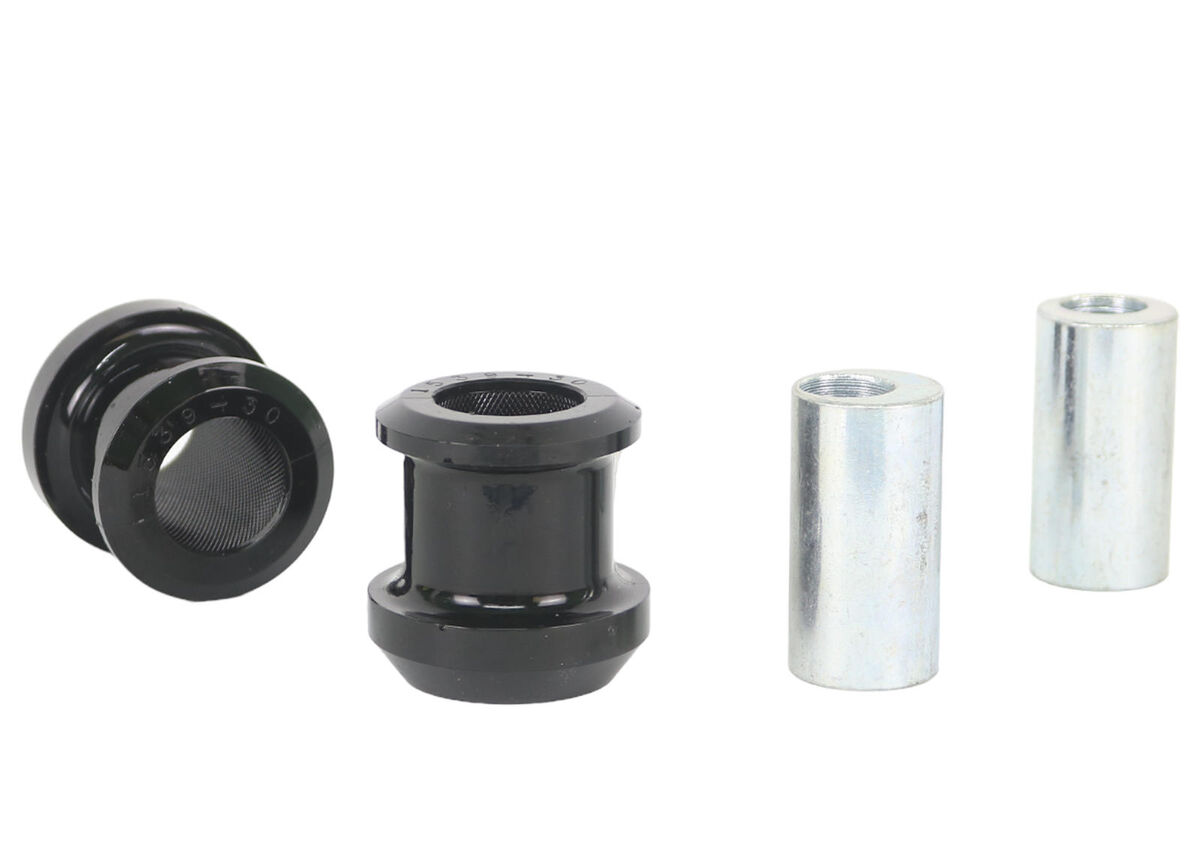

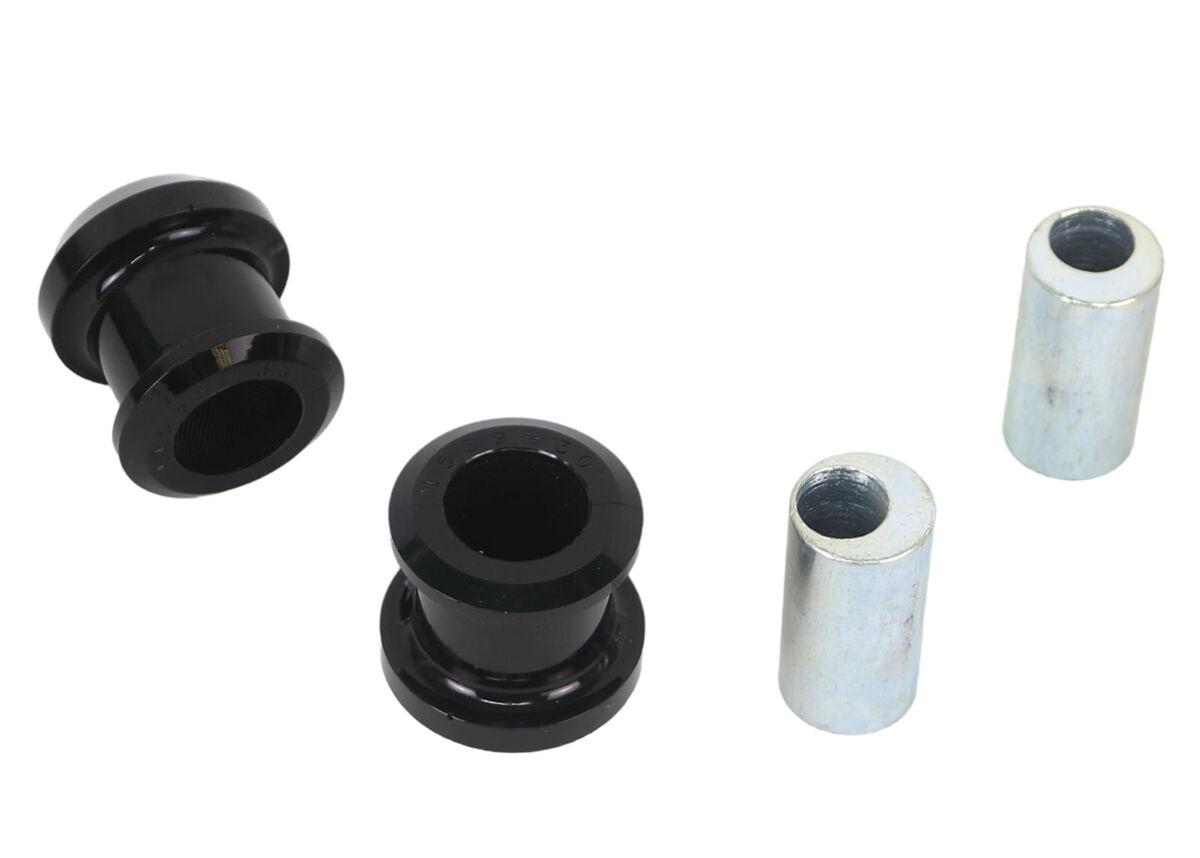

Whiteline Front Lower Inner Rear Bushing Double Offset Kit to Suit Honda Civic 5th Gen and Integra DC2

SKU: KCA527

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 41 mm
ID (B) 30 mm
Length (C) 56 mm
Flange Thickness (D) DI=17.5 DII=7.5 mm
Flange OD (E) 52 mm
C/Tube Quantity 2
C/Tube ODxIDxL 30x18.2x58 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Eccentric No

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 41
ID (B) 30
Length (C) 56.0
FL (D) DI=17.5 DII=7.5
FLOD (E) 52
C/Tube Qty 2
C/Tube Size 30x18.2x58
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.55kg1.21lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA527
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924471836
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA527
Unit Of Measure Kit
