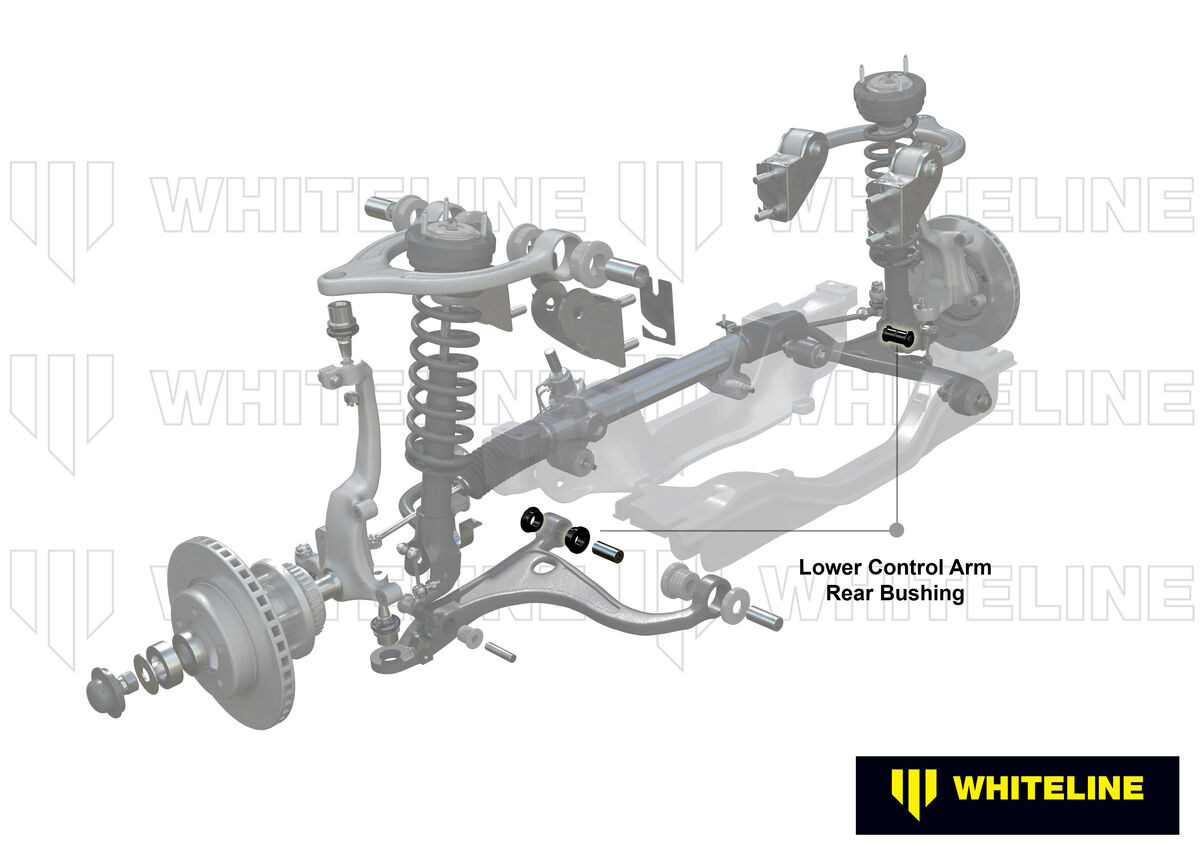

Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

Kit Specifications

Bush Type	16 - Shell Without Flange Bushing
Bush Quantity	2 mm
OD (A)	65 mm
ID (B)	40 mm
Length (C)	65 mm
Flange Thickness (D)	4.5 mm
Flange OD (E)	47 mm
C/Tube Quantity	2
C/Tube ODxIDxL	40x33x84.8 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Alignment	Alignment Adjustment Type	Alignment On Car Adjustable
Caster / Anti-Lift	Offset	No

Bushing Design Dimensions (mm)

Bush Type	16
QTY	2
OD (A)	65
ID (B)	40
Length (C)	65.0
FL (D)	4.5
FLOD (E)	47
C/Tube Qty	2
C/Tube Size	40x33x84.8
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.84kg	1.85lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	KCA402

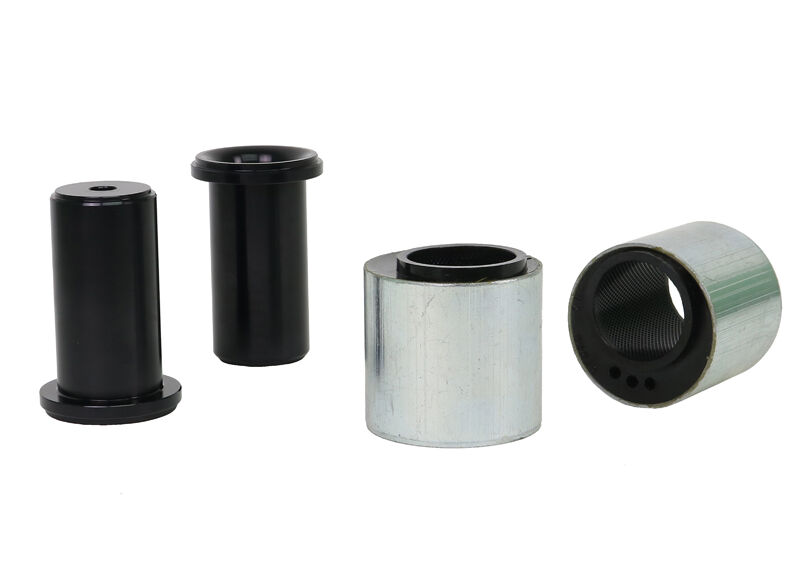

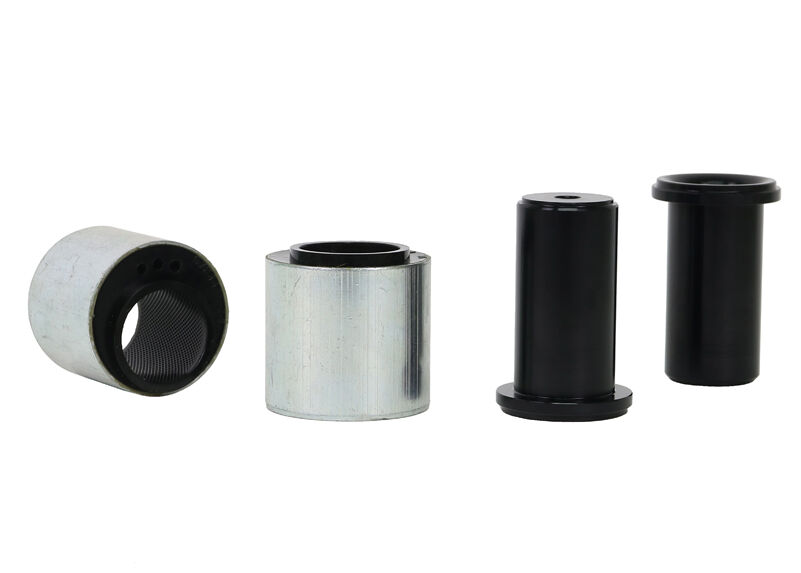

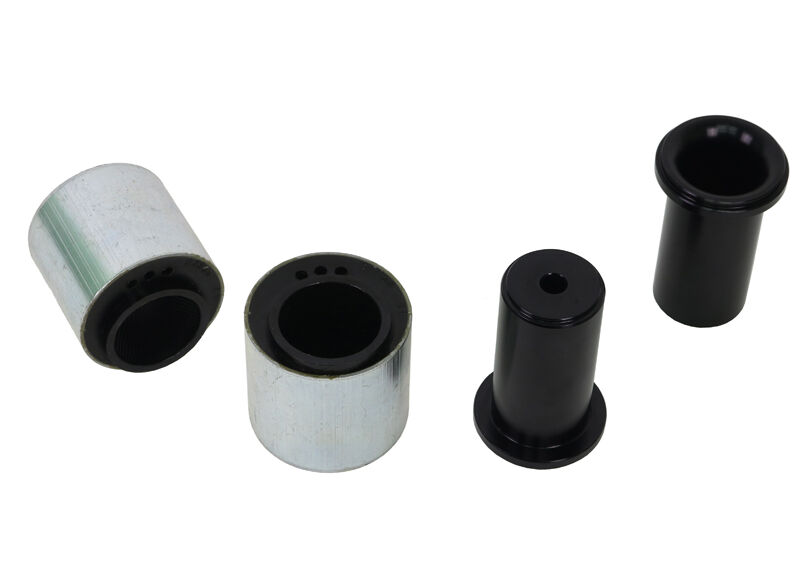

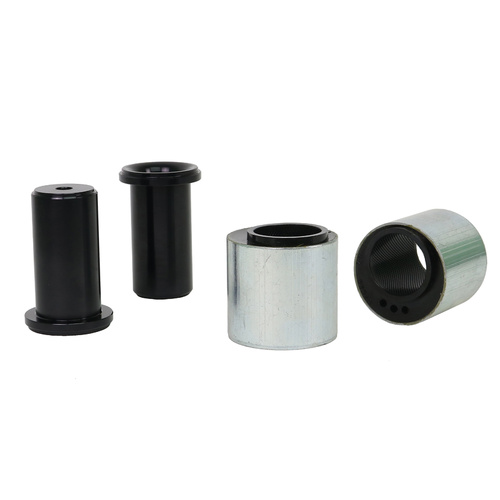

Components Per	2 Shell Bushings, 2 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN	9319924382798
