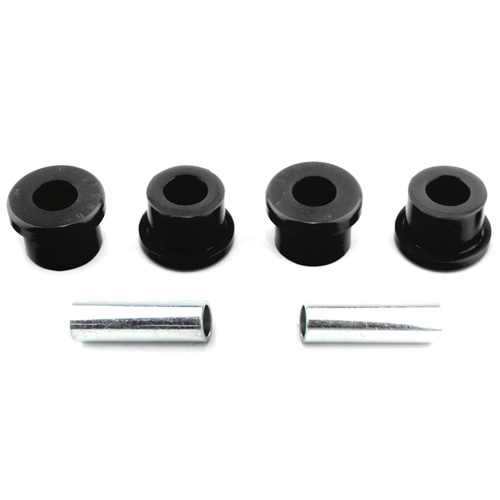

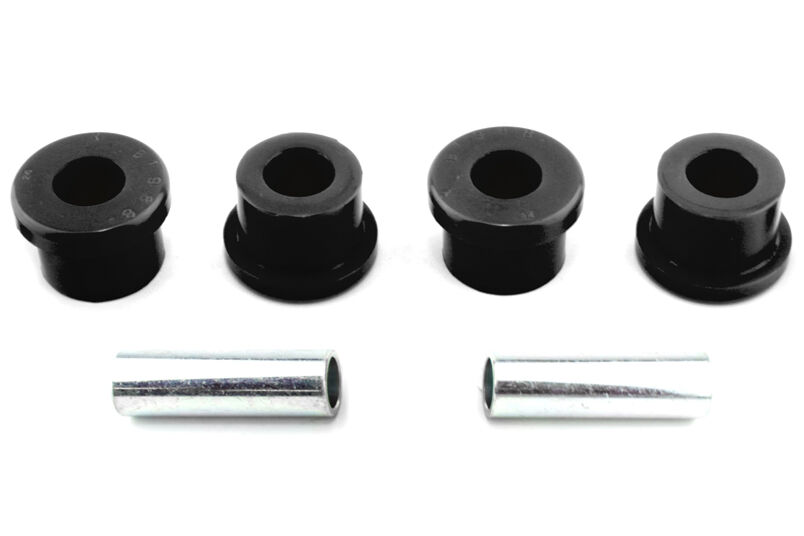

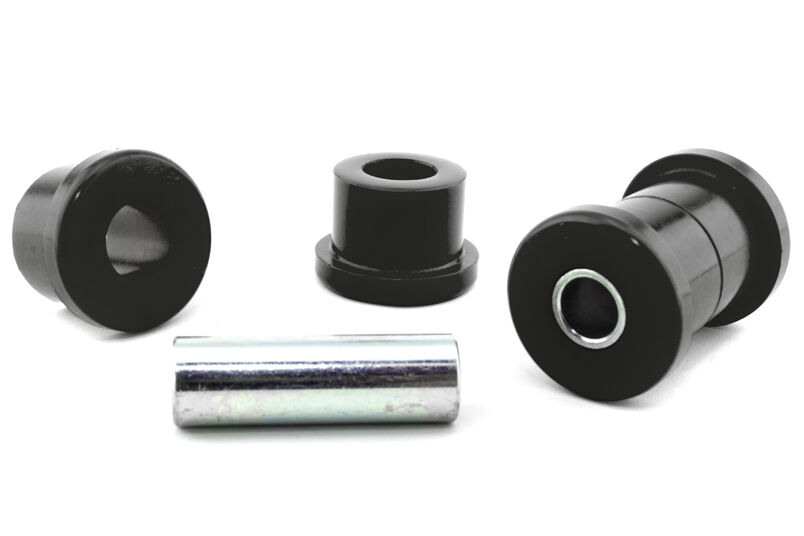

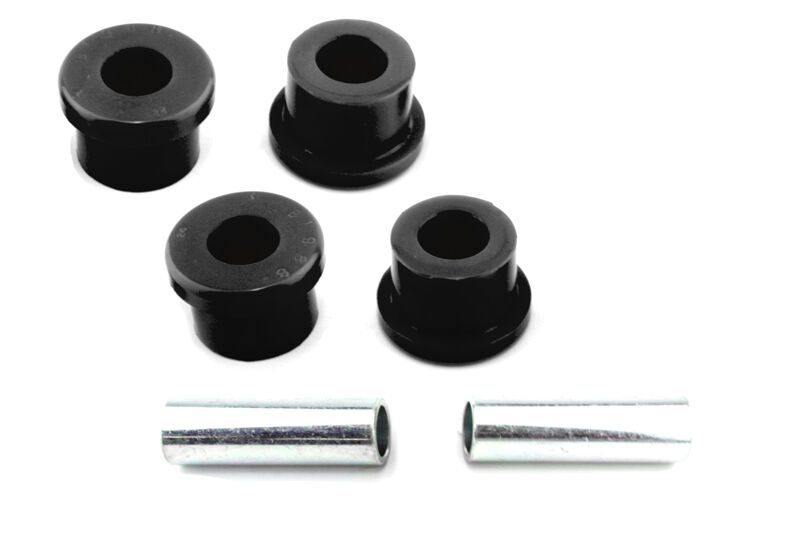

Whiteline Front Lower Inner Forward Bushing Kit to Suit Chrysler, Citroen, Dodge, Jeep, Mitsubishi and Peugeot

SKU: W0593

Benefit Note: Over compliant front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Whiteline's kit is specially designed to improve deflection rates for improved response and chassis control.

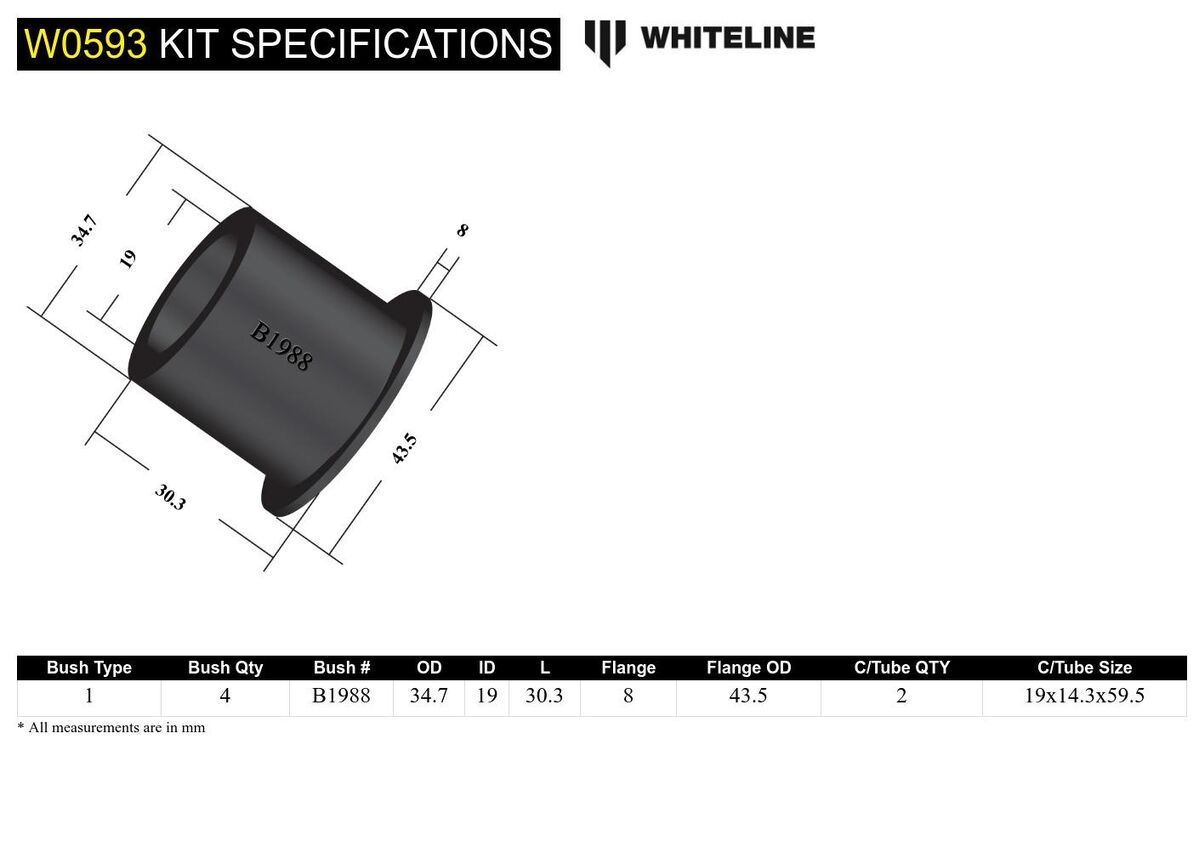

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 34.7 mm
ID (B) 19 mm
Length (C) 30.3 mm
Flange Thickness (D) 8 mm
Flange OD (E) 43.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 19x14.3x59.5 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 34.7
ID (B) 19
Length (C) 30.3
FL (D) 8
FLOD (E) 43.5
C/Tube Qty 2
C/Tube Size 19x14.3x59.5
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.24kg0.53lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0593
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924344796
  • Lifetime Warranty
Brand Whiteline
SKU W0593
Unit Of Measure Kit
