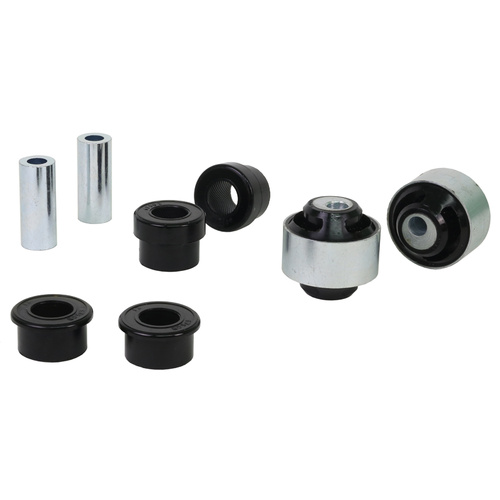

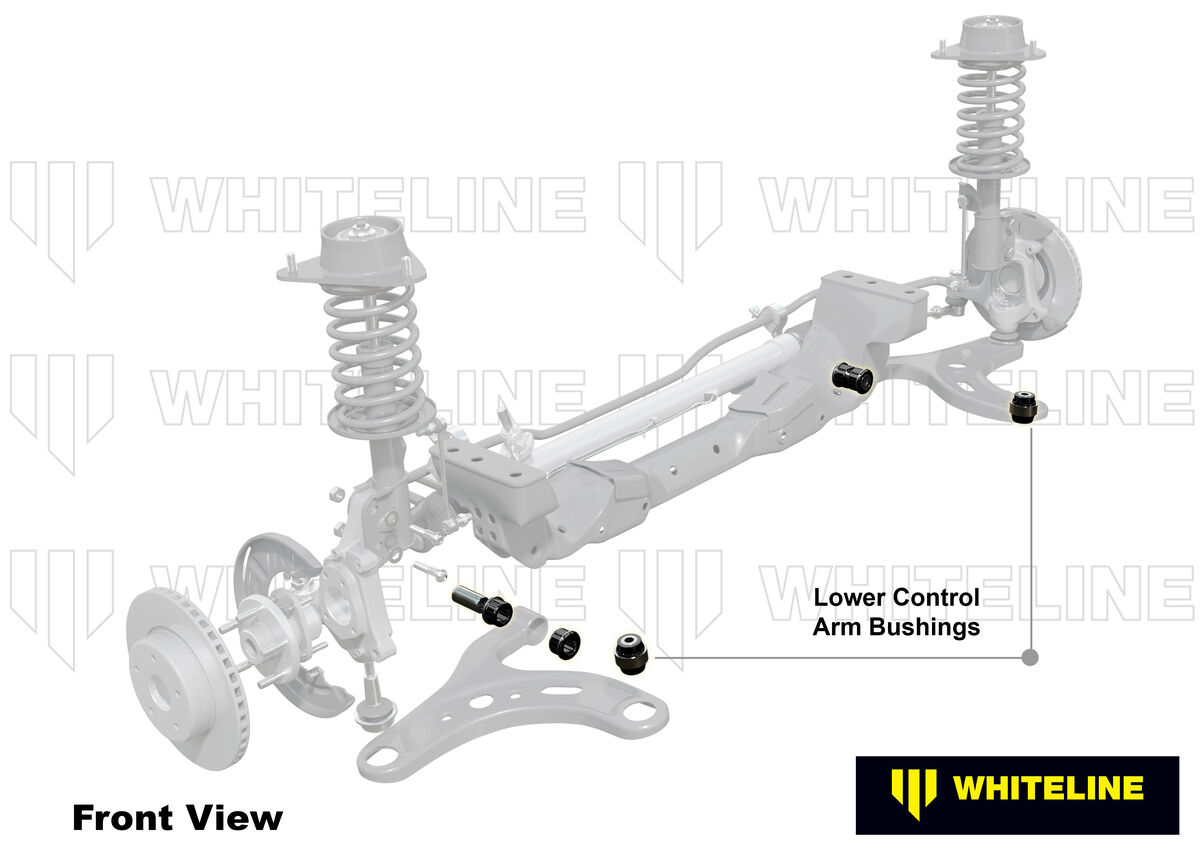

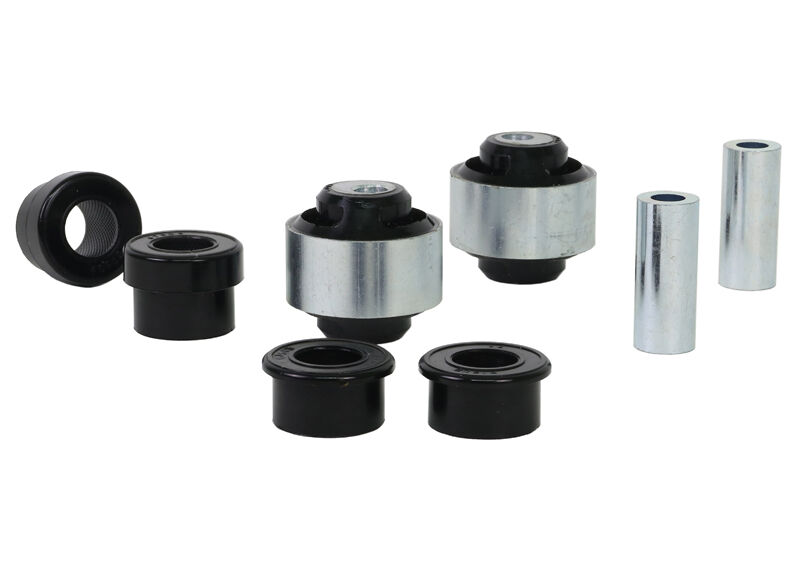

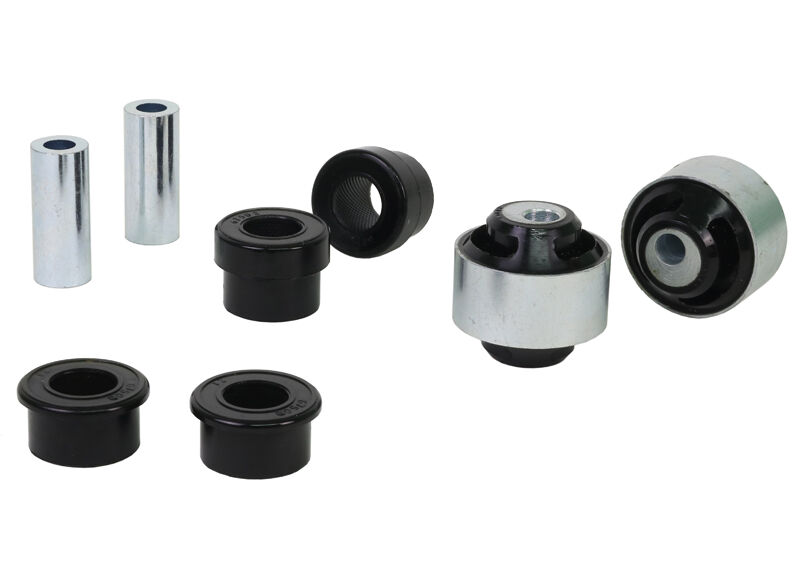

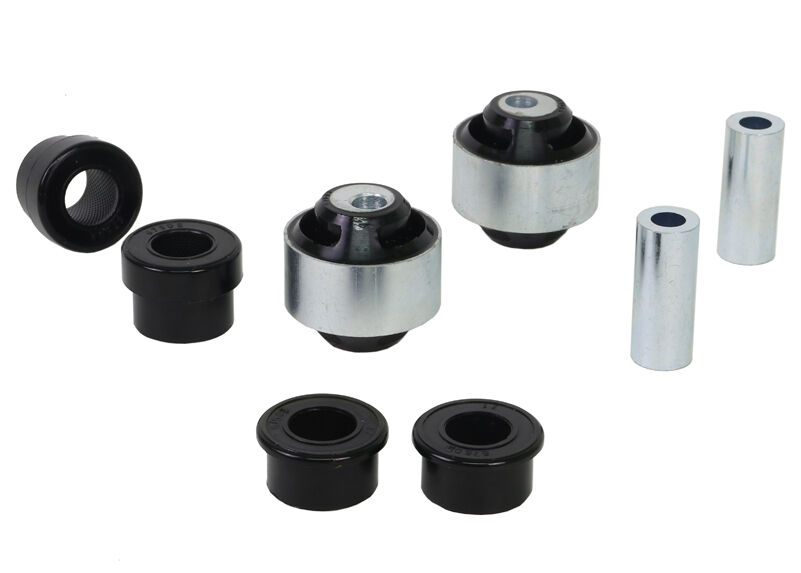

Whiteline Front Lower Inner Bushing Kit Double Offset to Suit Honda Civic 7th 8th Gen and Integra DC5

SKU: KCA479

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

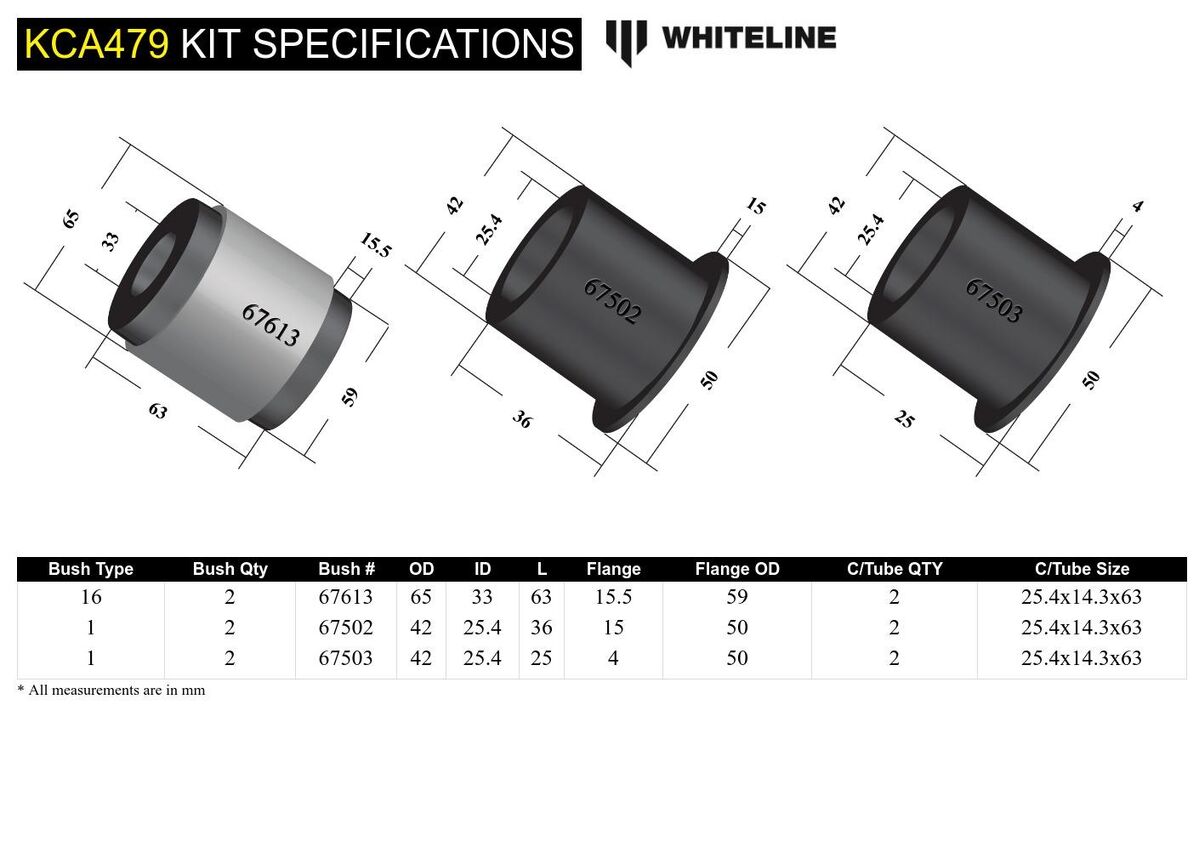

Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing 16 - Shell Without Flange Bushing
Bush Quantity 2 mm 2 mm 2 mm
OD (A) 42 mm 42 mm 65 mm
ID (B) 25.4 mm 25.4 mm 33 mm
Length (C) 36 mm 25 mm 63 mm
Flange Thickness (D) 15 mm 4 mm 15.5 mm
Flange OD (E) 50 mm 50 mm 59 mm
C/Tube Quantity 2 2 2
C/Tube ODxIDxL 25.4x14.3x63 mm 25.4x14.3x63 mm 25.4x14.3x63 mm
Similar Bushing Size Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing
Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 1 1 16
QTY 2 2 2
OD (A) 42 42 65
ID (B) 25.4 25.4 33
Length (C) 36.0 25.0 63.0
FL (D) 15 4 15.5
FLOD (E) 50 50 59
C/Tube Qty 2 2 2
C/Tube Size 25.4x14.3x63 25.4x14.3x63 25.4x14.3x63
Similar Bushings Click Here Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight1.25kg2.76lbs
Length40cm15.75"
Width10cm3.94"
Height20cm7.87"

Misc. Product Information

More Information
SKUKCA479
Components Per2 Shell Bushings, 4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteDelivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes
EAN9319924455768
  • Lifetime Warranty
Brand Whiteline
SKU KCA479
Unit Of Measure Kit
