Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Mazda MX-5 ND

SKU: W56414

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

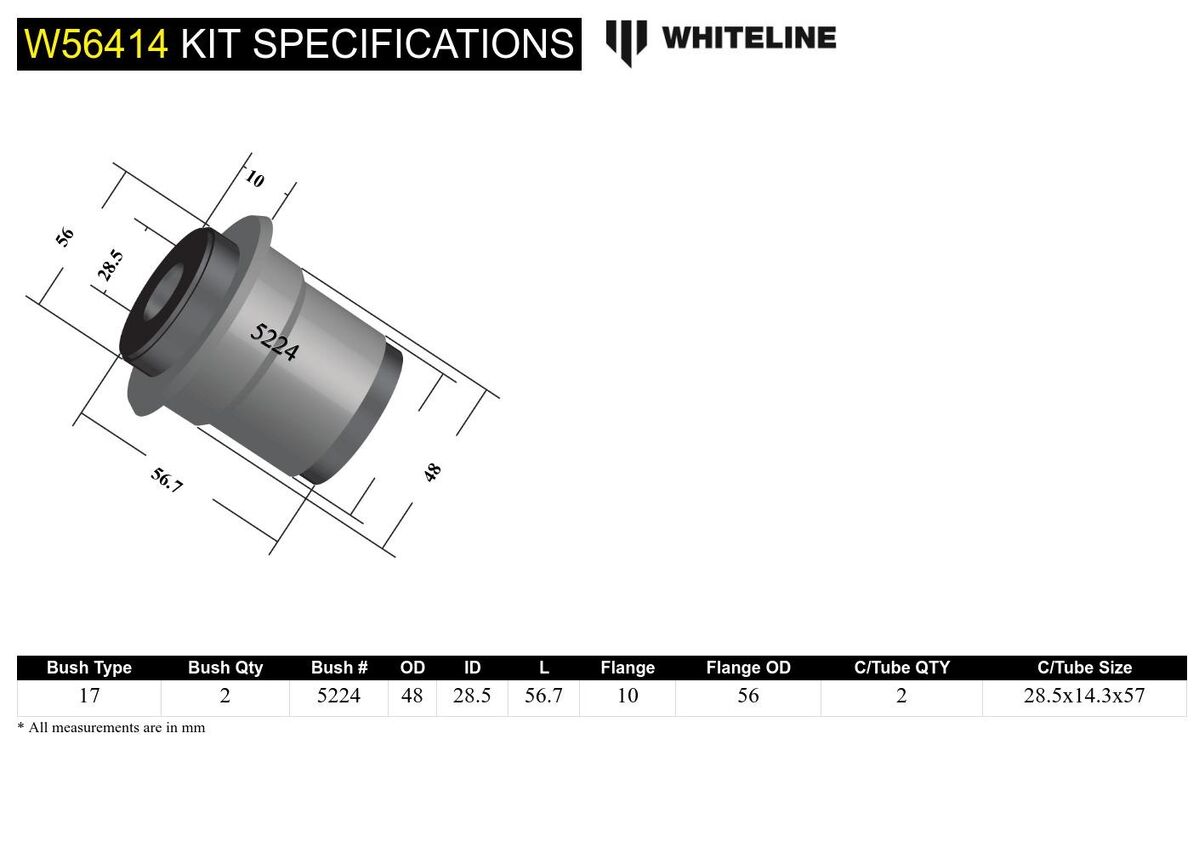

Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) 48 mm
ID (B) 28.5 mm
Length (C) 56.7 mm
Flange Thickness (D) 10 mm
Flange OD (E) 56 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.5x14.3x57 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) 48
ID (B) 28.5
Length (C) 56.7
FL (D) 10
FLOD (E) 56
C/Tube Qty 2
C/Tube Size 28.5x14.3x57
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.67kg1.48lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW56414
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924471256
  • Lifetime Warranty
Brand Whiteline
SKU W56414
Unit Of Measure Kit
