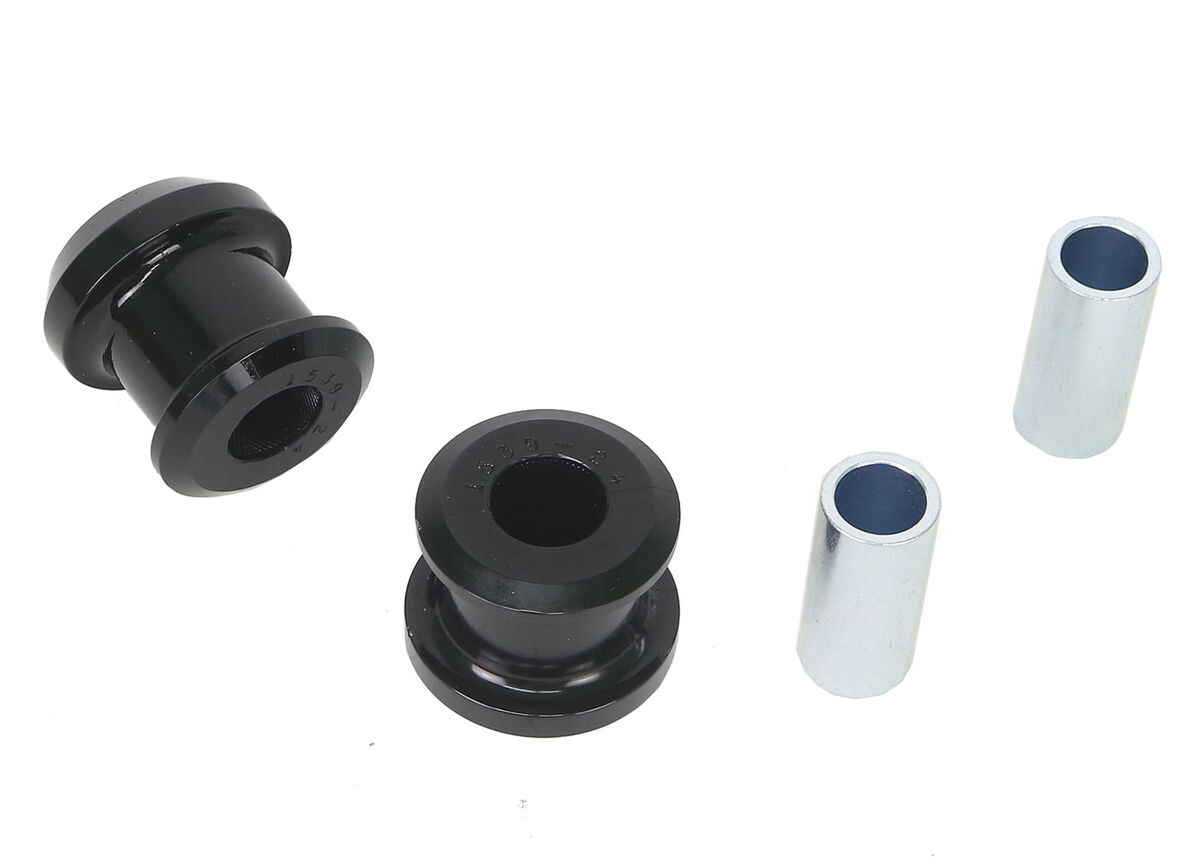

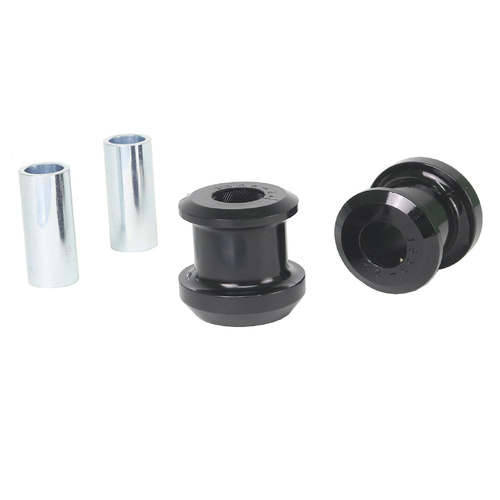

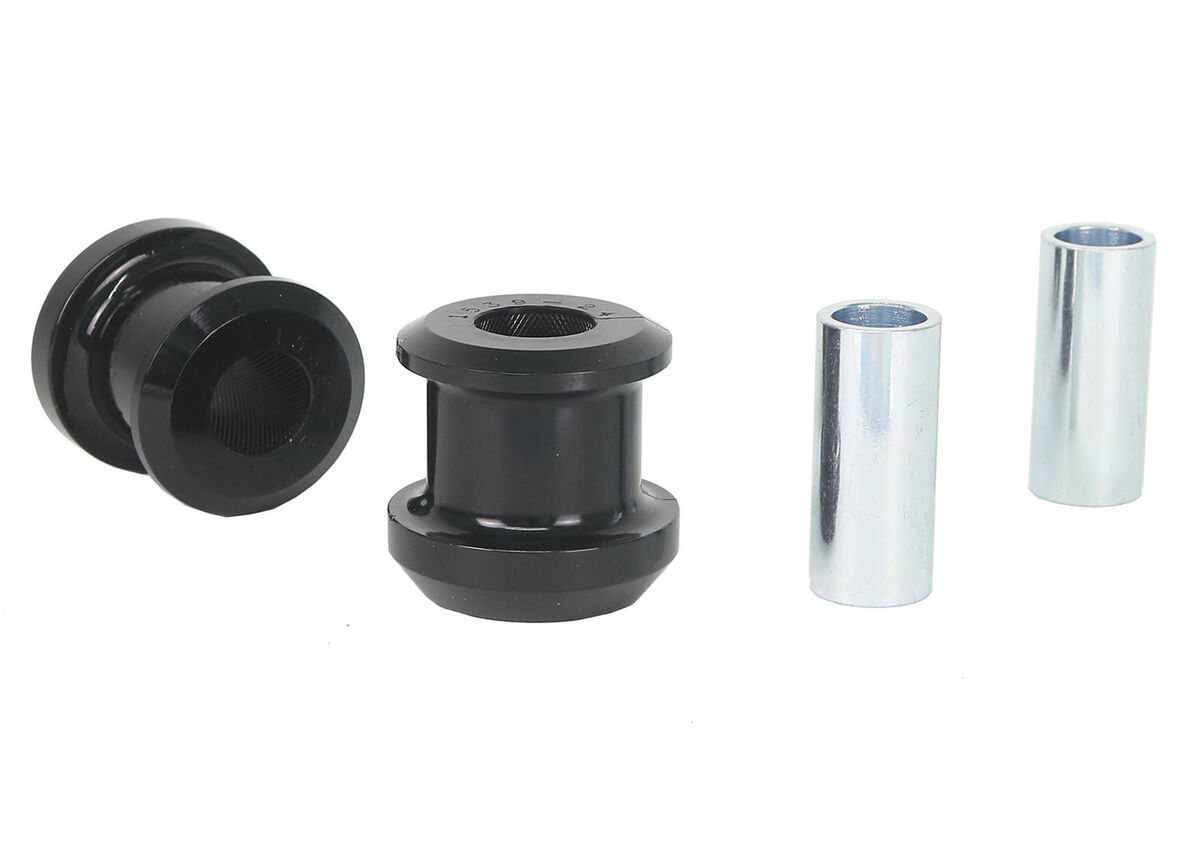

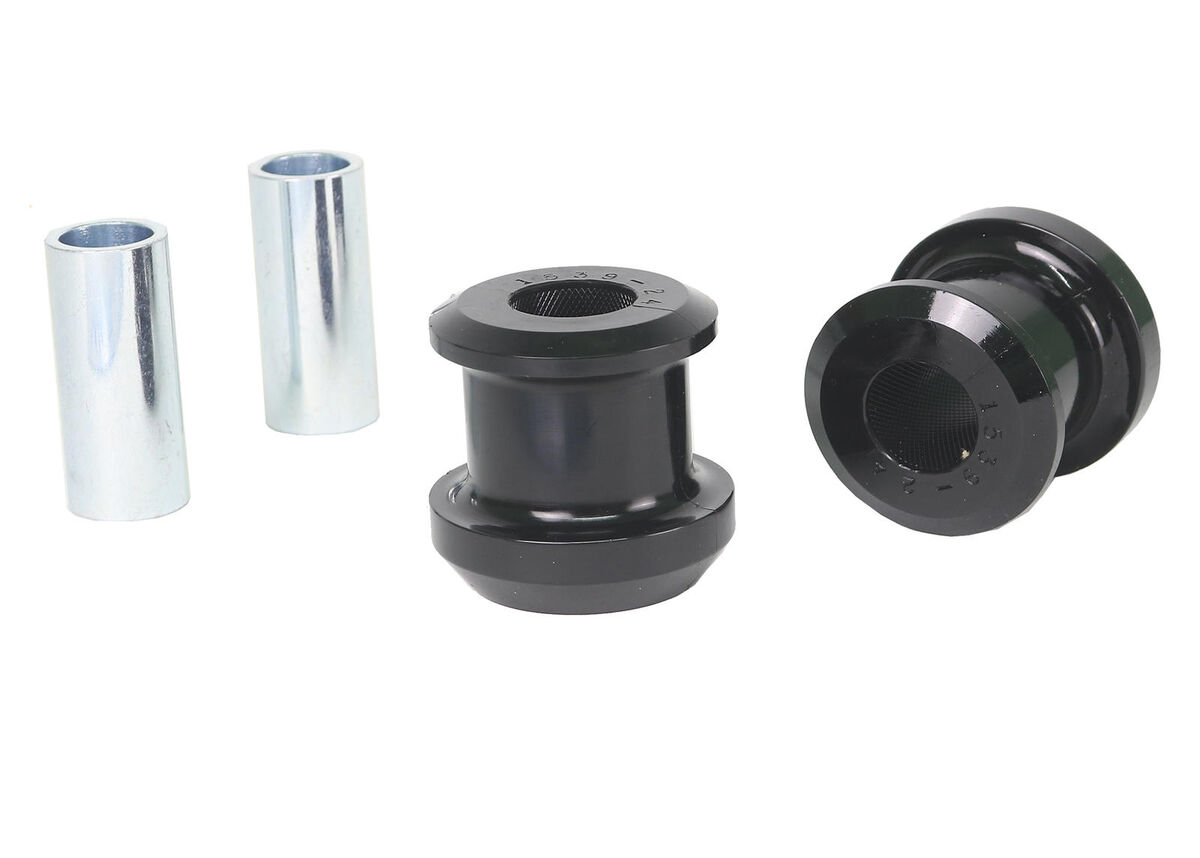

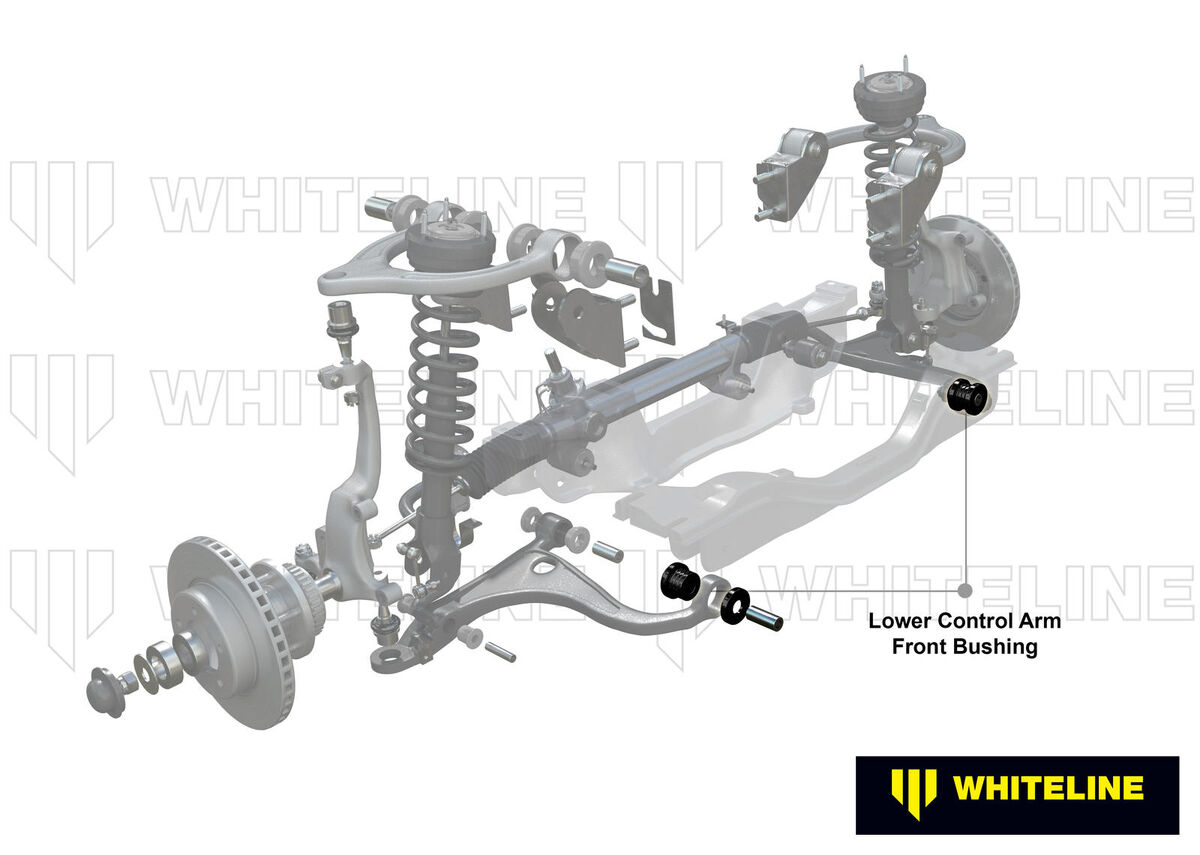

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Honda Civic, CR-X and Integra DC2

SKU: W53677

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

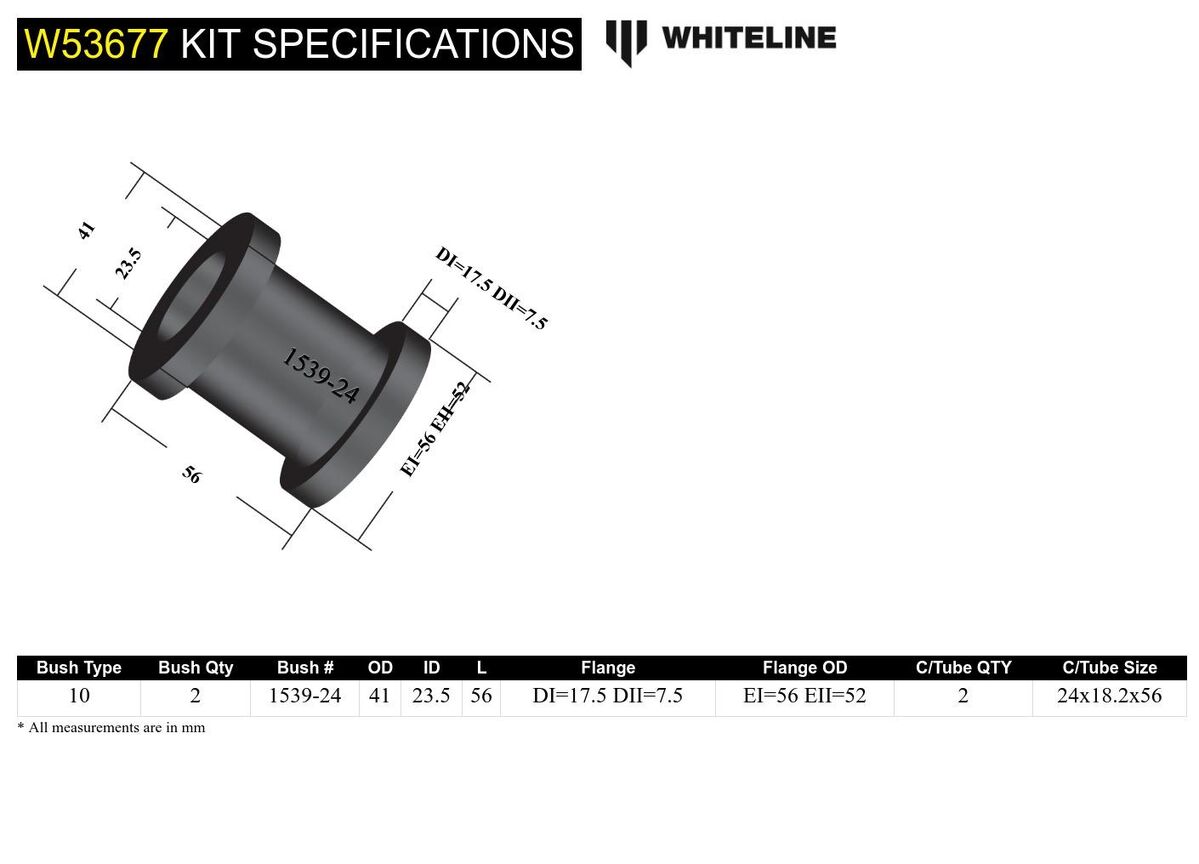

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 41 mm
ID (B) 23.5 mm
Length (C) 56 mm
Flange Thickness (D) DI=17.5 DII=7.5 mm
Flange OD (E) EI=56 EII=52 mm
C/Tube Quantity 2
C/Tube ODxIDxL 24x18.2x56 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 41
ID (B) 23.5
Length (C) 56.0
FL (D) DI=17.5 DII=7.5
FLOD (E) EI=56 EII=52
C/Tube Qty 2
C/Tube Size 24x18.2x56
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.34kg0.75lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53677
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924471843
  • Lifetime Warranty
Brand Whiteline
SKU W53677
Unit Of Measure Kit
