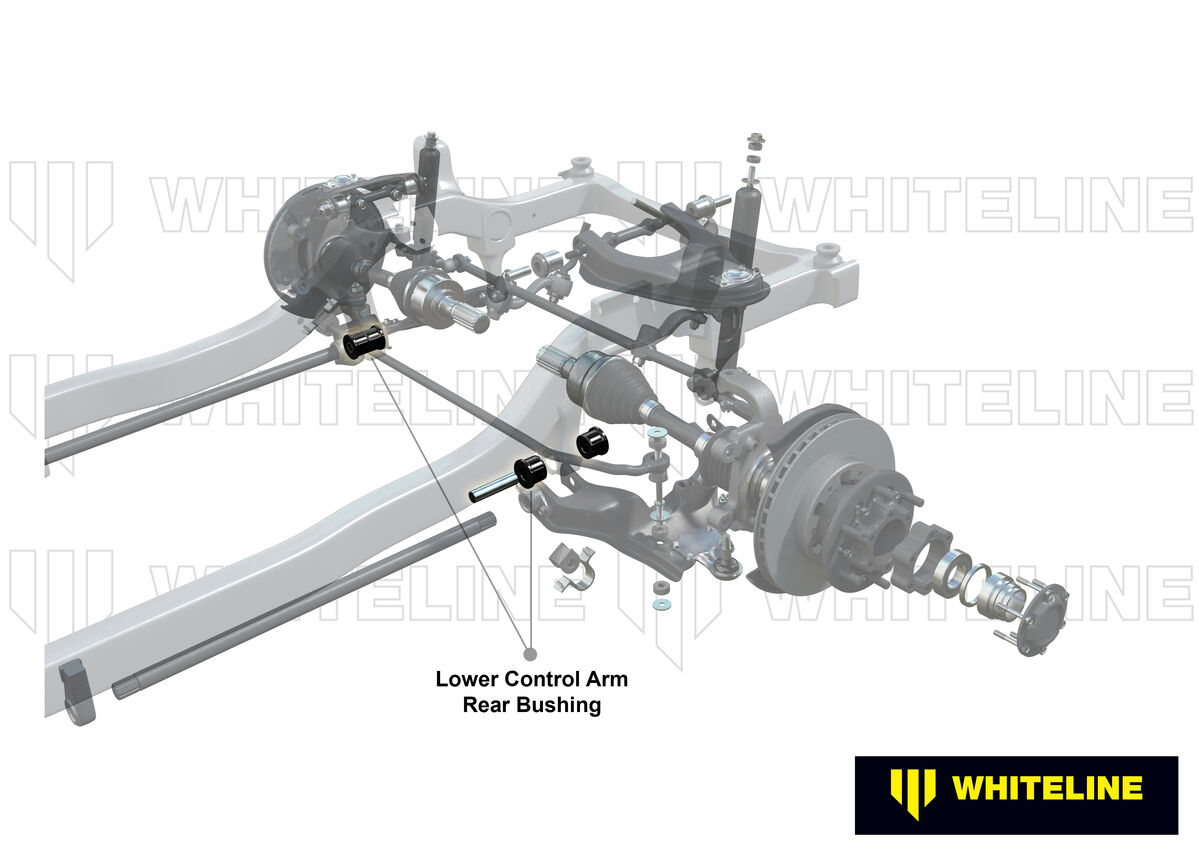

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	48.2 mm	48.1 mm
ID (B)	29.3 mm	29.3 mm
Length (C)	48.5 mm	38.7 mm
Flange Thickness (D)	19.3 mm	4 mm
Flange OD (E)	60.3 mm	60.1 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	30x18.4x90 mm	30x18.4x90 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Design Dimensions (mm)

Bush Type	1	1
QTY	2	2
OD (A)	48.2	48.1
ID (B)	29.3	29.3
Length (C)	48.5	38.7
FL (D)	19.3	4
FLOD (E)	60.3	60.1
C/Tube Qty	2	2
C/Tube Size	30x18.4x90	30x18.4x90
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.933kg	2.06lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W53658

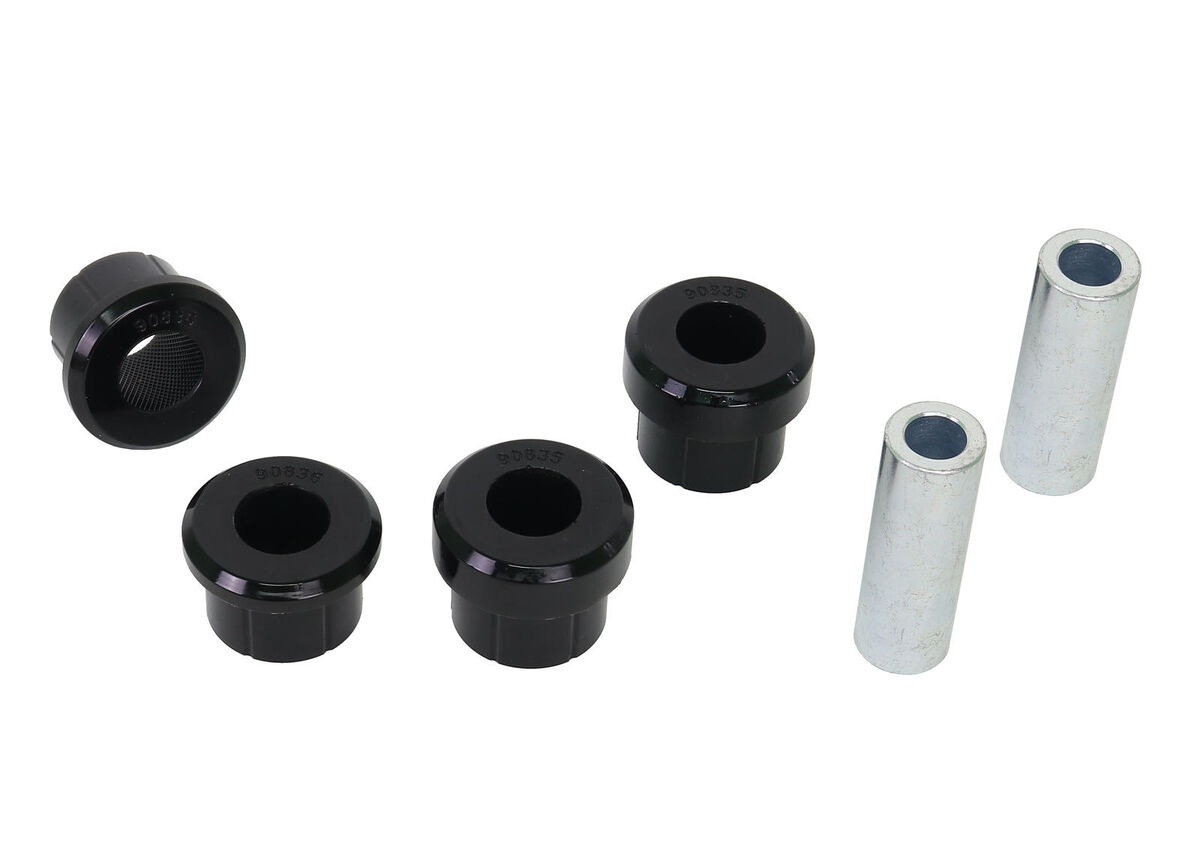

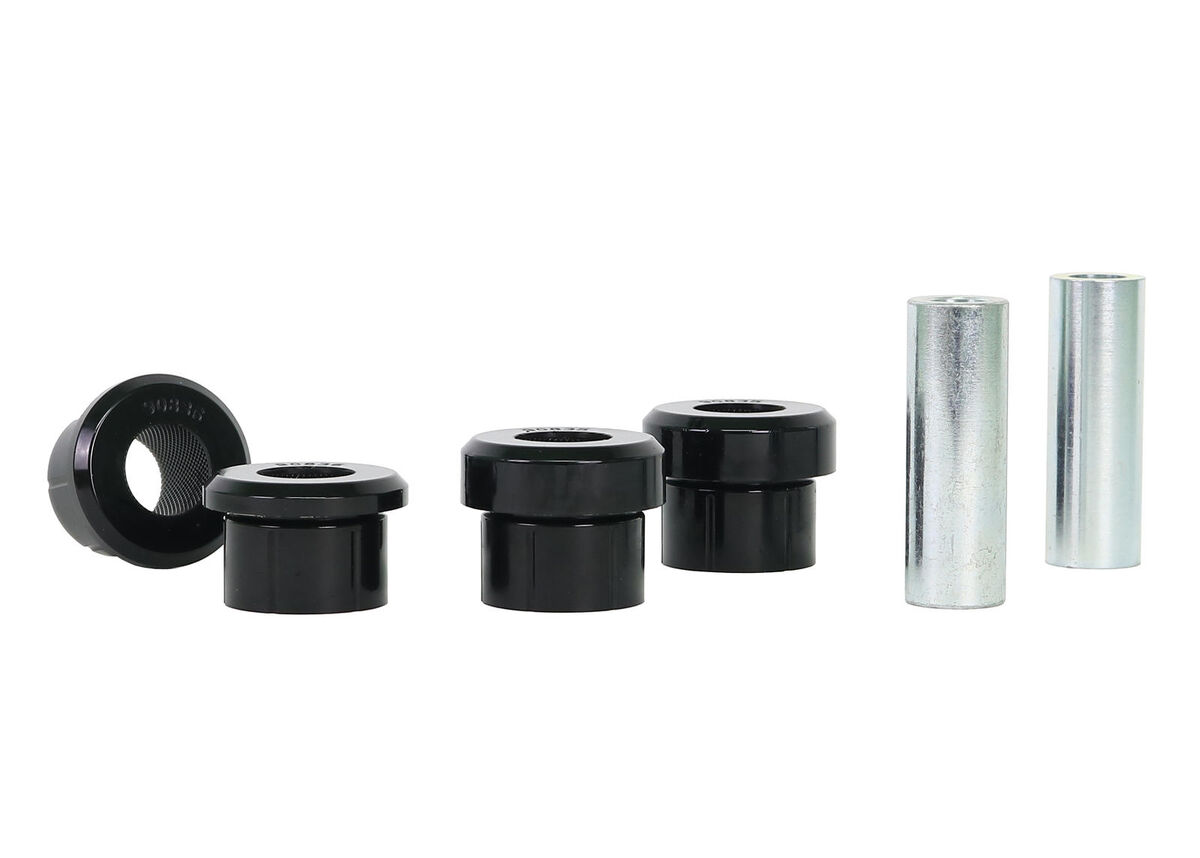

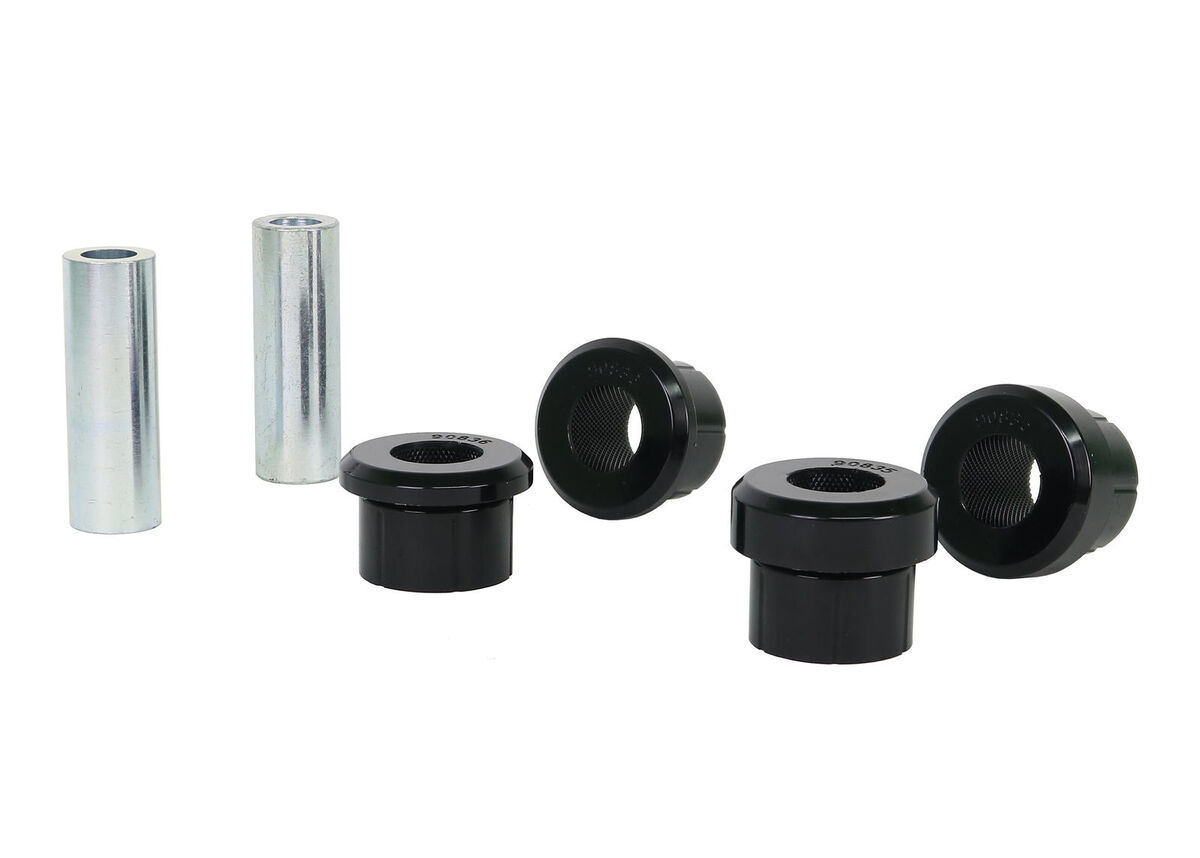

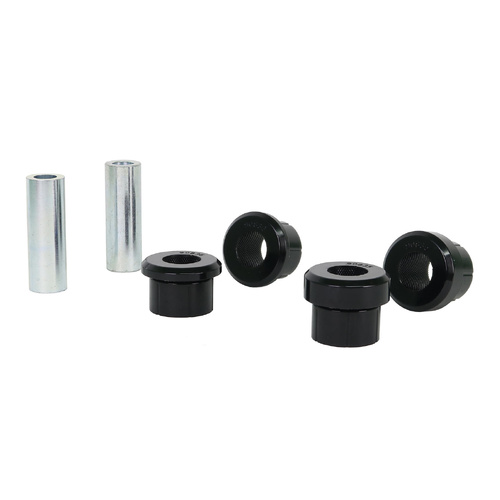

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924464999
