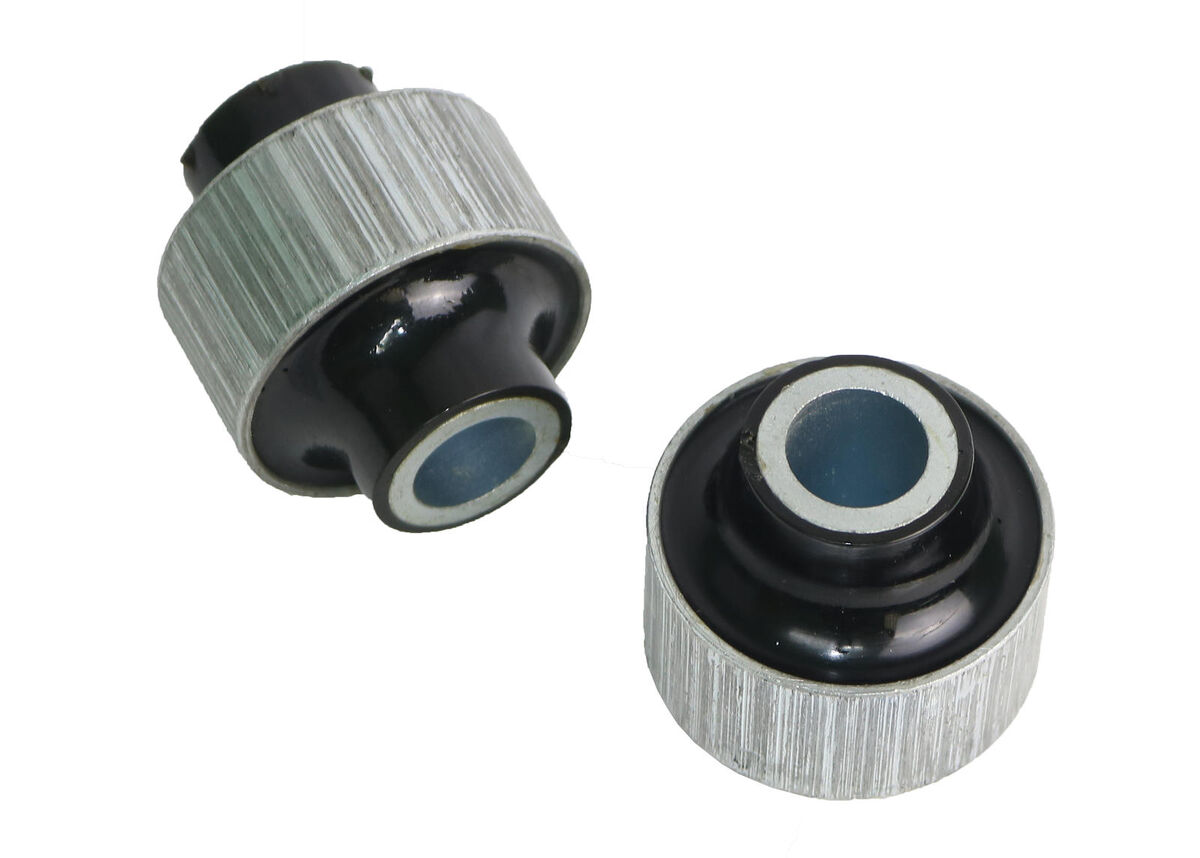

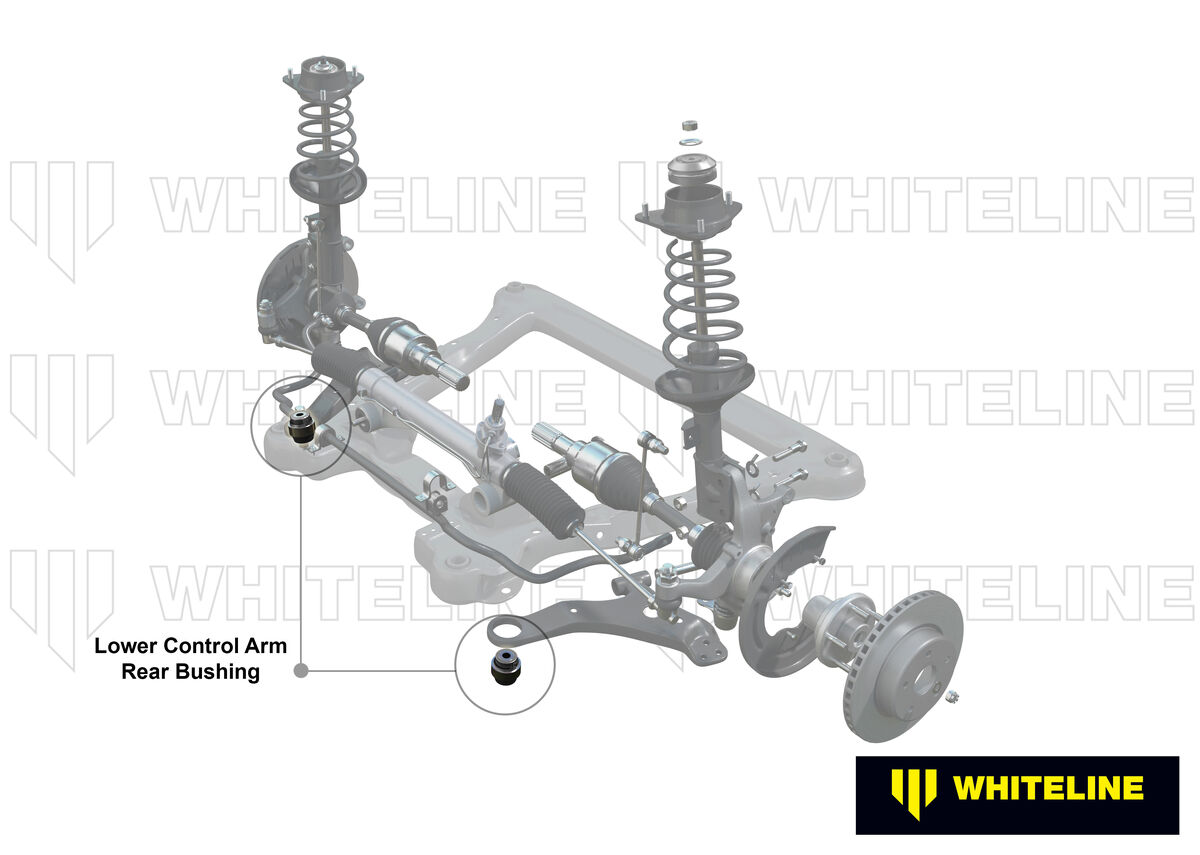

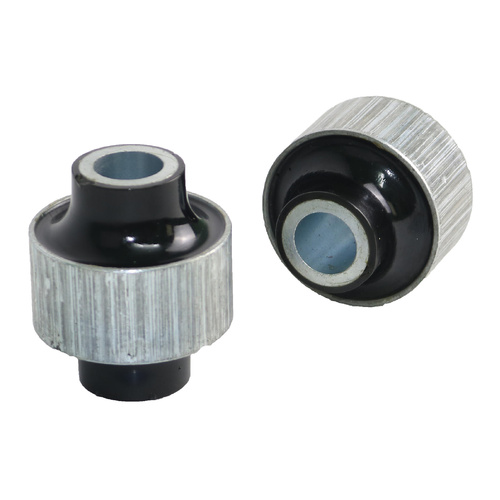

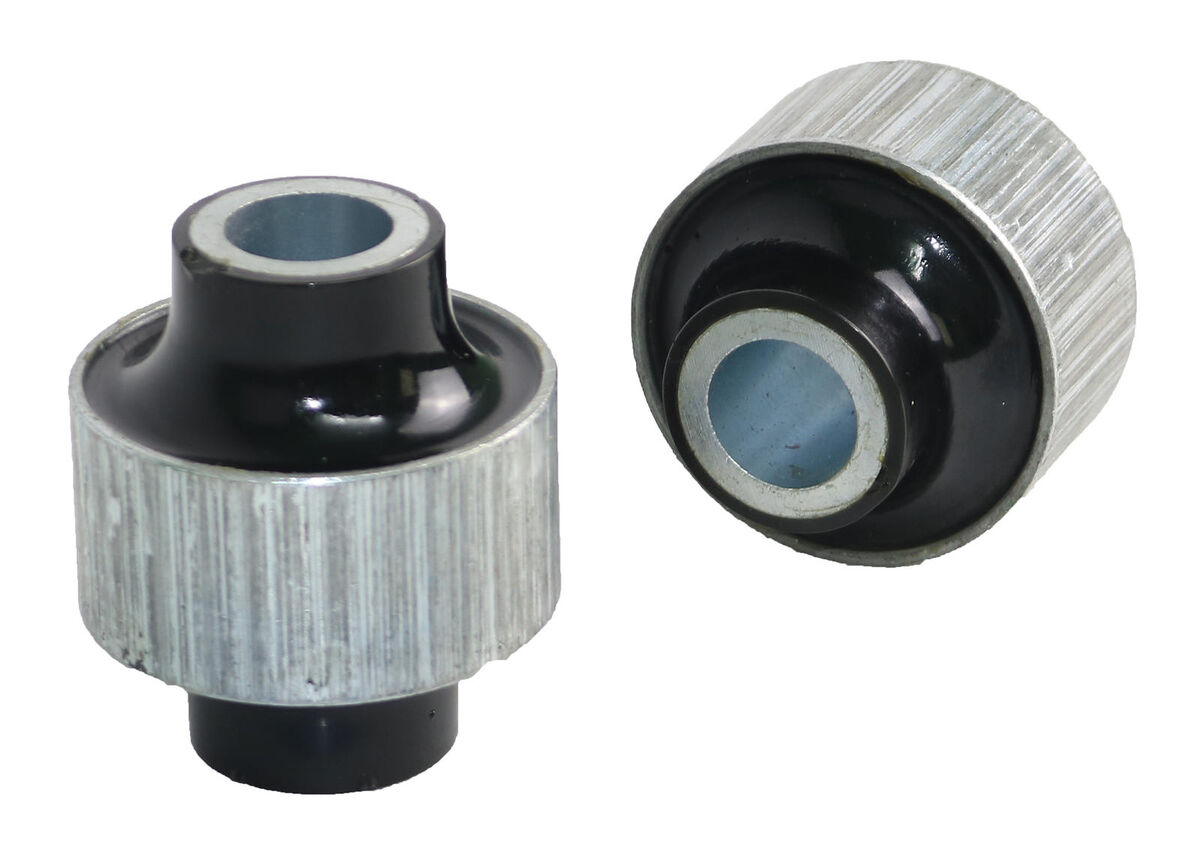

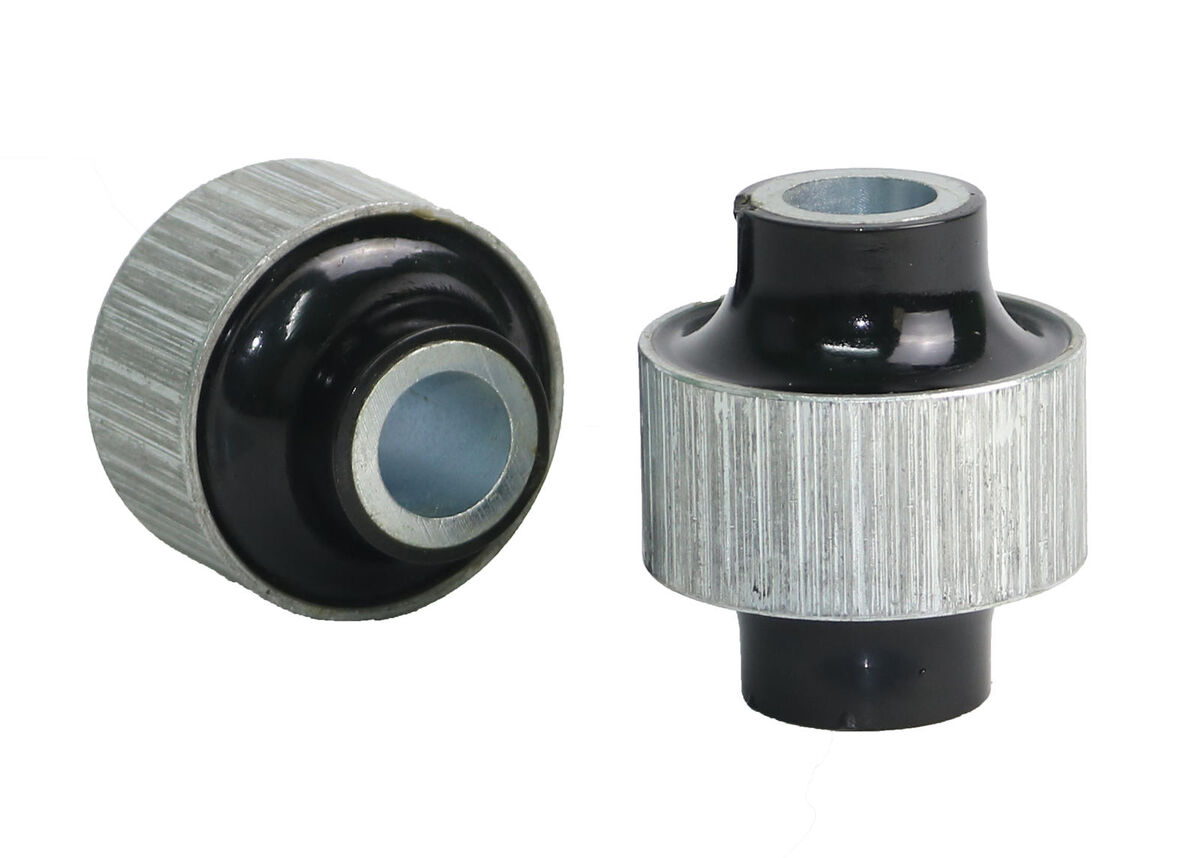

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Toyota Corolla AE101 and Holden Nova LG

SKU: W53496

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

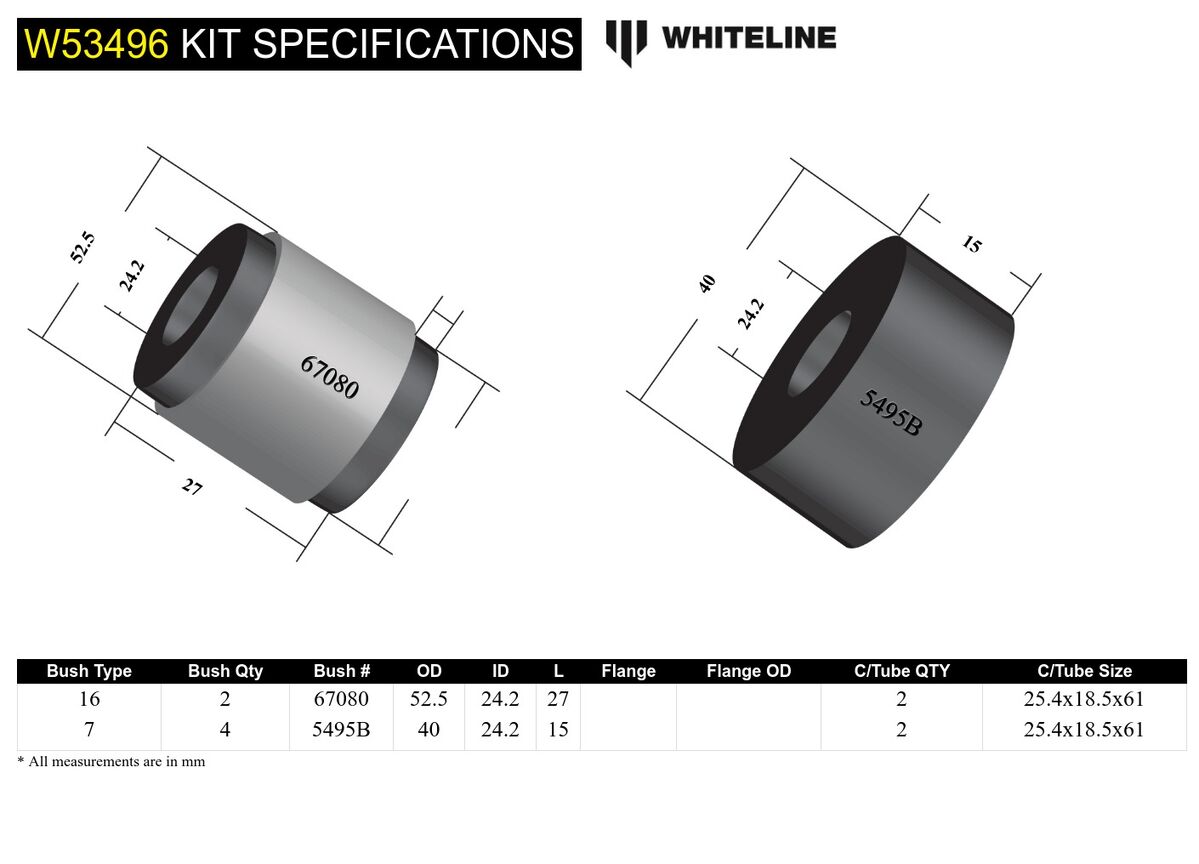

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 4 mm
OD (A) 52.5 mm 40 mm
ID (B) 24.2 mm 24.2 mm
Length (C) 27 mm 15 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 25.4x18.5x61 mm 25.4x18.5x61 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 16 7
QTY 2 4
OD (A) 52.5 40
ID (B) 24.2 24.2
Length (C) 27.0 15.0
FL (D)
FLOD (E)
C/Tube Qty 2 2
C/Tube Size 25.4x18.5x61 25.4x18.5x61
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 7
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.51kg1.12lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53496
Components Per2 Shell Bushings, 4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes
EAN9319924395095
  • Lifetime Warranty
Brand Whiteline
SKU W53496
Unit Of Measure Kit
