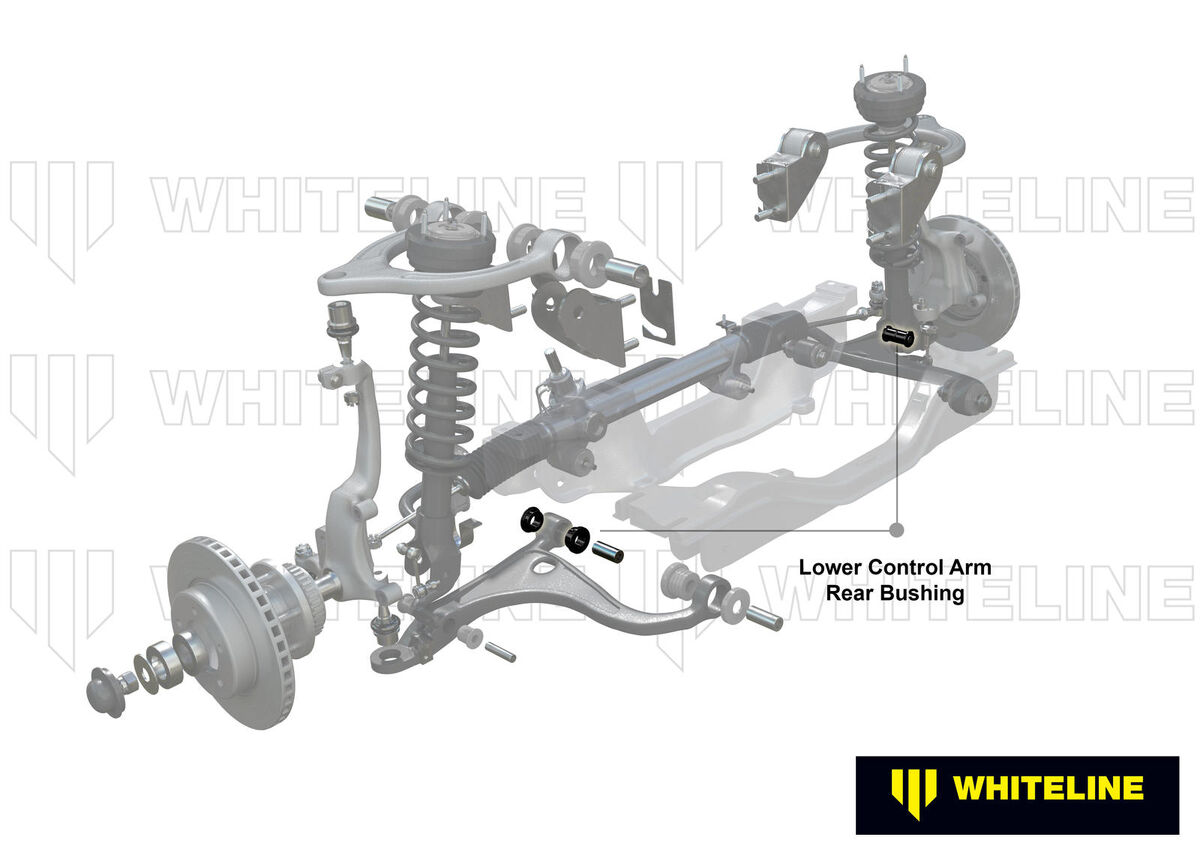

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	7 - Pin Bush With & Without Spigot	7 - Pin Bush With & Without Spigot	7 - Pin Bush With & Without Spigot
Bush Quantity	2 mm	2 mm	2 mm
OD (A)	71.3 mm	85 mm	85 mm
ID (B)	29.5 mm	29.5 mm	29.5 mm
Length (C)	57 mm	18 mm	8.3 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity	2	2	2
C/Tube ODxIDxL	30x16x83 mm	30x16x83 mm	30x16x83 mm
Similar Bushing Size	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

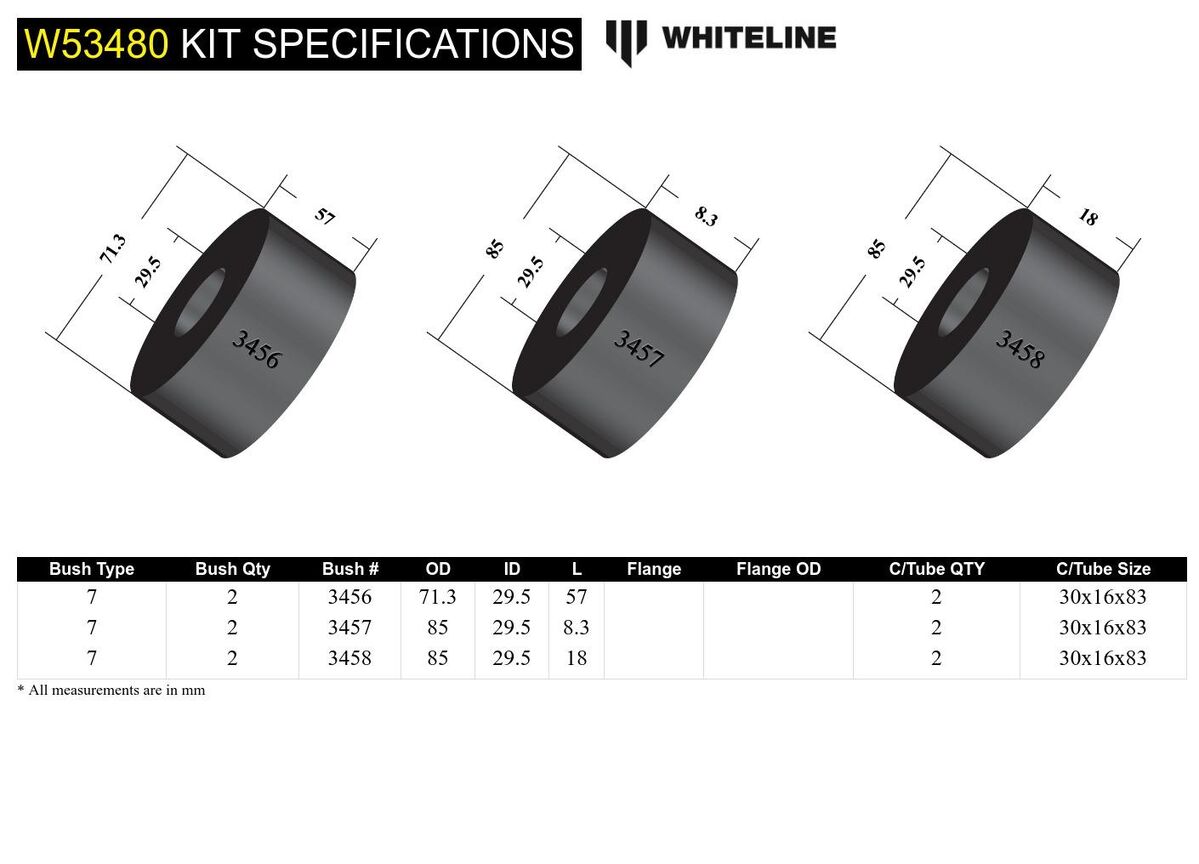

Bushing Design Dimensions (mm)

Bush Type	7	7	7
QTY	2	2	2
OD (A)	71.3	85	85
ID (B)	29.5	29.5	29.5
Length (C)	57.0	18.0	8.3
FL (D)
FLOD (E)
C/Tube Qty	2	2	2
C/Tube Size	30x16x83	30x16x83	30x16x83
Similar Bushings	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.402kg	3.09lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W53480
Components Per	6 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement

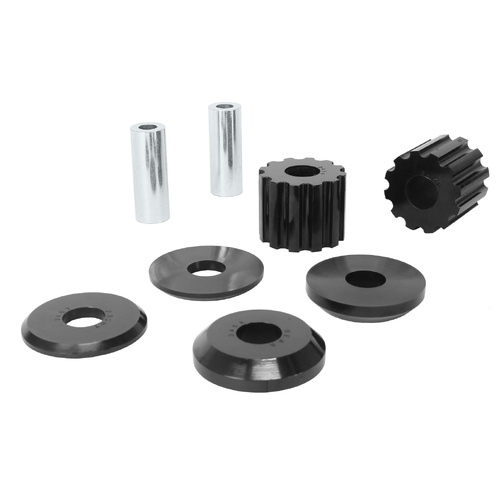

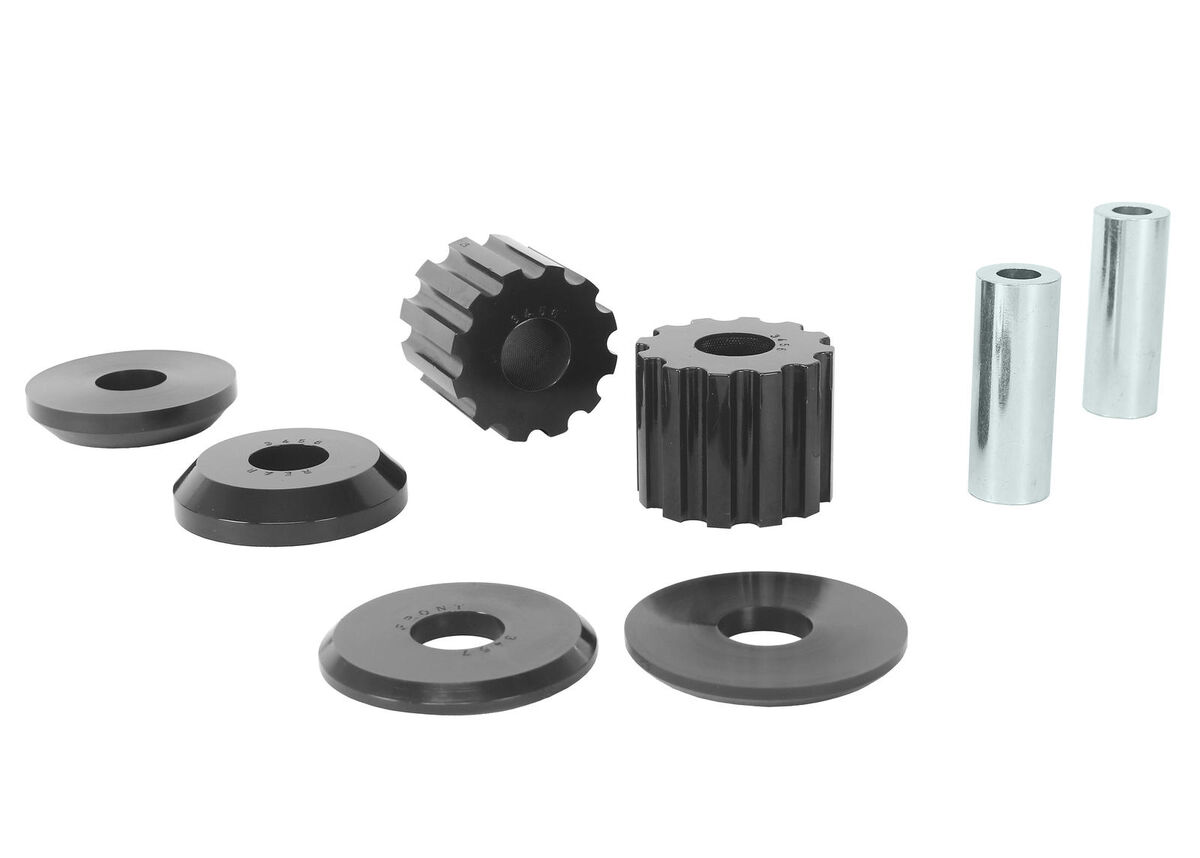

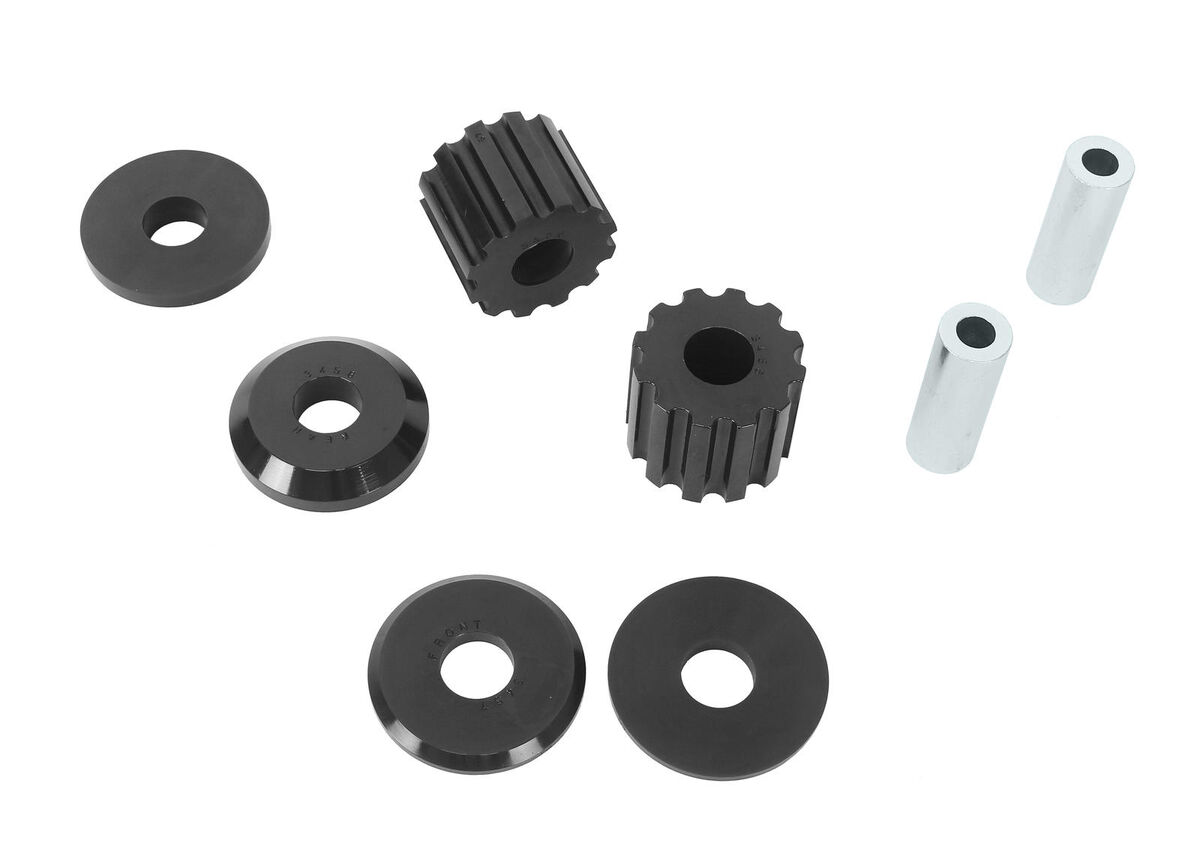

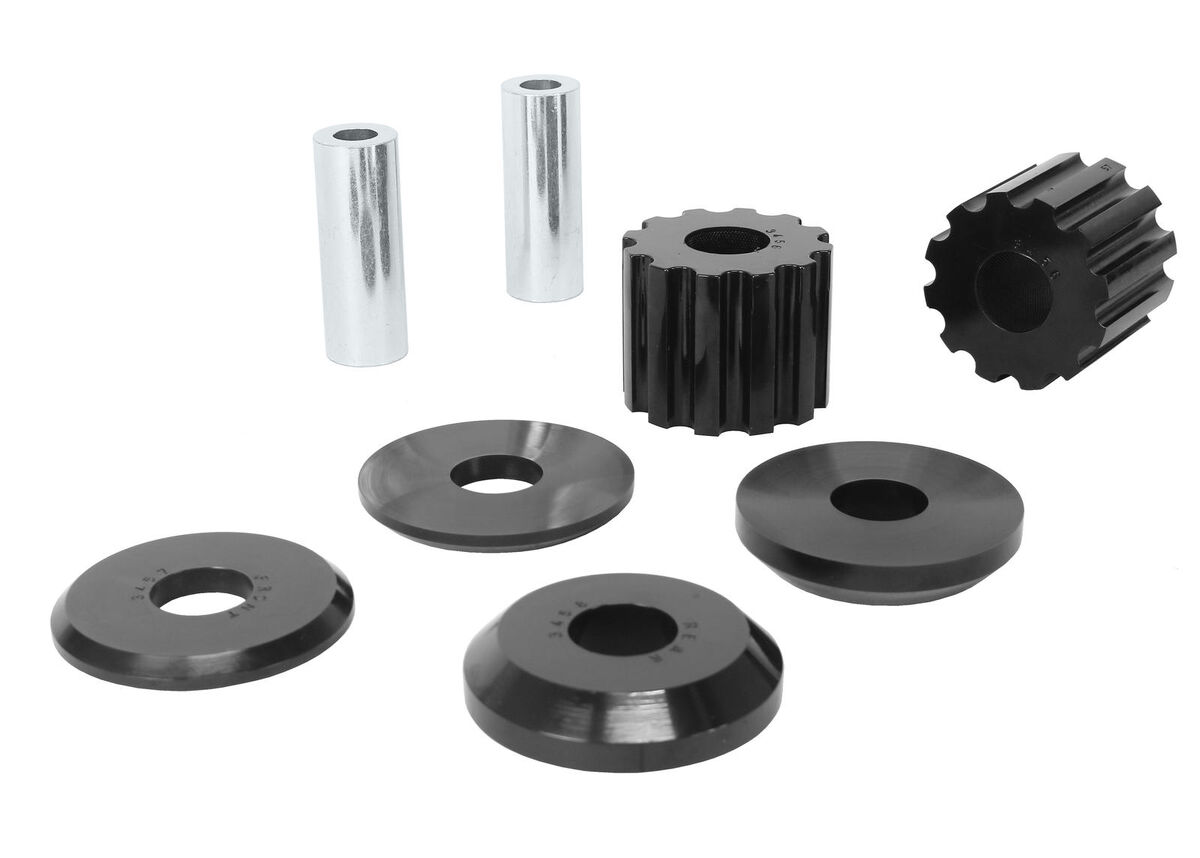

Product Note	Greatly increases control and confidence; the perfect, complete upgrade. Includes: 6 Bushings, 2 Tubes
EAN	9319924389896
