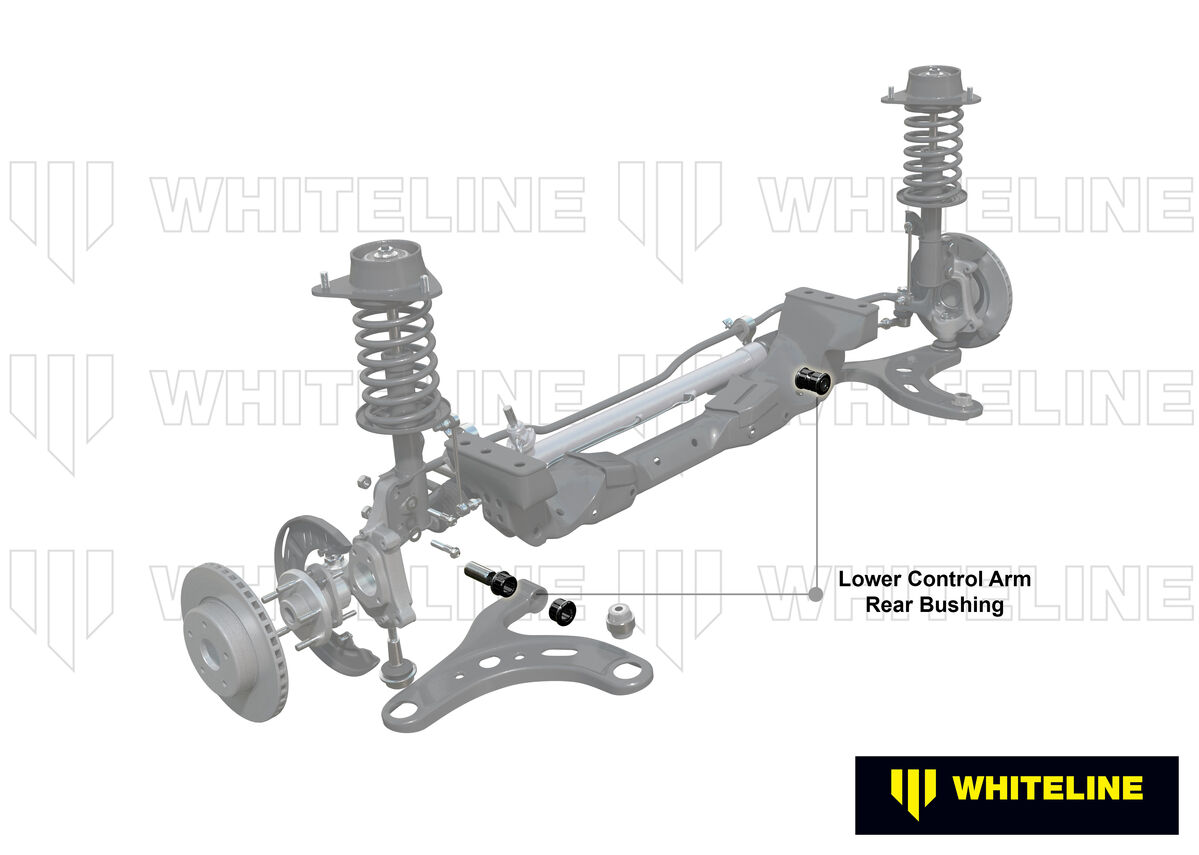

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Honda Civic 8th Gen FD2

SKU: W53411

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

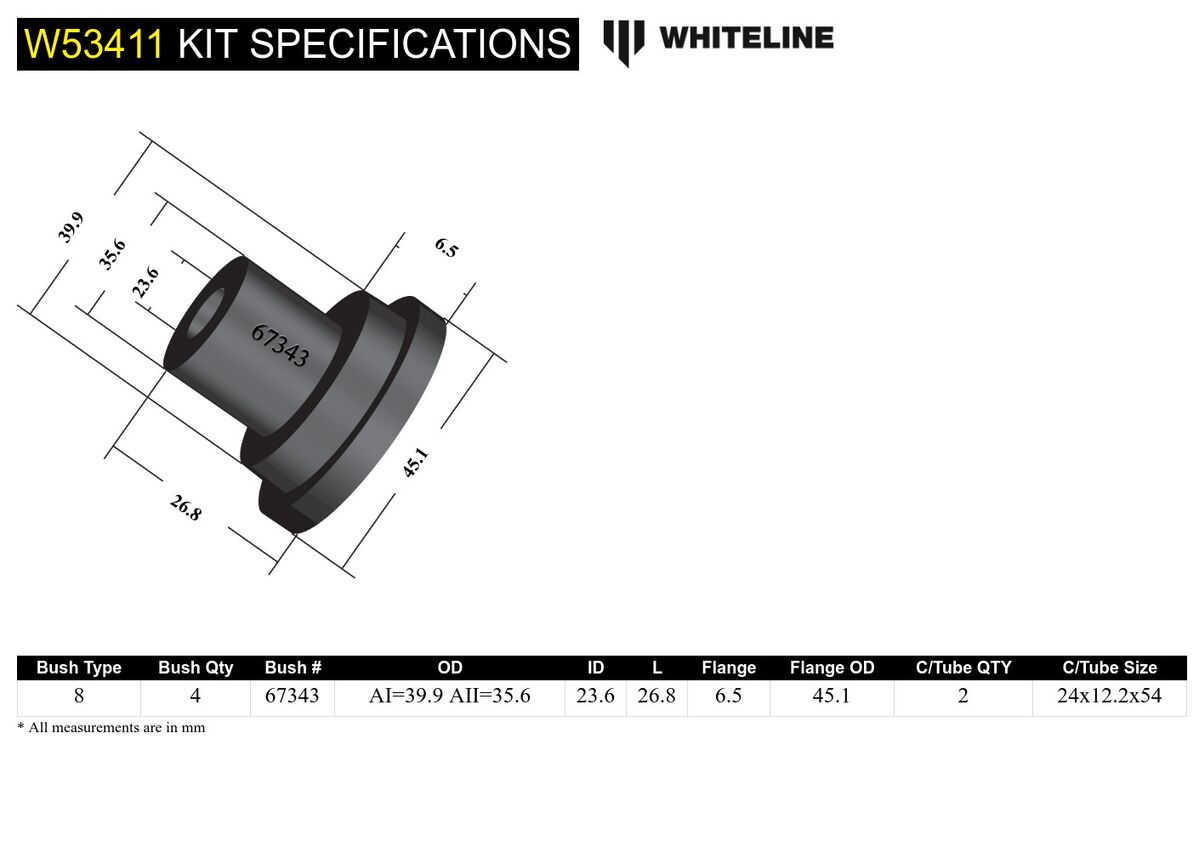

Kit Specifications

Bush Type 8 - Stepped OD Shackle Bushing
Bush Quantity 4 mm
OD (A) AI=39.9 AII=35.6 mm
ID (B) 23.6 mm
Length (C) 26.8 mm
Flange Thickness (D) 6.5 mm
Flange OD (E) 45.1 mm
C/Tube Quantity 2
C/Tube ODxIDxL 24x12.2x54 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 8
QTY 4
OD (A) AI=39.9 AII=35.6
ID (B) 23.6
Length (C) 26.8
FL (D) 6.5
FLOD (E) 45.1
C/Tube Qty 2
C/Tube Size 24x12.2x54
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 8

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.386kg0.85lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53411

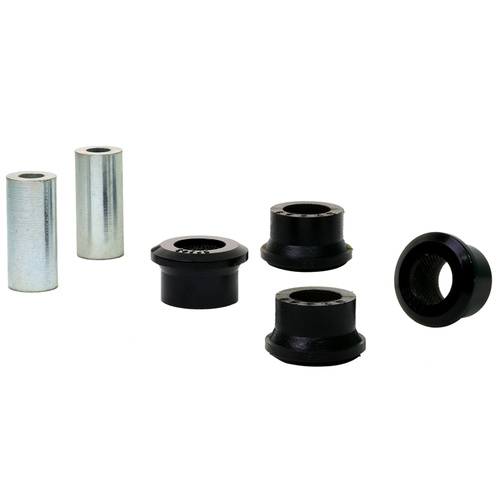

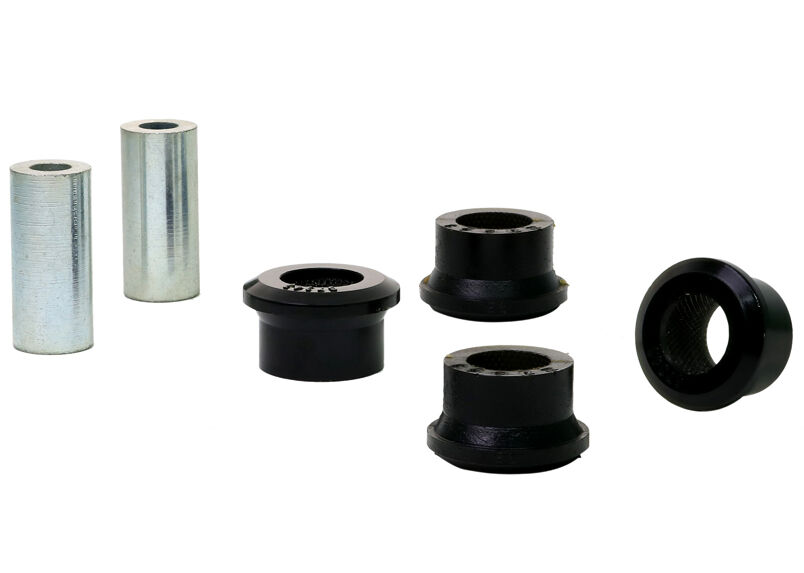

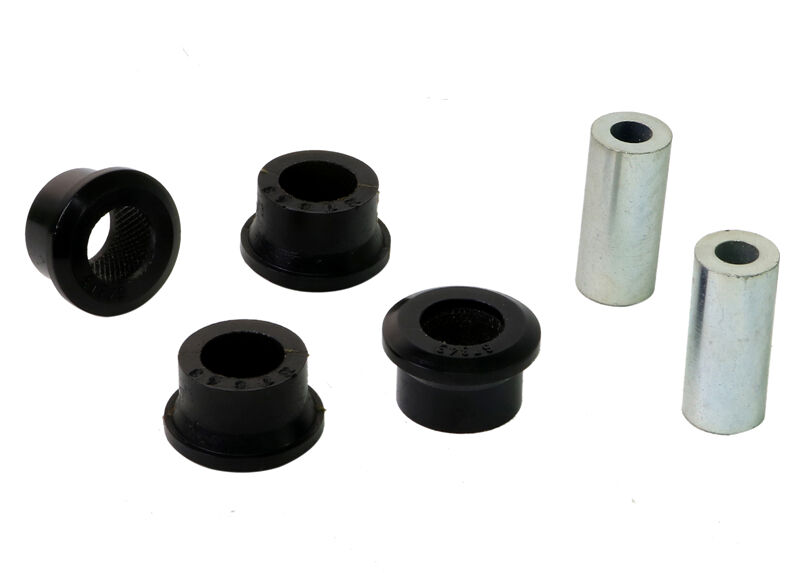

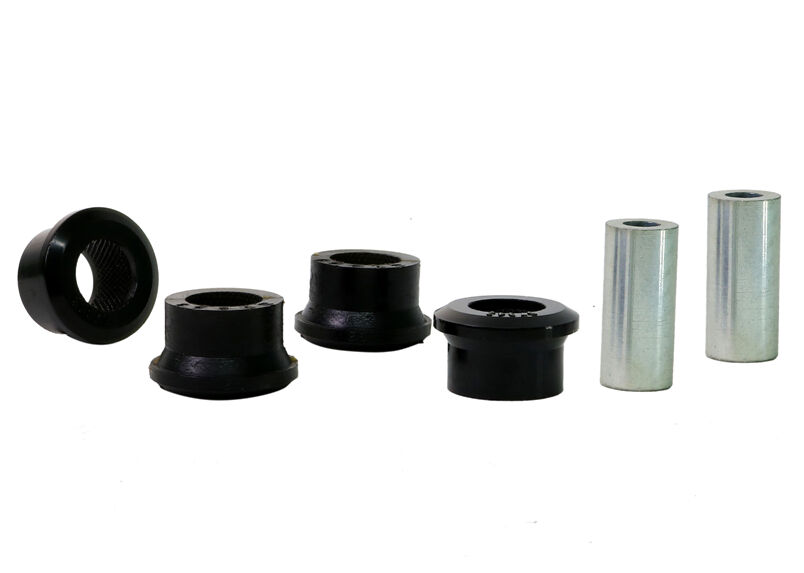

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924383153
  • Lifetime Warranty
Brand Whiteline
SKU W53411
Unit Of Measure Kit
