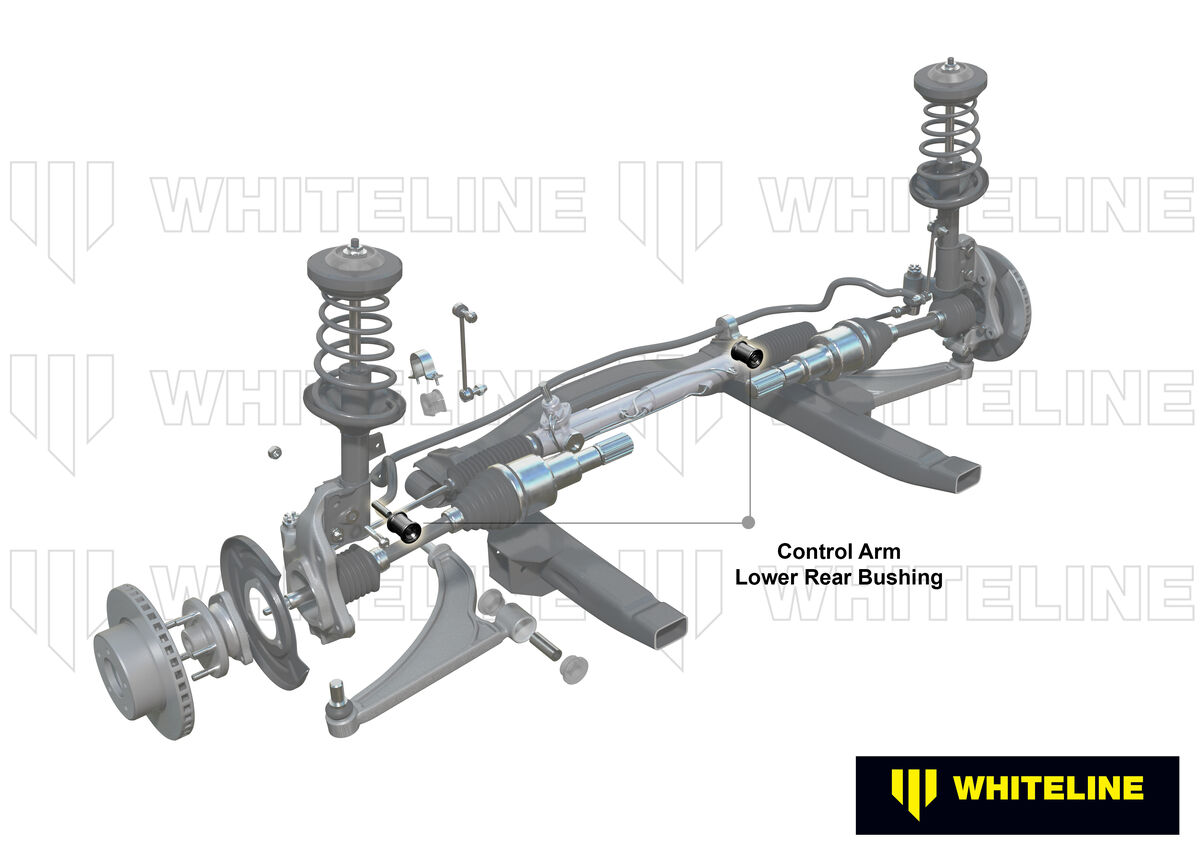

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	16 - Shell Without Flange Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	57.2 mm	31.8 mm
ID (B)	32 mm	21.8 mm
Length (C)	59.2 mm	57.2 mm
Flange Thickness (D)	10 mm	6.2 mm
Flange OD (E)	54 mm	39.7 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

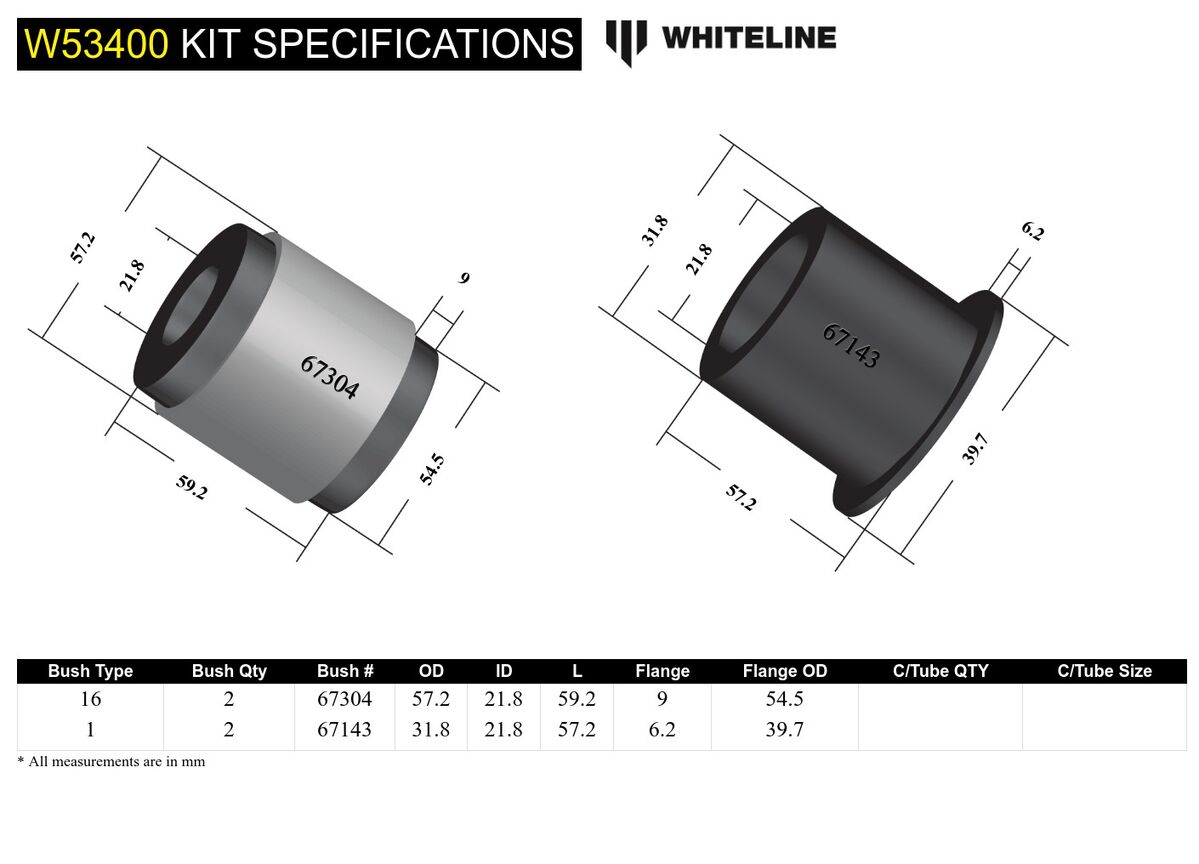

Bushing Design Dimensions (mm)

Bush Type	16	1
QTY	2	2
OD (A)	57.2	31.8
ID (B)	32	21.8
Length (C)	59.2	57.2
FL (D)	10	6.2
FLOD (E)	54	39.7
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.49kg	1.08lbs
Length	10cm	3.94"
Width	16cm	6.3"
Height	26cm	10.24"

Misc. Product Information

More Information

SKU	W53400

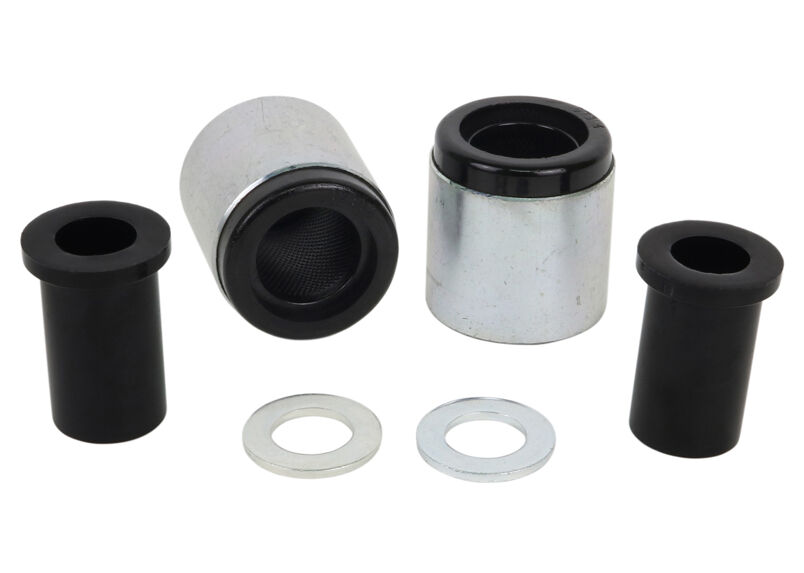

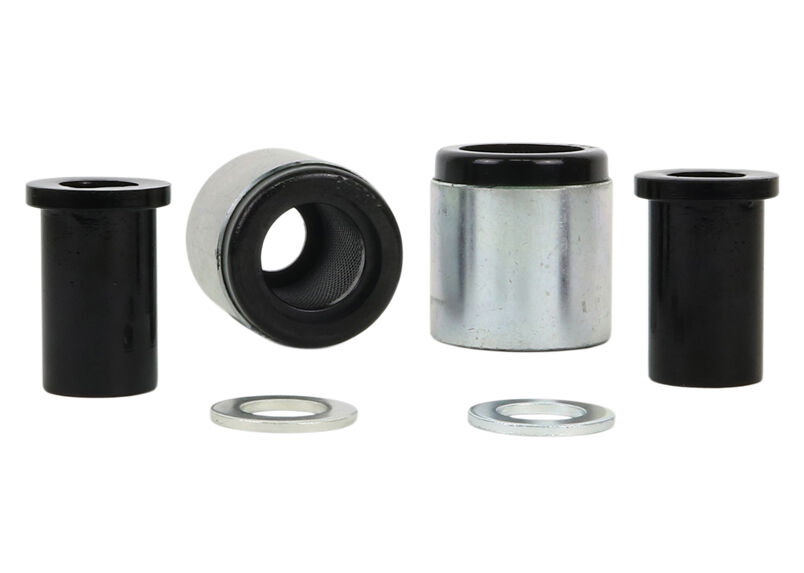

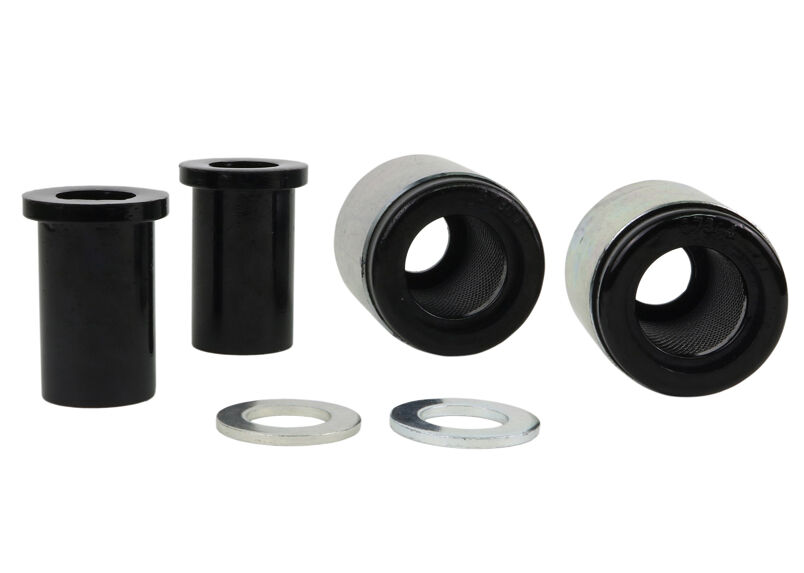

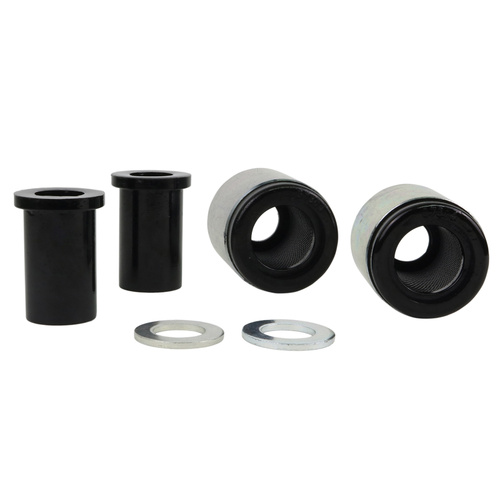

Components Per	2 Shell Bushings, 2 Bushings, 2 Washers
Kits Required	1
Sub brand	Replacement
Product Note	Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Bushings, 2 Washers
EAN	9319924380282
