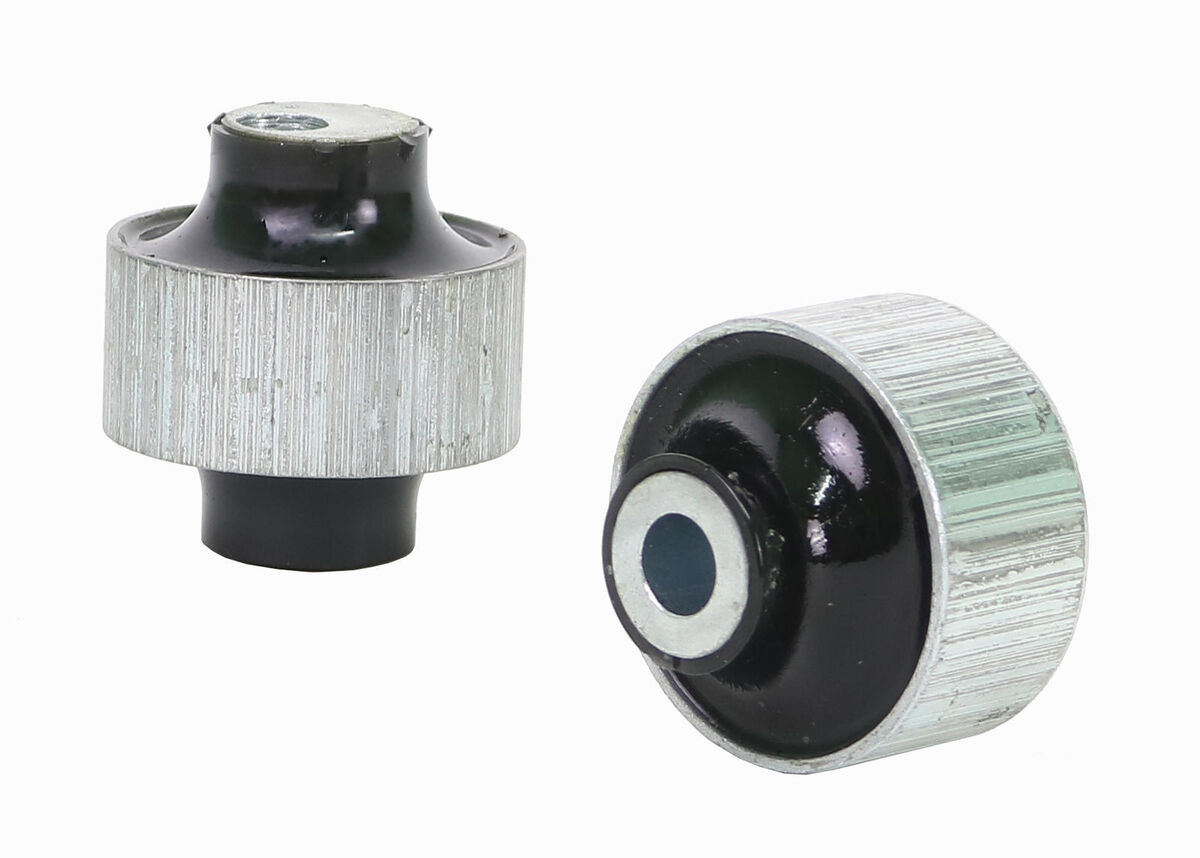

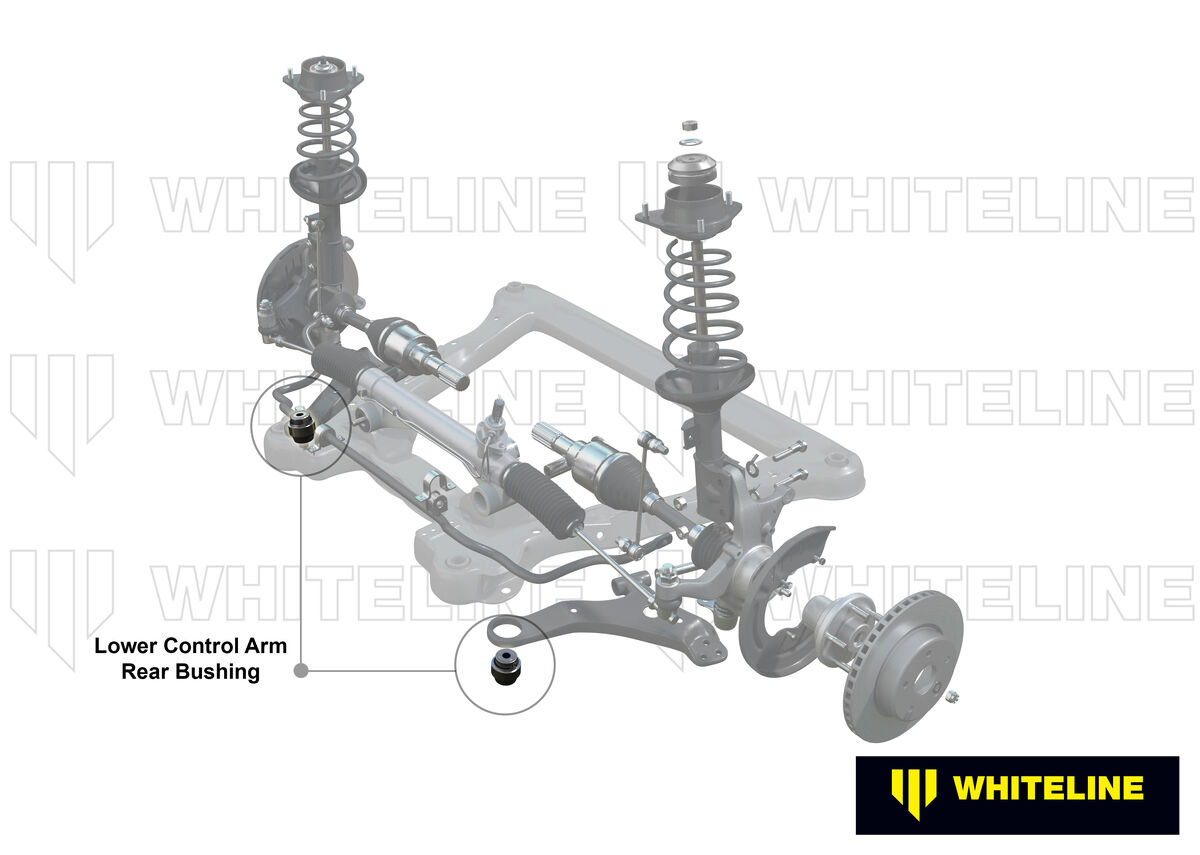

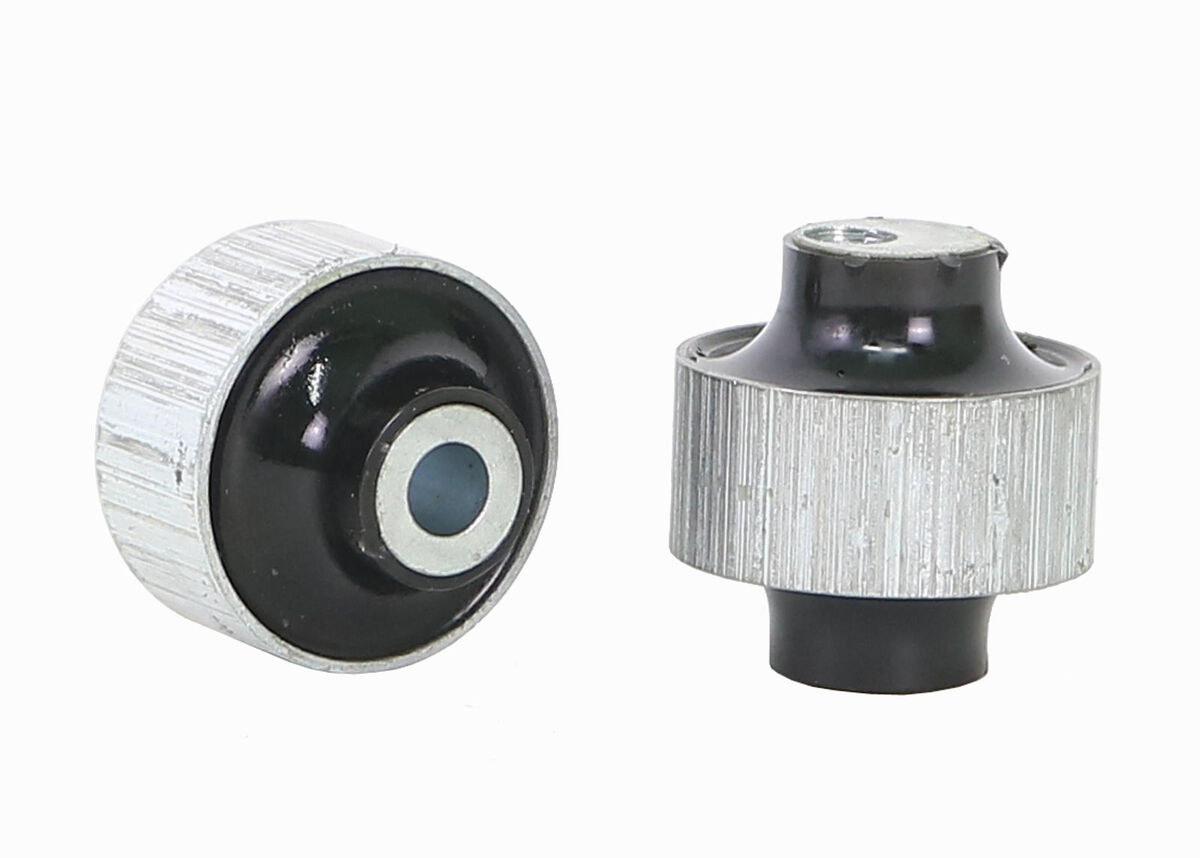

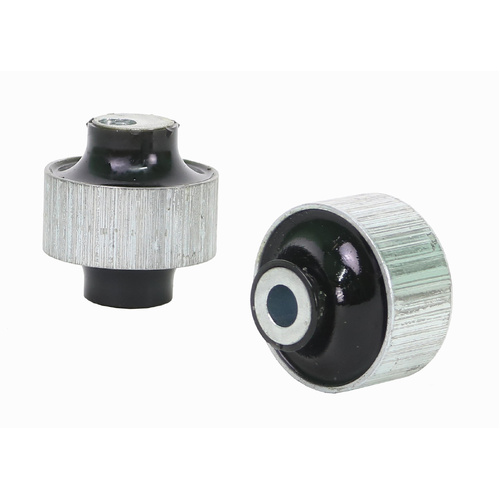

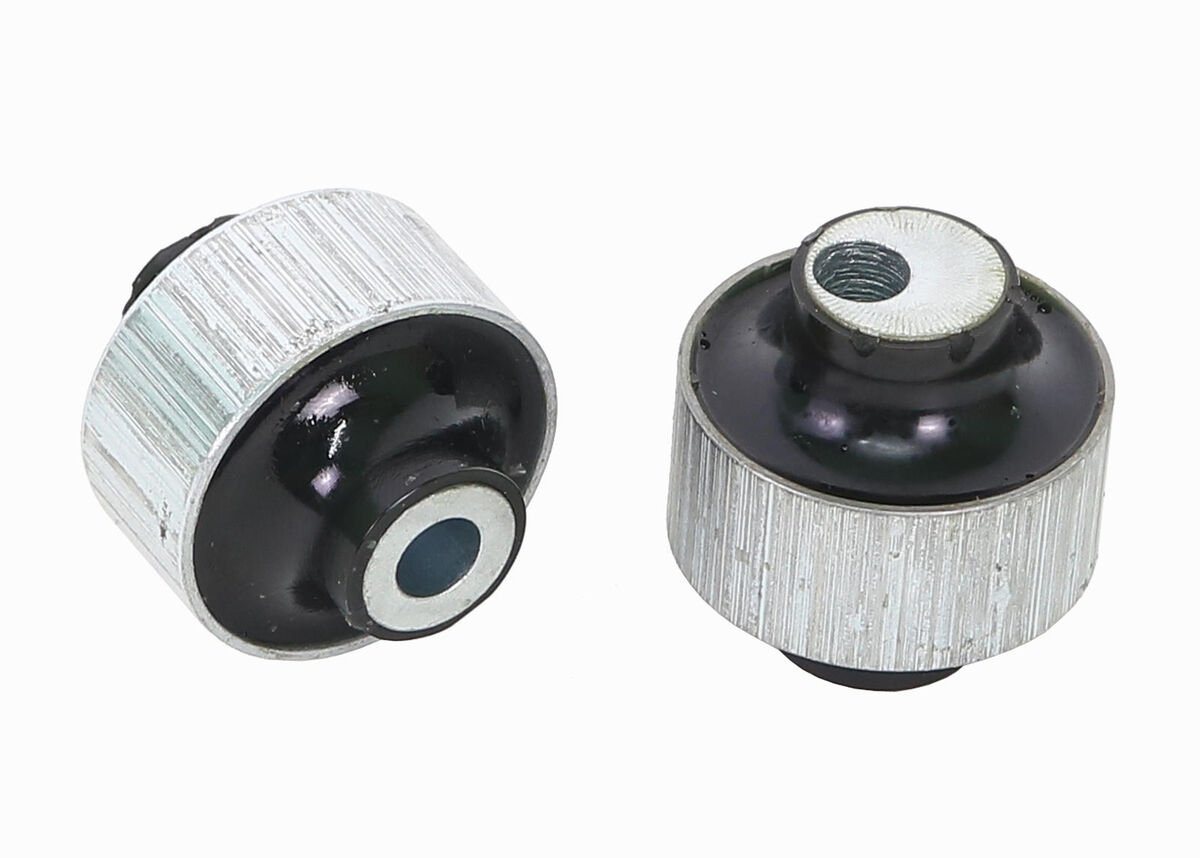

Whiteline Front Lower Control Arm - Inner Rear Bushing Single Offset Kit to Suit Toyota MR2 ZZW30 and Echo NCP10

SKU: W53300

Benefit Note: Not all roads are flat, believe it or not sometimes the road can cause the car to pull either left or right. This Whiteline kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing
Bush Quantity 2 mm
OD (A) 54.9 mm
ID (B) 24.8 mm
Length (C) 58.5 mm
Flange Thickness (D) 16.2 mm
Flange OD (E) 33 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x12.2x57.7 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 16
QTY 2
OD (A) 54.9
ID (B) 24.8
Length (C) 58.5
FL (D) 16.2
FLOD (E) 33
C/Tube Qty 2
C/Tube Size 25.4x12.2x57.7
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.64kg1.41lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53300
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteEnhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924376018
  • Lifetime Warranty
Brand Whiteline
SKU W53300
Unit Of Measure Kit
