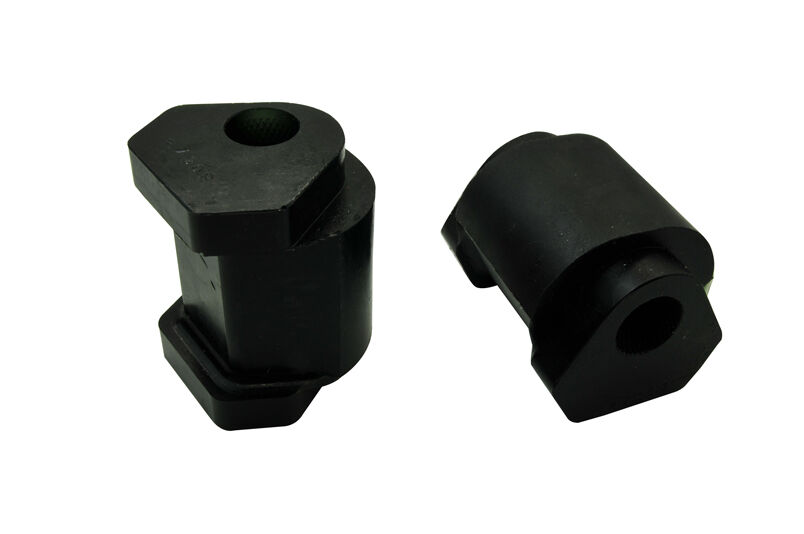

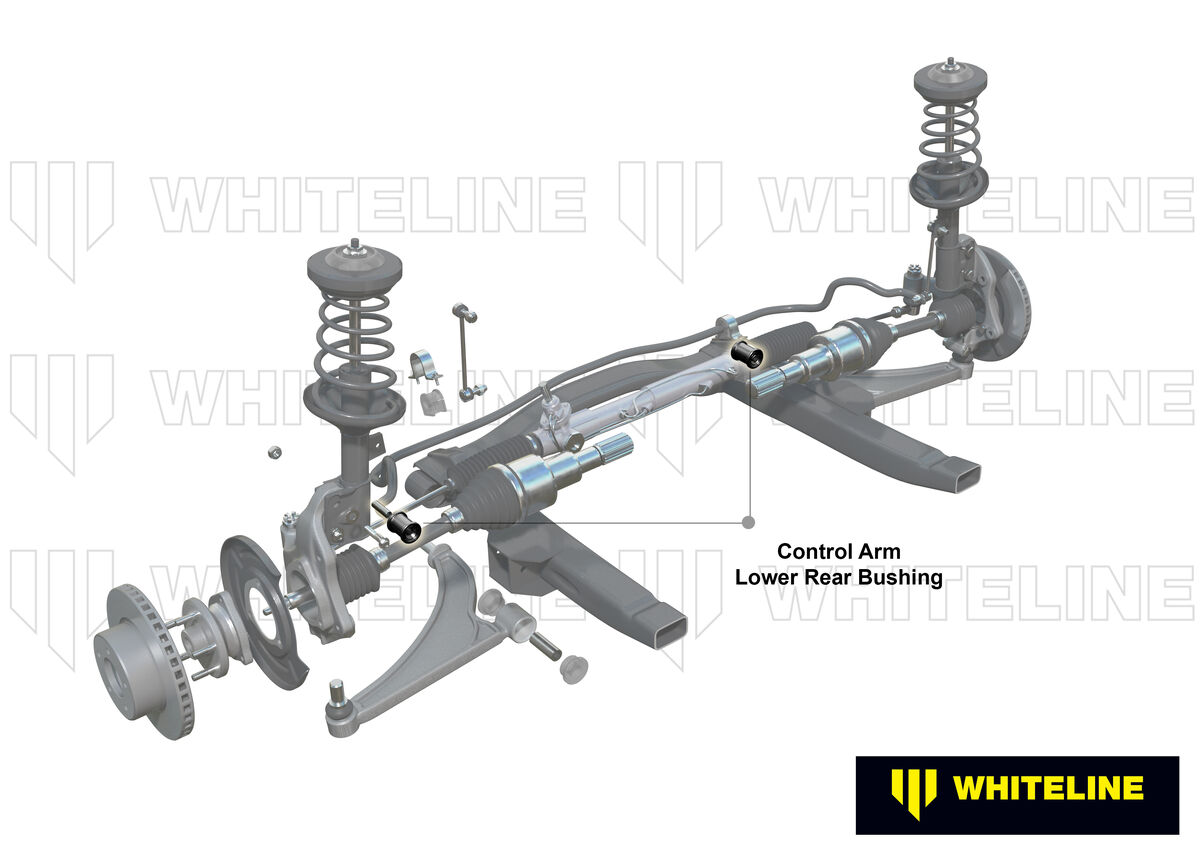

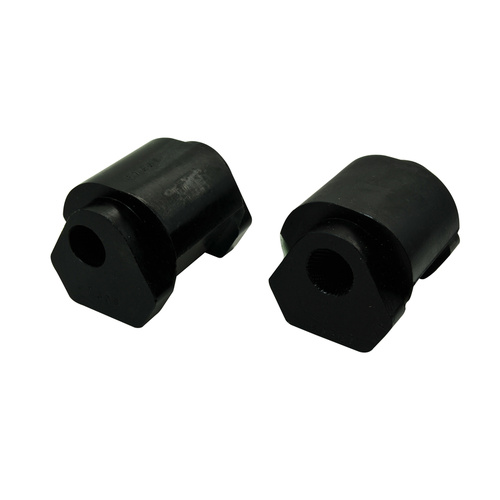

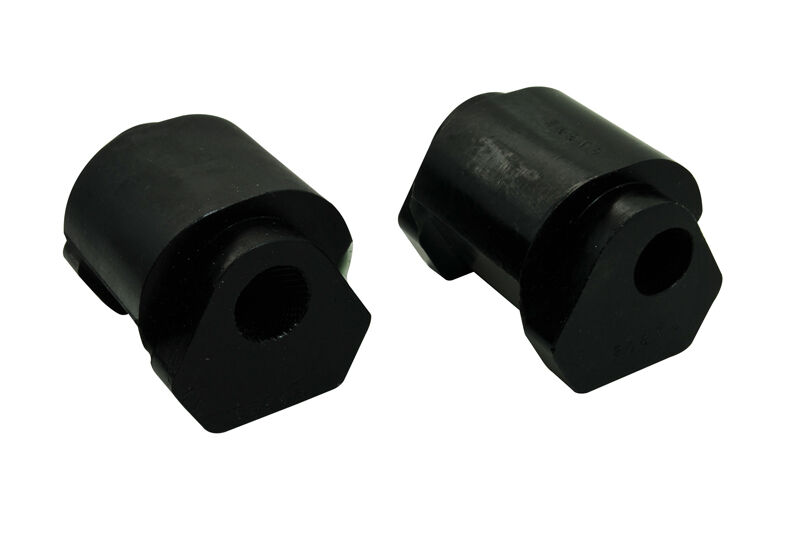

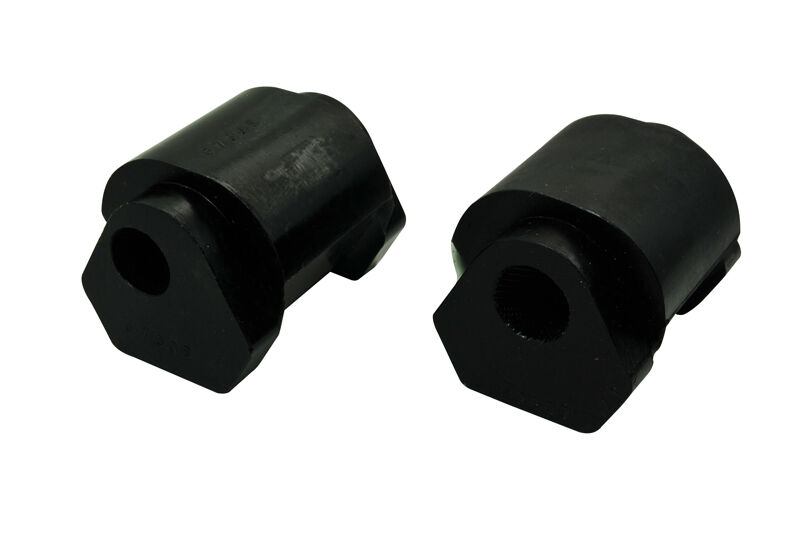

Whiteline Front Lower Control Arm - Inner Rear Bushing Single Offset Kit to Suit Nissan Elgrand E50 and Pathfinder R50

SKU: W53278

Benefit Note: Not all roads are flat, believe it or not sometimes the road can cause the car to pull either left or right. This Whiteline kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.

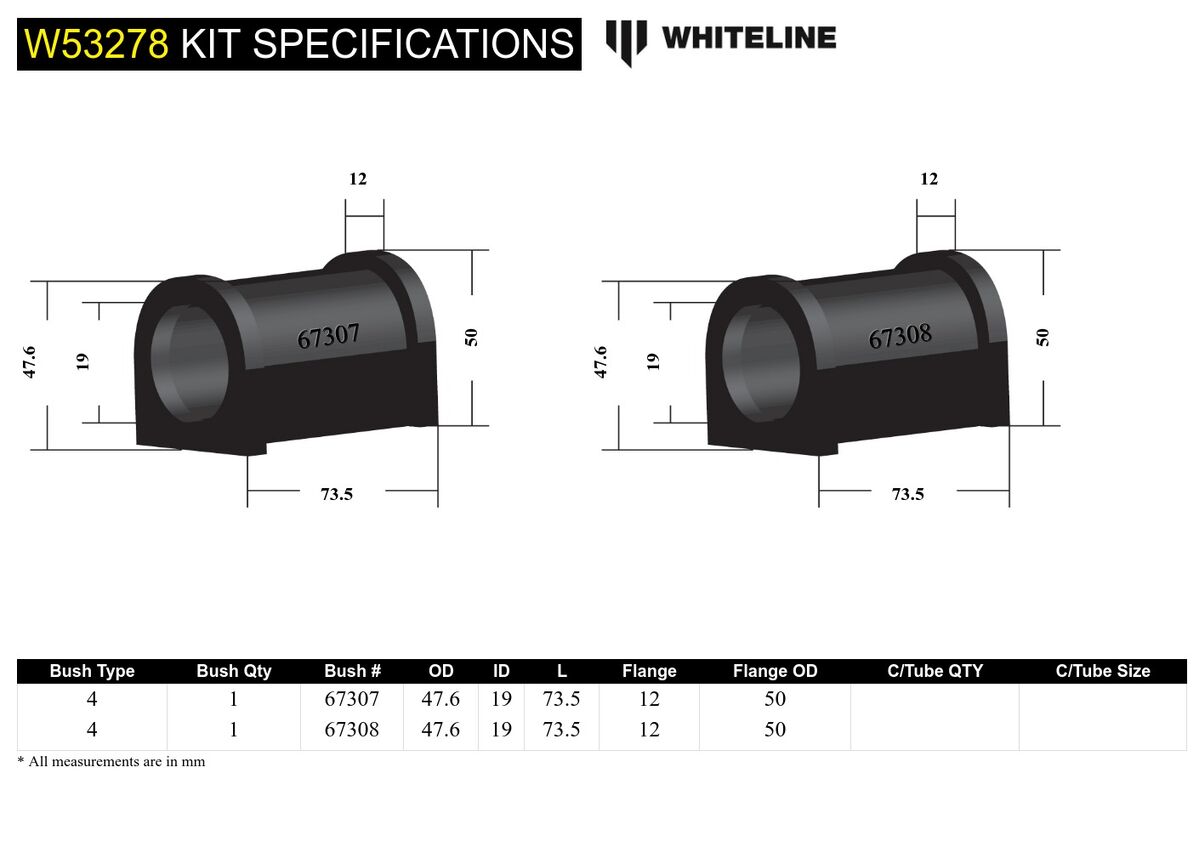

Kit Specifications

Bush Type 4 - D-bushing With Flange 4 - D-bushing With Flange
Bush Quantity 1 mm 1 mm
OD (A) 47.6 mm 47.6 mm
ID (B) 19 mm 19 mm
Length (C) 73.5 mm 73.5 mm
Flange Thickness (D) 12 mm 12 mm
Flange OD (E) 50 mm 50 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4 - D-bushing With Flange
Bushing Type 4 - D-bushing With Flange
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 4 4
QTY 1 1
OD (A) 47.6 47.6
ID (B) 19 19
Length (C) 73.5 73.5
FL (D) 12 12
FLOD (E) 50 50
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 4

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.325kg0.72lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53278
Components Per2 Bushings
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924376254
  • Lifetime Warranty
Brand Whiteline
SKU W53278
Unit Of Measure Kit
