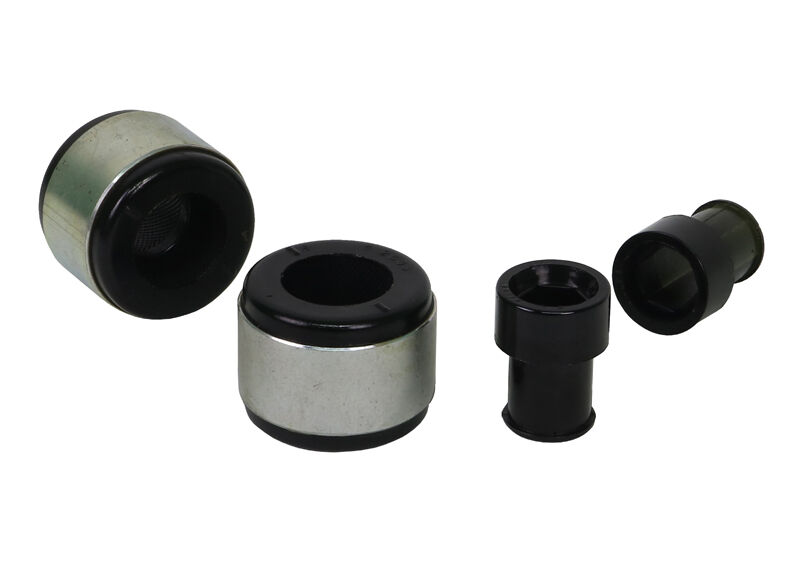

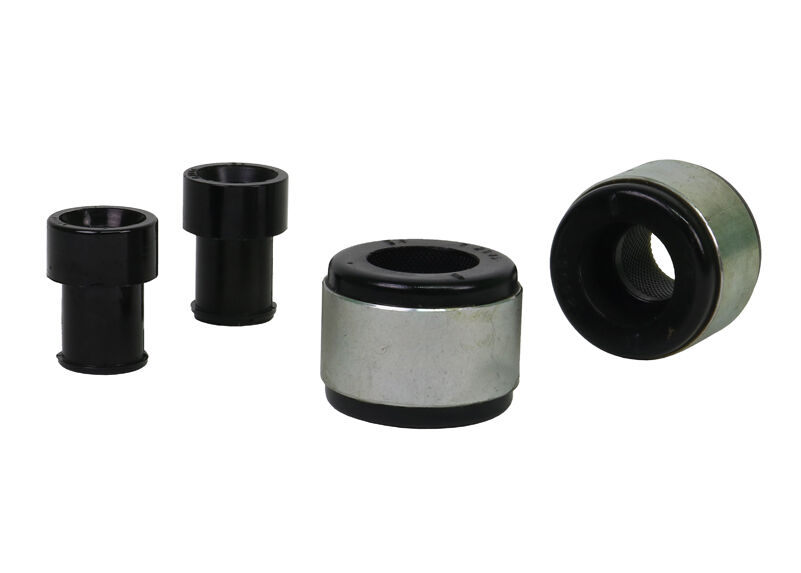

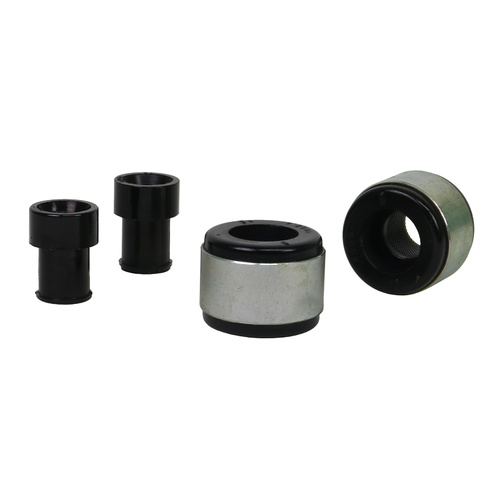

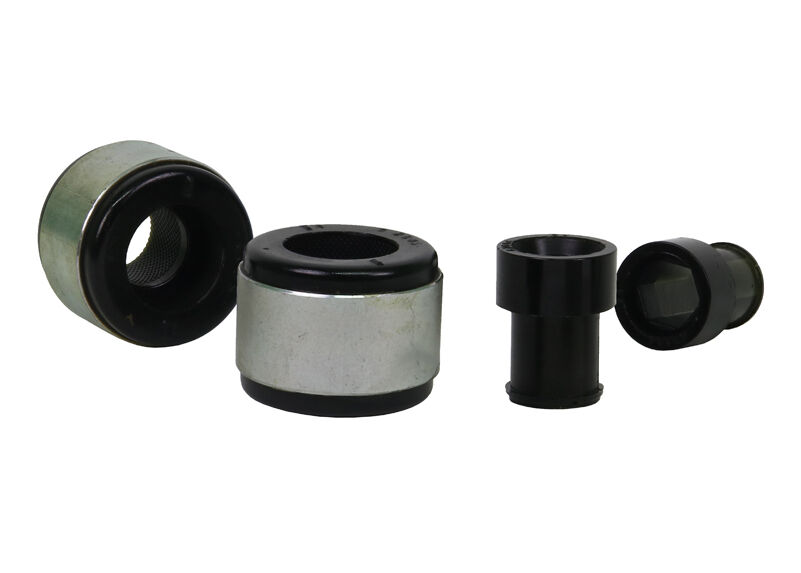

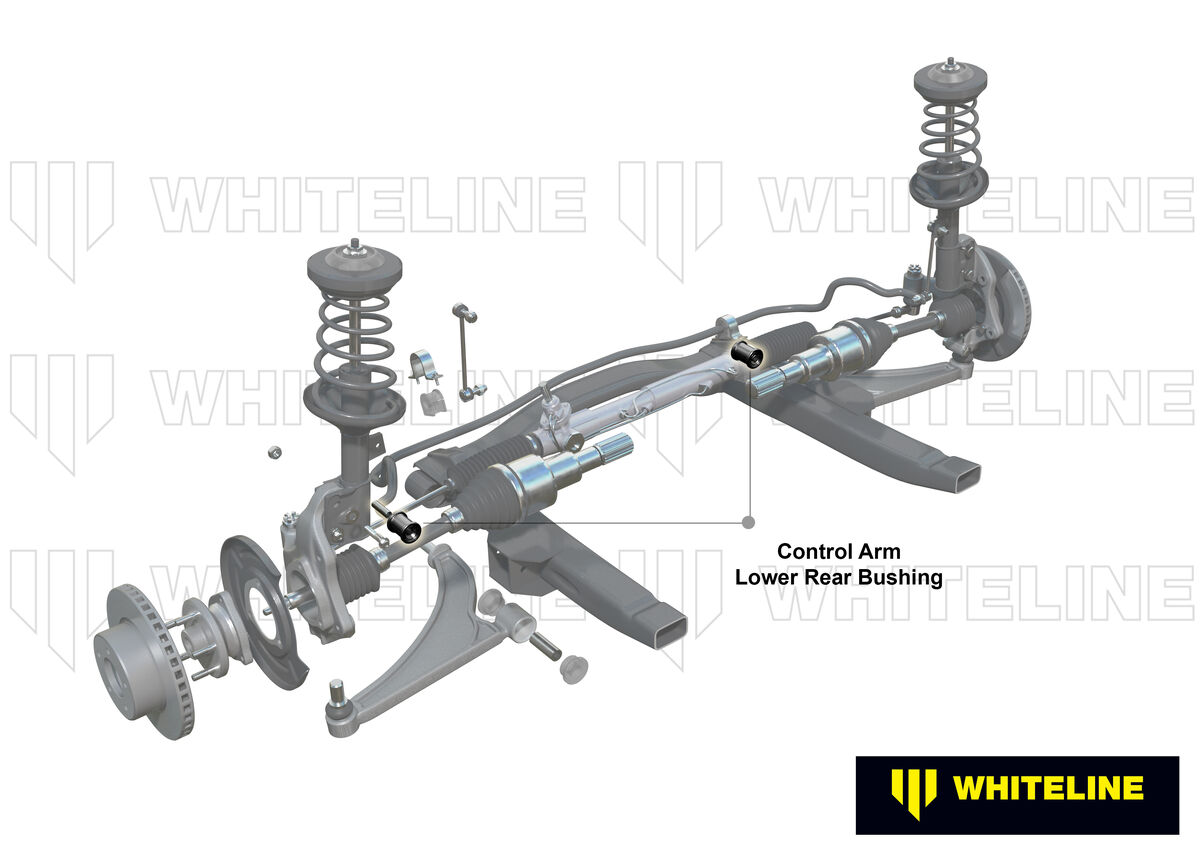

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit BMW 3 Series E46 and Z4 E86, E86

SKU: W52605

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm 2 mm
OD (A) 66.3 mm 28 mm
ID (B) 37.4 mm 24.2 (Hex) mm
Length (C) 49 mm 52 mm
Flange Thickness (D) 7.5 mm 20 mm
Flange OD (E) 63 mm 38 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

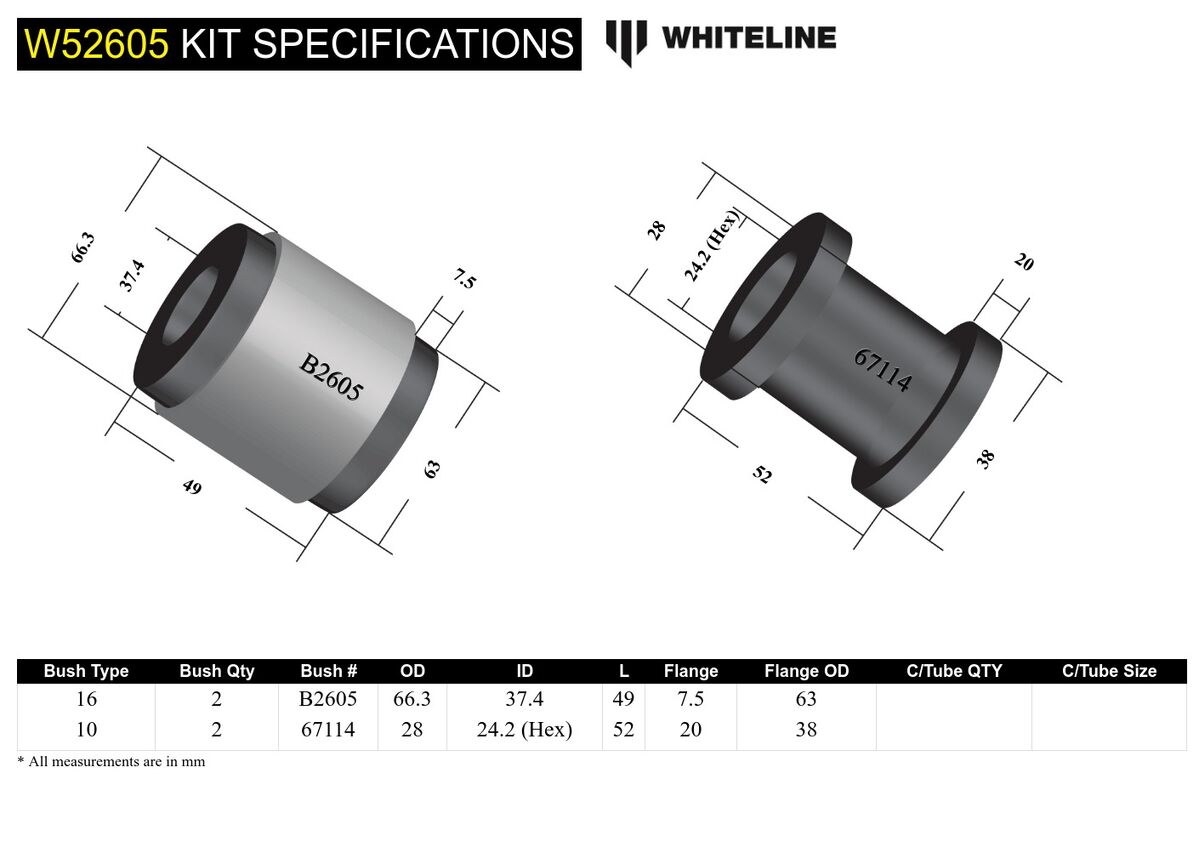

Bushing Design Dimensions (mm)

Bush Type 16 10
QTY 2 2
OD (A) 66.3 28
ID (B) 37.4 24.2 (Hex)
Length (C) 49.0 52.0
FL (D) 7.5 20
FLOD (E) 63 38
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.43kg0.95lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW52605
Components Per2 Shell Bushings, 2 Bushings
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Bushings
EAN9319924353200
  • Lifetime Warranty
Brand Whiteline
SKU W52605
Unit Of Measure Kit
