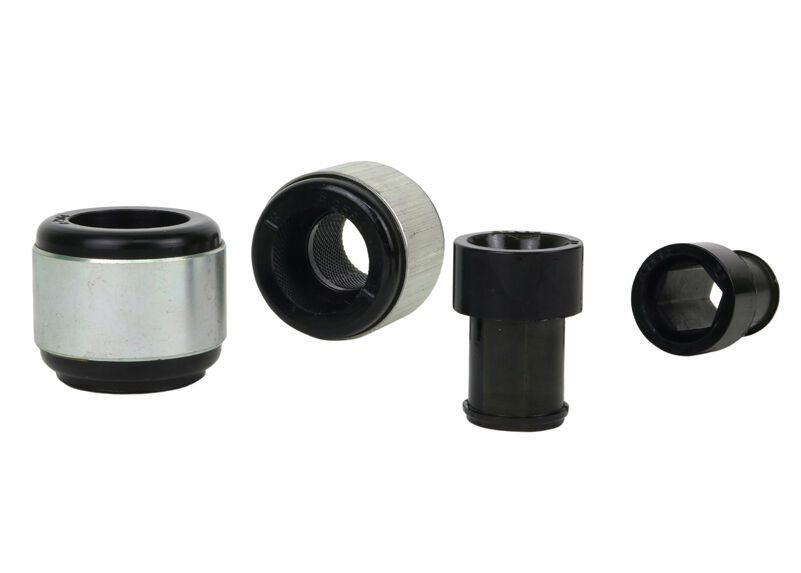

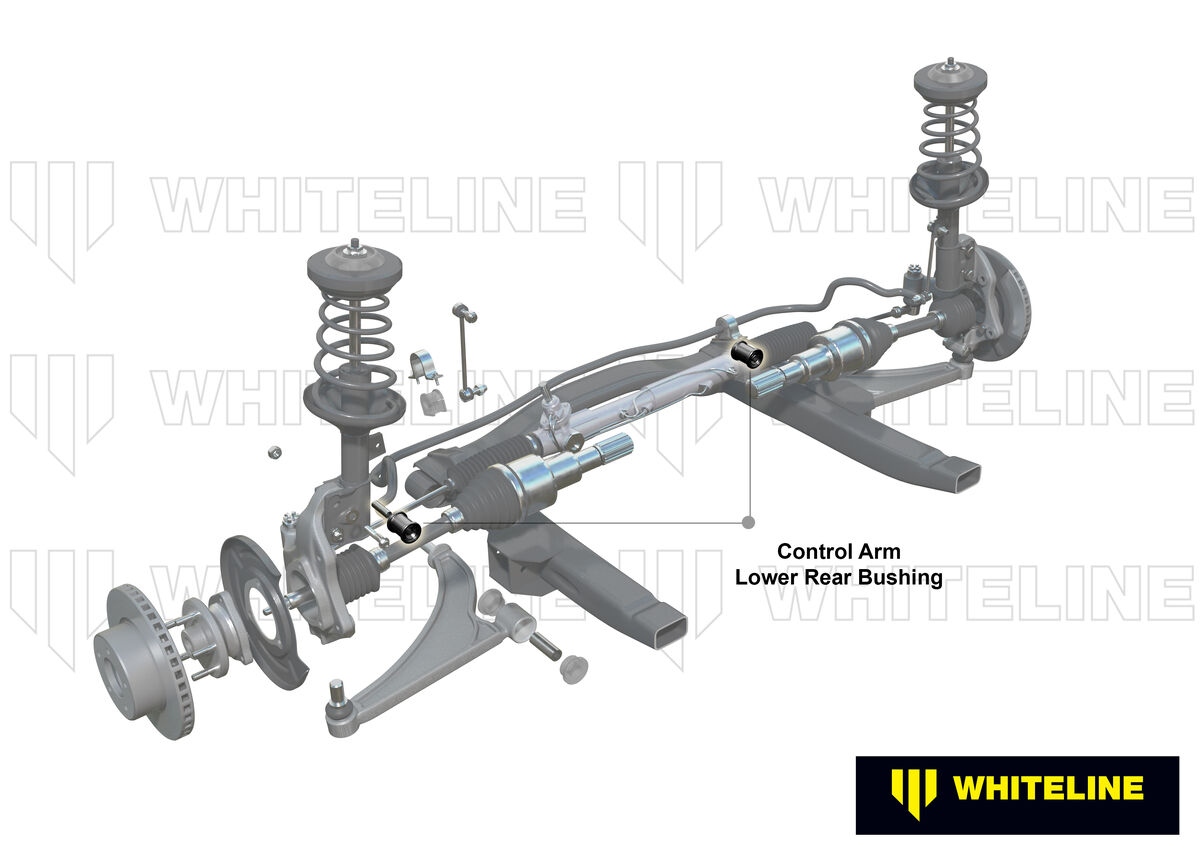

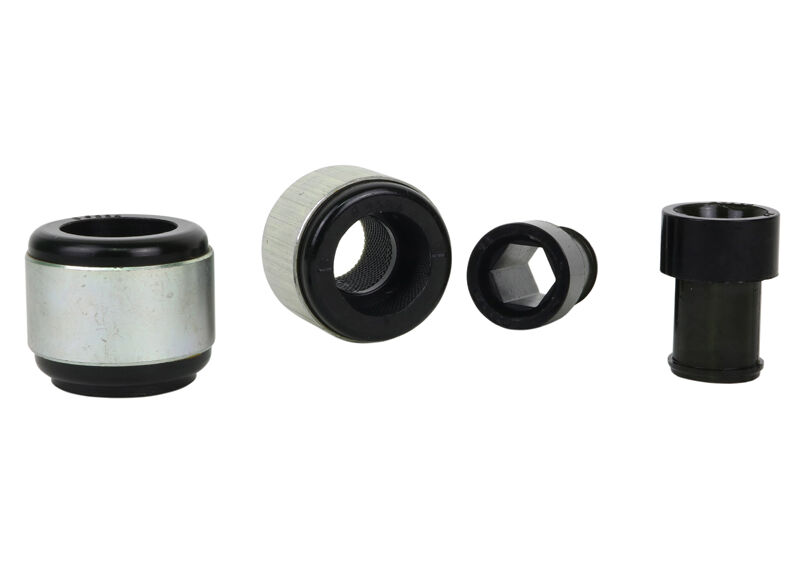

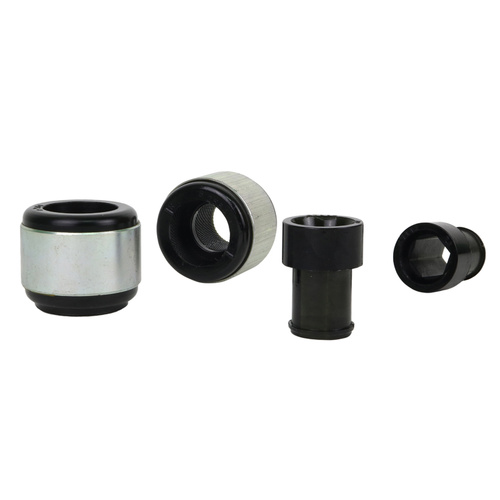

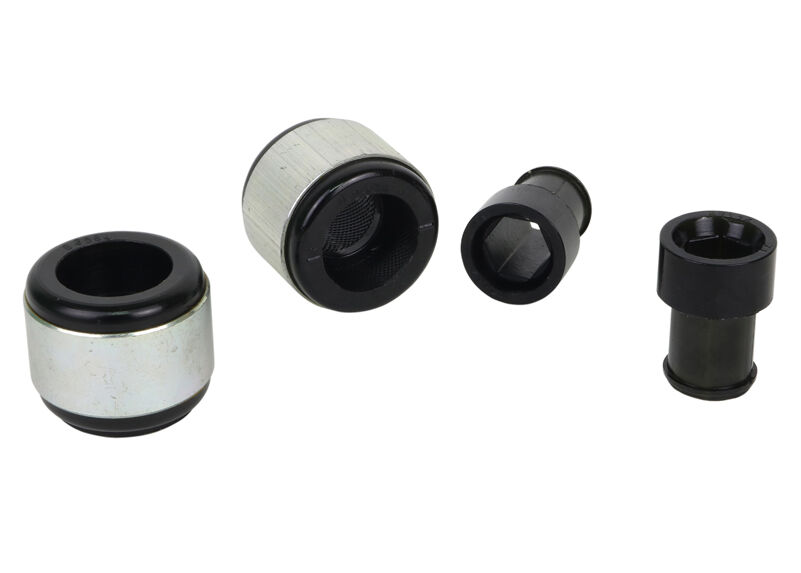

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit BMW M3 E46 and Z4M E85, E86

SKU: W52584

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

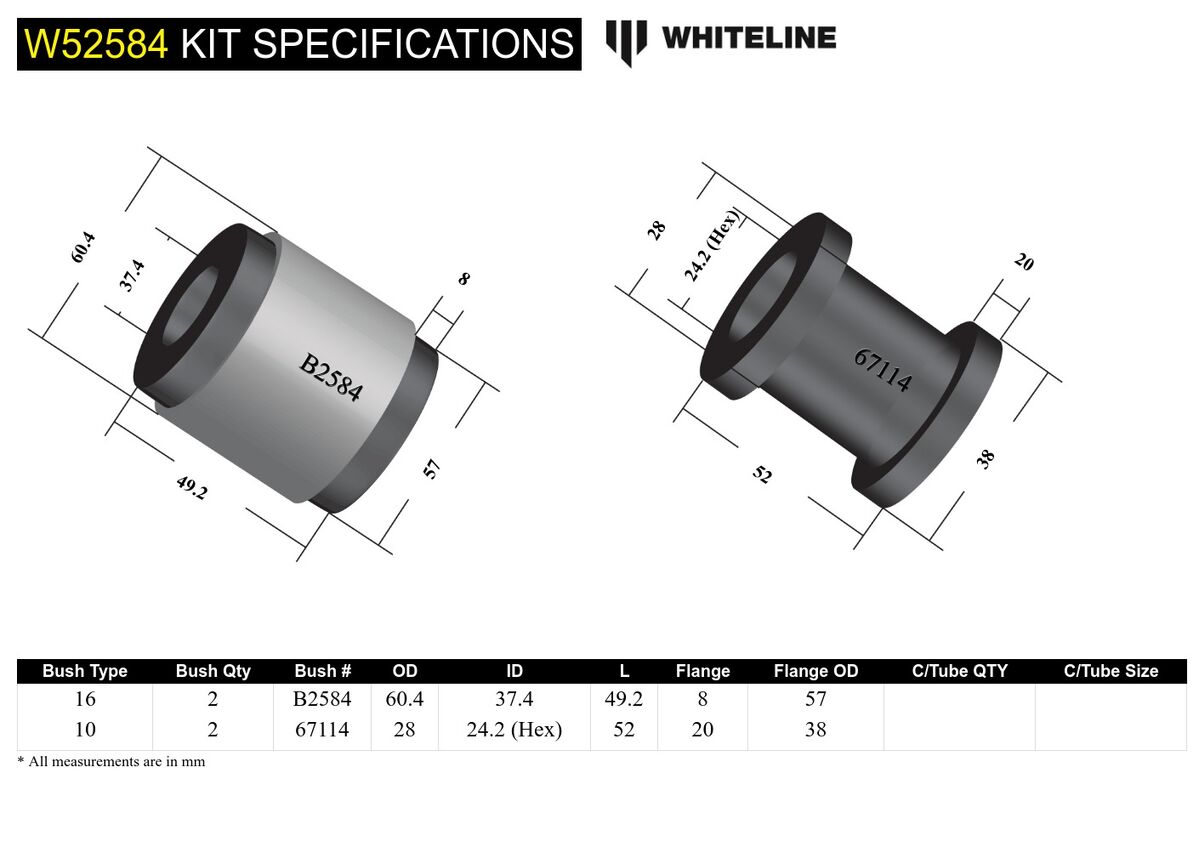

Kit Specifications

Bush Type 16 - Shell Without Flange Bushing 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm 2 mm
OD (A) 60.4 mm 28 mm
ID (B) 37.4 mm 24.2 (Hex) mm
Length (C) 49.2 mm 52 mm
Flange Thickness (D) 8 mm 20 mm
Flange OD (E) 57 mm 38 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 16 - Shell Without Flange Bushing
Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 16 10
QTY 2 2
OD (A) 60.4 28
ID (B) 37.4 24.2 (Hex)
Length (C) 49.2 52.0
FL (D) 8 20
FLOD (E) 57 38
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10
Bushing Type 16

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.415kg0.91lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW52584
Components Per2 Shell Bushings, 2 Bushings
Kits Required1
Sub brandReplacement
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Bushings
EAN9319924353170
  • Lifetime Warranty
Brand Whiteline
SKU W52584
Unit Of Measure Kit
