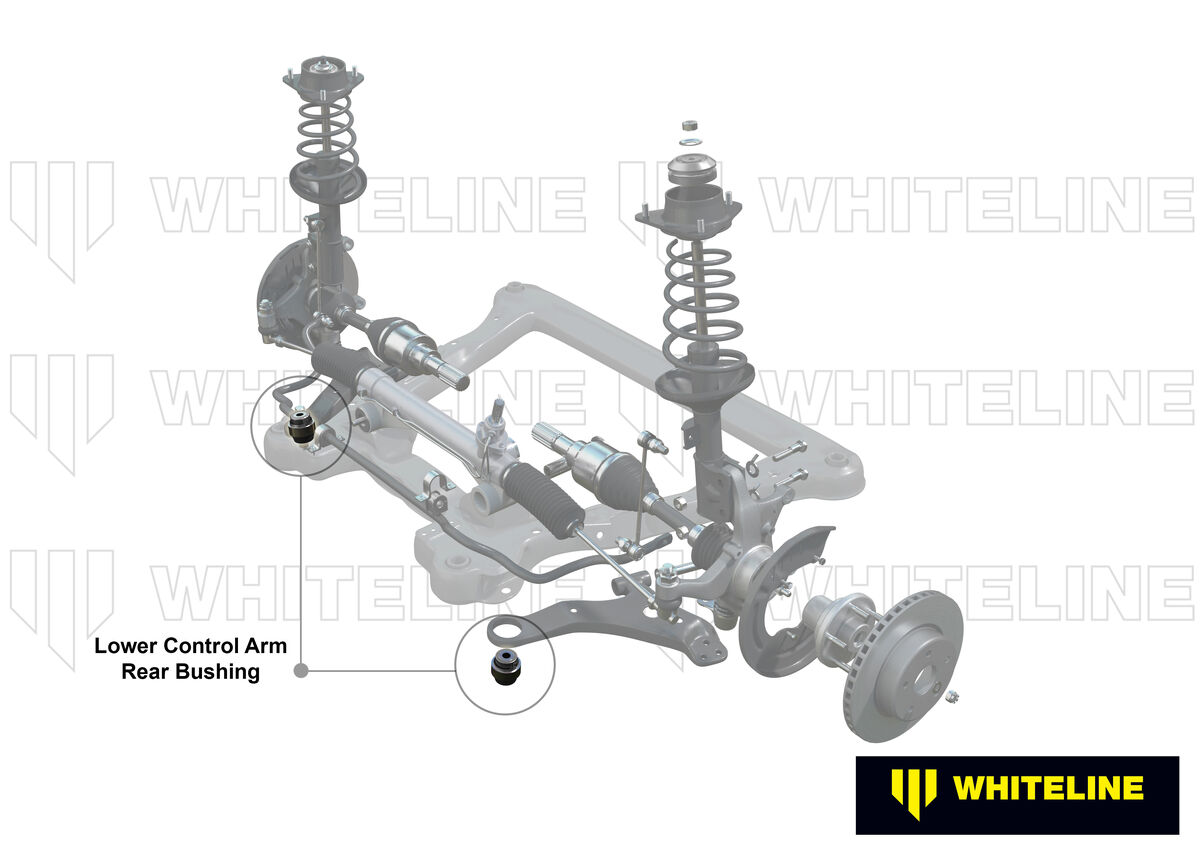

Whiteline Front Lower Control Arm - Inner Rear Bushing Double Offset Kit to Suit Toyota Camry, Avalon and Holden Apollo

SKU: W52417

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

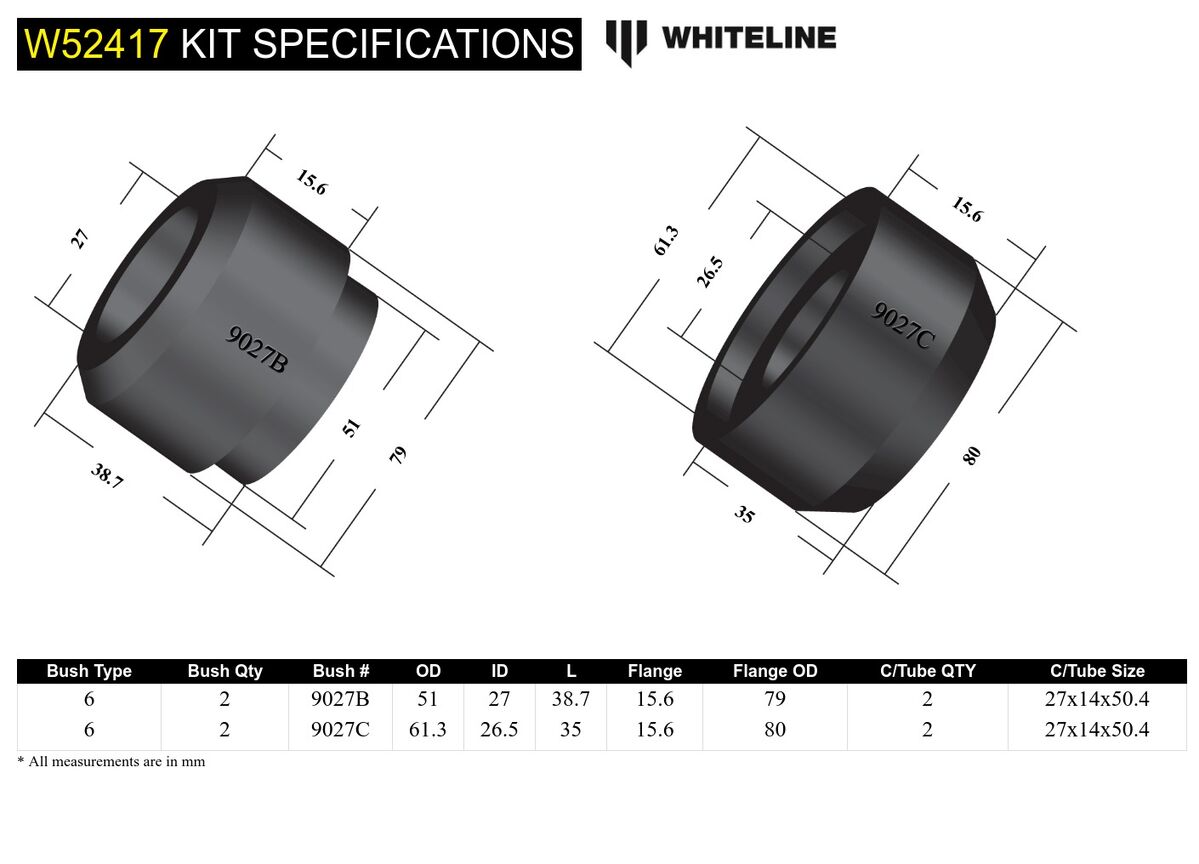

Kit Specifications

Bush Type 6 - Male/female Interconnecting Bushing 6 - Male/female Interconnecting Bushing
Bush Quantity 2 mm 2 mm
OD (A) 51 mm 61.3 mm
ID (B) 27 mm 26.5 mm
Length (C) 38.7 mm 35 mm
Flange Thickness (D) 15.6 mm 15.6 mm
Flange OD (E) 79 mm 80 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 27x14x50.4 mm 27x14x50.4 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 6 - Male/female Interconnecting Bushing
Bushing Type 6 - Male/female Interconnecting Bushing
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 6 6
QTY 2 2
OD (A) 51 61.3
ID (B) 27 26.5
Length (C) 38.7 35.0
FL (D) 15.6 15.6
FLOD (E) 79 80
C/Tube Qty 2 2
C/Tube Size 27x14x50.4 27x14x50.4
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 6

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.65kg1.43lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUW52417

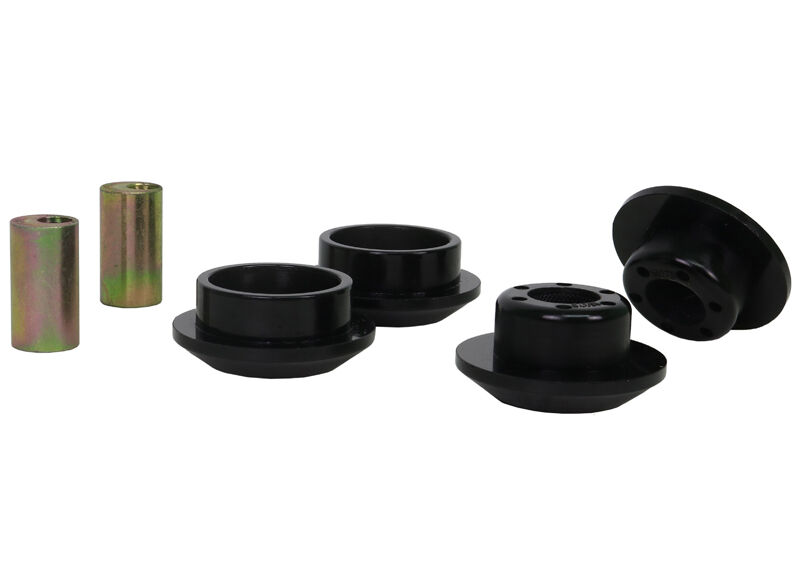

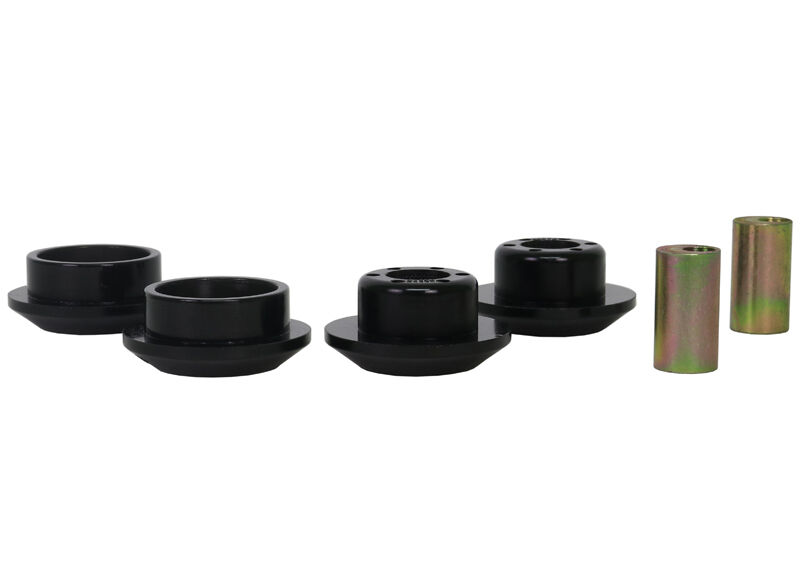

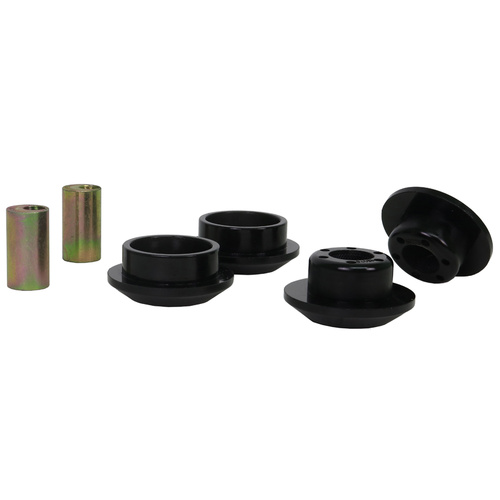

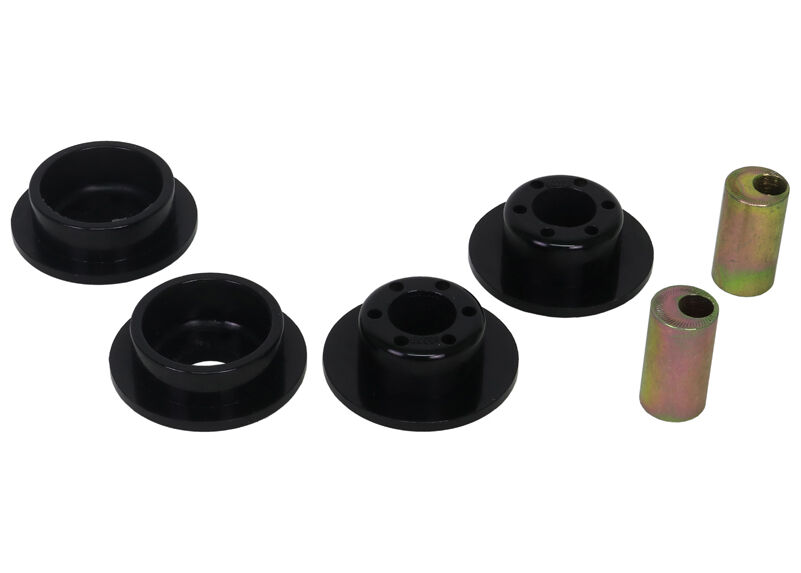

Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924382606
  • Lifetime Warranty
Brand Whiteline
SKU W52417
Unit Of Measure Kit
