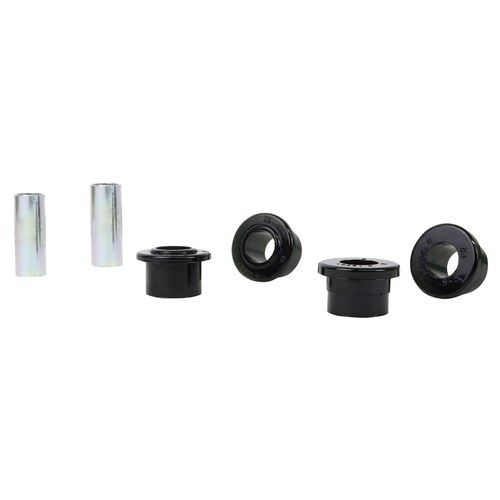

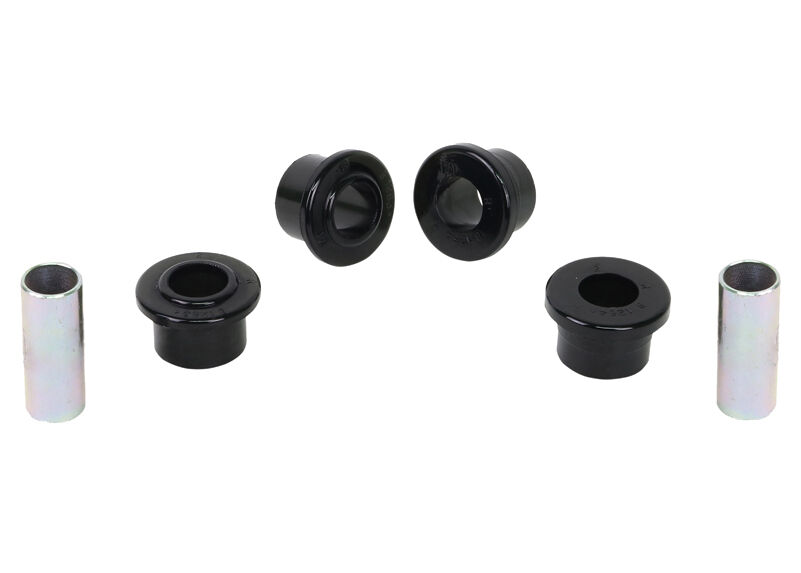

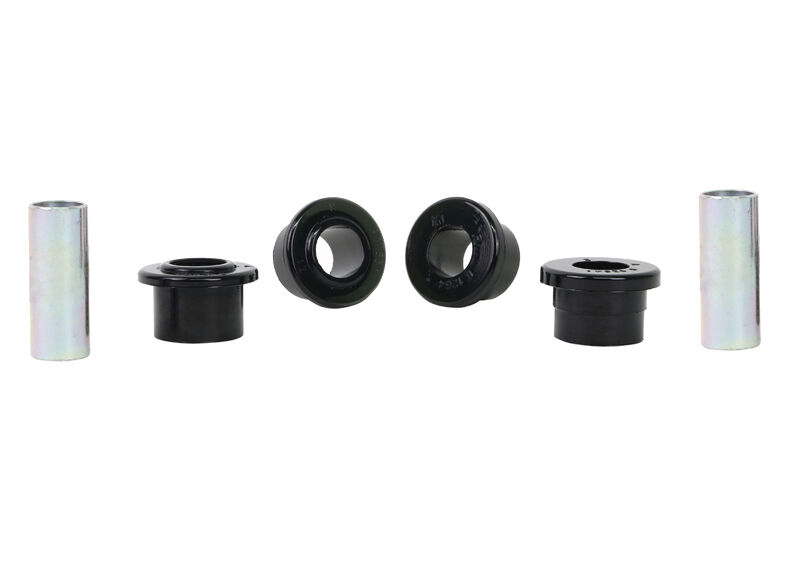

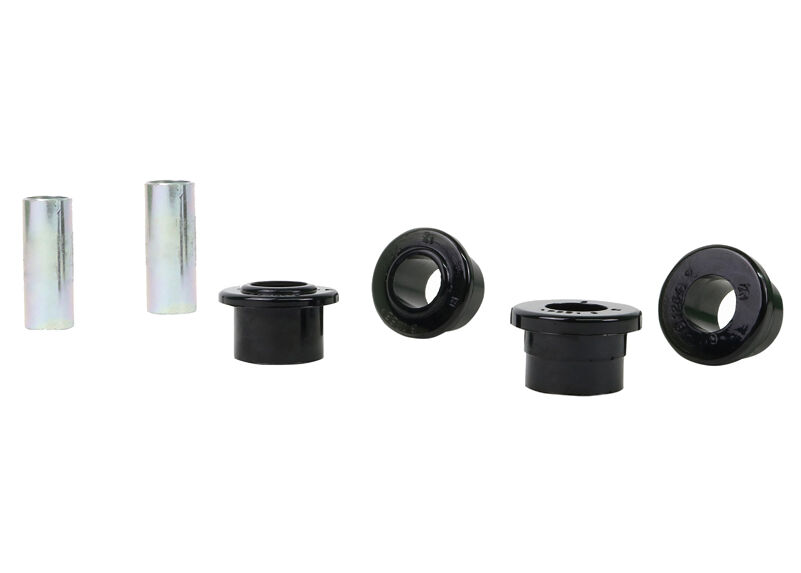

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Ford Laser KF, KH and Mazda 323 BG

SKU: W51263

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

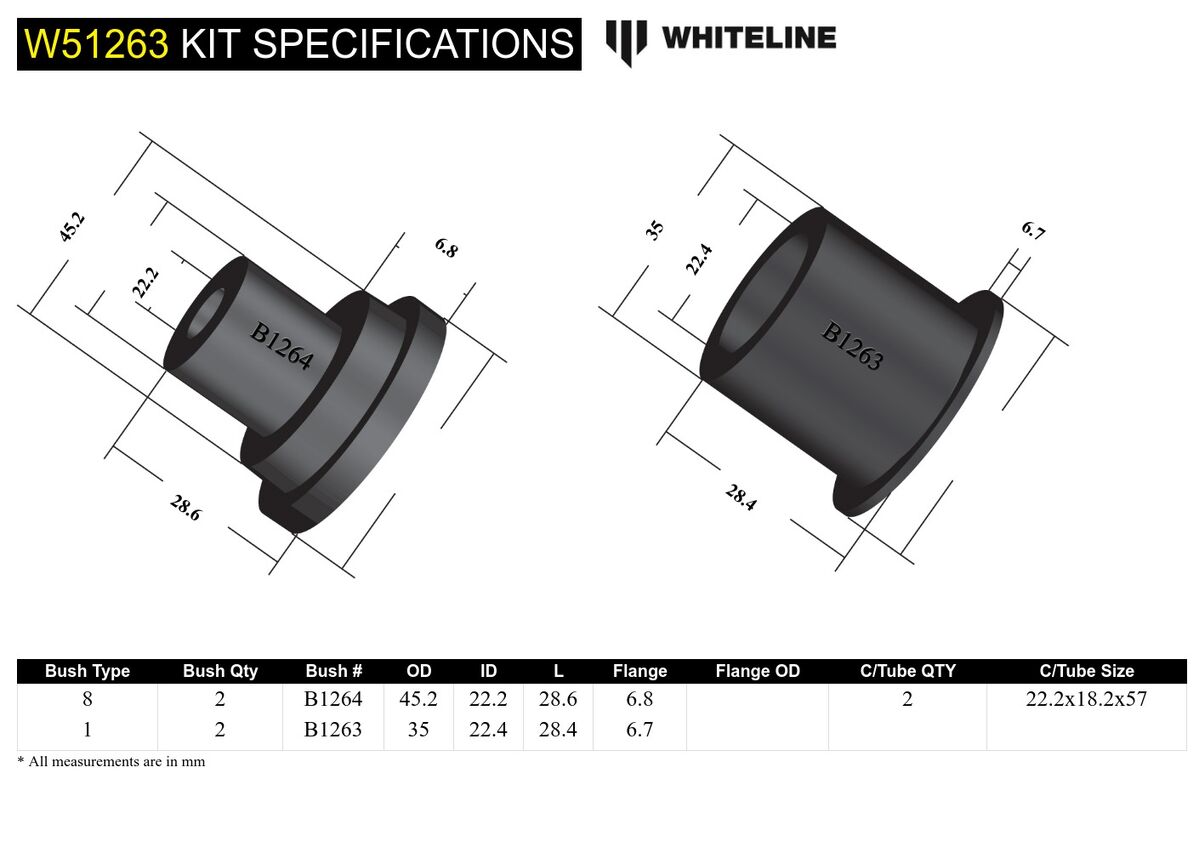

Kit Specifications

Bush Type 1 - Shackle Bushing 8 - Stepped OD Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 35 mm 45.2 mm
ID (B) 22.4 mm 22.2 mm
Length (C) 28.4 mm 28.6 mm
Flange Thickness (D) 6.7 mm 6.8 mm
Flange OD (E)
C/Tube Quantity 2
C/Tube ODxIDxL 22.2x18.2x57 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 8
QTY 2 2
OD (A) 35 45.2
ID (B) 22.4 22.2
Length (C) 28.4 28.6
FL (D) 6.7 6.8
FLOD (E)
C/Tube Qty 2
C/Tube Size 22.2x18.2x57
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1
Bushing Type 8

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.238kg0.52lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW51263
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924351831
  • Lifetime Warranty
Brand Whiteline
SKU W51263
Unit Of Measure Kit
