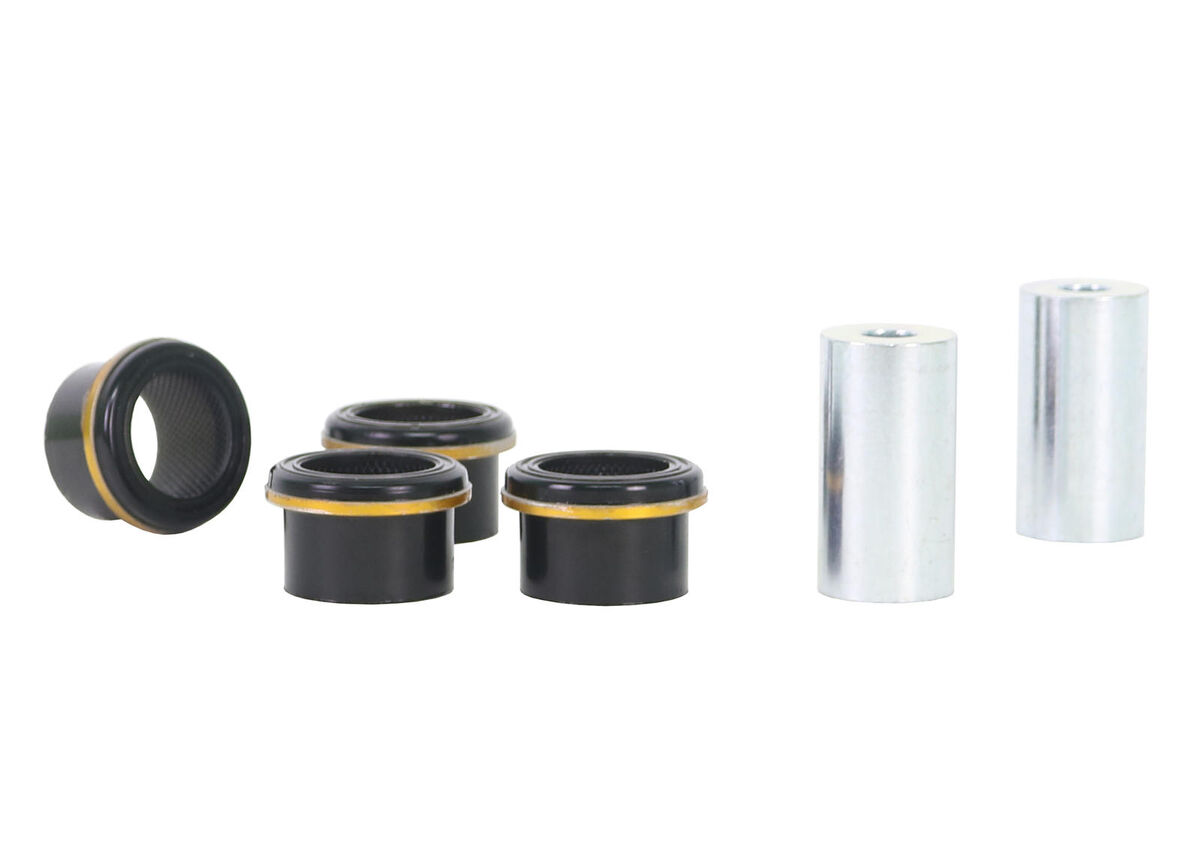

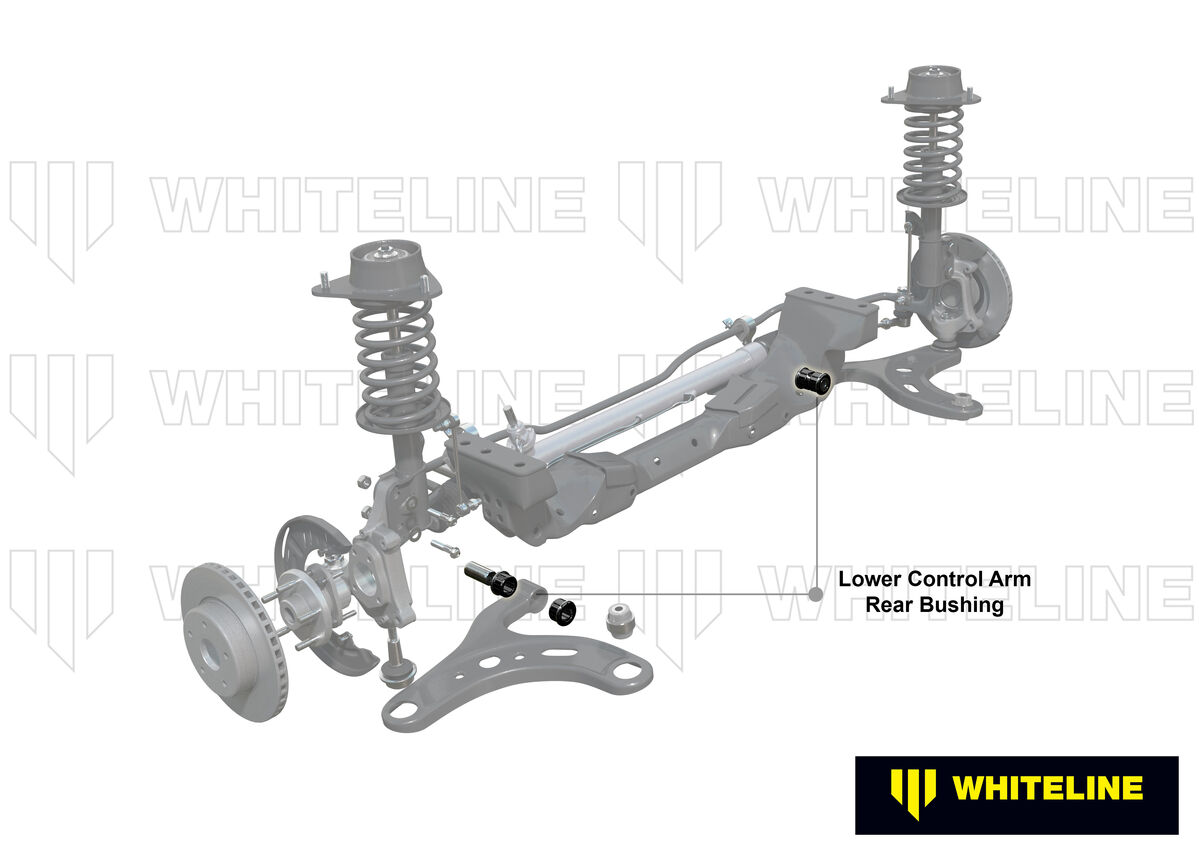

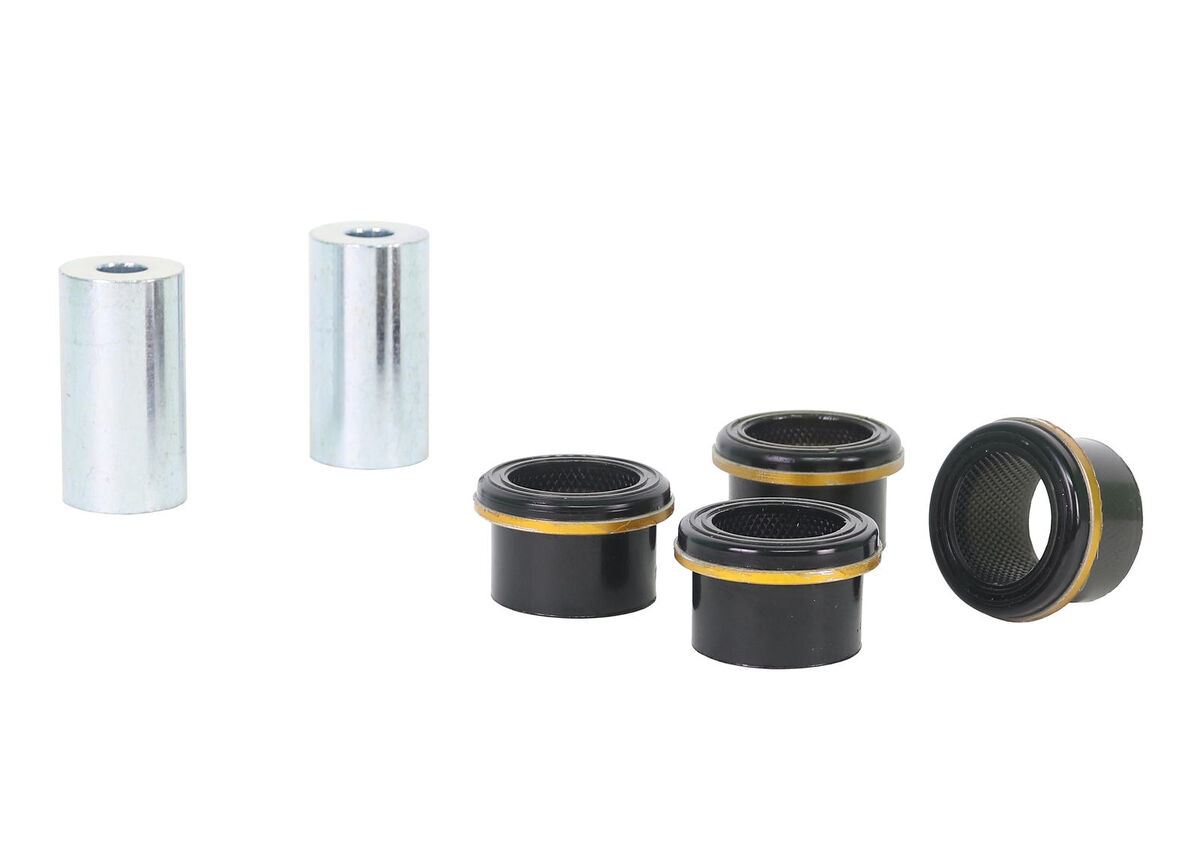

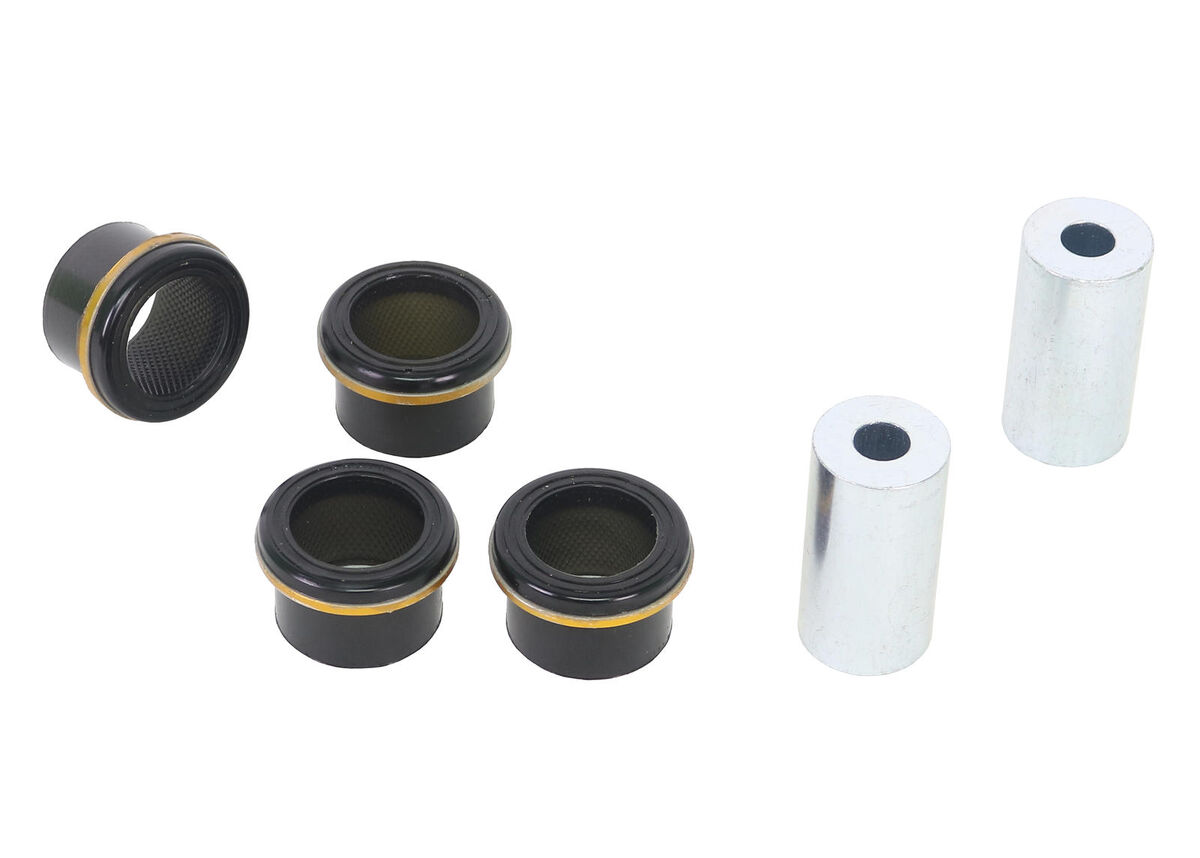

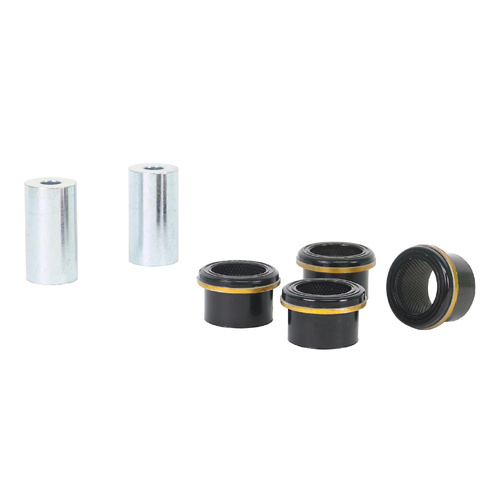

Whiteline Front Lower Control Arm - Inner Rear Bushing Kit to Suit Subaru BRZ and Toyota 86

SKU: W0509

Benefit Note: Over compliant front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Whiteline's kit is specially designed to improve deflection rates for improved response and chassis control.

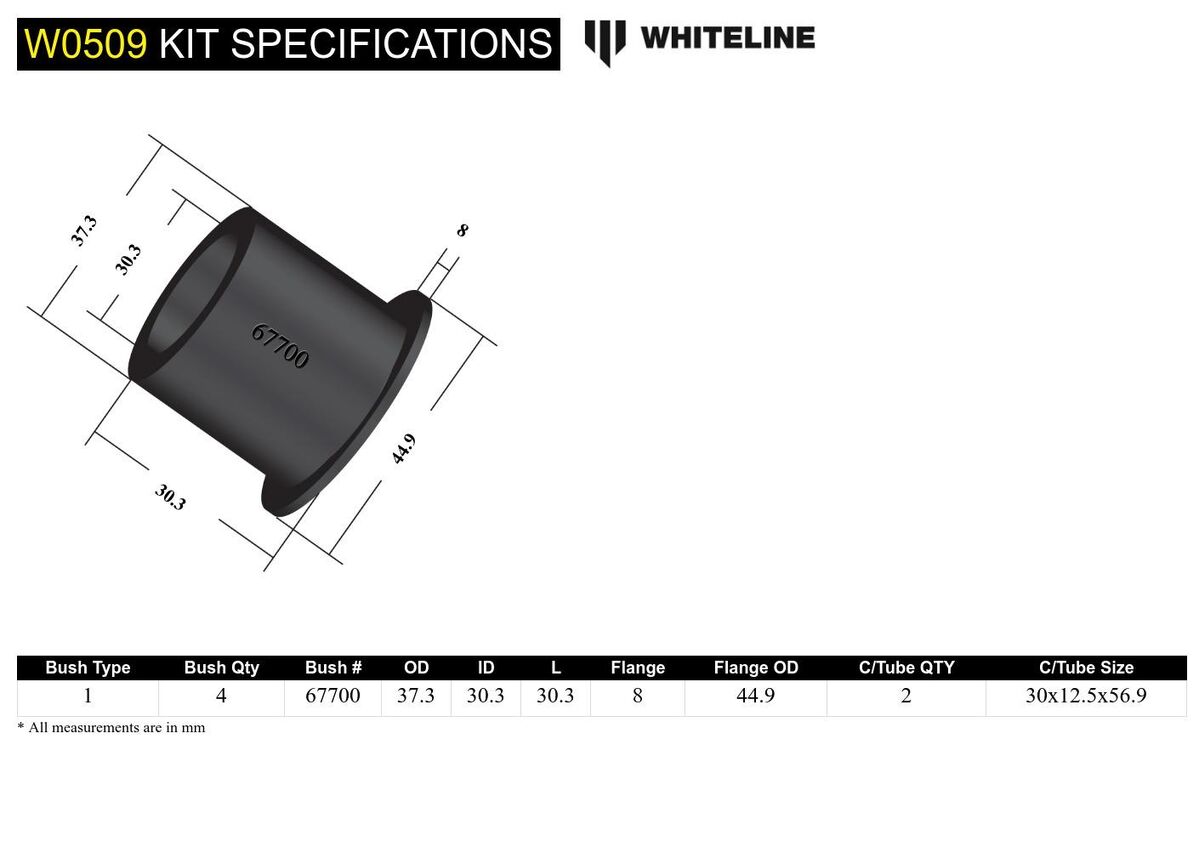

Kit Specifications

Bush Type 1 - Shackle Bushing
Bush Quantity 4 mm
OD (A) 37.3 mm
ID (B) 30.3 mm
Length (C) 30.3 mm
Flange Thickness (D) 8 mm
Flange OD (E) 44.9 mm
C/Tube Quantity 2
C/Tube ODxIDxL 30x12.5x56.9 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1
QTY 4
OD (A) 37.3
ID (B) 30.3
Length (C) 30.3
FL (D) 8
FLOD (E) 44.9
C/Tube Qty 2
C/Tube Size 30x12.5x56.9
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.271kg0.6lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW0509
Components Per4 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN9319924388493
  • Lifetime Warranty
Brand Whiteline
SKU W0509
Unit Of Measure Kit
