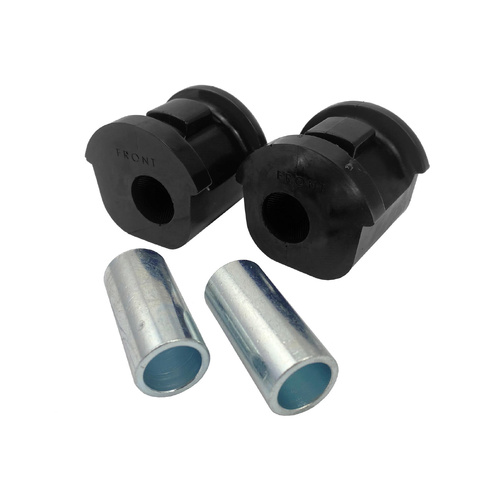

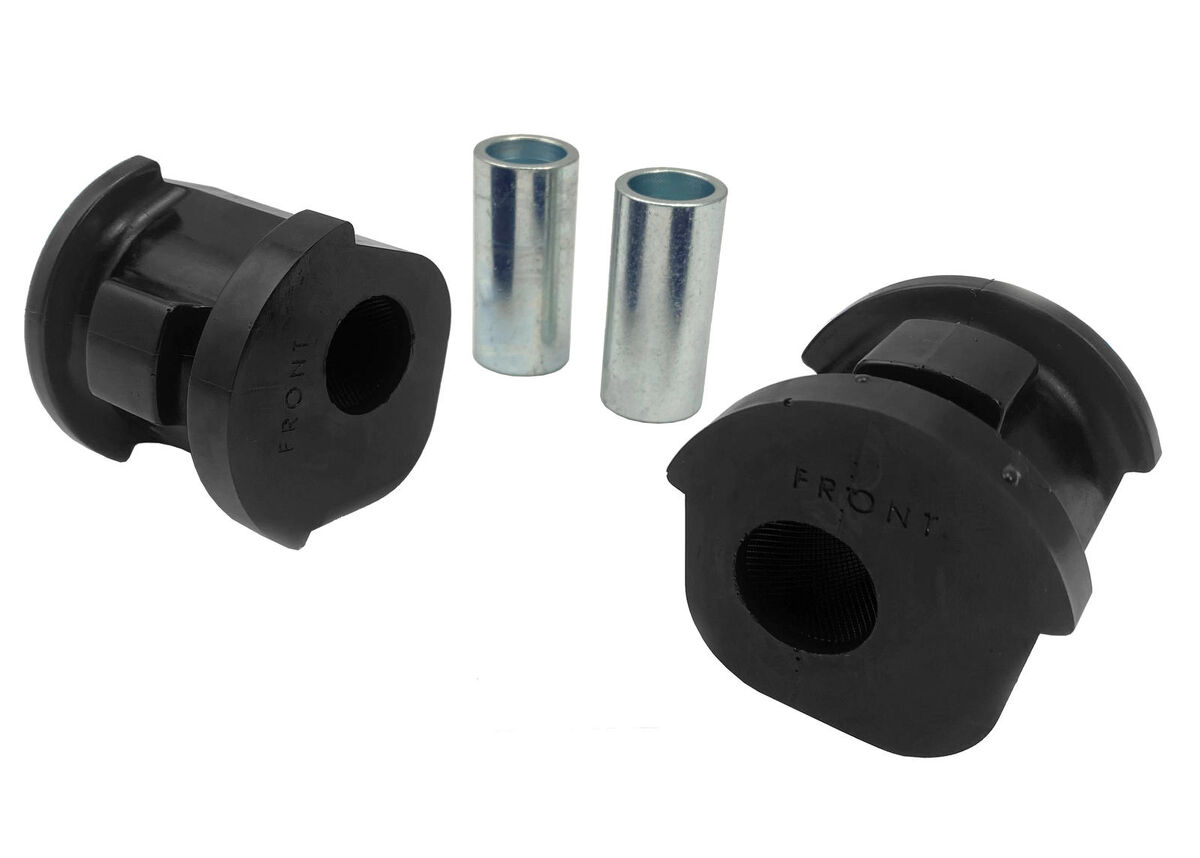

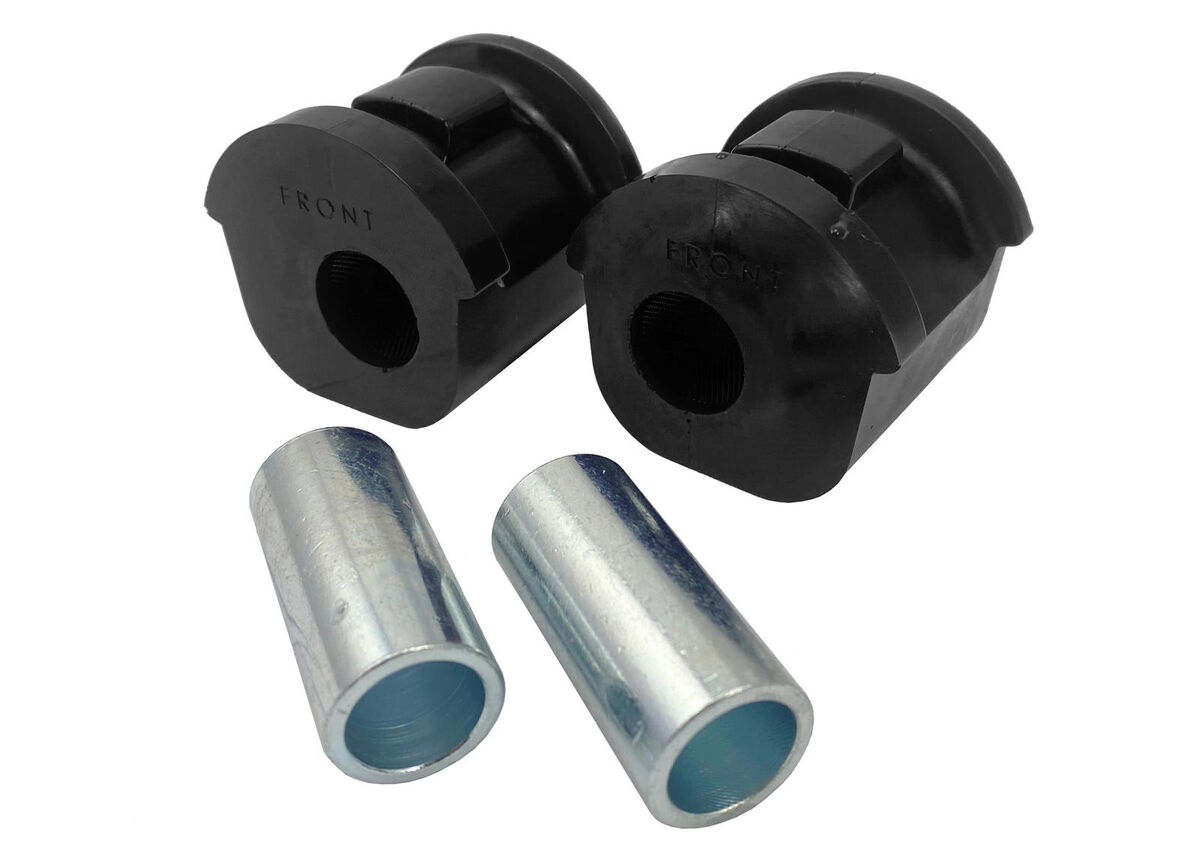

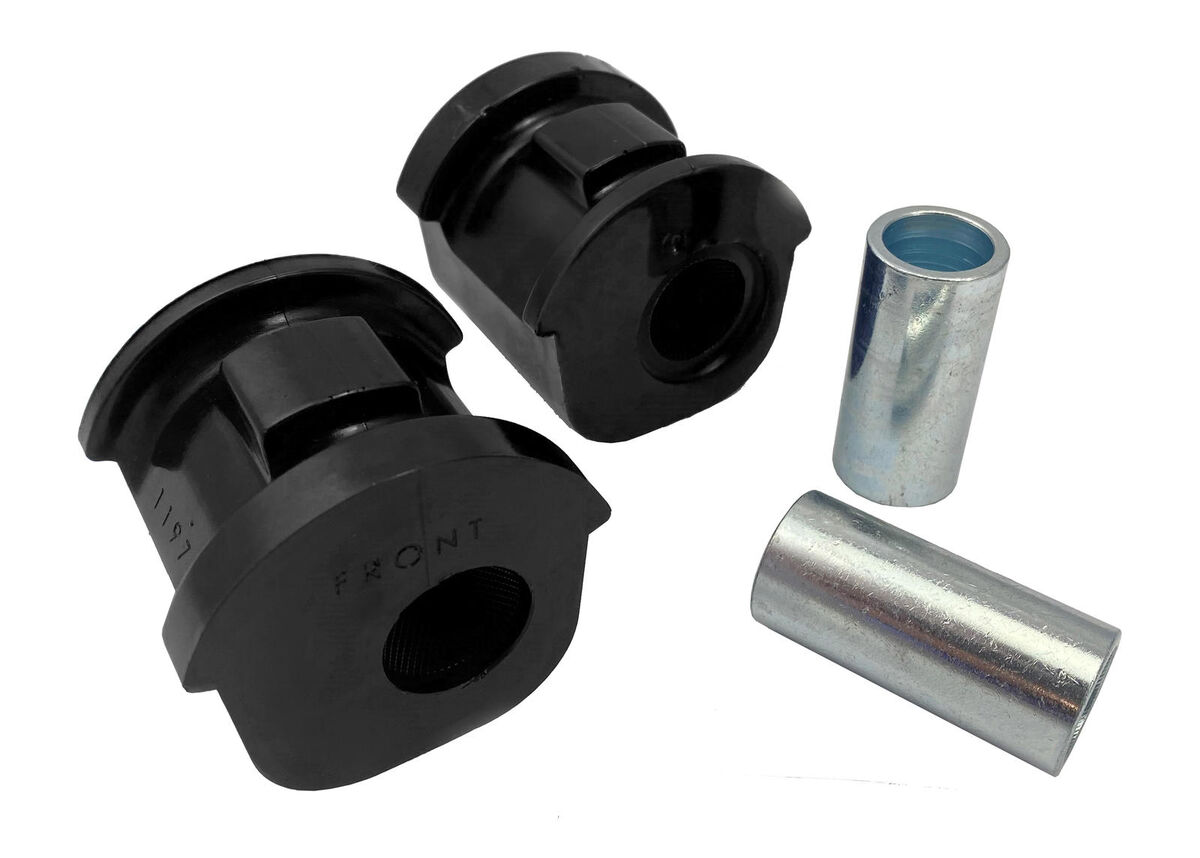

Whiteline Front Lower Control Arm - Inner Rear Bushing Double Offset Kit to Suit Hyundai Excel X3

SKU: KCA498

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.


Kit Specifications

Bush Type 20 - Misc 20 - Misc
Bush Quantity 2 mm 2 mm
OD (A) 54 mm 54 mm
ID (B) 23.5 mm 23.5 mm
Length (C) 54.5 mm 54.5 mm
Flange Thickness (D) DI=10.5 DII=5 mm DI=10.5 DII=5 mm
Flange OD (E)
C/Tube Quantity 2 2
C/Tube ODxIDxL 24x18.5x52 mm 24x18.5x52 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 20 - Misc
Bushing Type 20 - Misc
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.4kg0.88lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUKCA498
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandPerformance
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924470099
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA498
Unit Of Measure Kit
