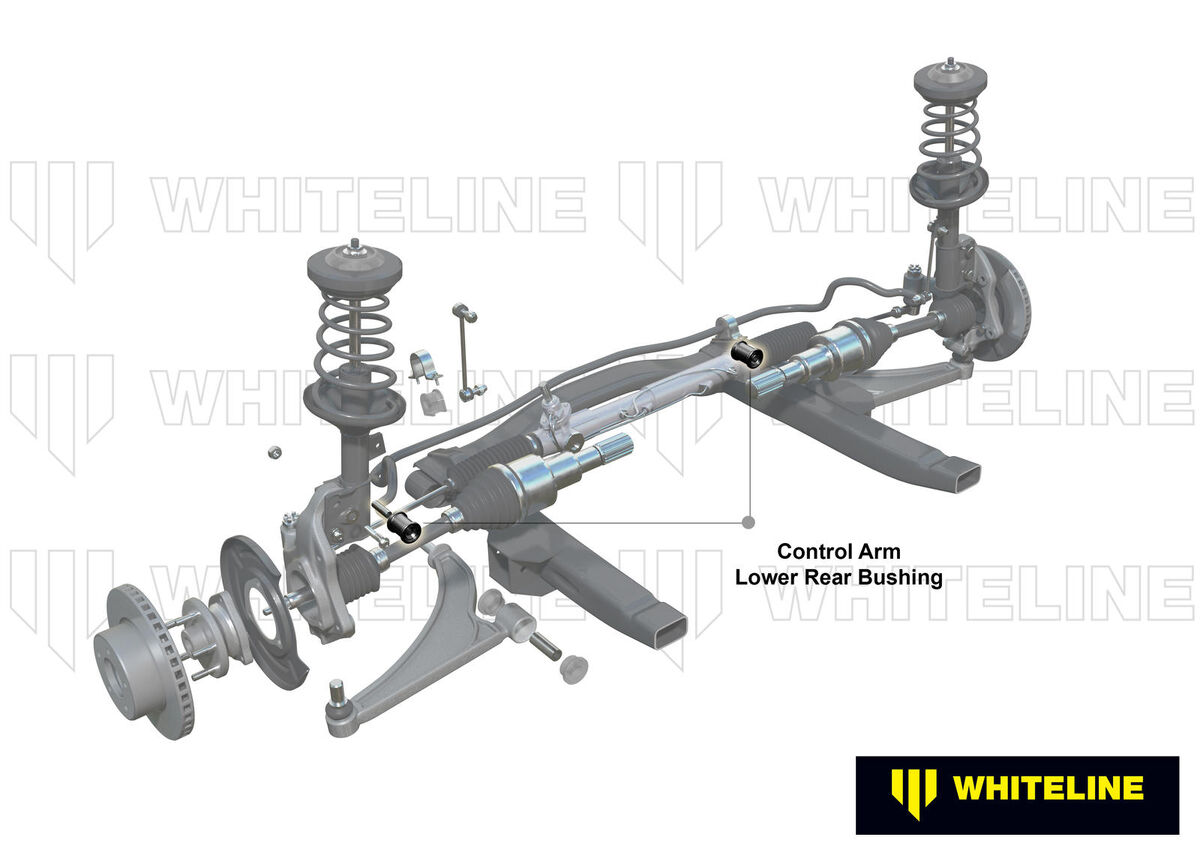

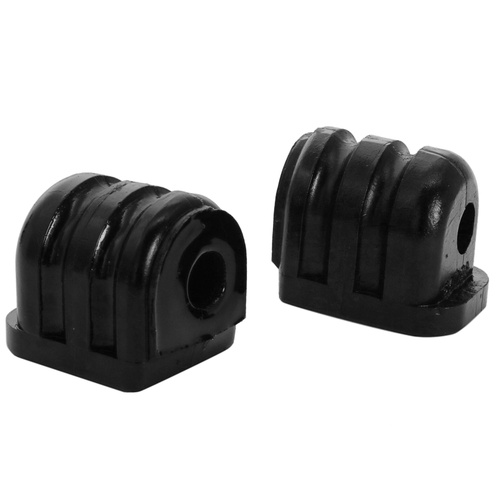

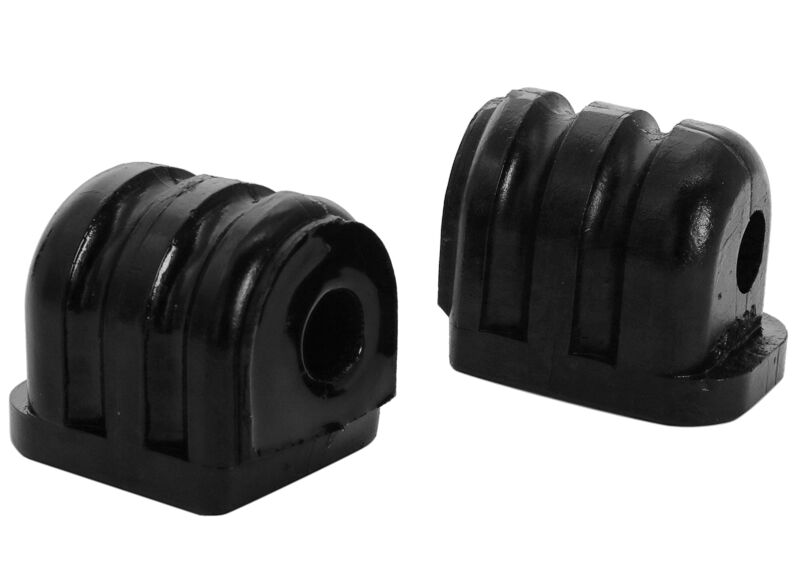

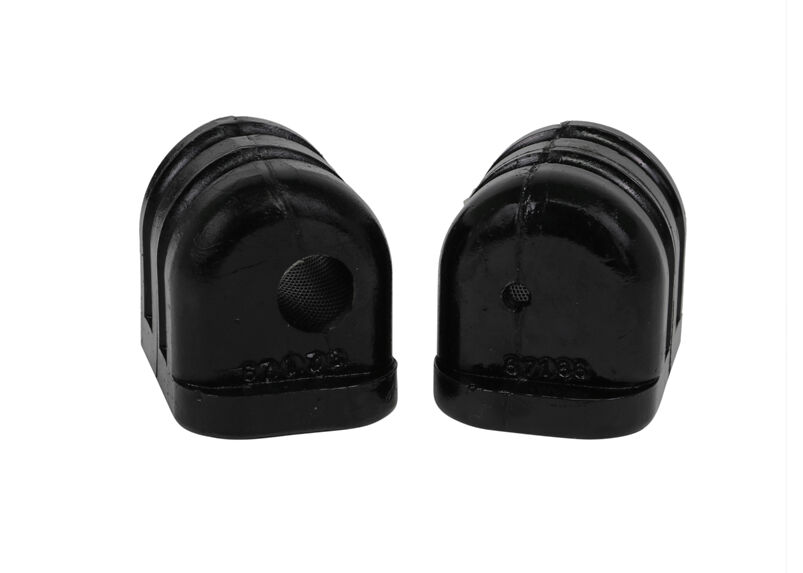

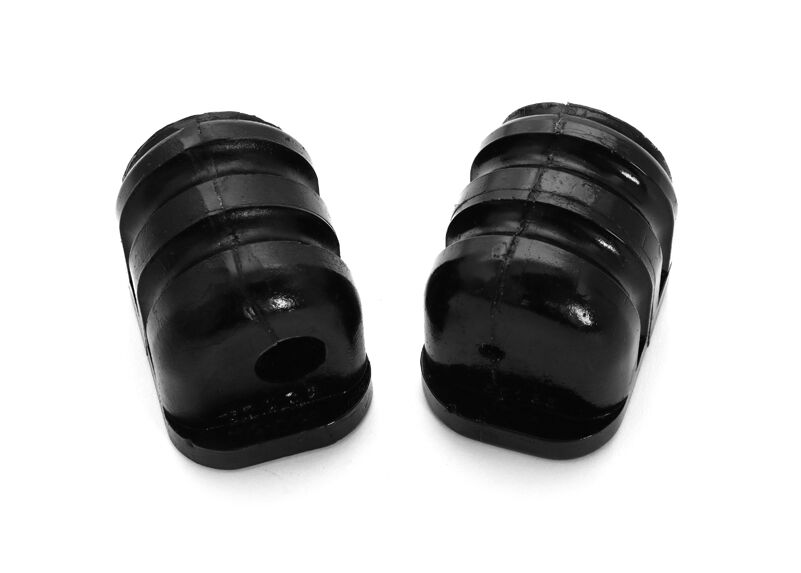

Whiteline Front Lower Control Arm - Inner Rear Bushing Double Offset Kit to Suit Nissan Bluebird, Maxima and Pulsar

SKU: KCA303

Benefit Note: Whiteline caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.

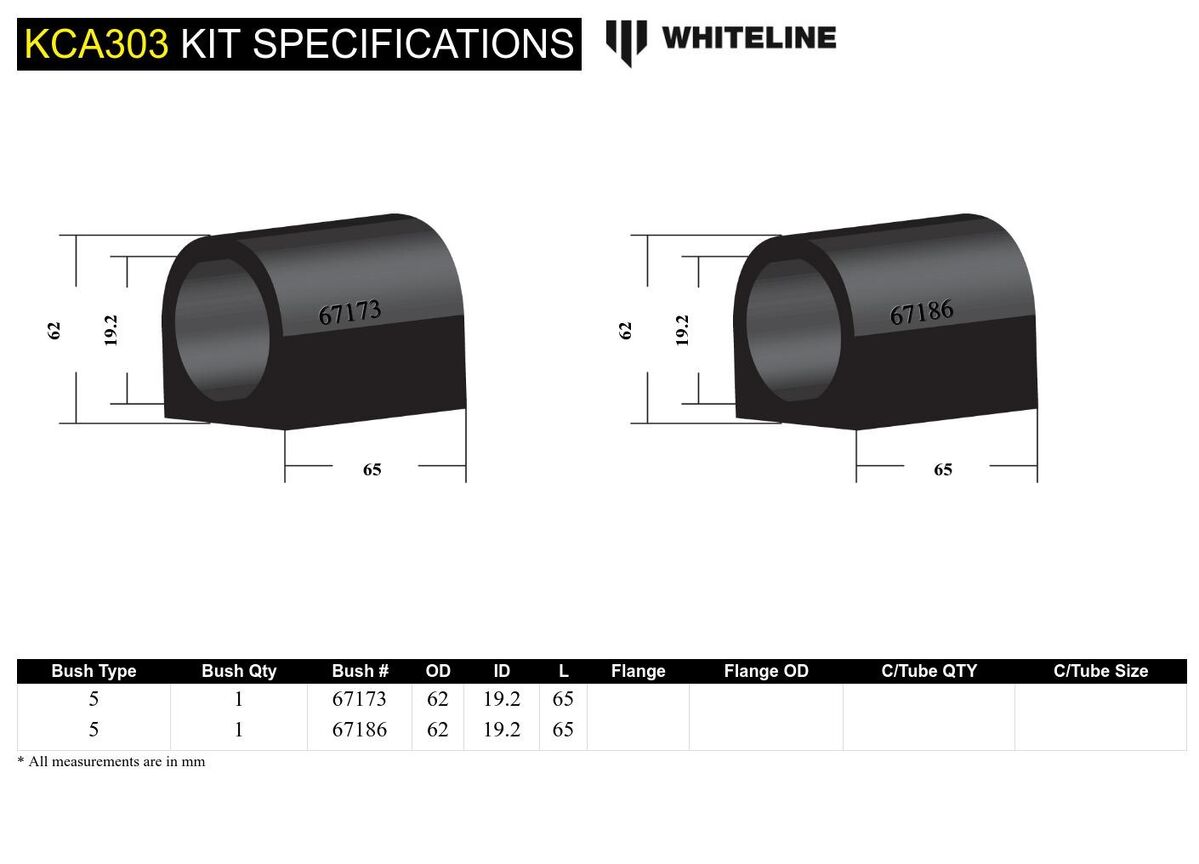

Kit Specifications

Bush Type 5 - D-bushing Without Flange 5 - D-bushing Without Flange
Bush Quantity 1 mm 1 mm
OD (A) 62 mm 62 mm
ID (B) 19.2 mm 19.2 mm
Length (C) 65 mm 65 mm
Flange Thickness (D)
Flange OD (E)
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5 - D-bushing Without Flange
Bushing Type 5 - D-bushing Without Flange
Alignment Alignment Adjustment Type Alignment On Car Adjustable
Caster Offset No
Caster Offset No

Bushing Design Dimensions (mm)

Bush Type 5 5
QTY 1 1
OD (A) 62 62
ID (B) 19.2 19.2
Length (C) 65.0 65.0
FL (D)
FLOD (E)
C/Tube Qty
C/Tube Size
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 5

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.4kg0.88lbs
Length10cm3.94"
Width26cm10.24"
Height16cm6.3"

Misc. Product Information

More Information
SKUKCA303
Components Per2 Bushings
Kits Required1
Sub brandPerformance
Product NoteEnsures long-lasting durability, matter matter the purpose; the perfect, complete upgrade. Includes: 2 Bushings
EAN9319924325368
  • 3 years warranty or up to 60,000km
Brand Whiteline
SKU KCA303
Unit Of Measure Kit
