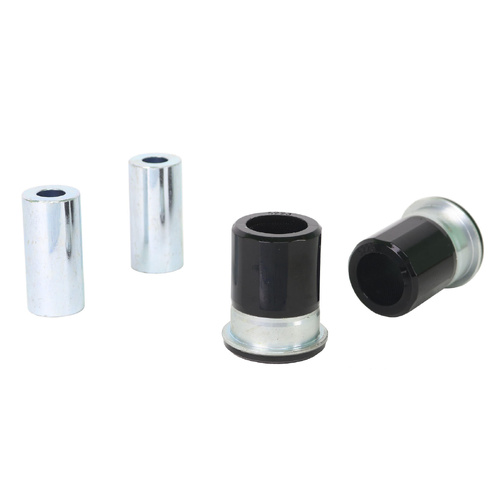

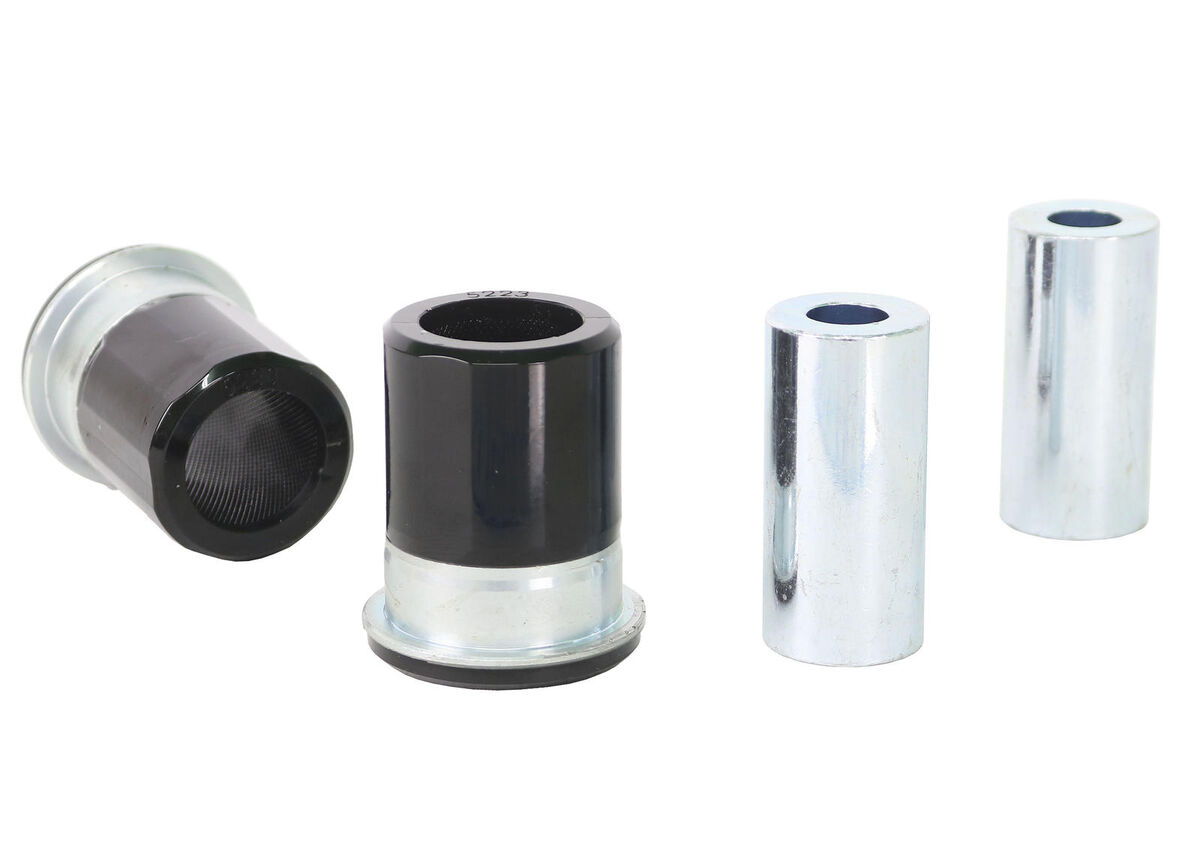

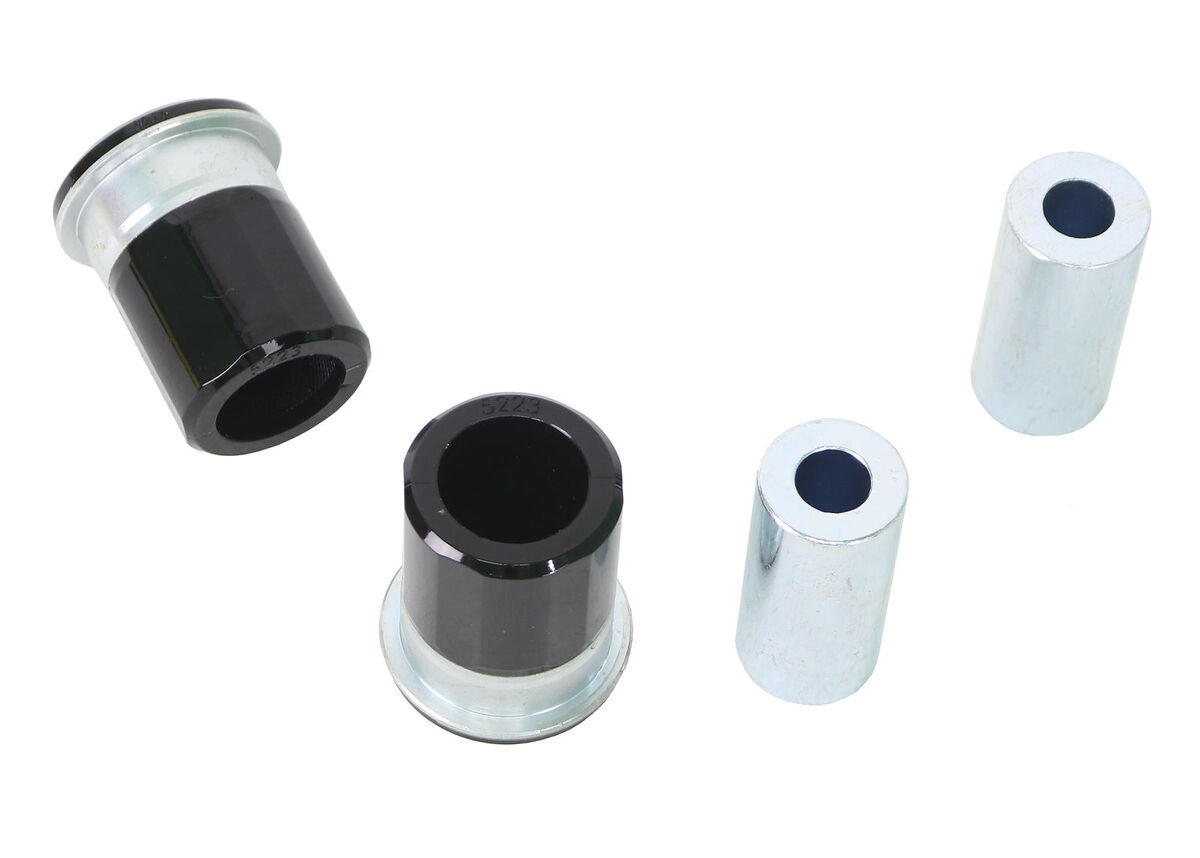

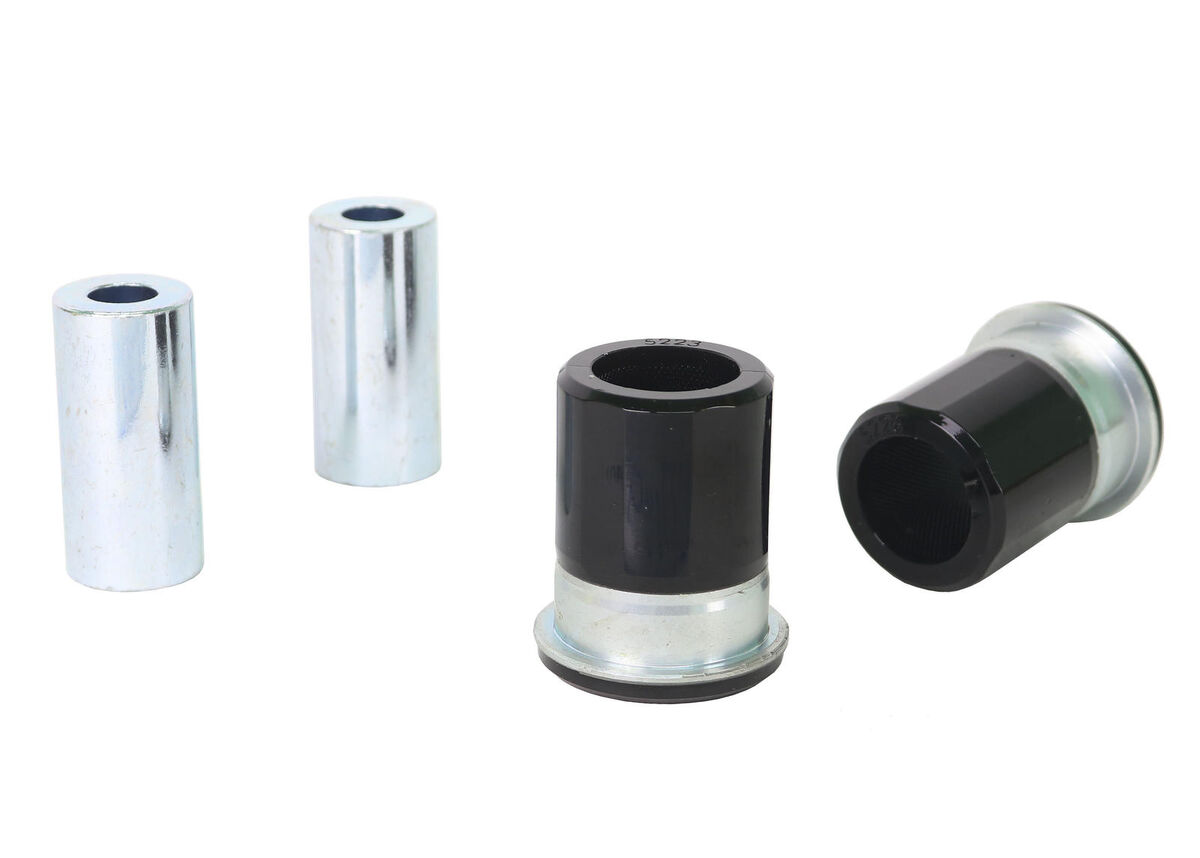

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Mazda MX-5 ND

SKU: W56413

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 17 - Shell With Flange Bushing
Bush Quantity 2 mm
OD (A) 41.7 mm
ID (B) 28.5 mm
Length (C) 59.7 mm
Flange Thickness (D) 7 mm
Flange OD (E) 50 mm
C/Tube Quantity 2
C/Tube ODxIDxL 28.5x14.3x60 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17 - Shell With Flange Bushing

Bushing Design Dimensions (mm)

Bush Type 17
QTY 2
OD (A) 41.7
ID (B) 28.5
Length (C) 59.7
FL (D) 7
FLOD (E) 50
C/Tube Qty 2
C/Tube Size 28.5x14.3x60
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 17

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.61kg1.34lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW56413
Components Per2 Shell Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteMaximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 2 Tubes
EAN9319924471249
  • Lifetime Warranty
Brand Whiteline
SKU W56413
Unit Of Measure Kit
