Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Mazda CX-5, Mazda3 and Mazda6

SKU: W53635

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

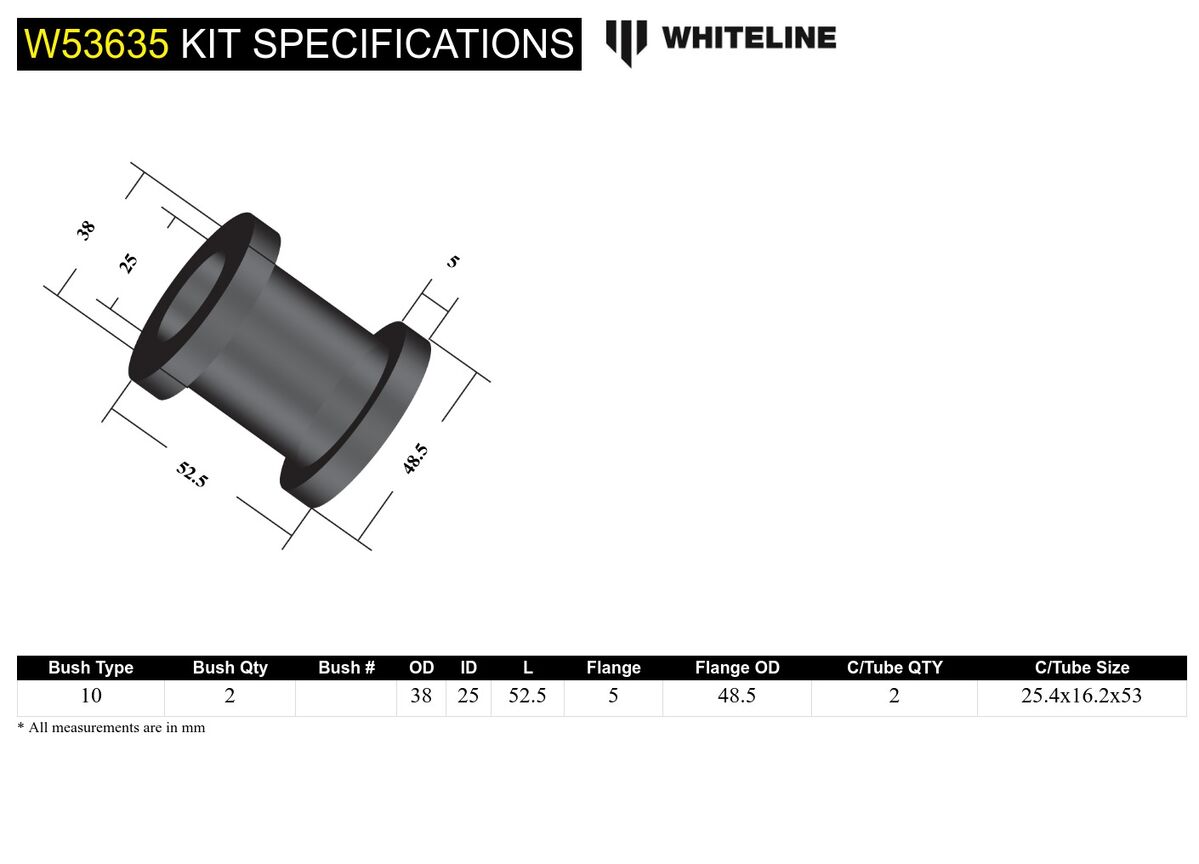

Kit Specifications

Bush Type 10 - Cotton Reel With & Without Tapper Bushing
Bush Quantity 2 mm
OD (A) 38 mm
ID (B) 25 mm
Length (C) 52.5 mm
Flange Thickness (D) 5 mm
Flange OD (E) 48.5 mm
C/Tube Quantity 2
C/Tube ODxIDxL 25.4x16.2x53 mm
Similar Bushing Size Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10 - Cotton Reel With & Without Tapper Bushing

Bushing Design Dimensions (mm)

Bush Type 10
QTY 2
OD (A) 38
ID (B) 25
Length (C) 52.5
FL (D) 5
FLOD (E) 48.5
C/Tube Qty 2
C/Tube Size 25.4x16.2x53
Similar Bushings Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 10

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.36kg0.79lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53635
Components Per2 Bushings, 2 Tubes
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 2 Bushings, 2 Tubes
EAN9319924457700
  • Lifetime Warranty
Brand Whiteline
SKU W53635
Unit Of Measure Kit
