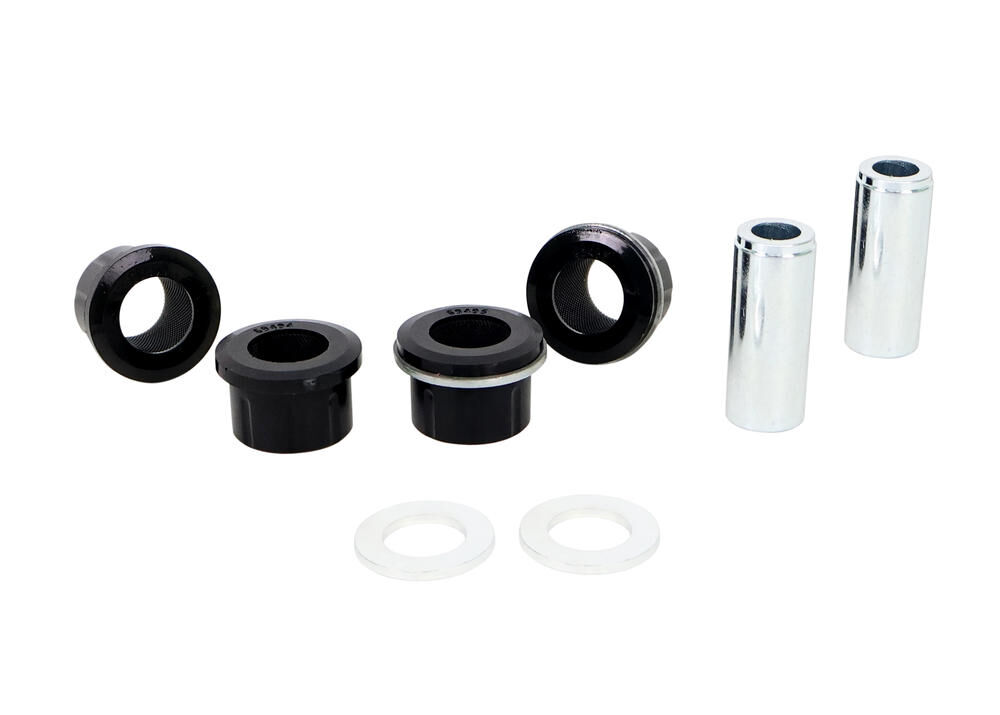

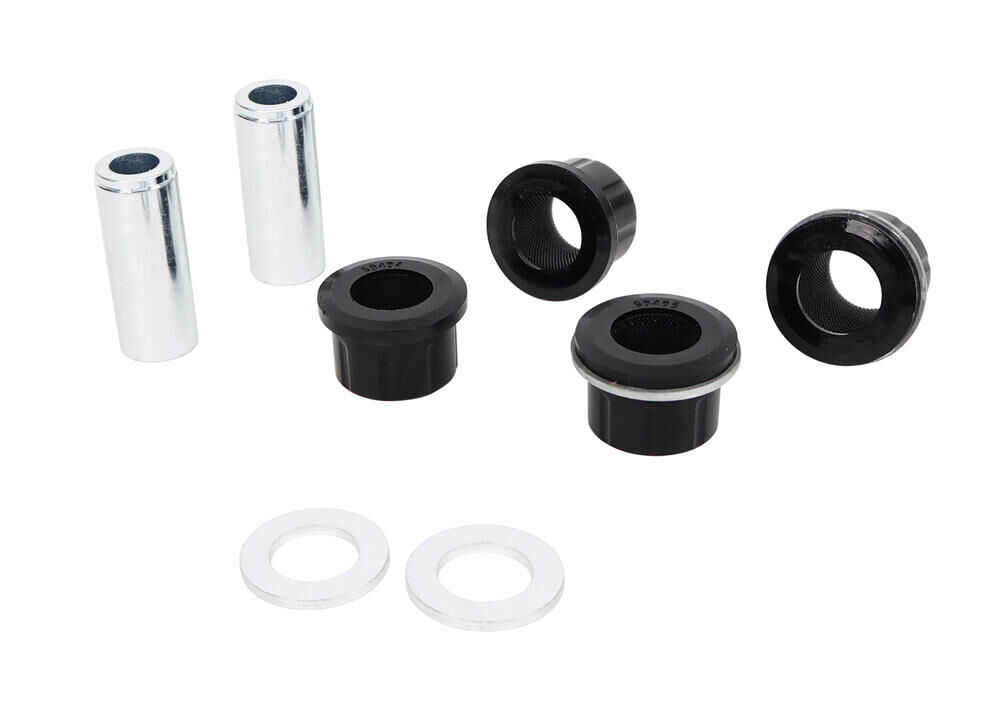

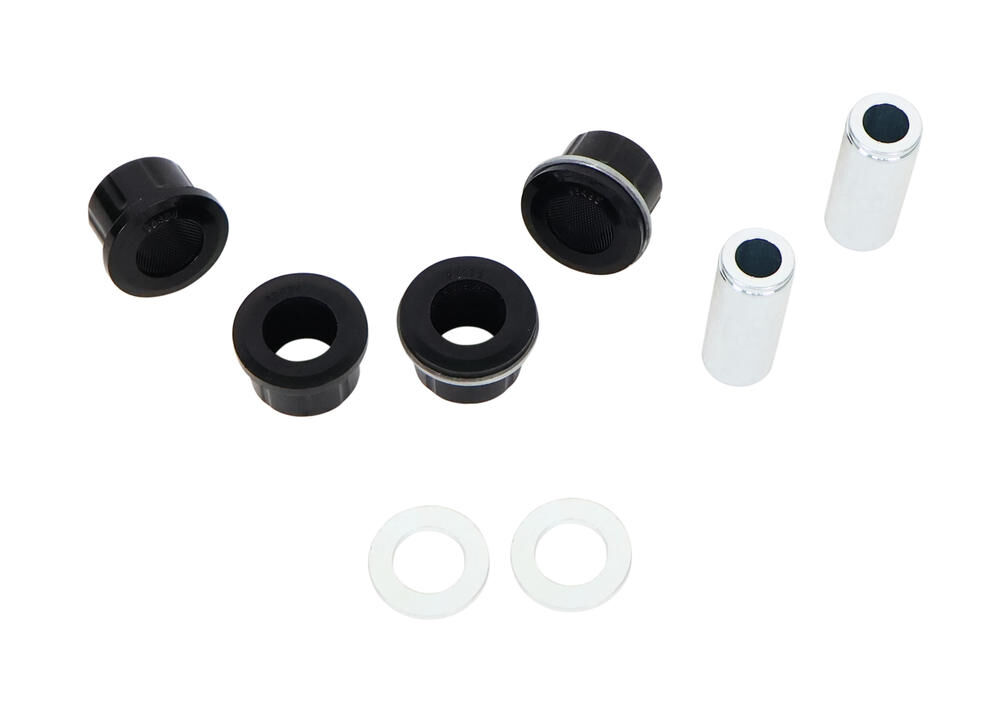

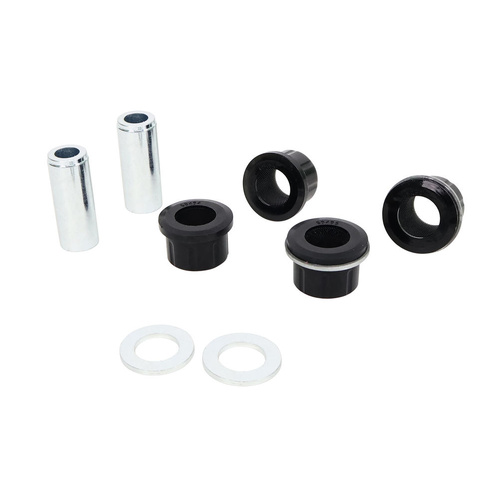

Whiteline Front Lower Control Arm - Inner Front Bushing Kit to Suit Honda Civic 10th Gen FC, FK

SKU: W53618

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.


Kit Specifications

Bush Type 1 - Shackle Bushing 1 - Shackle Bushing
Bush Quantity 2 mm 2 mm
OD (A) 36 mm 36 mm
ID (B) 23.8 mm 23.8 mm
Length (C) 26 mm 26.75 mm
Flange Thickness (D) 8 mm 5.75 mm
Flange OD (E) 43 mm 43 mm
C/Tube Quantity 2 2
C/Tube ODxIDxL 24-22.5x14.3x60 mm 24-22.5x14.3x60 mm
Similar Bushing Size Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1 - Shackle Bushing
Bushing Type 1 - Shackle Bushing

Bushing Design Dimensions (mm)

Bush Type 1 1
QTY 2 2
OD (A) 36 36
ID (B) 23.8 23.8
Length (C) 26.0 26.8
FL (D) 8 5.75
FLOD (E) 43 43
C/Tube Qty 2 2
C/Tube Size 24-22.5x14.3x60 24-22.5x14.3x60
Similar Bushings Click Here Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Bushing Type 1

Packaged Weight and Dimensions

Unitscm/kgin/lbs
Weight0.45kg0.99lbs
Length7cm2.76"
Width20cm7.87"
Height14cm5.51"

Misc. Product Information

More Information
SKUW53618
Components Per4 Bushings, 2 tubes, 2 Washers
Kits Required1
Sub brandReplacement
Product NoteGreatly increases control and confidence; the perfect, complete upgrade. Includes: 4 Bushings, 2 tubes, 2 Washers
EAN9319924465736
  • Lifetime Warranty
Brand Whiteline
SKU W53618
Unit Of Measure Kit
