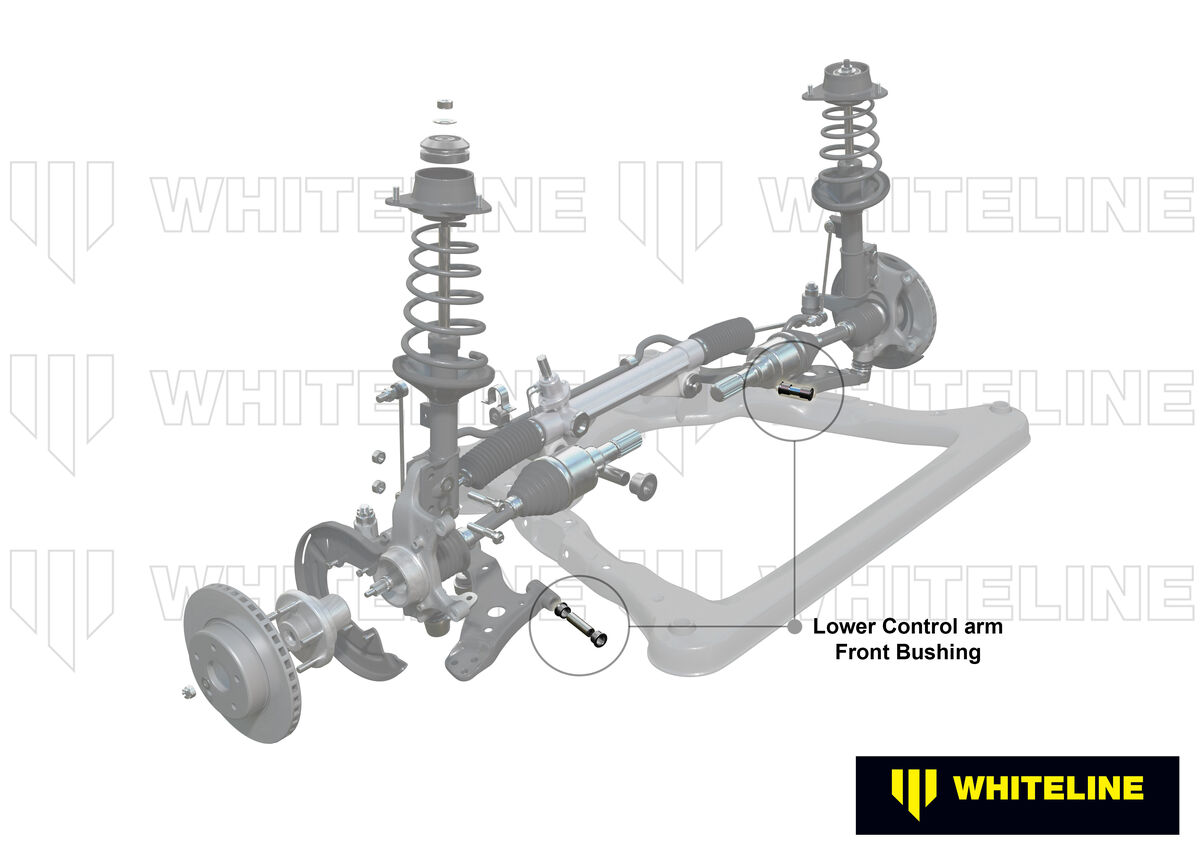

Benefit Note: Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to as new condition utilising Whiteline's advanced synthetic elastomer bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.

Kit Specifications

Bush Type	1 - Shackle Bushing	6 - Male/female Interconnecting Bushing
Bush Quantity	2 mm	2 mm
OD (A)	AI=39.45 AII=33 mm	33 mm
ID (B)	21.7 mm	21.7 mm
Length (C)	70.1 mm	25.8 mm
Flange Thickness (D)	44.3 mm	25 mm
Flange OD (E)	49.3 mm	49.3 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	22.2x12.2x70 mm	22.2x12.2x70 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

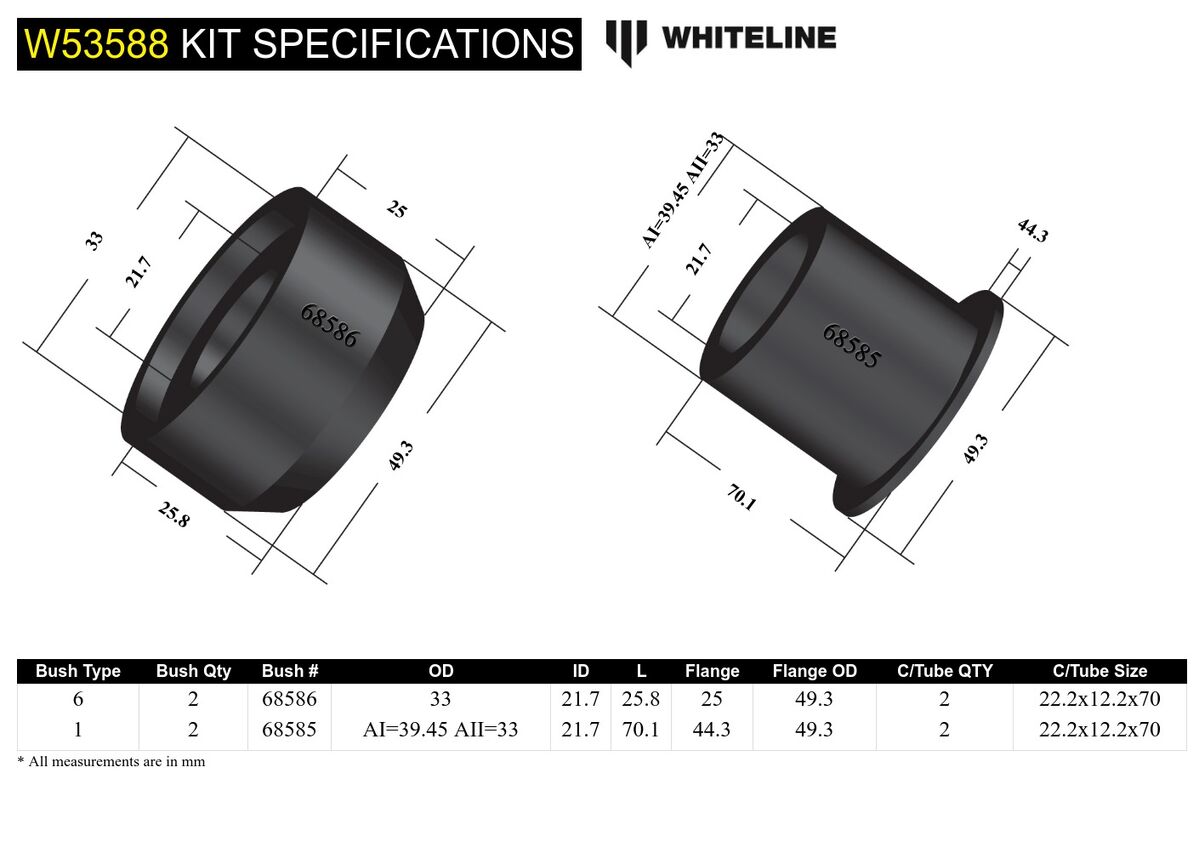

Bushing Design Dimensions (mm)

Bush Type	1	6
QTY	2	2
OD (A)	AI=39.45 AII=33	33
ID (B)	21.7	21.7
Length (C)	70.1	25.8
FL (D)	44.3	25
FLOD (E)	49.3	49.3
C/Tube Qty	2	2
C/Tube Size	22.2x12.2x70	22.2x12.2x70
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	0.49kg	1.08lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information

SKU	W53588

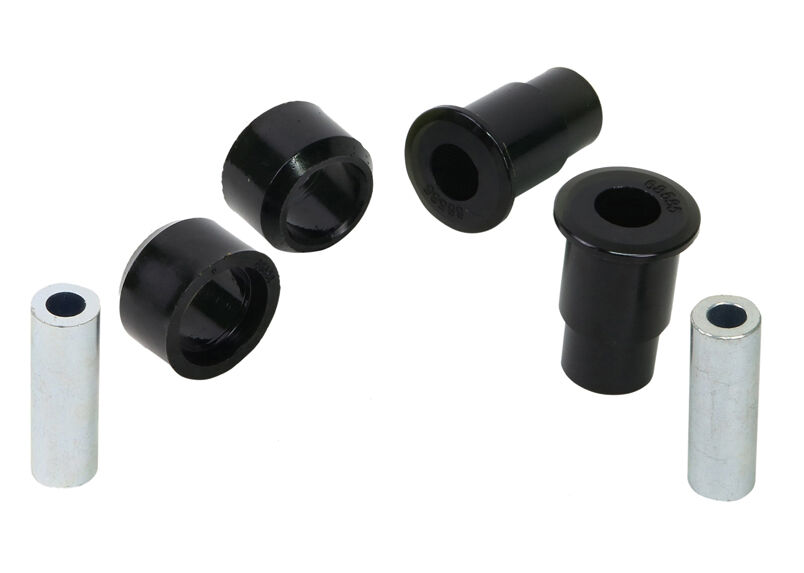

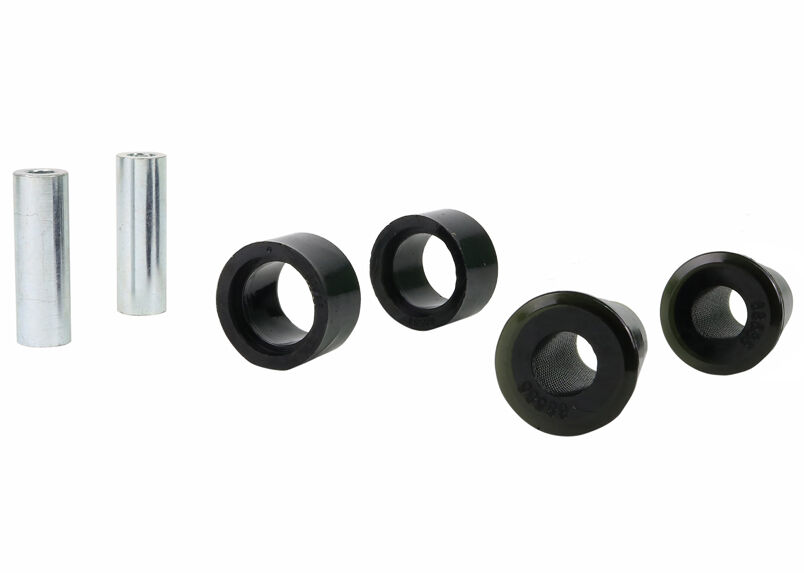

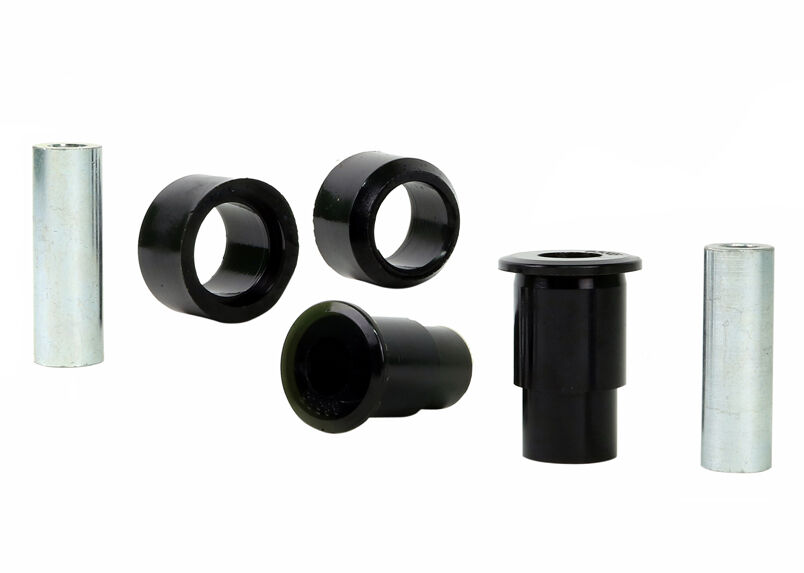

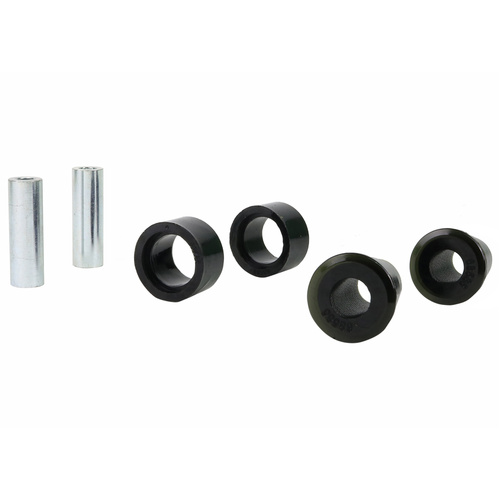

Components Per	4 Bushings, 2 Tubes
Kits Required	1
Sub brand	Replacement
Product Note	Enhances steering response, delivering sharper handling and more predictable vehicle dynamics; the perfect, complete upgrade. Includes: 4 Bushings, 2 Tubes
EAN	9319924404735
